NuTone NC300AL Installation Instructions

nc300 cd changer

installation

read and save these instructions

caution
to reduce the risk of fire, electric shock, or
injury to persons, observe the following:
1. Read all instructions carefully before installing or using the
NM200 or NM100 Systems.
2. The NC300 must be installed by a qualified dealer or installer,
and must conform to all local building and electrical codes.
3. For continuous protection against risk of fire, replace the
fuses in the CD changer only with the same type 2 Amp,
250 Volt fuses.
4. Adhere to all warnings on the NC300 and in these instructions.
Follow all operating and installation instructions.
warning
these installation and servicing instructions
are for use by qualified personnel only. to
reduce the risk of electric shock, do not
perform any servicing other than that contained
in the operating instructions unless you are
qualified to do so.
• Do not attempt to service the NC300 yourself as opening or
removing covers may expose you to dangerous voltage
or other hazards. Refer all servicing to qualified service
personnel.
The lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude to
constitute a risk of shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the product.
• Install the NC300 system after the application of wall covering
material.
• Do ensure that all rough-in instructions have been followed
before power is applied to the NM200 or NM100 system.
• Do not over-tighten the screws for the NC300 CD player as
the plastic face panels may crack or strip out.
• Use only NuTone certified replacement parts and have
them installed by a NuTone dealer or installer. Unauthorized
substitutions can result in fire, electric shock, or other
hazards.
• Upon completion of any service or product repair, have the
NuTone dealer or installer conduct a safety check to ensure
the system is in proper operating condition.
• Use only a damp cloth to clean the NC300 CD player. Do not
use liquid cleaners or aerosol cleaners.
models nc
installation
To ensure that the homeowner receives the high-quality music
and voice reproduction that the system is designed to deliver, it
is important that each step of the installation be done carefully.
In the event you need troubleshooting assistance, please call
our technical staff at 1-888-336-6151.
The installation of the NC300 should be made after the
application of wall covering material. These instructions should
be used in conjunction with the NM200/NM100 master unit's
installation instructions. The NC300 should be installed prior to
the installation of the NM200/NM100 master.
Tools required:
• #2 Phillips screwdriver
Connect the audio cables to the audio jacks of the NC300
player. Note: These cables will be connected to the NM200/
NM100 master upon installation of the master. The audio cables
are shipped with the NC300 CD changer.
After connecting the audio cables connect the power cord
from the NA200TA transformer to the power connector on the
NC300.

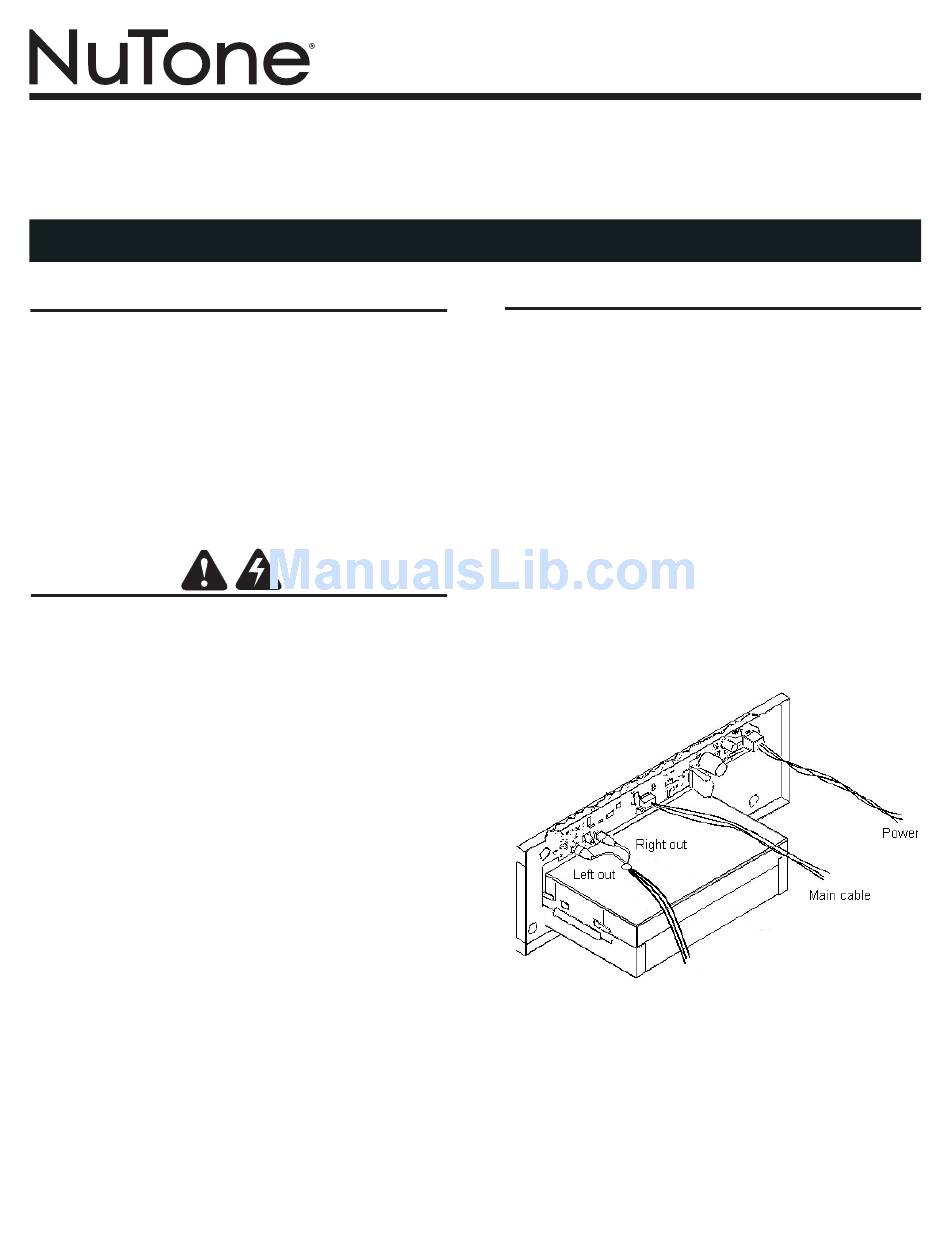

Position the Main Cable (CD changer to master interface cable)
and the left and right audio cables from the CD changer into the
upper portion of the rough-in. When the NM200/NM100 master
station is installed, connect the cables to the master station as
shown in the next figure.
300 • 300
wh nc al
