NuTone AVD50N Instruction Manual

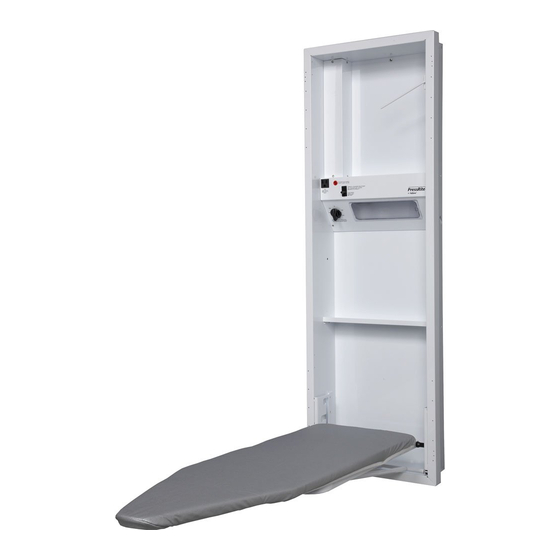

BUILT-IN IRONING CENTER
READ AND SAVE THESE INSTRUCTIONS
WARNING
AVD45 and AVD50 Series Only
ALL ELECTRICAL WORK MUST BE DONE IN ACCORDANCE WITH
LOCAL AND/OR NATIONAL ELECTRICAL CODES AS APPLICABLE.
FOR SAFETY, THIS PRODUCT MUST BE GROUNDED. IF YOU ARE
UNFAMILIAR WITH METHODS OF IN STALLING ELECTRICAL WIRING,
SECURE THE SERVICES OF A QUALIFIED ELECTRICIAN.
The ironing center should be installed on a SEPARATE 15 amp circuit to
prevent circuit overload.
TURN OFF POWER AT SERVICE ENTRANCE BEFORE INSTALLING
WIRING OR SERVICING THIS PRODUCT.
1. Do not place EXCESSIVE WEIGHT (weight should not exceed 30 pounds)
on the ironing board when opened as it is designed to accept normal ironing
use only.
2. Allow iron to cool down before storing in the cabinet.
3. Empty water reservoir and turn off steam action prior to storing iron.
4. Turn power off when not in use.
5. Do not remove the board retainer.
6. The appliance is supplied with approved components and wires which must
not be changed. If any components or wires of this equipment is damaged, it
must only be replaced by the manufacturer, service agent or similarly quali-
fied person in order to avoid hazard.
7. This unit may be installed as a surface mount. If installed in this manner, you
MUST USE the Surface Mount Collar Assembly (AVDSMN). See instructions
included with Assembly, for mounting by this method.

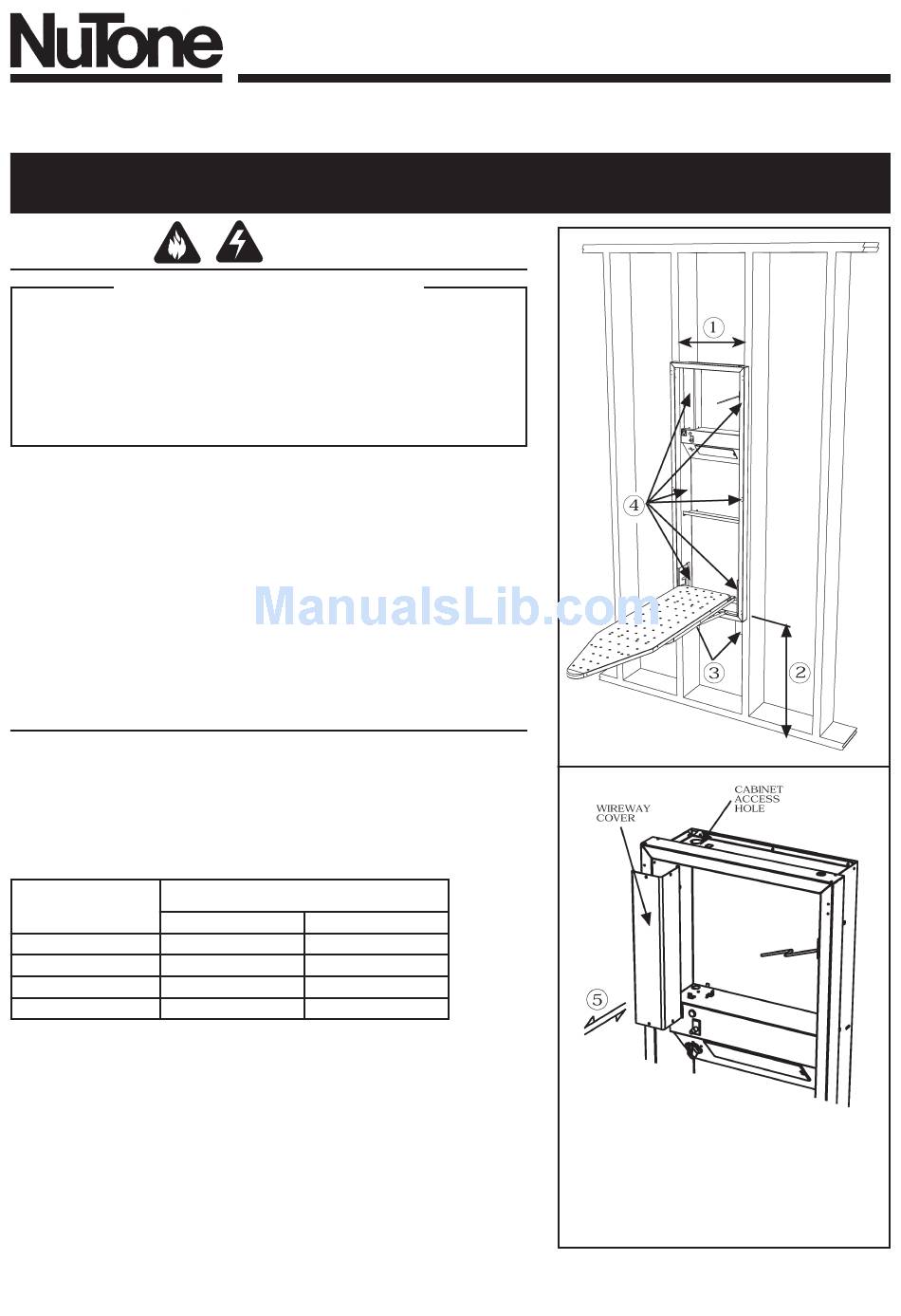

INSTALLATION
1. DETERMINE WALL OPENING.
The NuTone Ironing Centers are designed to fit between standard 16" on-center
wall studs. A 49-1/4 " x 14-1/8 "x 3-7/8" deep opening is required. 24" on-center
studs will require framing to proper opening size.
2. DETERMINE DISTANCE ABOVE THE FLOOR.
Use the following chart to determine the recommended wall opening above
the floor:
Wall Opening
Above the Floor
AVD40/45 Series
24"
28"
30"
32"
3. ATTACH CLEATS.
Fasten 2x4 cleats to wall studs to provide a level surface on which to rest
cabinet.
4. MOUNT CABINET.
Lift cabinet into place and attach it to studs using the six supplied screws.
Mounting holes positions are indicated by the arrows. On AVD45 and AVD50
Series models, remove the wireway cover to access mounting hole. Be sure to
allow for wall covering thickness behind cabinet face frame. Plumb and shim
cabinet to fit.
5. CONNECT WIRING (Fig. 2)
Remove wireway cover. Bring house wiring into cabinet access hole and attach
wiring to cabinet with an approved wire strain relief. Connect black to black,
white to white and green/bare wire from house wiring to ground fixing terminal
at the top end of the cabinet. Replace cover.
®
(Fig. 1)
Working Height
AVD50 Series
30" 29"-30½"-32½"
34" 33"-34½"-36½"
36" 35"-36½"-38½"
38" 37"-38½"-40½"
(AVD45 & AVD50 Series only)
MODELS AVD40N • AVD40KN • AVD40WN
AVD45N • AVD45KN • AVD45WN • AVD50N
Fig. 1
CAUTION: DO NOT ALLOW WIRE TO EX-
TEND OUTSIDE OF WIRING BOX. EXPOSED
WIRES CAN BECOME PINCHED AND ELEC-
TRICAL SHOCK HAZARD MAY RESULT.
Fig. 2
