NuTone IM-440 Series Installation Instructions Manual

NuTone IM-440 Series Installation Instructions Manual

Am/fm radio/cd player intercom system
Hide thumbs
Table of Contents

Advertisement

Quick Links

AM/FM
RADIO/CD PLAYER
INTERCOM SYSTEM
MODEL: IM-4406 SERIES MASTER STATION

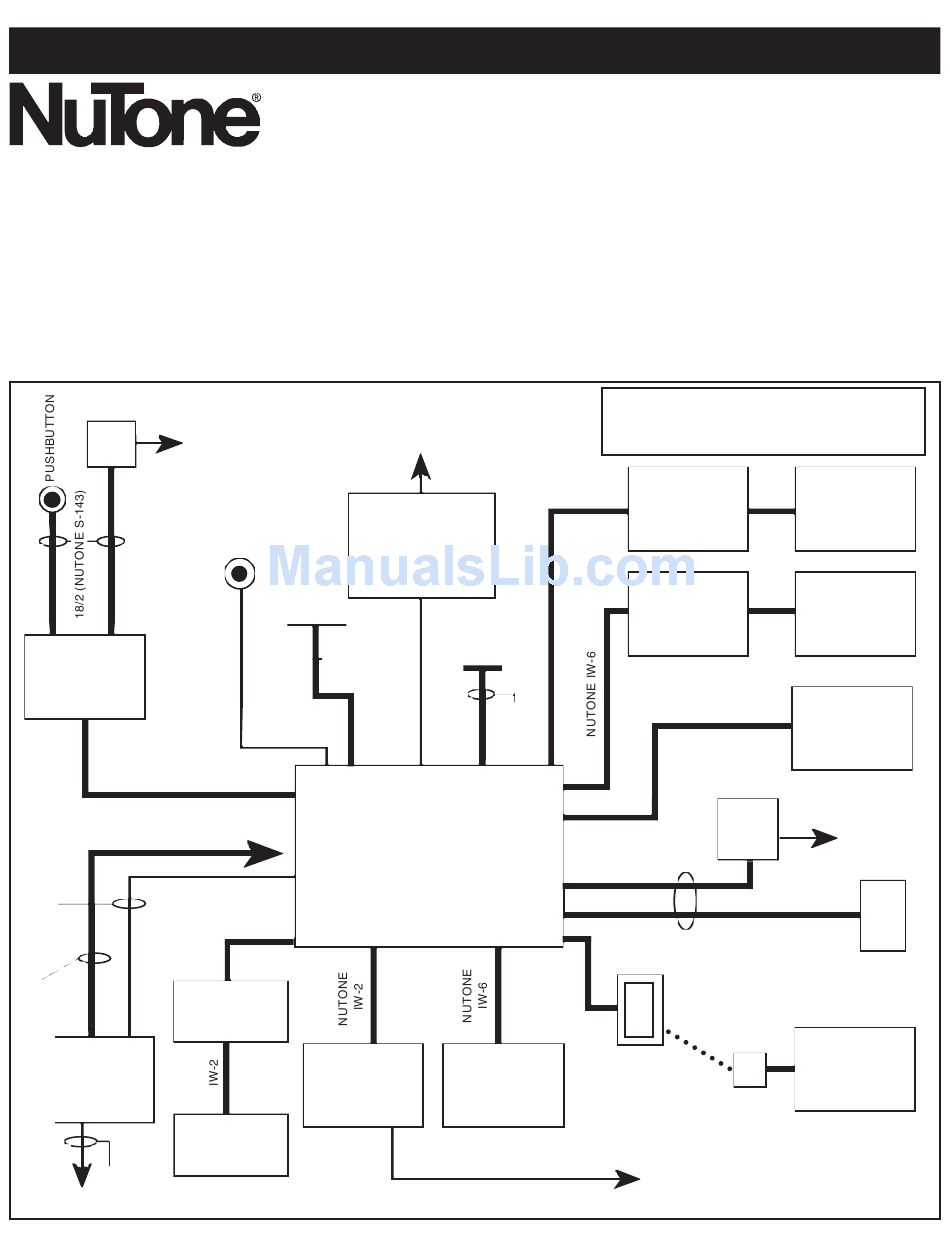

IM-4406 SERIES REPRESENTATIVE WIRING ILLUSTRATION
NUTONE CHIME
TRANSFORMER
LOCAL CODE)
PUSHBUTTON FOR
OPTIONAL CHIME
OPTIONAL
ELECTRONIC
DOOR CHIME
200´ MAX
NUTONE
IW-2
14 GA
GROUND
SHIELDED
DISTRIBUTION
AUDIO
CABLES
OPTIONAL
MUSIC
SOURCE
DISTRIBUTION
120V. 60HZ (CLASS 1)
(OBSERVE LOCAL CODE)
14/2 WITH GROUND
(OBSERVE LOCAL CODES)
120V 60HZ
120V 60HZ (CLASS 1)
(CLASS 1)
(OBSERVE
TRANSFORMERS
MODULE
INSIDE
ANTENNA
ATTIC
300´ MAX
NUTONE IW-2

MASTER STATION

IW-2
MUSIC
VOLUME
CONTROL
DOOR
SPEAKER
MUSIC
SPEAKER
This booklet contains information for installing the master
station. All system wiring and rough-in frames should be
installed before mounting and wiring the master station.
Refer to the installation instructions packaged with the
rough-in frames for detailed wiring information. For more
detailed information on wiring and mounting other system
components (i.e., speaker, remote control, etc.), refer to the
installation instructions packaged with each separate
component.
NUTONE
IW-6
(2) 801T
SECONDARY:
18V, 72VA
EARTH
GROUND
14 GA
IM-4406
5˝ PATIO
SPEAKER
W/CONTROLS
300´ MAX
INSTRUCTIONS
Use this diagram for reference only.
See IR-105 Rough-in frame instructions
for detailed wiring.
OUTSIDE
REMOTE
CONTROL
INSIDE
REMOTE
CONTROL
IW-6
TRANSFORMER
301T
100´ MAX S-143
100´ MAX S-143
OPTIONAL WIRING
FOR DOOR
RELEASE
IA-6C
RECEPTACLE
IA-6
PLUG
DOOR SPEAKER MODELS WITH CHIME
PUSHBUTTON ALSO REQUIRE 18/2 (S-143)
TO CHIME LOCATION OR IW-2 TO MASTER
IF CHIME MODULE IS USED.
INSTALLATION
IW-2
OUTSIDE
SPEAKER
IW-2
INSIDE
SPEAKER
INSIDE
SPEAKERS
W/CONTROLS
120V 60HZ
(CLASS 1)
(OBSERVE
LOCAL CODE)
DR-1/DR-2
DOOR RELEASE
DESKTOP
FRAME WITH 5˝
REMOTE
