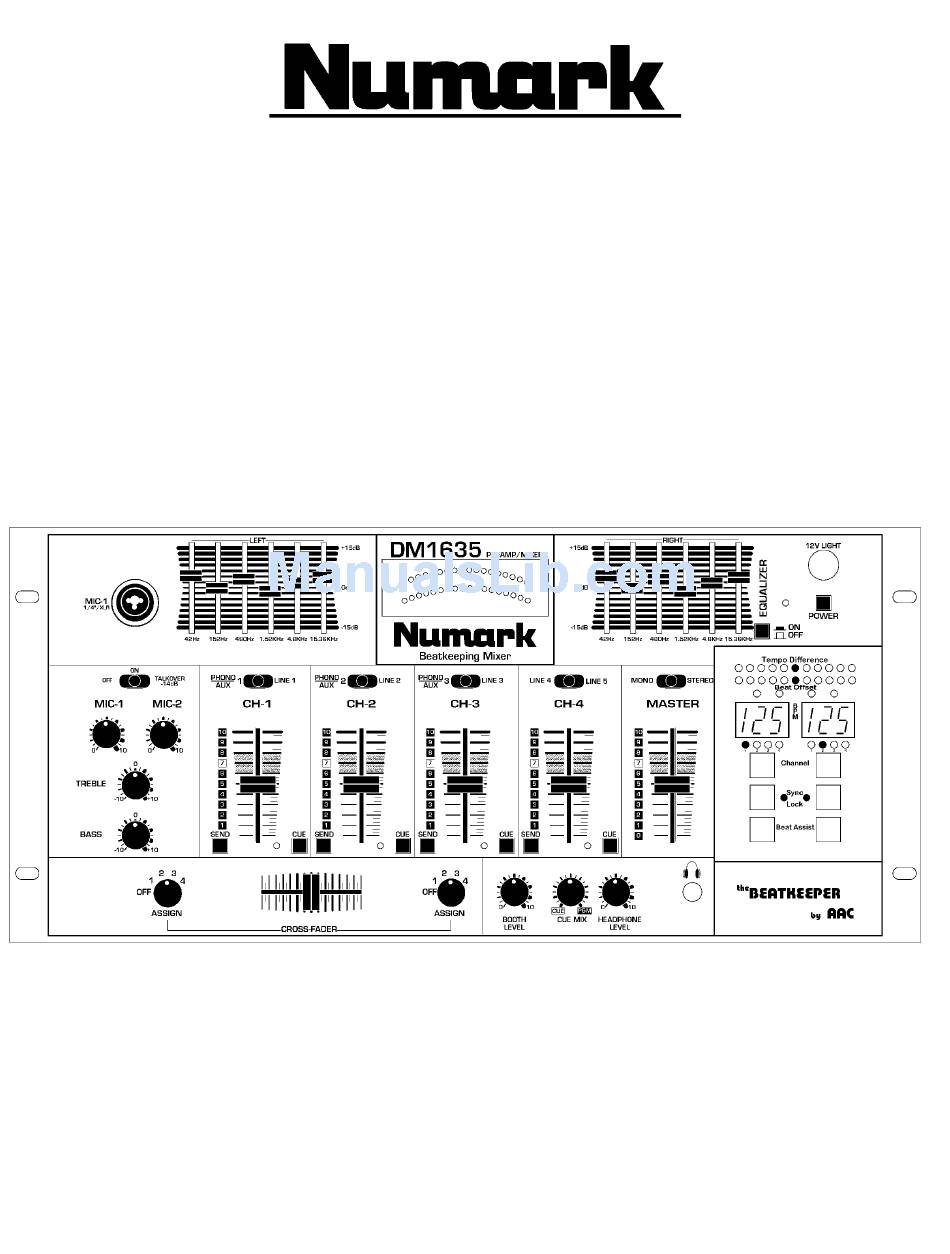

- Page 1 Professional Disc Jockey Products DM1635 STEREO MIXER with the BEATKEEPER OWNER’S MANUAL NUMARK INDUSTRIES http://www.numark.com 11 Helmsman Road, North Kingstown RI 02985...
-
Page 2: Safety Instructions
Please record the serial number of your unit as shown on the back of the chassis as well as the name of the dealer from whom you purchased the unit. Retain this information for your records. Please return the warranty card enclosed to register your mixer with us. MODEL: DM1635 SERIAL NUMBER:__________________ Numark - The Proven Leader in DJ Technology ©1997 Numark Industries... -
Page 3: Table Of Contents
NUMARK DM1635 STEREO MIXER Safety Information Product Registration Introduction Features Precautions Front Panel Diagram Guided Tour of Features Operating Instructions Beatkeeper Diagram Beatkeeper Operating Instructions Beatkeeper Troubleshooting Rear Panel Diagram Connection Diagram Specifications Block Diagram Warranty and Service Numark - The Proven Leader in DJ Technology ©1997 Numark Industries... -
Page 4: Introduction
The D M 1 6 3 5 brings to you the finest quality of DJ mixing equipment available today. Thank you for buying Numark DJ products! DM1635 FEATURES... Mixer features include: • User replaceable assignable ALPs™ crossfader . -
Page 5: Precautions
• Never attempt to make any adjustments or repairs other than those described in this manual. Take the DM1635 to your dealer or to an authorized Numark Service Center. A NOTE ON CABLES: Make the input and output connections with readily available low-capacitance stereo cables. -
Page 6: Front Panel Diagram
DM 1635 DM 1635 FRONT PANEL DIAGRAM... Numark - The Proven Leader in DJ Technology ©1997 Numark Industries http://www.numark.com... -
Page 7: Guided Tour Of Features
The channel faders do not control the C u e send volume. Numark - The Proven Leader in DJ Technology ©1997 Numark Industries 4. Effect Send (Channels 1-4). Depress these buttons when you want the signal from any input channel to be routed to the Send Out Jacks. The channel faders do not affect the signal levels which are routed to the send output. - Page 8 - “YEAH!” Numark - The Proven Leader in DJ Technology ©1997 Numark Industries MASTER/BOOTH OUTPUT SECTION 13. The Stereo Master Fader controls the overall output level.
-
Page 9: Equalizer Section
“clipping” (see page 5) and damage your speakers. Numark - The Proven Leader in DJ Technology ©1997 Numark Industries GENERAL EQ HINTS • Boost the 42Hz band for deep bass tones and solid kick drum sound. -
Page 10: Beatkeeper Diagram
O N - the Beatkeeper is waiting for the music to start on the respective input Numark - The Proven Leader in DJ Technology ©1997 Numark Industries 1 , 2 , 3 , o r 4 G. PEAK SOUND LED (green) -
Page 11: Beatkeeper Operation
To unlock, simply tap the Sync Lock button once and the Beatkeeper is back in BPM scanning mode. Numark - The Proven Leader in DJ Technology ©1997 Numark Industries After syncing an audio input, try speeding up and slowing down the music. You'll notice that the red beat LED will continue to flash on the downbeat, and the BPM number will adjust itself to match the tempo of the music. -
Page 12: Channel Mixing
Numark - The Proven Leader in DJ Technology ©1997 Numark Industries If the opposite is true, the Tempo Difference Graph has a red LED illuminated on the left channel, indicating the... - Page 13 Beatkeeper gives you the tools to help you do this, but nothing replaces practice. Numark - The Proven Leader in DJ Technology ©1997 Numark Industries Prepping For A Mix You may also choose to prep the Beatkeeper for an actual mix.
-
Page 14: Beatkeeper Troubleshooting
Lock LED turns on automatically, indicating that the Beatkeeper is now tracking the beat of the music. Numark - The Proven Leader in DJ Technology ©1997 Numark Industries T5 The BPM display is correct, but the beat LED isn't flashing on the downbeats of the music. - Page 15 * You can also manually resync the beat using the Beat Assist button. Numark - The Proven Leader in DJ Technology ©1997 Numark Industries T12 Neither the Tempo Difference graph or the Beat Offset graph seem to work. The bar graphs are only operational when both Sync Lock LEDs are illuminated.
-
Page 16: Rear Panel Diagram
DM 1635 DM1635 REAR PANEL DIAGRAM REAR PANEL: INPUTS AND OUTPUTS 1. AC Cord. See safety precautions on page 2 for proper treatment of the power cord. 2. GND is the grounding lug for turntables 1, 2 and 3 (phono inputs on Channels 1, 2 and 3). Always use this connection (your turntable cable should have a grounding wire). -
Page 17: Connection Diagram
DM1635 CONNECTION DIAGRAM... Tape Deck Outlet Zone Sound System w/ Amplifier Main Sound System w/ Amplifier Numark - The Proven Leader in DJ Technology ©1997 Numark Industries Digital Sampler Tape Deck Microphone 2 Keyboard Turntable 1 CD Player Turntable 2 Turntable 3 http://www.numark.com... -
Page 18: Specifications
Consecutive taps averaging for BPM POWER CONSUMPTION: 20 Watt typical, 28 watt with full headphone output Numark - The Proven Leader in DJ Technology ©1997 Numark Industries input impedance input impedance balanced/unbalanced input impedance 1.5 mV rms sensitivity @ 1 KHz (for 1.22 V output) -
Page 19: Block Diagram
DM1635 BLOCK DIAGRAM... Numark - The Proven Leader in DJ Technology ©1997 Numark Industries http://www.numark.com... -
Page 20: Warranty And Service Information
To place this warranty into effect, the enclosed WARRANTY REGISTRATION CARD must be returned to Numark Industries, LLC within thirty (30) days after date of purchase. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
