- Page 1 Professional Disc Jockey Products DM1685 STEREO MIXER with Digital Sampler OWNER’S MANUAL NUMARK INDUSTRIES http://www.numark.com 11 Helmsman Road, North Kingstown RI 02852...
-
Page 2: Safety Instructions
Please record the serial number of your unit as shown on the back of the chassis as well as the name of the dealer from whom you purchased the unit. Retain this information for your records. Please return the warranty card enclosed to register your mixer with us. MODEL: DM1685 SERIAL NUMBER:__________________ Numark - The Proven Leader in DJ Technology ©1997 Numark Industries... -
Page 3: Table Of Contents
NUMARK DM1685 STEREO MIXER Safety Information Product Registration Introduction Features Precautions Front Panel Diagram Guided Tour of Features Operating Instructions Sampler Operating Instructions Rear Panel Diagram Connection Diagram Specifications Block Diagram Warranty and Service Numark - The Proven Leader in DJ Technology ©1997 Numark Industries... -
Page 4: Introduction
The D M 1 6 8 5 brings to you the finest quality of DJ mixing equipment available today. Thank you for buying Numark DJ products! DM1685 FEATURES... Mixer features include: • User replaceable assignable ALPs™ crossfader . -
Page 5: Important Information
• Never attempt to make any adjustments or repairs other than those described in this manual. Take the DM1685 to your dealer or to an authorized Numark Service Center. A NOTE ON CABLES: Make the input and output connections with readily available low-capacitance stereo cables. -
Page 6: Front Panel Diagram

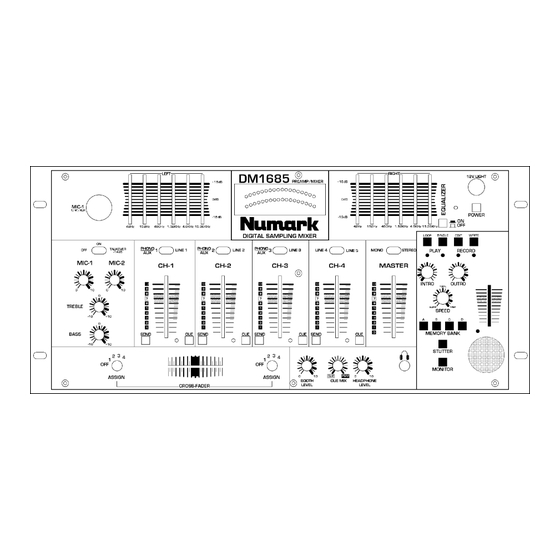

DM 1685 DM 1685 FRONT PANEL DIAGRAM... Numark - The Proven Leader in DJ Technology ©1997 Numark Industries http://www.numark.com... -
Page 7: Guided Tour Of Features
The channel faders do not control the C u e send volume. Numark - The Proven Leader in DJ Technology ©1997 Numark Industries 4. Effect Send (Channels 1-4). Depress these buttons when you want the signal from any input channel to be routed to the Sampler and the Send Out Jacks on the rear panel. - Page 8 - “YEAH!” Numark - The Proven Leader in DJ Technology ©1997 Numark Industries MASTER/BOOTH OUTPUT SECTION 13. The Stereo Master Fader controls the overall output level.
-
Page 9: Equalizer Section
“clipping” (see page 5) and damage your speakers. Numark - The Proven Leader in DJ Technology ©1997 Numark Industries GENERAL EQ HINTS • Boost the 42Hz band for deep bass tones and solid kick drum sound. -
Page 10: Sampler Operating Instructions
- note that you must do this manually by hitting the correct Mode Pushbutton. Numark - The Proven Leader in DJ Technology ©1997 Numark Industries TO RECORD A SAMPLE Press the Write button once to go into stand by mode. - Page 11 Numark - The Proven Leader in DJ Technology ©1997 Numark Industries • In Single or R e p e a t play with Trigger you are ready to "stab" samples. With the Trigger Out, the sample plays all the way through before you can play it again.
-
Page 12: Rear Panel Diagram
DM 1685 DM1685 REAR PANEL DIAGRAM REAR PANEL: INPUTS AND OUTPUTS 1. AC Cord. See safety precautions on page 2 for proper treatment of the power cord. 2. GND is the grounding lug for turntables 1, 2 and 3 (phono inputs on Channels 1, 2 and 3). Always use this connection (your turntable cable should have a grounding wire). -
Page 13: Connection Diagram
DM1685 CONNECTION DIAGRAM... Tape Deck Outlet Zone Sound System w/ Amplifier Sound System w/ Amplifier Numark - The Proven Leader in DJ Technology ©1997 Numark Industries Digital Sampler Tape Deck Main Microphone 2 Keyboard Turntable 1 CD Player Turntable 2 Turntable 3 http://www.numark.com... -
Page 14: Specifications
Variable sampling rate 44.1 kHz with 16-bit sampling yields 20Hz-22 kHz. MAXIMUM MEMORY TIME: 12 seconds Note: Features and Specifications Subject to Change without Notice Numark - The Proven Leader in DJ Technology ©1997 Numark Industries input impedance input impedance balanced/unbalanced input impedance 9V rms max (+20 dBm) -
Page 15: Block Diagram
DM1685 BLOCK DIAGRAM... Numark - The Proven Leader in DJ Technology ©1997 Numark Industries http://www.numark.com... -
Page 16: Warranty And Service Information
To place this warranty into effect, the enclosed WARRANTY REGISTRATION CARD must be returned to Numark Industries, LLC within thirty (30) days after date of purchase. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
