- Page 1 Professional Disc Jockey Products DM1190 STEREO MIXER OWNER’S MANUAL NUMARK INDUSTRIES http://www.numark.com 11 Helmsman Road, North Kinstown RI 02852...
- Page 2 DM1190 Numark - The Proven Leader in DJ Technology ©1997 Numark Industries http://www.numark.com...
-
Page 3: Safety Instructions
Please record the serial number of your unit as shown on the back of the chassis as well as the name of the dealer from whom you purchased the unit. Retain this information for your records. Please return the warranty card enclosed to register your mixer with us. MODEL: DM1190 SERIAL NUMBER:__________________ Numark - The Proven Leader in DJ Technology ©1997 Numark Industries... -
Page 4: Table Of Contents
DM1190 NUMARK DM1190 STEREO MIXER Safety Information Product Registration Introduction Features Precautions Front Panel Diagram Rear Panel Diagram Guided Tour of Features Operating Instructions Connection Diagram Specifications Block Diagram Warranty and Service Numark - The Proven Leader in DJ Technology ©1997 Numark Industries... -
Page 5: Introduction
• Stereo/Mono switch on the Master and Zone • Tape Out for direct recording. • Powerful stereo headphone output • Push button cueing • High-end performance audio signal • 12V BNC light connector Numark - The Proven Leader in DJ Technology ©1997 Numark Industries http://www.numark.com CONGRATULATIONS! DM1190... -
Page 6: Important Information
• Never attempt to make any adjustments or repairs other than those described in this manual. Take the DM1190 to your dealer or to an authorized Numark Service Center. A NOTE ON CABLES: Make the input and output connections with readily available low-capacitance stereo cables. -
Page 7: Front Panel Diagram

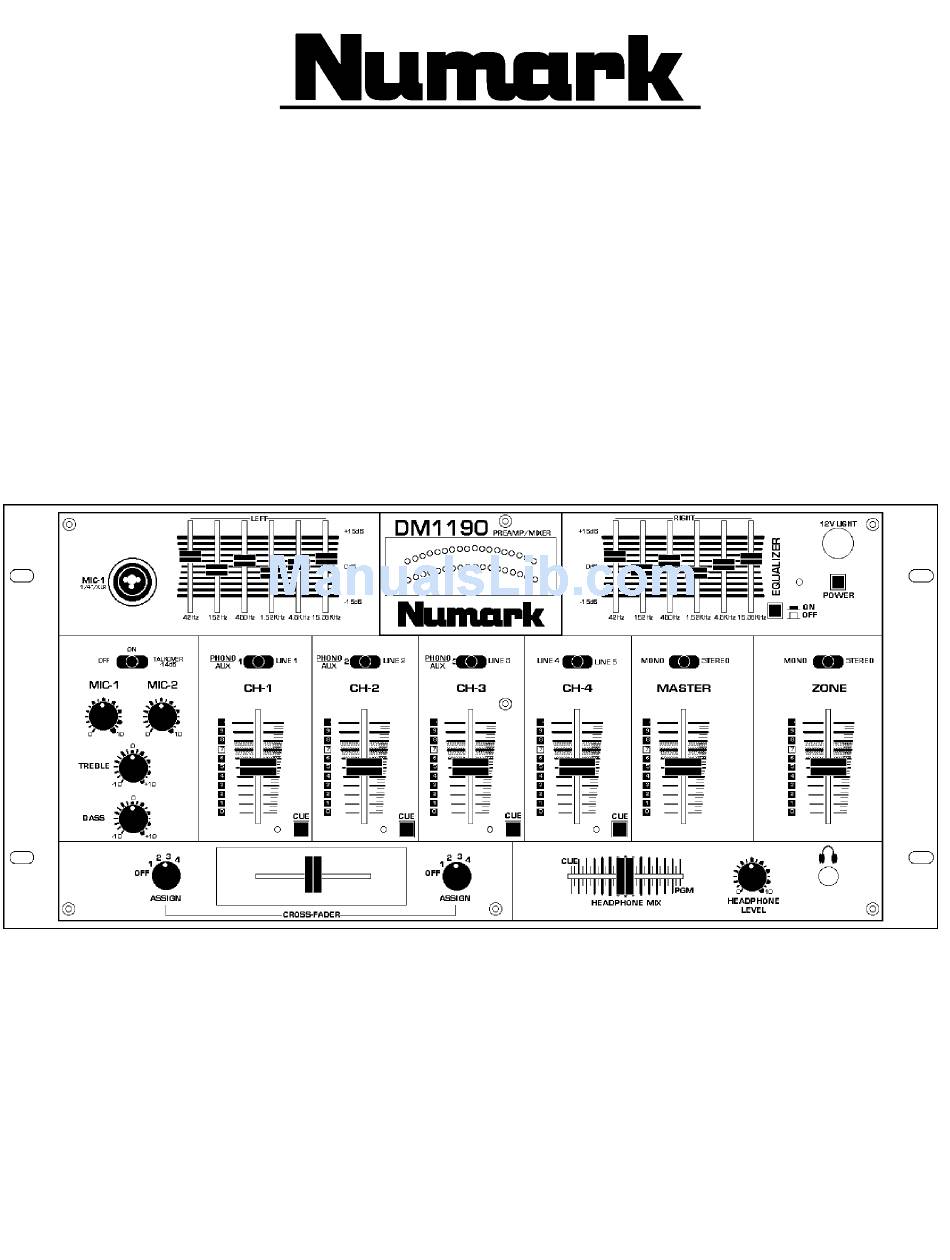

DM1190 FRONT PANEL DIAGRAM... DM1190 REAR PANEL DIAGRAM Numark - The Proven Leader in DJ Technology ©1997 Numark Industries http://www.numark.com DM1190... -
Page 8: Guided Tour Of Features
Monitor Section. The channel faders do not control the C u e send volume. Numark - The Proven Leader in DJ Technology ©1997 Numark Industries http://www.numark.com CROSSFADER SECTION 4. The Crossfader Assign knob to the left of the... - Page 9 Try using this feature for audience participation when you want the music to temporarily cease and the audience to be heard - “YEAH!” Numark - The Proven Leader in DJ Technology ©1997 Numark Industries http://www.numark.com MASTER/BOOTH OUTPUT SECTION 12. The Stereo Master Fader controls the overall output level.
-
Page 10: Equalizer Section
“clipping” (see page 6) and damage your speakers. Numark - The Proven Leader in DJ Technology ©1997 Numark Industries http://www.numark.com GENERAL EQ HINTS • Boost the 42Hz band for deep bass tones and solid kick drum sound. -
Page 11: Rear Panel: Inputs And Outputs
6. Mic 2 is the mic input for Channel 4. Numark - The Proven Leader in DJ Technology ©1997 Numark Industries http://www.numark.com 7. Channels 1-5 Line Inputs are unbalanced RCA jacks. The Line Input is selected with the toggle switch on the front panel. - Page 12 DM 1190 Numark - The Proven Leader in DJ Technology ©1997 Numark Industries http://www.numark.com...
-
Page 13: Connection Diagram
DM1190 CONNECTION DIAGRAM... Tape Deck Outlet Zone Sound System w/ Amplifier Main Sound System w/ Amplifier Numark - The Proven Leader in DJ Technology ©1997 Numark Industries http://www.numark.com Microphone 2 Keyboard Tape Deck CD Player Turntable 3 DM1190 Turntable 1... -
Page 14: Specifications
TALKOVER ATTENUATION: variable from no cut to -16 dB POWER CONSUMPTION: 20 Watt typical, 28 watt with full headphone output Numark - The Proven Leader in DJ Technology ©1997 Numark Industries http://www.numark.com input impedance input impedance balanced/unbalanced input impedance Better than 85 dB... -
Page 15: Block Diagram
DM1190 BLOCK DIAGRAM... Numark - The Proven Leader in DJ Technology ©1997 Numark Industries http://www.numark.com... -
Page 16: Warranty And Service
To place this warranty into effect, the enclosed WARRANTY REGISTRATION CARD must be returned to Numark Industries, LLC within thirty (30) days after date of purchase. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
