Summary of Contents for Numark DM 1885X

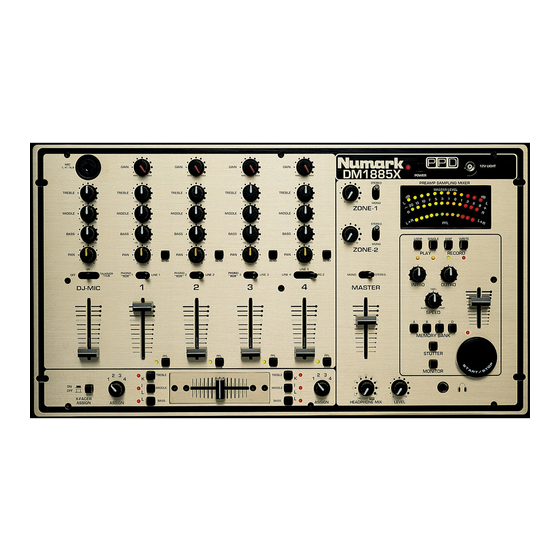

- Page 1 Professional Disc Jockey Products DM 1885X STEREO MIXER OWNER’S MANUAL NUMARK INDUSTRIES http://www.numark.com 11 Helmsman Road, North Kingstown RI 02852...
- Page 2 DM1885X Numark - The Proven Leader in DJ Technology ©1997 Numark Industries http://www.numark.com...
-
Page 3: Safety Instructions
MODEL: DM1885X SERIAL NUMBER:__________________ Numark - The Proven Leader in DJ Technology ©1997 Numark Industries 6. Heat - Avoid placing this product too close to any high heat sources such as radiators. 7. Power Sources - This product should be... -
Page 4: Table Of Contents
Front Panel Diagram Sampler Operation Rear Panel Diagram Connection Instructions and Diagram Specifications Block Diagram Warranty and Service Numark - The Proven Leader in DJ Technology ©1997 Numark Industries INDEX Page 3 Page 5 Page 7 Page 8 Page 10 Page 12... -
Page 5: Introduction And Features
• Effect Level Fader. • Large Start-Stop button. Numark - The Proven Leader in DJ Technology ©1997 Numark Industries CONGRATULATIONS! Thank you for buying Numark DJ products! •Digital processor modes: -E d i t -Single -R e p e a t... - Page 6 DM 1885X As a special bonus we have included a right angle headhpone adapter with this mixer. Just plug your headphones into the adapter and then plug the adapter into your mixer. Numark - The Proven Leader in DJ Technology ©1997 Numark Industries...
-
Page 7: Precautions
Numark - The Proven Leader in DJ Technology ©1997 Numark Industries SYSTEM PRECAUTIONS • Use appropriate cables throughout your system: Quality shielded audio cables and terminated shielded video cables, low- capacitance preferred. -
Page 8: Front Panel Diagram
DM 1885X DM1885X FRONT PANEL DIAGRAM... 1. Channel Input Gain/Trim/Attenuation Controls. These control the sensitivity of the inputs for Channels 1-4. Use these whenever a particular source causes overload of the preamp inputs. Attenuation range is 0dB to -20dB. Use these with the PFL (pre-fader listen) monitor when cueing. - Page 9 - you’re back in business! REPLACEMENT CROSSFADERS can be purchased from your local Numark Dealer, or by calling Numark Industries. 12.The Cue Crossfader controls what signal is being monitored through your headphones. Move the slide control to the left and you will hear your source music from the channel(s) selected with the cue/PFL switch.
-
Page 10: Sampler Operation
DM 1885X DIGITAL SAMPLER SECTION The Sampler uses dynamic RAM with a 16-bit microprocessor controller. The same digital signal processing components used in professional audio equipment deliver CD-quality samples. The Mode Pushbuttons switch from effect to effect. The accompanying LEDs illuminate to show you which specific mode you are in at any time. - Page 11 Every time you play the sample, the music starts from the beginning of the sample. Numark - The Proven Leader in DJ Technology ©1997 Numark Industries • In Single or R e p e a t play with Trigger you are ready to "stab" samples. With the Trigger Out, the sample plays all the way through before you can play it again.
-
Page 12: Rear Panel Diagram
DM 1885X DM1885X REAR PANEL DIAGRAM... 1. The Balanced Main Outputs are low-impedance XLR type connectors controlled by the Master fader. 2. The Stereo Main Outputs are low-impedance RCA connectors controlled by the Master fader. 3. The Tape Outputs are low-impedance unbalanced RCA jacks which output the program mix and allow you to connect any recording device. -
Page 13: Connection Instructions And Diagram
7. The OUTPUT MASTER jacks on the rear of the unit are for connecting to the amplifier. Use the balanced outputs if possible. Make sure you correctly attach the right and left cables to avoid phasing problems. Numark - The Proven Leader in DJ Technology ©1997 Numark Industries Tape Deck Sampling... -
Page 14: Specifications
DM 1885X SPECIFICATIONS... IN PUTS : Line: input impedance 100 mV rms sensitivity (for 1.22 V output) Mic: input impedance balanced/unbalanced 3 mV rms sensitivity (for 1.22 V output) 50 mV rms max input Phono: input impedance 1.5 mV rms sensitivity @ 1 KHz (for 1.22 V... -
Page 15: Block Diagram
DM1885X BLOCK DIAGRAM... Numark - The Proven Leader in DJ Technology ©1997 Numark Industries http://www.numark.com... -
Page 16: Warranty And Service
To place this warranty into effect, the enclosed WARRANTY REGISTRATION CARD must be returned to Numark Industries, LLC within thirty (30) days after date of purchase.This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.Some states do not allow the exclusion or limitation of incidental or consequential...
