Makita 4200NH Instruction Manual

110 mm (4-3/8”)
Hide thumbs Also See for 4200NH:
Table of Contents

Advertisement

Quick Links

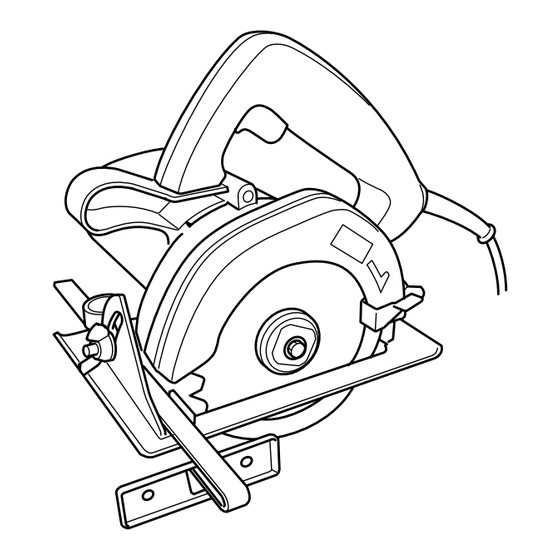

Circular Saw

110 mm (4-3/8")
MODEL 4200NH
I N S T R U C T I O N
WARNING:
For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
w w w . m a k i t a t o o l s . c o m
DOUBLE
INSULATION
M A N U A L

Advertisement

Table of Contents
loading

Related Manuals for Makita 4200NH

Summary of Contents for Makita 4200NH

  • Page 1: Circular Saw

    Circular Saw 110 mm (4-3/8”) MODEL 4200NH I N S T R U C T I O N WARNING: For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. w w w . m a k i t a t o o l s . c o m...

  • Page 2: Specifications

    SPECIFICATIONS Blade Arbor diameter diameter 110 mm 20 mm (4-3/8”) (3/4”) • Manufacturer reserves the right to change specifications without notice. • Specifications may differ from country to country. GENERAL SAFETY RULES (For All Tools) WARNING: Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury.

  • Page 3: Personal Safety

    6. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. 7. Do not abuse the cord. Never use the cord to carry the tools or pull the plug from an outlet.

  • Page 4: Specific Safety Rules

    Keep your body positioned to either side of the saw blade, but not in line with the saw blade. KICKBACK could cause the saw to jump backwards. (See “Causes and Oper- ator Prevention of Kickback”)
  • Page 5 Kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an uncontrolled saw to lift up and out of the workpiece toward the operator. When the blade is pinched or bound tightly by the kerf closing down, the blade stalls and the motor reaction drives the unit rapidly back toward the operator.
  • Page 6 Lever. ALWAYS hold the tool firmly with both hands. NEVER place your hand or fingers behind the saw. If kickback occurs, the saw could easily jump backwards over your hand, leading to serious personal injury.
  • Page 7 Fig. 4 A typical illustration of proper hand support, workpiece support, and supply cord routing. 16. Place the wider portion of the saw base on that part of the workpiece which is solidly supported, not on the section that will fall off when the cut is made.
  • Page 8 SAVE THESE INSTRUCTIONS WARNING: MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. SYMBOLS The followings show the symbols used for tool. V ... volts A ... amperes Hz ... hertz ...

  • Page 9: Functional Description

    FUNCTIONAL DESCRIPTION 001238 1. Clamping screw 001239 1. Clamping screw 2. Bevel scale plate 001240 1. Base plate CAUTION: • Always be sure that the tool is switched off and unplugged before adjusting or checking function on the tool. Adjusting depth of cut CAUTION: •...

  • Page 10: Removing Or Installing Saw Blade

    CAUTION: • Always be sure that the tool is switched off and unplugged before carrying out any work on the tool. Removing or installing saw blade CAUTION: • Be sure the blade is installed with teeth pointing up at the front of the tool.

  • Page 11: Operation

    Hold the tool firmly. The tool is provided with both a front grip and rear handle. Use both to best grasp the tool. If both hands are holding saw, they cannot be cut by the blade. Set the base on the workpiece to be cut without the blade making any contact.

  • Page 12: Replacing Carbon Brushes

    001246 1. Adjusting screw 2. Base 001247 1. Triangular rule 001145 1. Limit mark 001248 1. Brush holder cap 2. Screwdriver Adjusting for accuracy of 90° cut (vertical cut) This adjustment has been made at the factory. But if it is off, adjust the adjusting screw with a screwdriver while squaring the blade with the base using a triangular rule, try square, etc.
  • Page 13 If you need any assistance for more details regarding these accessories, ask your local Makita service center. • Steel & Carbide-tipped saw blades Combination General purpose blade for fast and smooth rip, crosscuts and miters.
  • Page 14 Memo...
  • Page 15 Memo...
  • Page 16 Memo...
  • Page 17 First-Class Postage Required Post Office will not deliver without proper postage. Makita U.S.A., Inc. 14930 Northam Street La Mirada, CA 90638-5753 Fold...
  • Page 18 MAIL THIS PORTION Your answer to the following questions are appreciated. 1. This product was purchased from: Home Center Other ( Hardware/Lumber Store Tool Distributor Industrial Supply Construction Supply 2. Use of the product is intended for: Construction Trade Industrial Maintenance Home Maintenance Hobby Other (...

  • Page 19: Factory Service Centers

    1-800-4-MAKITA RETAIN THIS PORTION FOR YOUR RECORDS ALABAMA COLORADO 2365 Pelham Parkway 11839 E. 51st Ave. Pelham, AL 35124 Denver, CO 80239-2709 (205) 620-1791 (303) 371-2850 ARIZONA CONNECTICUT 3707 E. Broadway Rd., Ste. 6 508 Spring St. Phoenix, AZ 85040 Windsor Locks, CT 06096 (602) 437-2850 (860) 292-6405...

  • Page 20: Warranty Policy

    WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • lead from lead-based paints, •...
