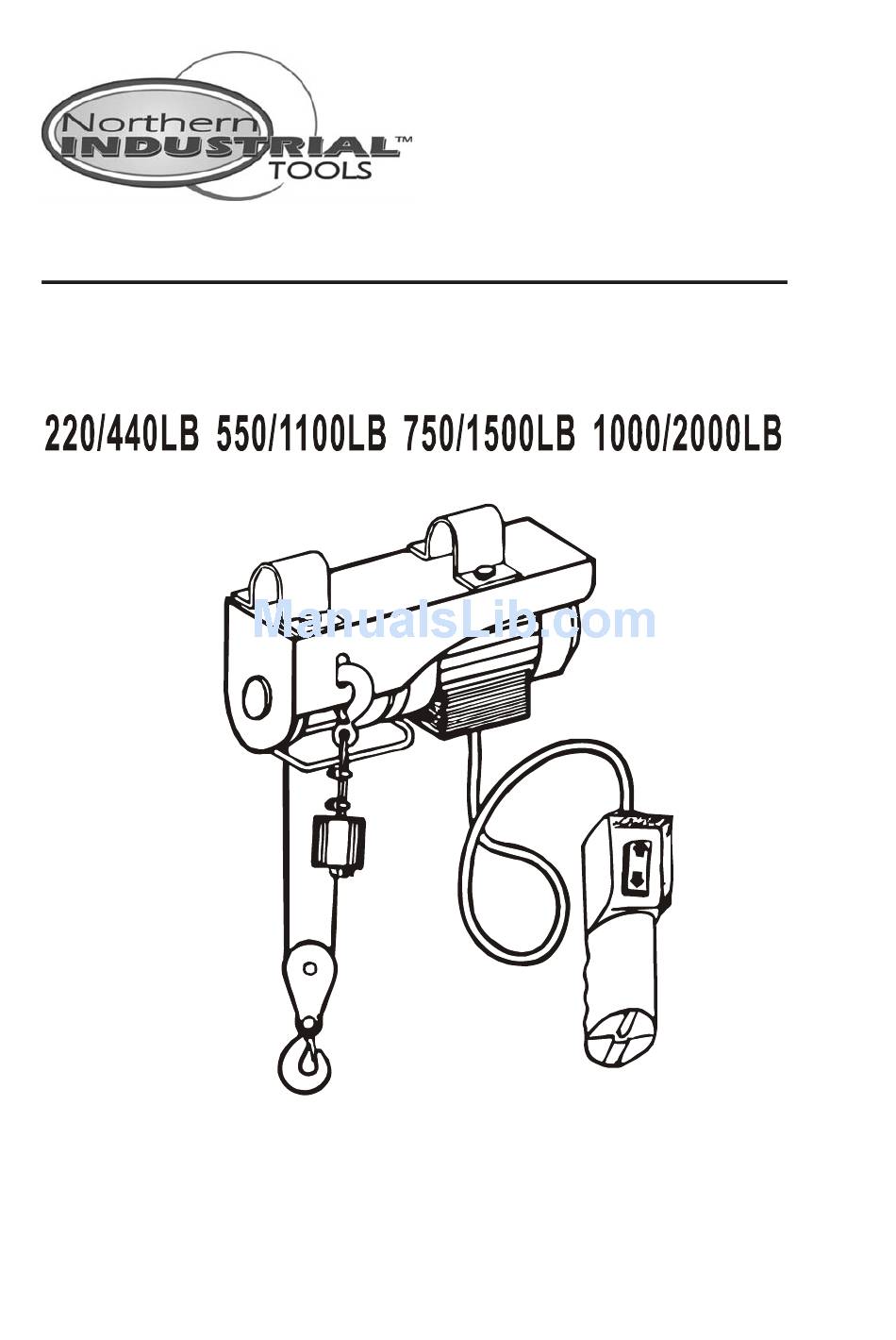

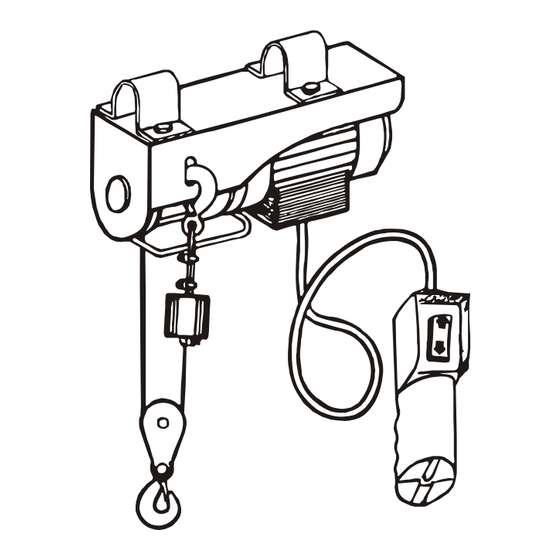

ELECTRIC HOIST
Item# 14226
Item# 14230
Item# 142260
Item# 142262
ASSEMBLY AND OPERATING INSTRUCTIONS
Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before
operating. Failure to follow the safety rules and other basic safety precautions may result in
serious personal injury.
Advertisement
Table of Contents
Summary of Contents for Northern Industrial 14226
- Page 1 2800 Southcross Drive West, PO Box 1219 Burnsville, MN 55337, USA ELECTRIC HOIST Item# 14226 Item# 14230 Item# 142260 Item# 142262 ASSEMBLY AND OPERATING INSTRUCTIONS Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in...
- Page 2 Model HGS220/440LB Standard With pulley version Hook Load capacity 220lb Lifting height 36ft Lifting speed 33ft/min 16.5ft/min Cable length 39ft Cable diameter 1 / 8 anti-twist ≥1540lb Resister cable Duty circle S3 20%-10min Voltage 110V/60Hz Motor performance 3 / 4 HP You will need this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures, parts list and as- sembly diagram.
-
Page 3: Electrical Safety
Grounded tools must be plugged into an outlet properly installed and grounded in accordance with all codes and ordinances. Never remove the grounding prong or modify the plug in any way. Do not use any adapter plugs. Check with a qualified electrician if you are in doubt as to whether the outlet is properly grounded. - Page 4 12. Avoid accidental starting. Be sure the Power Switch is off before plugging in. Carrying power tools with your finger on the Power Switch, or plugging in power tools with the Power Switch on, invites accidents. 13. Remove adjusting keys or wrenches before turning the power tool on. A wrench or a key that is left attached to a rotating part of the power tool may result in personal injury.
-
Page 5: Specific Safety Rules
22. Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one tool may become hazardous when used on another tool. 23. Tool service must be performed only by qualified repair personnel. Service or maintenance performed by unqualified personnel could result in a risk of injury. - Page 6 Additional Specific Safety Rules 10. Do not exceed the maximum lift capacity. The application, size and type of load, the attachments to be used and the period of use must be taken into account. 11. Do not stand under hoisted loads. 12.
- Page 7 WARNING! People with pacemakers should consult their physician(s) before using this product. Operation of electrical equipment in close proximity to a heart pacemaker could cause interference or failure of the pacemaker. Improperly connecting the grounding wire can result in the risk of electric shock.
-
Page 8: Double Insulated Tools: Tools With Two Prong Plugs
DOUBLE INSULATED TOOLS: TOOLS WITH TWO PRONG PLUGS Tools marked “Double Insulated” do not require grounding. They have a special double insulation system which satisfies OSHA requirements and complies with the applicable standards of Underwriters Laboratories, Inc., the Canadian Standard Association, and the National Electrical Code. (See Figure B.) Double insulated tools may be used in either of the 120 volt outlets shown in the following illustration. - Page 9 If you are using an extension cord outdoors, make sure it is marked with the suffix “W-A” (“W” in Canada) to indicate it is acceptable for outdoor use. Make sure your extension cord is properly wired and in good electrical condition. Always replace a damaged extension cord or have it repaired by a qualified electrician before using it.
- Page 10 FIGURE 2 ASSEMBLY AND OPERATING INSTRUCTIONS Hoist Set-up WARNING! Unplug the Hoist before set-up. 1. This Hoist is designed to be attached to a beam or steel pipe and bed securely held in place by both of the Hangers (#23). See FIGURE 2. Note: The beam or steel pipe must be capable of carrying several times the weight of the Hoist and its designated maximum capacity.
-
Page 11: Inspection, Maintenance, And Cleaning
Using the Hoist Refer to FIGURE WARNING! As illustrated in FIGURE 2, the Cable (#56) must flow through the cable Guard (#29), and the Stopper (#31) must be securely attached to the end of the Cable (#56). 1. Plug in the unit and press the Switch (#43) toward the “down” position to lower the Hook (#34) to the load. -
Page 12: Parts List
Part No. PLEASE READ THE FOLLOWING CAREFULLY NOTE: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. PARTS LIST Description Part No. Cover Fan Impeller Shield Stator Screw Bearing Basket Hub Gasket Spring Shaft Bearing... - Page 13 PAGE 13...
