Northern Industrial 1961202 User Manual

1/2" variable speed impact wrench
Hide thumbs


Advertisement

Air Tools
ITEM# 1961202
1/2" Variable Speed Impact Wrench
USER'S MANUAL
Read carefully and understand RULES FOR SAFE OPERATION and instructions
before operating. Failure to follow the safety rules and other basic safety
precautions may result in serious personal injury.
Made in China

Advertisement

Table of Contents
loading

  Related Manuals for Northern Industrial 1961202

  Summary of Contents for Northern Industrial 1961202

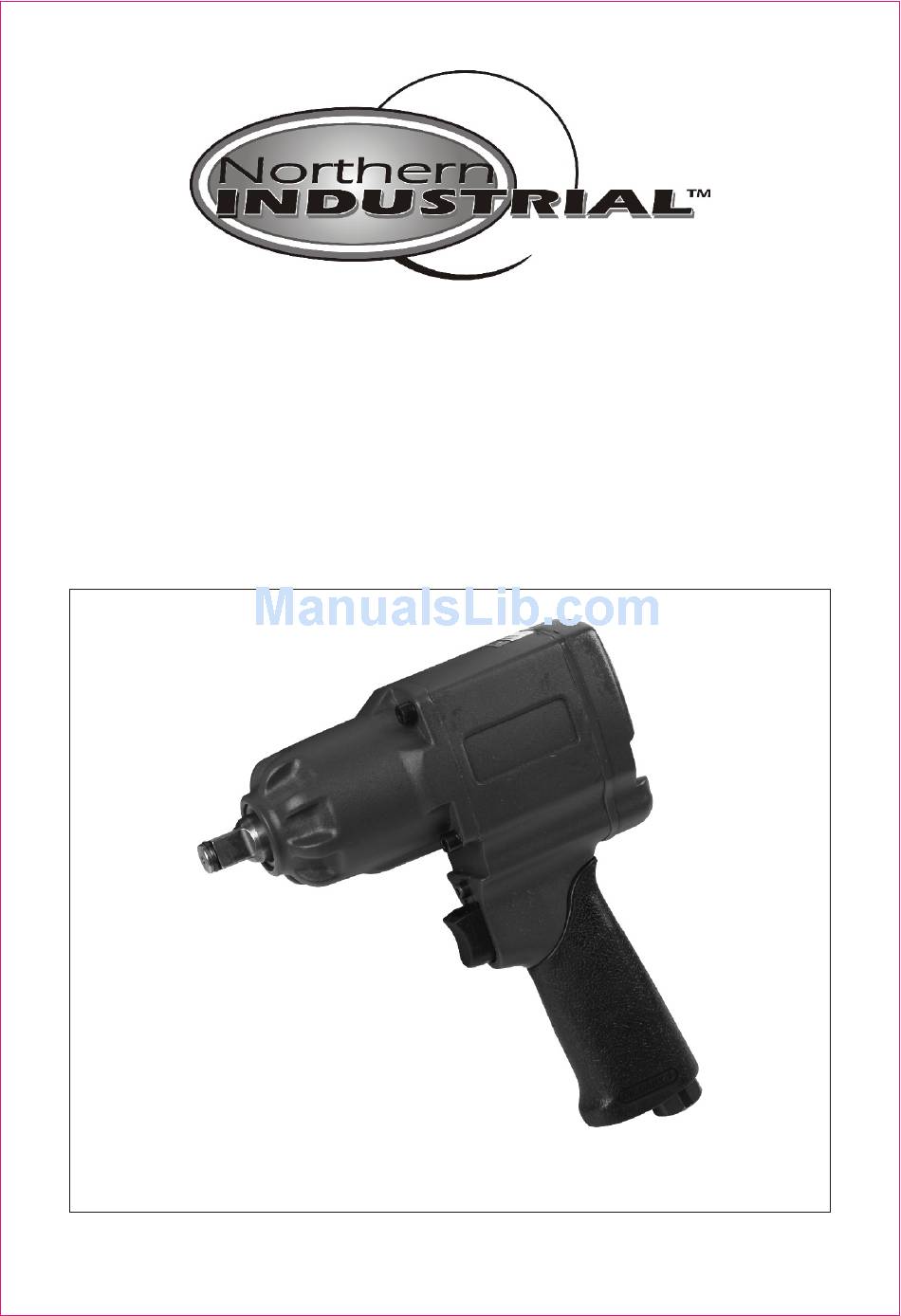

  • Page 1 Air Tools ITEM# 1961202 1/2" Variable Speed Impact Wrench USER'S MANUAL Read carefully and understand RULES FOR SAFE OPERATION and instructions before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.
  • Page 2: Warnings And Safety Rules

    For technical questions and replacement parts, please call 1-800-222-5381. Thank you very much for choosing a NORTHERN TOOL + EQUIPMENT CO., Product! For future reference, please complete the owner's record below: Model: _______________ Save the receipt, warranty and these instructions. It is important that you read the entire instruction sheet to become familiar with this product before you begin using it.
  • Page 3: Operation

    10.Use compressed air only. Clean, dry, regulated compressed air at 90 PSI. Never use oxygen, carbon dioxide, combustible gases, or any other bottled gas as a power source for this tool. 11.Always disconnect air supply when this tool is not being used. NOTE: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur.
  • Page 4: Maintenance ! Warning

    1.Tighten the nut as far as you can by hand. 2.Place the socket on the nut. Press the REVERSE BUTTON (#30) to FORWARD 1, 2, 3. You can get the different torque on different steps. (See Fig. 2) 1.Press the trigger to start the tool. 115 ft.-lbs.
  • Page 5 Diagram Description Part No. Housing O-ring Cap Screw Hammer Case Cap Screw Trigger Retainer Rev. Valve Sleeve Trigger Shaft Trigger Valve Seat Throttle Valve Spring Valve Exhaust Deflector Inlet Bushing Front end plate Rotor Rotor Vane Spring Pin Cylinder Spring Pin Rear End Plate Qty.
