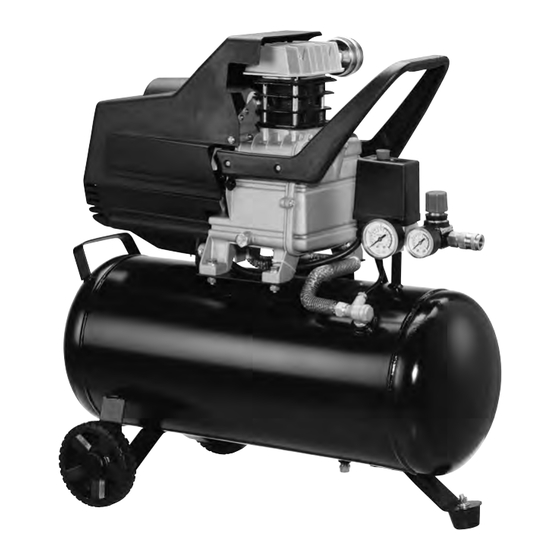

- Page 1 2 HP / 8 GALLON AIR COMPRESSOR OPERATING MANUAL Item # 123007...
-
Page 2: Table Of Contents
READ ALL INSTRUCTIONS BEFORE OPERATING SAVE THESE INSTRUCTIONS Thank you for purchasing your Northern Industrial Air Compressor please read these instructions thoroughly. You will need these instructions for the safety warnings, precautions, assembly, operation and maintenance procedures. WARNING: The warnings, cautions and... -
Page 3: Safety Rules
25. Do not tamper with Safety Valve. The Safety Valve is factory set for your model air compressor. Any user adjustments to Safety Valve will automatically void warranty. -
Page 4: Know Your Compressor
Power Switch: The red tipped power switch turns the air compressor on and off. When switch is pulled up, compressor is turned ON. When switch is pulled down, compressor is turned OFF. - Page 5 Figure 2. Installing the Wheels Installing the Oil and Oil Breather Cap Your air compressor is shipped without oil in the crankcase. BEFORE STARTING THE AIR COMPRESSOR YOU MUST ADD OIL TO THE CRANKCASE AS DESCRIBED BELOW: 1. Place compressor on level ground.
-
Page 6: Operation
3. Close Air Tank Drain Valve. Your compressor is ready for use. Depending on the CFM draw of the tools being operated, your new Air Compressor can be used for operating paint sprayers, air tools, grease guns, airbrushes, caulking guns, abrasive blasters, tire &... -
Page 7: Maintenance
Figure 7. Adjusting the Air Pressure Cold Weather Starting Temperatures below freezing (32°F) cause the metal parts of your Air Compressor to contract and that makes starting more difficult. To assist the Air Compressor in starting in cold weather, follow these tips: 1. -
Page 8: Troubleshooting
TROUBLE POSSIBLE CAUSE Compressor Won't Start 1. Blown Fuse or Circuit Breaker Tripped 2. Loose Electrical Connections Low Pressure 1. Restricted Air Filter 2. Defective Check Valve 3. Air Leak in Safety Valve Safety Valve Releasing 1. Defective Pressure Switch Oil Discharge in Air 1. -
Page 9: Parts List And Diagram
Parts List and Diagram PARTS LIST AND DIAGRAM Part No. Description Air Tank Nut/M8 Spring Washer Washer Axel Bush Wheel Axel Bolt Exhaust Pipe Connecting Pipe Spring Washer Plastic Housing Rear Cap Washer Bearing Screw Stator Rotor Starting Capacitor Washer Centrifugal Switch Screw/M4 14 Nut /M4...
