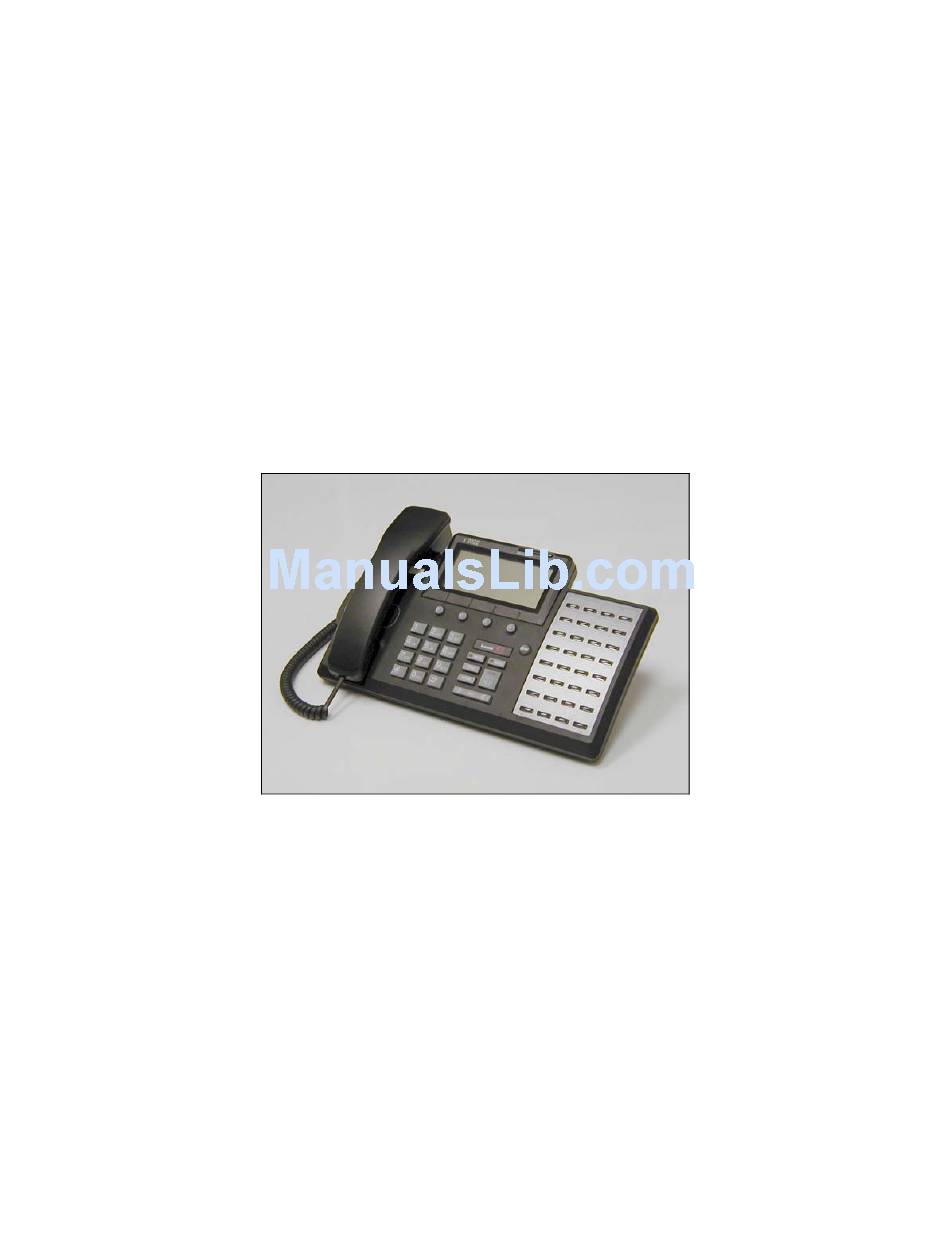

i2022 ISDN Teleset
8-20-04
i2022 Series
ISDN Teleset
User's Guide
i2022 Comcodes
Black: 300130358
004-LUC-I0005-B
Misty Cream: 300131679

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i2022 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Nortel i2022 Series

Summary of Contents for Nortel i2022 Series

  • Page 1 ISDN Teleset 8-20-04 i2022 Series ISDN Teleset User’s Guide i2022 Comcodes Black: 300130358 004-LUC-I0005-B Misty Cream: 300131679...
