Nortel 1120SA Get Started Manual

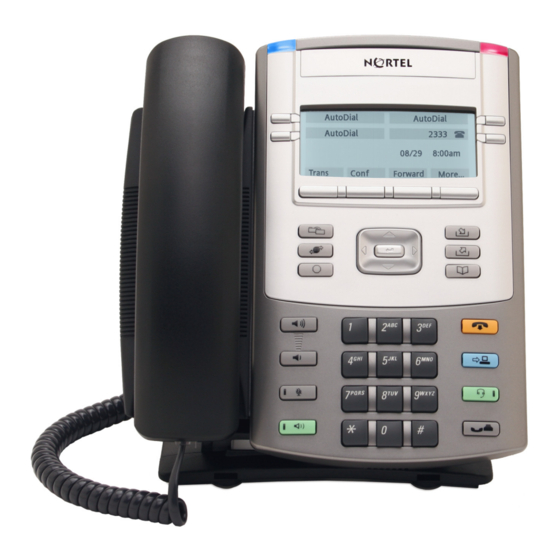

Nortel IP Phone 1120SA features
• Four user-defined feature keys with labels and indicators
• Four soft keys
• Graphical, high-resolution LCD display, backlit, with adjustable contrast
• High-quality speaker for on-hook listening
• Volume control keys for adjusting ringer, speaker, and handset volume
• Six specialized feature keys:
— Quit, Directory, Message/Inbox, Shift/Outbox, Services, Copy
• Four call-processing fixed keys:
— Mute, Handsfree for listening only, Goodbye, Hold
• Automatic network configuration
• Graphical XAS
• Hearing-aid compatibility

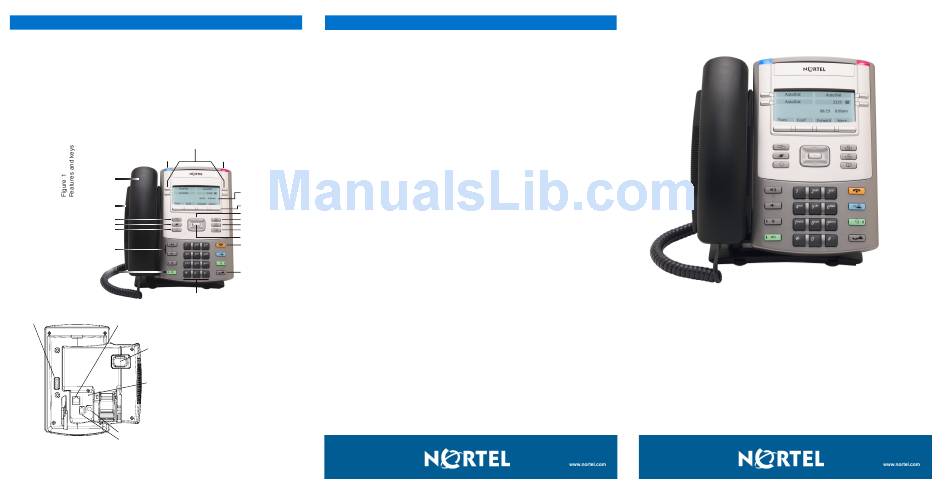

User-defined feature keys
Off-hook Status indicator
Handset
Speaker
Copy key
Services key
Quit/Stop key
Volume control
Handsfree key
for listening only
Dialpad
Figure 2
*Note: If supported by your server, the Feature Status Lamp provides a user-defined alert.
Connectors Contact your system administrator to find out if this feature is available for you.
Expansion module port*
LAN Ethernet port
Tilt lever
Link lamp
AC adapter jack
Handset jack
Nortel IP Phone 1120SA Emissions Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures: reorient or relocate the receiving antenna, increase the separation
Visual Alerter/Message Waiting
between the equipment and receiver, connect the equipment into an outlet on a circuit different
indicator
from that to which the receiver is connected, or consult the dealer or an experienced radio or TV
technician for help.
High-resolution The user should not make changes or modifications not expressly approved by Nortel Networks.
graphical display screen
Any such changes could void the user's authority to operate the equipment.
Soft keys
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la
Navigation keys
classe B est conforme à la norme NMB-003 du Canada.
Message/Inbox key
Shift/Outbox key
Directory key
Use only with Nortel-approved Limited Power Source (output rated 48 V DC, 520mA.)
Enter key
Goodbye key Warning: The earpiece/mouthpiece region on the handset can attract and retain small objects.
Hold key
Date: October 2009
Document Release: 01.01
Document Number: NN43122-100
Copyright © 2009 Nortel Networks.
All rights reserved.
* Nortel, the Nortel logo, and the Globemark are trademarks of Nortel Networks.
To provide feedback or report a problem in this document, go to www.nortel.com/documentfeedback.
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Nortel Networks is under license.
Other trademarks and trade names are those of their respective owners.
Regulatory Information
IP Phone 1120SA
Getting Started Card
