IP Phone 1100 User Guide
IP Phone 1110
Business Communications Manager
Document Status: Standard
Document Version: 01.01
Document Number:
NN40050-117
Date: August 2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Nortel 1100

  • Page 1 IP Phone 1100 User Guide IP Phone 1110 Business Communications Manager Document Status: Standard Document Version: 01.01 Document Number: NN40050-117 Date: August 2007...
  • Page 2 Nortel Networks. Trademarks Nortel, the Nortel logo, and the Globemark are trademarks of Nortel Networks. Microsoft, MS, MS-DOS, Windows, and Windows NT are registered trademarks of Microsoft Corporation. All other trademarks and registered trademarks are the property of their respective owners.
  • Page 3: Table Of Contents

    Placing a call on hold...28 Accessing Voice Mail...28 Programming a memory button for external autodial ...28 Programming a memory button for internal autodial ...29 Programming a memory button for a feature...29 Erasing a memory buttons...29 IP Phone 1110 User Guide...
  • Page 4 Task List NN40050-117 NN40050-117...
  • Page 5 Programming buttons ..........28 Contents IP Phone 1110 User Guide...
  • Page 6 Contents NN40050-117 NN40050-117...
  • Page 7: Regulatory And Safety Information

    Privacy of communications may not be ensured when using this telephone. To prevent radio interference to the licensed service, this device must be operated indoors only and should be kept away from windows to provide maximum shielding IP Phone 1110 User Guide...
  • Page 8: Other

    EU Countries: This device complies with the essential requirements and other relevant provisions of EMC and LVD directives. A copy of the Declaration may be obtained from http://www.nortel.com/products/announcements/eumrdc/ index.html or Nortel Networks GmbH address: Ingolstaedter Strasse 14-18, 80807 Munich Germany. EMC compliance for various jurisdictions...
  • Page 9 The user should not make changes or modifications not expressly approved by Nortel Networks. Any such changes could void the user’s authority to operate the equipment •...
  • Page 10: Other

    This equipment complies with the CE Marking requirements. EU Countries: This device complies with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the Declaration may be obtained from Nortel Networks GmbH address: Ingolstaedter Strasse 14-18, 80807 Munich Germany...
  • Page 11: Denan Regulatory Notice For Japan

    Regulatory and safety information DenAn regulatory notice for Japan IP Phone 1110 User Guide...
  • Page 12 Regulatory and safety information NN40050-117 NN40050-117...
  • Page 13: How To Get Help

    Getting Help through a Nortel distributor or reseller If you purchased a service contract for your Nortel product from a distributor or authorized reseller, contact the technical support staff for that distributor or reseller. IP Phone 1110 User Guide...
  • Page 14 How to get help NN40050-117 NN40050-117...
  • Page 15: Getting Started

    This guide is intended for people who install and use the IP Phone 1110 telephone. This guide assumes that you are familiar with using the compatible IP Phone 1100 series phones. For more information, refer to the IP Phone 1120E User Guide (NN40050-104) or IP Phone 1140E User Guide (NN40050-105).
  • Page 16: Symbols And Conventions Used In This Guide

    Related publications Related publications are listed below. To locate specific information, you can refer to the master index for the documentation suite for your system. IP Phone 1120E User Guide (NN40050-104) IP Phone 1140E User Guide (NN40050-105) NN40050-117 NN40050-117...
  • Page 17: Introduction

    Chapter 2 Introduction The IP Phone 1100 brings voice and data to the desktop by connecting directly to a local area network (LAN) connection. The IP Phone 1110 does not support the Expansion Module for IP Phone 1100 series phones.
  • Page 18: Hearing Aid Compatibility

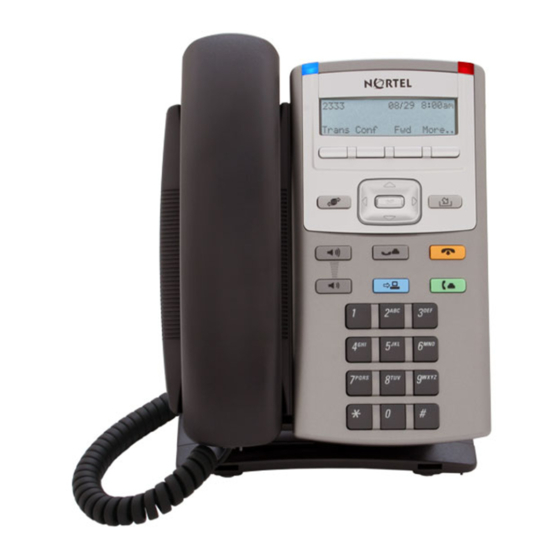

    10/100BaseT Ethernet jack. Caution: Risk of damage to equipment Do not use your IP Phone 1110 outdoors. The IP Phone 1110 is designed for use in an indoor environment only. Figure 1 on page 18 shows the IP Phone 1110.
  • Page 19: Telephone Controls

    Telephone controls In some geographic regions, the IP Phone 1110 is offered with key caps that have English text labels. Text in parentheses indicates labels appearing on the key caps, for example, (Services). (Volume +) (Volume -) (Line) (Hold) (Expand to PC) (Goodbye) Soft keys are located below the display area.
  • Page 20: Telephone Display

    Many of the options discussed in this section are for administrator use only. Do not make any changes unless instructed to do so by an administrator. Your IP Phone 1110 has both local tools and server-based features. Local tools are accessed through the Local Tools menu.
  • Page 21: Preferences Menu

    The display language of server-based features is selected using the Language feature in the Telephone features section. Contrast tool The Contrast tool allows you to adjust the LCD display screen contrast on your IP Phone 1110 to be lighter or darker, making the screen text easier to read. Local Diagnostics menu Note: The Local Diagnostics tools are for system administrator use only.
  • Page 22: Network Configuration

    Chapter 2 Introduction IP Set&DHCP Information The system administrator uses the Network Configuration tool to view reports about IP set and DHCP operation. Network Diagnostic Tools The system administrator uses the Network Diagnostic tools to diagnose network problems. Ethernet statistics The system administrator uses the Ethernet statistics tool to view reports about Ethernet operation.
  • Page 23: Navigating The Local Tools Menu

    Local Diagnostics menu by pressing 2 on the telephone dialpad. Setting the display contrast Use the Contrast tool to adjust the LCD screen contrast on your IP Phone 1110. To open the Local Tools menu, press To open the Preferences menu, press 1 on the telephone dialpad.
  • Page 24: Backlight Timer Tool

    Chapter 3 Configuring the telephone settings Choose one of the following: — To select the desired language and return to the Preferences menu, press — To keep existing language and exit the Local Tools menu, press Cancel. Press Exit. Changes are saved automatically. Backlight Timer tool Use the Backlight Timer tool to adjust how long the LCD display screen remains lit when your phone is inactive.
  • Page 25: Setting The Ring Type

    Note: Contact your system administrator to activate the call log feature. Time offset When your IP Phone 1110 is located in a different time zone than your system, the display shows the system time instead of the local time. Use the Time Offset feature to adjust the time that appears on the display.
  • Page 26 Chapter 3 Configuring the telephone settings NN40050-117 NN40050-117...
  • Page 27: Making An External Call Using Line Keys

    Lift the handset. Press a line key. Dial the extension number. Contact your system administrator for a list of extension numbers. Answering a call When your telephone rings and the light flashes, lift the handset. IP Phone 1110 User Guide...
  • Page 28: Answering A Call While On An Active Call

    Chapter 4 Using the handset Answering a call while on an active call To place the active call on hold press Press the line button of the incoming call. To terminate the call, press To retrieve the held call, press Placing a call on hold While on a call, press To retrieve a held call, press...
  • Page 29: Programming A Memory Button For Internal Autodial

    Press Feature and enter the feature code. Press OK to store the feature code. Erasing a memory buttons Press Feature *1. Press a memory button. Press OK to erase the phone number saved on the button. Chapter 4 Using the handset IP Phone 1110 User Guide...
  • Page 30 Chapter 4 Using the handset NN40050-117 NN40050-117...
