SoundPoint® IP 560 Quick Start Guide

Parts List

Thank you for choosing the SoundPoint

IP 560, a multiple-line Voice over IP

telephone with features and functions such

as Multiple Call Appearances, Call Hold,

Transfer, and Conferencing over an IP

network.

These items are included in your Sound-

Point IP 560 package. If you are missing

any items, contact your SoundPoint

IP 560 reseller.

Directories

Applications

Conference

Transfer

Redial

Hold

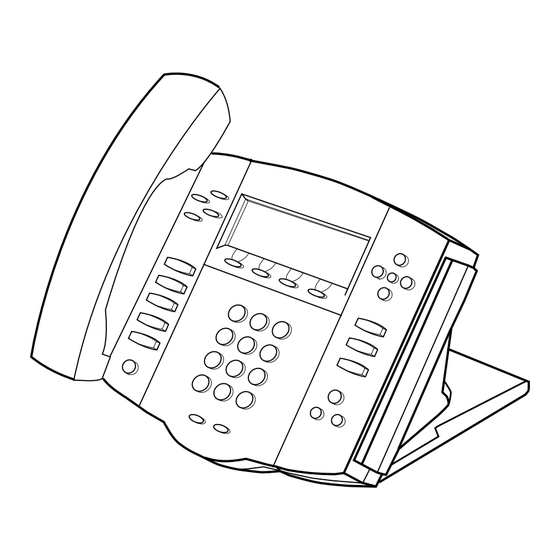

SoundPoint IP 560 Console

SoundPoint IP 560 Quick Start Guide

Base Stand

Network Cable

Messages

Do Not Disturb

Handset and Handset Cord

Quick Start Guide

Power Adapter

(Not shown: Country-

Specific Power Cord)

Included in Standard

Package Only

Page 1: Parts List
SoundPoint IP 560 reseller. Directories Applications Conference Transfer Redial Hold SoundPoint IP 560 Console SoundPoint IP 560 Quick Start Guide Handset and Handset Cord Base Stand Network Cable Menu Messages Do Not Disturb Quick Start Guide Power Adapter...
Page 2 (Note: Choose either AC Power Option, or In-Line Power Option.) AC Power Option Attach Base Stand Deskmount Method Ensure all cables are secured (as shown). SoundPoint IP 560 Quick Start Guide In-Line Power Option Align base stand tabs with their correspond- ing insertion points on the phone (as shown).
Page 3 SoundPoint IP 560 automatically begins a process of establishing itself on the network For more information, see the SoundPoint IP 560 User Guide, available online at: www.polycom.com/ SoundPoint IP 560 Quick Start Guide Call/Message Indicator Directories Applications Conference Transfer...
Page 4 Warranty, Copyright, Safety Notices LIMITED WARRANTY. Polycom warrants to the end user (“Customer”) that this product will be free from defects in workmanship and materials, under normal use and ser- vice, for one year from the date of purchase from Polycom or its authorized reseller. Polycom’s sole obligation under this express warranty shall be, at Polycom’s option and expense, to repair the defective product or part, deliver to Customer an equiva- lent product or part to replace the defective item, or if neither of the two foregoing...
