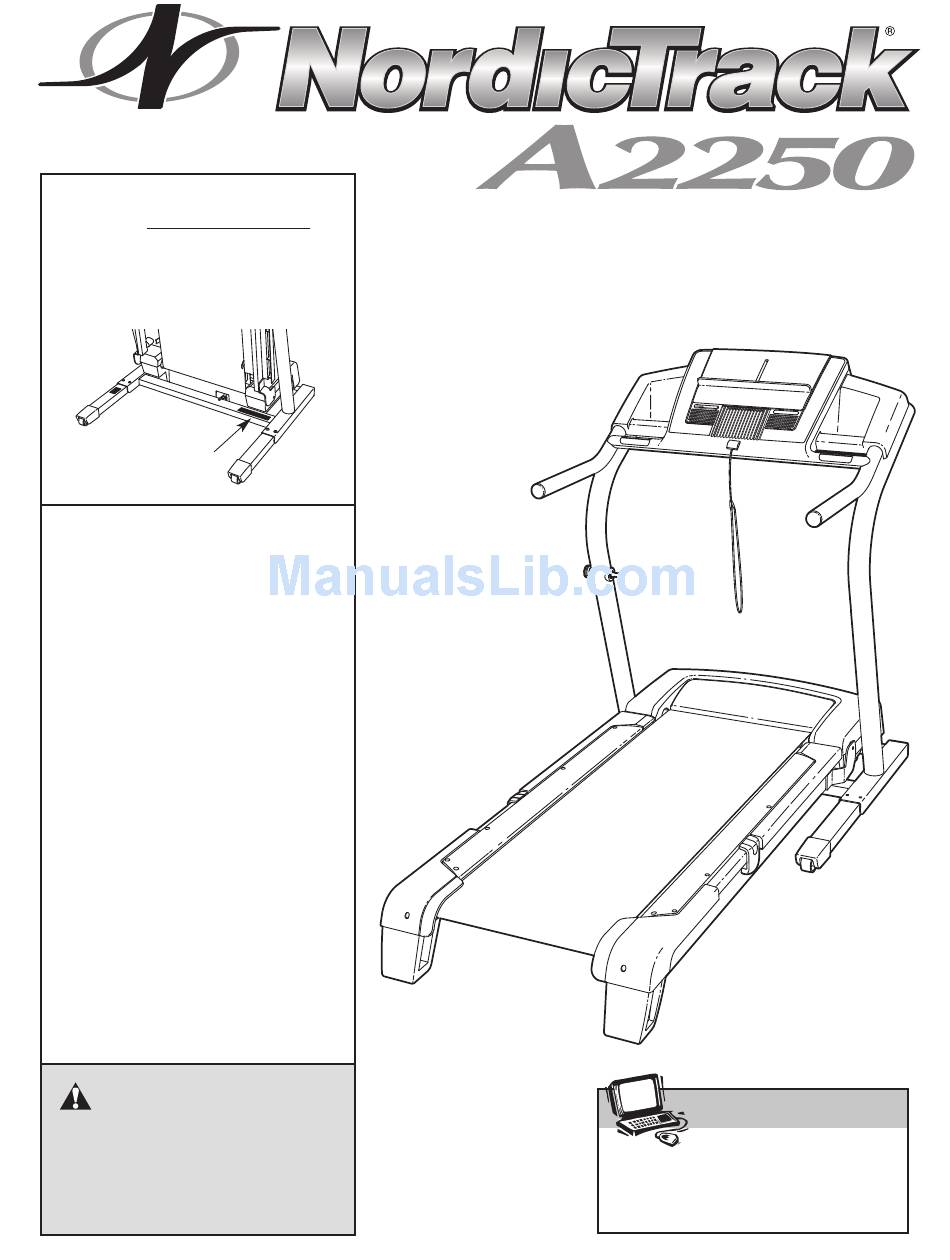

Model No. NTL77806.1
Serial No.
Find the serial number in the location
shown below. Write the serial number
in the space above for reference.
Serial Number
Decal
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
CALL TOLL-FREE:
1-888-825-2588
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB:
www.nordictrackservice.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
Visit our website at
www.nordictrack.com
new products, prizes,
fitness tips, and much more!
Advertisement
Table of Contents
Related Manuals for NordicTrack NTL77806.1
Summary of Contents for NordicTrack NTL77806.1
- Page 1 Model No. NTL77806.1 Serial No. Find the serial number in the location shown below. Write the serial number in the space above for reference. Serial Number Decal QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you...
-
Page 2: Table Of Contents
HOW TO FOLD AND MOVE THE TREADMILL ........ -
Page 3: Important Precautions
11. Use only a single-outlet surge suppressor that meets all of the specifications described on page 9. To purchase a surge suppressor, see your local NordicTrack dealer or call the toll- free telephone number on the front cover of this manual and order part number 146148, or see your local electronics store. - Page 4 SAVE THESE INSTRUCTIONS The decals shown here have been placed on the treadmill. If a decal is missing or il- legible, call the toll-free telephone number on the front cover of this manual and order a free replacement decal.
-
Page 5: Before You Begin
To help us assist you, note the product model number and serial number before calling. The model number of the treadmill is NTL77806.1. The serial number can be found on a decal attached to the tread- mill (see the front cover of this manual for the location). -
Page 6: Assembly
This is a normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner. - Page 7 Use the Base Pad to replace any Base Pad that becomes worn. With the help of a second person, carefully tip the treadmill down so that the Base Pads (81) are resting on the floor and the Uprights (85) are in the vertical position.
- Page 8 7. Make sure that all parts are properly tightened before you use the treadmill. Keep the included allen wrench in a secure place. The allen wrench is used to adjust the walking belt (see page 23). To protect the floor or carpet from damage, place a mat under the treadmill.
-
Page 9: Operation And Adjustment
(see drawing 1 at the right). To purchase a surge suppressor, see your local NordicTrack dealer or call the toll-free telephone number on the front cover of this man- ual and order part number 146148, or see your local electronics store. - Page 10 In addition, the console features six preset programs. Each program automatically controls the speed and in- cline of the treadmill as it guides you through an effec- tive workout. You can even create your own custom workout programs and save them in memory for future use.
- Page 11 Next, stand on the foot rails of the treadmill. Locate the clip attached to the key (see the drawing on page 10), and slide the clip securely onto the waistband of your clothes.
- Page 12 Note: Each time the incline changes, the display will show the incline setting. The Speed/Pace dis- play—This display will show the speed of the...
- Page 13 When you are finished exercising, remove the key. Step onto the foot rails, press the Stop button, and adjust the incline of the treadmill to the lowest setting. The incline must be at the lowest setting when the treadmill is folded to the storage posi- tion or the treadmill will be damaged.
-
Page 14: How To Use Preset Program
If the speed and/or the incline of the treadmill is about to change, the speed setting and/or the incline setting will flash in the displays to alert you. - Page 15 When the program ends, make sure that the in- cline of the treadmill is at the lowest setting. Next, remove the key from the console and put it in a safe place. Note: If the display remains lit after the key is removed, the console is in the “demo”...
- Page 16 If the speed and/or the incline of the treadmill is about to change, the speed setting and/or the incline setting will flash in the displays to alert you.
- Page 17 The walking belt will begin to move at 1 mph. When the next segment of the program begins, the treadmill will automatically adjust to the speed and incline settings for the next segment. Follow your progress with the displays.
- Page 18 The console features a user’s mode that keeps track of the total number of miles that the walking belt has moved and the total number of hours that the treadmill has been operated. The user’s mode also allows you to select miles or kilometers as the unit of measure- ment and to turn on and turn off the demo mode.
- Page 19 HOW TO ADJUST THE CUSHIONING SYSTEM The treadmill features a cushioning system that re- duces the impact as you walk or run on the treadmill. To increase the firmness of the walking platform, step off the treadmill and slide the cushion adjustors toward the front of the treadmill.
-
Page 20: How To Fold And Move The Treadmill
HOW TO FOLD THE TREADMILL FOR STORAGE Before folding the treadmill, adjust the incline to the lowest position. If this is not done, the treadmill may be per- manently damaged. Remove the key and unplug the power cord. CAUTION: You must be able to safely lift 45 pounds (20 kg) to raise, lower, or move the treadmill. - Page 21 HOW TO LOWER THE TREADMILL FOR USE 1. Hold the upper end of the treadmill with your right hand as shown. Using your left hand, pull the latch knob to the left and hold it. Pivot the frame down until it is past the pin on the latch knob.
-
Page 22: Troubleshooting
TROUBLESHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please see the front cover of this manual. PROBLEM: The power does not turn on SOLUTION: a. - Page 23 1/2 of a turn. Be careful not to overtighten the walking belt. Plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is centered. b. If the walking belt slips when walked on, first remove the key and UNPLUG THE POWER CORD.
- Page 24 SOLUTION: a. With the key in the console, press one of the Incline buttons. While the incline is changing, re- move the key. After a few seconds, re-insert the key. The treadmill will automatically rise to the maximum incline level and then return to the minimum level. This will recalibrate the incline sys-...
-
Page 25: Conditioning Guidelines
For maximum fat burning, adjust the speed and incline of the treadmill until your heart rate is near the middle number in your training zone. Aerobic Exercise If your goal is to strengthen your cardiovascular sys- tem, your exercise must be “aerobic.”... -
Page 26: Part List
PART LIST—Model No. NTL77806.1 To locate the parts listed below, see the EXPLODED DRAWING starting on page 28. Key No. Qty. Description Left Foot Rail Foot Rail Screw Cushion Adjustor Adjustor Guide Rear Platform Screw Latch Warning Decal 3/4" Screw... -
Page 27: Ordering Replacement Parts
To order replacement parts, see the front cover of this manual. When ordering parts, please be prepared to give the following information: • the MODEL NUMBER OF THE PRODUCT (NTL77806.1) • the NAME OF THE PRODUCT (NordicTrack A2250 treadmill) • the SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual) •... -
Page 28: Exploded Drawing
EXPLODED DRAWING A—Model No. NTL77806.1 R0806A... - Page 29 EXPLODED DRAWING B—Model No. NTL77806.1 R0806A...
- Page 30 EXPLODED DRAWING C—Model No. NTL77806.1 R0806A...
- Page 31 EXPLODED DRAWING D—Model No. NTL77806.1 R0806A...
-
Page 32: Limited Warranty
LIMITED WARRANTY WHAT IS COVERED—The entire NordicTrack A2250 treadmill (“Product”) is warranted to be free of all defects in mate- rial and workmanship. WHO IS COVERED—The original purchaser or any person receiving the Product as a gift from the original purchaser.
