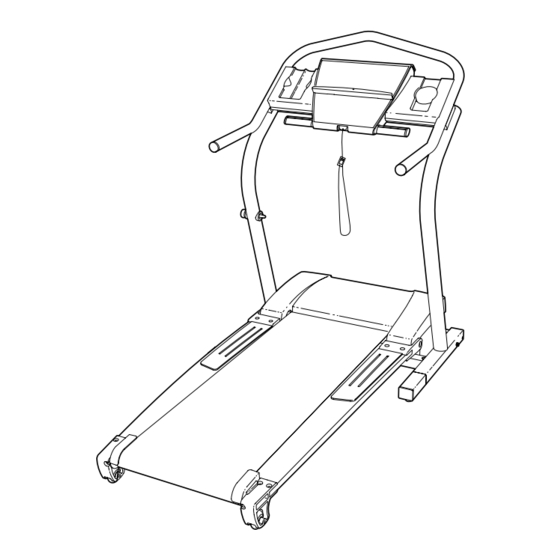

NordicTrack NTTL11510 User Manual

Nordictrack 2500 r user's manual

Hide thumbs

Table Of Contents

Patent Pending

Model No. NTTL11510

Serial No.

Find the serial number in the location

shown below. Write the serial number

in the space above for reference.

Serial Number Decal

QUESTIONS?

If you have questions, or if there

are missing parts, we will guar-

antee complete satisfaction

through direct assistance from

our factory.

TO AVOID UNNECESSARY DE-

LAYS, PLEASE CALL DIRECT TO

OUR TOLL-FREE CUSTOMER

HOT LINE. The trained techni-

cians on our Customer Hot Line

will provide immediate assis-

tance, free of charge to you.

CUSTOMER HOT LINE:

1-888-825-2588

Mon.–Fri., 6 a.m.–6 p.m. MST

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

USER'S MANUAL

Visit our website at

www.nordictrack.com

new products, prizes,

fitness tips, and much more!

Table of Contents

Summary of Contents for NordicTrack NTTL11510

Page 1 Patent Pending Model No. NTTL11510 Serial No. Find the serial number in the location shown below. Write the serial number in the space above for reference. Serial Number Decal QUESTIONS? If you have questions, or if there are missing parts, we will guar-...
Page 2: Table Of Contents
LIMITED WARRANTY ............. . .Back Cover Note: An EXPLODED DRAWING is attached in the center of this manual. NordicTrack is a registered trademark of ICON Health & Fitness, Inc.
Page 3: Important Precautions
450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps. To purchase a surge suppressor, see your local NordicTrack dealer or call 1-888- 825-2588 and order part number 146148. 12. Keep the power cord and the surge suppres- sor away from heated surfaces.
Page 4 21. When using iFIT.com CDs and videos, an electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change. Always listen for the “chirp” and be prepared for speed and/or in- cline changes. In some instances, the speed and/or incline may change before the per- sonal trainer describes the change.
Page 5: Before You Begin
To help us assist you, please note the product model number and serial number before calling. The model number is NTTL11510. The serial number can be found on a decal attached to the tread- mill (see the front cover of this manual for the location).
Page 6: Assembly
ASSEMBLY Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires the included allen wrench and your own phillips screwdriver, Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the treadmill or the shipping carton.
Page 7 4. Pull the Upright Wire Harness (101) up through a Handrail Spacer (114). Place the Handrail Spacer on the right Upright (110) as shown, with the cutout turned to- ward the treadmill (refer to inset drawing A). Place the other Handrail Spacer on the left Upright. Connect the Upright Wire Harness (101) to the wires ex- tending from the Console Base (76).
Page 8: Operation And Adjustment
(see drawing 1 at the right). To purchase a surge suppressor, see your local NordicTrack dealer or call 1-888-825-2588 and order part number 146148. Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge suppressor (TVSS).
Page 9: Features Of Console
Program Display Pulse Sensor Note: If there is a thin sheet of clear plastic on the face of the console, remove it. FEATURES OF THE CONSOLE The advanced console offers an impressive array of features to help you get the most from your exercise. When the console is in the manual mode, the speed and incline of the treadmill can be changed with a touch of a button.
Page 10 CAUTION: Before operating the console, read the following precautions. • Do not stand on the walking belt when turn- ing on the power. • Always wear the clip (see the drawing below) while operating the treadmill. • Adjust the speed in small increments to avoid sudden jumps in speed.
Page 11 HOW TO USE THE MANUAL MODE Insert the key fully into the console. See GETTING STARTED on page 10. Select the manual mode. When the key is in- serted, the manual mode will be selected and the Manual indica- tor will light. If a program has been selected, press the Select Pro- gram button repeatedly to select the manual mode.
Page 12 Speed/Pace display— This display shows the speed of the walking belt and your current pace (pace is mea- sured in minutes per mile). The display will change from one number to the other every few seconds, as shown by the indi- cators around the display.
Page 13 Each program is divided into several time seg- ments of different lengths. The Time/Laps display shows both the time remaining in the program and the time remaining in the current segment. One speed setting and one incline setting are pro- grammed for each seg- ment.
Page 14 HOW TO CREATE CUSTOM PROGRAMS Insert the key fully into the console. See GETTING STARTED on page 10. Select one of the custom programs. When the key is in- serted, the manual mode will be selected. To select one of the custom programs, press the Select Program but- ton repeatedly until the...
Page 15 HOW TO USE CUSTOM PROGRAMS Insert the key fully into the console. See GETTING STARTED on page 10. Select one of the custom programs. When the key is in- Learn Indicator serted, the manual mode will be selected. To select one of the custom programs, press the Select Program but- ton repeatedly until the...
Page 16 HOW TO CONNECT THE TREADMILL TO YOUR CD PLAYER, VCR, OR COMPUTER To use iFIT.com CDs, the treadmill must be con- nected to your portable CD player, portable stereo, home stereo, or computer with CD player. See pages 16 and 17 for connecting instructions. To use iFIT.com videocassettes, the treadmill must be connected to your VCR.
Page 17 HOW TO CONNECT YOUR HOME STEREO Note: If your stereo has an unused LINE OUT jack, see instruction A below. If the LINE OUT jack is being used, see instruction B. A. Plug one end of the audio cable into the jack on the front of the treadmill near the power cord.
Page 18 HOW TO CONNECT YOUR VCR Note: If your VCR has an unused AUDIO OUT jack, see instruction A below. If the AUDIO OUT jack is being used, see instruction B. If you have a TV with a built-in VCR, see instruction B. If your VCR is connected to your home stereo, see HOW TO CONNECT YOUR HOME STEREO on page 17.
Page 19 If the speed or incline settings are too high or too low, you can manually override the settings at any time by pressing the Speed or Incline buttons on the console. However, when the next “chirp” is heard, the speed and/or incline will change to the next settings of the CD or video program.
Page 20 HOW TO USE PROGRAMS DIRECTLY FROM OUR WEB SITE Our Web site at www.iFIT.com allows you to access basic programs, audio programs, and video programs directly from the internet. Additional options are soon to be available. See www.iFIT.com for details. To use programs from our Web site, the treadmill must be connected to your home computer.
Page 21 THE INFORMATION MODE/DEMO MODE The console features an information mode that keeps track of the total number of hours that the treadmill has been operated and the total number of miles that the walking belt has moved. The information mode also allows you to switch the console from miles per hour to kilometers per hour.
Page 22: How To Fold And Move The Treadmill
HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE Before folding the treadmill, adjust the incline to the lowest position. If this is not done, the treadmill may be per- manently damaged. Remove the key and unplug the power cord.
Page 23: Trouble-Shooting
TROUBLE-SHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department toll- free at 1-888-825-2588, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). PROBLEM: The power does not turn on SOLUTION: a.
Page 24 PROBLEM: The walking belt slows when walked on SOLUTION: a. Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge sup- pressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules.
Page 25: Conditioning Guidelines
CONDITIONING GUIDELINES WARNING: Before beginning this or any exercise program, consult your physi- cian. This is especially important for individu- als over the age of 35 or individuals with pre- existing health problems. The pulse sensor is not a medical device. Various factors, including your movement, may affect the accuracy of heart rate readings.
Page 26: Part List
PART LIST—Model No. NTTL11510 To locate the parts listed below, refer to the EXPLODED DRAWING attached in the center of this manual. Key No. Qty. Description Allen Wrench Wheel Bolt Rear Endcap (Left) Roller Adj. Washer Rear Roller Adj. Washer...
Page 27: Ordering Replacement Parts
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give the following information: • The MODEL NUMBER OF THE PRODUCT (NTTL11510) • The NAME OF THE PRODUCT (NordicTrack • The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual) •...
Page 28 EXPLODED DRAWING—Model No. NTTL11510 R1201A...
Page 29 EXPLODED DRAWING—Model No. NTTL11510 R1201A...
Page 30: Limited Warranty
LIMITED WARRANTY WHAT IS COVERED—The entire NordicTrack ® 2500 R treadmill (“Product”) is warranted to be free of all defects in ma- terial and workmanship. WHO IS COVERED—The original purchaser or any person receiving the Product as a gift from the original purchaser.
