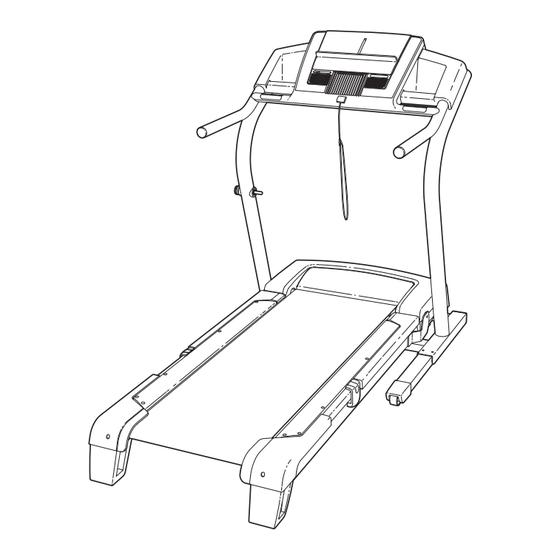

Model No. NTL07806.0
Serial No.
Find the serial number in the location
shown below. Write the serial number
in the space above for reference.
Serial Number
Decal
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
CALL TOLL-FREE:
1-888-825-2588
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB:
www.nordictrackservice.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
Visit our website at
www.nordictrack.com
new products, prizes,
fitness tips, and much more!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for NordicTrack NTL07806.0
Summary of Contents for NordicTrack NTL07806.0
- Page 1 Model No. NTL07806.0 Serial No. Find the serial number in the location shown below. Write the serial number in the space above for reference. Serial Number Decal QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you...
-
Page 2: Table Of Contents
LIMITED WARRANTY ............. . .Back Cover NordicTrack is a registered trademark of ICON IP, Inc. -
Page 3: Important Precautions
11. Use only a single-outlet surge suppressor that meets all of the specifications described on page 9. To purchase a surge suppressor, see your local NordicTrack dealer or call the toll- free telephone number on the front cover of this manual and order part number 146148, or see your local electronics store. - Page 4 22. When folding or moving the treadmill, make sure that the storage latch is fully closed. 23. When using iFIT cards, an electronic “chirp- ing” sound will alert you when the speed and/or incline of the treadmill is about to change.
-
Page 5: Before You Begin
The model number of the treadmill is NTL07806.0. The serial number can be found on a decal attached to the tread- mill (see the front cover of this manual for the location). -
Page 6: Assembly
ASSEMBLY Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. - Page 7 2. Insert the other Extension Leg (97) into the indi- cated bracket on the base of the Uprights (85) as shown. Attach the Extension Leg (97) with two Extension Leg Bolts (87), two Star Washers (67), and two Extension Leg Nuts (106) as shown. Firmly tighten the Extension Leg Bolts.
- Page 8 5. With the help of a second person, set the con- sole assembly on the Uprights (85). Make sure that no wires are pinched. Attach the console assembly with four Console Bolts (72) and four Star Washers (67). Start all four Console Bolts before tightening any of them.
-
Page 9: How To Plug In The Power Cord
(see drawing 1 at the right). To purchase a surge suppressor, see your local NordicTrack dealer or call the toll-free telephone number on the front cover of this man- ual and order part number 146148, or see your local electronics store. -
Page 10: Console Diagram
CONSOLE DIAGRAM Note: If there is a thin sheet of plastic on the face of the console, remove it. FEATURES OF THE CONSOLE The treadmill console offers an impressive array of features designed to help you get the most from your workouts. -
Page 11: How To Turn On The Power
HOW TO TURN ON THE POWER Note: To prevent damage to the walking platform, always wear clean shoes while using the treadmill. Plug in the power cord (see page 9). Next, locate the reset/off circuit breaker on the treadmill frame near the power cord. - Page 12 The Training Zones display—This display indicates the approxi- mate intensity level of your exercise. If five or six indicators are lit, for example, the display shows that your pace is ideal for aerobic exercise. The Time/Distance dis- play—This display will show the elapsed time and the distance that you have walked or run dur-...
- Page 13 Turn on the fan if desired. To turn on the fan at low speed, press the Fan button; the word “LOW” will appear in the matrix for a few seconds. To turn on the fan at high speed, press the button a second time; the word “HIGH”...
-
Page 14: How To Use Preset Program
HOW TO USE A PRESET PROGRAM Insert the key into the console. See HOW TO TURN ON THE POWER on page Select one of the preset programs. To select one of the six preset programs, press the Program Select but- ton repeatedly until “P 1,”... -
Page 15: How To Create A Custom Program
Follow your progress with the displays. See step 5 on page 11. Measure your heart rate if desired. See step 6 on page 12. Turn on the fan if desired. See step 7 on page 13. When you are finished exercising, remove the key from the console. -
Page 16: How To Use A Custom Program
HOW TO USE A CUSTOM PROGRAM Insert the key into the console. See HOW TO TURN ON THE POWER on page Select one of the custom programs. To select a custom pro- gram, press the Program Select button repeatedly until “P 7” or “P 8” ap- pears in the Calories/Pulse display. - Page 17 HOW TO USE AN IFIT CARD Insert the key into the console. See HOW TO TURN ON THE POWER on page Insert an iFIT Card and select a program. To use an iFIT program, insert an iFIT Card into the iFIT slot; make sure that the iFIT Card is ori- ented so the metal contacts are face-down and are inserted into the iFIT slot.
- Page 18 THE USER’S MODE The console features a user’s mode that keeps track of the total number of miles that the walking belt has moved and the total number of hours that the treadmill has been operated. The user’s mode also allows you to select miles or kilometers as the unit of measure- ment and to turn on and turn off the demo mode.
- Page 19 THE OPTIONAL CHEST PULSE SENSOR An optional chest pulse sensor offers hands-free oper- ation as it monitors your heart rate during your work- outs. To purchase the optional chest pulse sensor, call the toll-free telephone number on the front cover of this manual. HOW TO ADJUST THE CUSHIONING SYSTEM The treadmill features a cushioning system that re- duces the impact as you walk or run on the treadmill.
-
Page 20: How To Fold And Move The Treadmill
HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE Before folding the treadmill, adjust the incline to the lowest position. If this is not done, the treadmill may be per- manently damaged. Remove the key and unplug the power cord. - Page 21 HOW TO LOWER THE TREADMILL FOR USE 1. Hold the upper end of the treadmill with your right hand as shown. Using your left hand, pull the latch knob to the left and hold it. Pivot the frame down until it is past the pin on the latch knob.
-
Page 22: Troubleshooting
TROUBLESHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please see the front cover of this manual. PROBLEM: The power does not turn on SOLUTION: a. - Page 23 Locate the Reed Switch (22) and the Magnet (18) on the left side of the Pulley (17). Turn the Pulley until the Magnet is aligned with the Reed Switch. Make sure that the gap between the Magnet and the Reed Switch is about 1/8”.
- Page 24 PROBLEM: The incline of the treadmill does not change correctly SOLUTION: a. With the key in the console, press one of the Incline buttons. While the incline is changing, re- move the key. After a few seconds, re-insert the key. The treadmill will automatically rise to the maximum incline level and then return to the minimum level.
-
Page 25: Exercise Intensity
CONDITIONING GUIDELINES WARNING: Before beginning this or any exercise program, consult your physi- cian. This is especially important for individu- als over the age of 35 or individuals with pre- existing health problems. The pulse sensor is not a medical device. Various factors, including your movement, may affect the accuracy of heart rate readings. -
Page 26: Part List
PART LIST—Model No. NTL07806.0 To locate the parts listed below, see the EXPLODED DRAWING starting on page 28. Key No. Qty. Description Left Foot Rail Foot Rail Screw Cushion Adjustor Adjustor Guide Rear Platform Screw Latch Warning Decal 3/4" Screw... -
Page 27: Ordering Replacement Parts
To order replacement parts, see the front cover of this manual. When ordering parts, please be prepared to give the following information: • the MODEL NUMBER OF THE PRODUCT (NTL07806.0) • the NAME OF THE PRODUCT (NordicTrack C2255 treadmill) • the SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual) •... -
Page 28: Exploded Drawing
EXPLODED DRAWING—Model No. NTL07806.0 R0506A... - Page 29 Part 2 of 4...
- Page 30 Part 3 of 4...
- Page 31 Part 4 of 4...
-
Page 32: Limited Warranty
LIMITED WARRANTY WHAT IS COVERED—The entire NordicTrack C2255 treadmill (“Product”) is warranted to be free of all defects in mate- rial and workmanship. WHO IS COVERED—The original purchaser or any person receiving the Product as a gift from the original purchaser.
