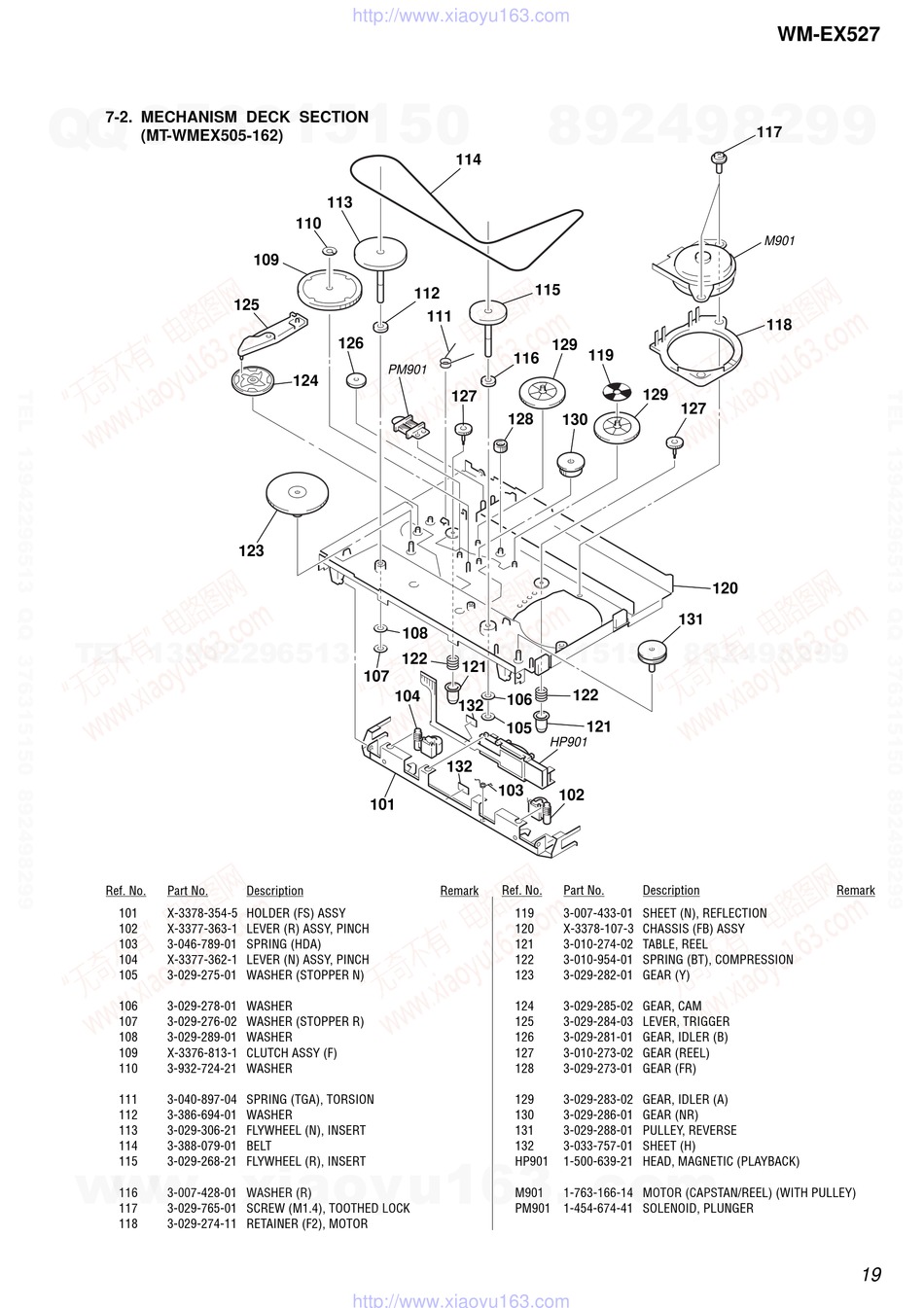

7-2. MECHANISM DECK SECTION
(MT-WMEX505-162)
TE
L 13942296513
Ref. No. Part No.
101 X-3378-354-5 HOLDER (FS) ASSY
102 X-3377-363-1 LEVER (R) ASSY, PINCH
103 3-046-789-01 SPRING (HDA)
104 X-3377-362-1 LEVER (N) ASSY, PINCH
105 3-029-275-01 WASHER (STOPPER N)
106 3-029-278-01 WASHER
107 3-029-276-02 WASHER (STOPPER R)
108 3-029-289-01 WASHER
109 X-3376-813-1 CLUTCH ASSY (F)
110 3-932-724-21 WASHER
111 3-040-897-04 SPRING (TGA), TORSION
www
112 3-386-694-01 WASHER
113 3-029-306-21 FLYWHEEL (N), INSERT
114 3-388-079-01 BELT
115 3-029-268-21 FLYWHEEL (R), INSERT
.
116 3-007-428-01 WASHER (R)
117 3-029-765-01 SCREW (M1.4), TOOTHED LOCK
118 3-029-274-11 RETAINER (F2), MOTOR
http://www.xiaoyu163.com
113
110
109
125
126
PM901
124
123
108
122
107
104
101
Description
x ao u163
y
i
http://www.xiaoyu163.com
2 9
8
114
115
112
111
129
119
116
127
128
130
Q Q
3 6 7 1 3
121
122
106
132
121
105
HP901
132
103
102
Remark Ref. No. Part No.
119 3-007-433-01 SHEET (N), REFLECTION
120 X-3378-107-3 CHASSIS (FB) ASSY
121 3-010-274-02 TABLE, REEL
122 3-010-954-01 SPRING (BT), COMPRESSION
123 3-029-282-01 GEAR (Y)
124 3-029-285-02 GEAR, CAM
125 3-029-284-03 LEVER, TRIGGER
126 3-029-281-01 GEAR, IDLER (B)
127 3-010-273-02 GEAR (REEL)
128 3-029-273-01 GEAR (FR)
129 3-029-283-02 GEAR, IDLER (A)
130 3-029-286-01 GEAR (NR)
131 3-029-288-01 PULLEY, REVERSE
132 3-033-757-01 SHEET (H)
HP901 1-500-639-21 HEAD, MAGNETIC (PLAYBACK)
.
M901 1-763-166-14 MOTOR (CAPSTAN/REEL) (WITH PULLEY)
PM901 1-454-674-41 SOLENOID, PLUNGER
9 4 2 8
117
M901
118
129
127
120
131
1 5 0 5 8 2 9 9 4
Description
m
co
WM-EX527
9 9
2 8 9 9
Remark
19
