Nokia Mediamaster 121 T User Manual

Nokia mediamaster user guide 121 t.
Hide thumbs
User Guide

   Related Manuals for Nokia Mediamaster 121 T

   Summary of Contents for Nokia Mediamaster 121 T

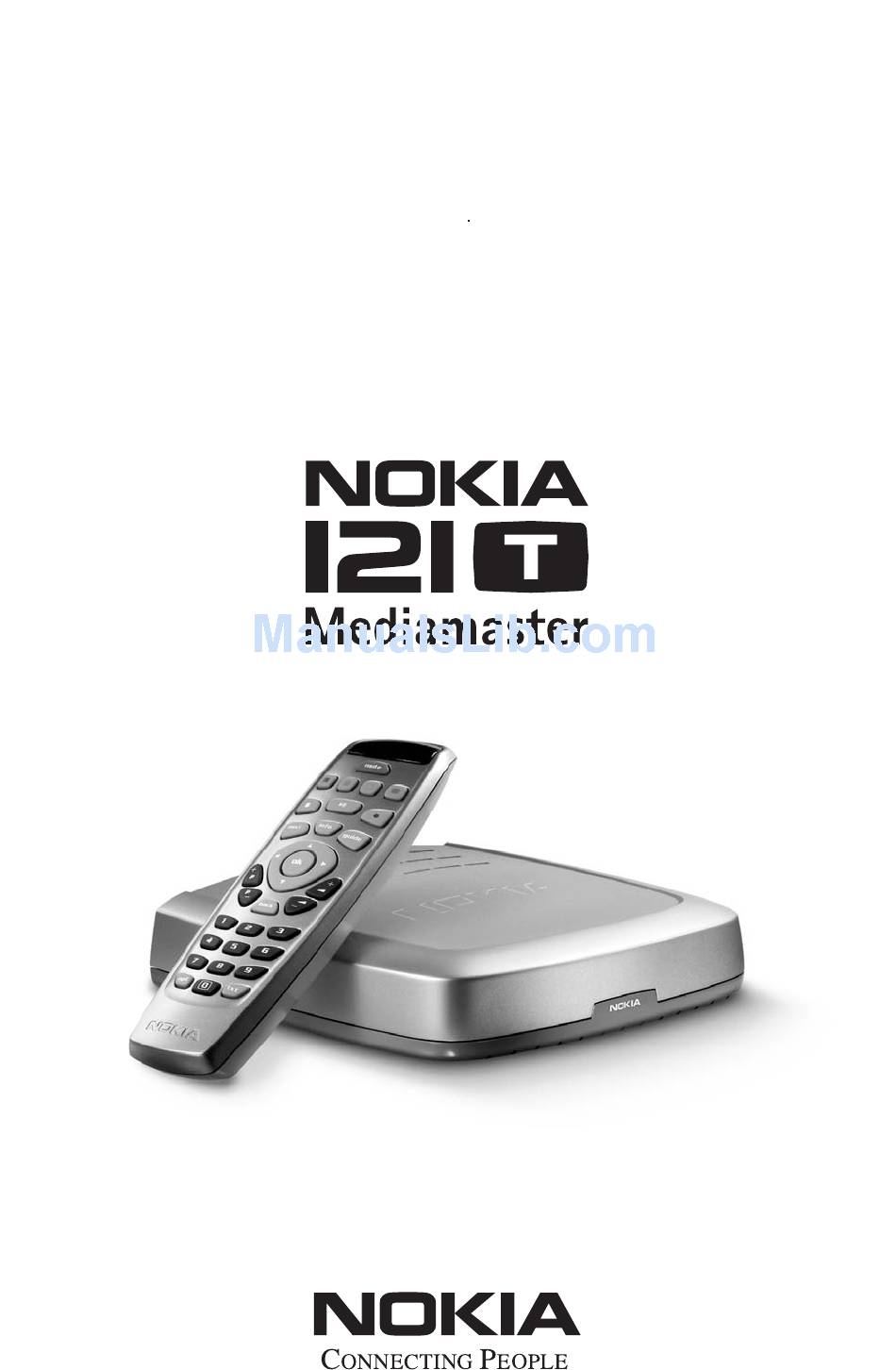

  • Page 1

    User Guide...

  • Page 2

    Contact information: Nokia Support: 01793 556 046, E-mail: NHC.sales@nokia.com Nokia, Nokia Connecting People and Navi Bars are registered trademarks of Nokia Corporation. Other product and company names mentioned herein may be trademarks or trade names of their owners. Nokia operates a policy of continuous development. Therefore we reserve the right to make changes and improvements to any of the products described in this manual without any prior notice.

  • Page 3: Table Of Contents

    • Do not allow the unit to be exposed to hot, cold or humid conditions. • Service should be carried out only at a Nokia Authorised Service Centre. • Please note that the only way to isolate the Mediamaster completely from the...

  • Page 4: Remote Control

    Remote control This section describes how to operate the Mediamaster using the buttons on the remote control. mute/ Press once to turn the sound off/on (mute). Press and hold for a few seconds to switch the Mediamaster into standby mode. Also press this button to switch it on. Function keys for interactive applications.

  • Page 5: Front And Rear Panel, Front Panel, Rear Panel

    Front and rear panel Front panel A constant green light indicates that the Mediamaster is turned ON. A constant red light indicates standby mode. Flashes red when commands from the re- mote control are received. Continously flashes green during software update.

  • Page 6: Connecting The Mediamaster

    Connecting the Mediamaster The box for your Mediamaster should contain the following items: • The Mediamaster • Remote control with 2 AAA batteries • SCART cable (fully connected; 1,0 metre) • RF cable • User Guide with software license agreement ( •...

  • Page 7

    Connecting the Mediamaster Connecting to the TV aerial You can connect the Mediamaster to the following type of aerials: 1. Standard outdoor aerial Where possible, use an outdoor roof aerial intended for receiving UHF channels between 21 and 69. Please note the following: •...

  • Page 8

    In this section you will see some of the most common ways to con- nect your equipment. If you have problems with your connections and need help, contact your retailer or Nokia Support. Connecting to the TV with SCART • Remove the aerial lead from your TV and connect this to the TV AERIAL input socket on the Mediamaster.

  • Page 9

    Connecting the Mediamaster Connecting a video recorder with SCART • Remove the aerial lead from your TV and connect this to the TV AERIAL input socket on the Mediamaster. • Connect a SCART cable between the main SCART socket on the TV and the TV SCART socket on the Video.

  • Page 10: First Time Installation, General Information

    First time installation General information Once you have correctly connected the Mediamaster, you also have to perform a “First time installation.” During this procedure, helpful information is displayed at the bot- tom of the menus. The ok button always confirms a selection within these menus, and pressing it will take you to the next step in the installation process.

  • Page 11: Programme Information

    Watching TV & listening to Radio General Information You can watch digital TV and listen to digital radio with this Media- master. • If no TV channel is automatically shown after you have finished the installation procedure, press the P+ or P- button to select a channel.

  • Page 12: Temporary Settings, External Equipment

    Watching TV & listening to Radio Temporary settings By pressing opt you open a menu in which it is possible to enter temporary settings. Settings made in this “options menu” are only valid for the programme you are currently watching. If you leave the programme and return to it again, the temporary settings will be lost.

  • Page 13: Navi Bars, Navigating With Navi Bars

    Navi Bars Navigating with Navi Bars Navi Bars is used for selecting TV/Radio channels and changing set- tings. 1 Display Navi Bars by pressing the menu button and hide Navi bars by pressing the menu or back button . 2 When Navi Bars are displayed you can move around with the arrow keys.

  • Page 14: The Settings Folder, The User Preferences Folder

    Navi Bars The Settings folder Each of the bookmarks in the Settings folder contains menus from where you can change the settings of the Mediamaster. To open some of the menus you will be asked to enter your access code. From the factory the access code is set to 1234.

  • Page 15: Tv Folder

    Navi Bars TV folder Time adjustment The time is adjusted by using the time. TV screen format Select your TV screen format. The 4:3 format is the standard format for most TV screens. Select 16:9 for widescreen TV. Press opt to get a TV programme in the background and you can instantly watch the result of your choice.

  • Page 16: Edit Lists Folder

    Navi Bars Edit lists folder The TV folder may contain lots of channels. By creating your own lists you can make channel handling more convenient. From these menus you can create and edit favourite channel lists. Select list If you have several lists and want to make changes in them, select which list by using the buttons.

  • Page 17

    Navi Bars Delete selected list If you want to delete a list completely, first select the list with the buttons on the line “Select list”. Then step down to “Delete selected list” and delete it. Rename selected list Give the list a new name. Refer to “Create list” on the previous page. Add/Delete channels From this menu you add and remove the channels in your lists.

  • Page 18: Search Folder

    Navi Bars Lock channels To get to this menu you first have to enter your access code. From the factory the access code is set to 1234. From here you can lock (and later unlock) channels in order to pre- vent e.g.

  • Page 19: Access Folder

    From here you can change the access code from the standard 1234. DO NOT FORGET IT! Without it you do not have access to any of the functions where the code is required! If you forget it, please contact Nokia Support for help. GB 19...

  • Page 20: Maintenance Folder

    Navi Bars Maintenance folder System Information When you enter the Maintenance folder you find general informa- tion about which hardware and software version your Mediamaster is running on. Reinstall Use this option only if you have to start the complete installation procedure from scratch.

  • Page 21: Technical Specifications

    Technical specifications Transmission Standards DVB, MPEG 2, OFDM RF input Modulator output In-/output connector IEC female / IEC male RF input frequency 470-862 MHz RF input power level -78 to -30 dBm RF impedance 75 Ω Frequency range Loop through 47-862 MHz Frequency range RF modulator 471,25-855,25 MHz Output channel...

  • Page 22: Nokia Mediamaster Software End-user License

    Read this Agreement carefully before using the Software. By using this Nokia digital TV receiver, You agree to the terms and conditions of this Agreement. If You do not agree to all of the terms and conditions of this Agreement, return this Nokia digital TV receiver and accompanying documentation to the place of purchase. YOU AGREE THAT YOUR USE OF THE SOFTWARE ACKNOWLEDGES THAT YOU HAVE READ THIS AGREEMENT, UNDERSTAND IT, AND AGREE TO BE BOUND BY ITS TERMS AND CONDITIONS.

  • Page 24

    Nokia is a registered trademark of Nokia Corporation www.nokia.com 00002797.00...
