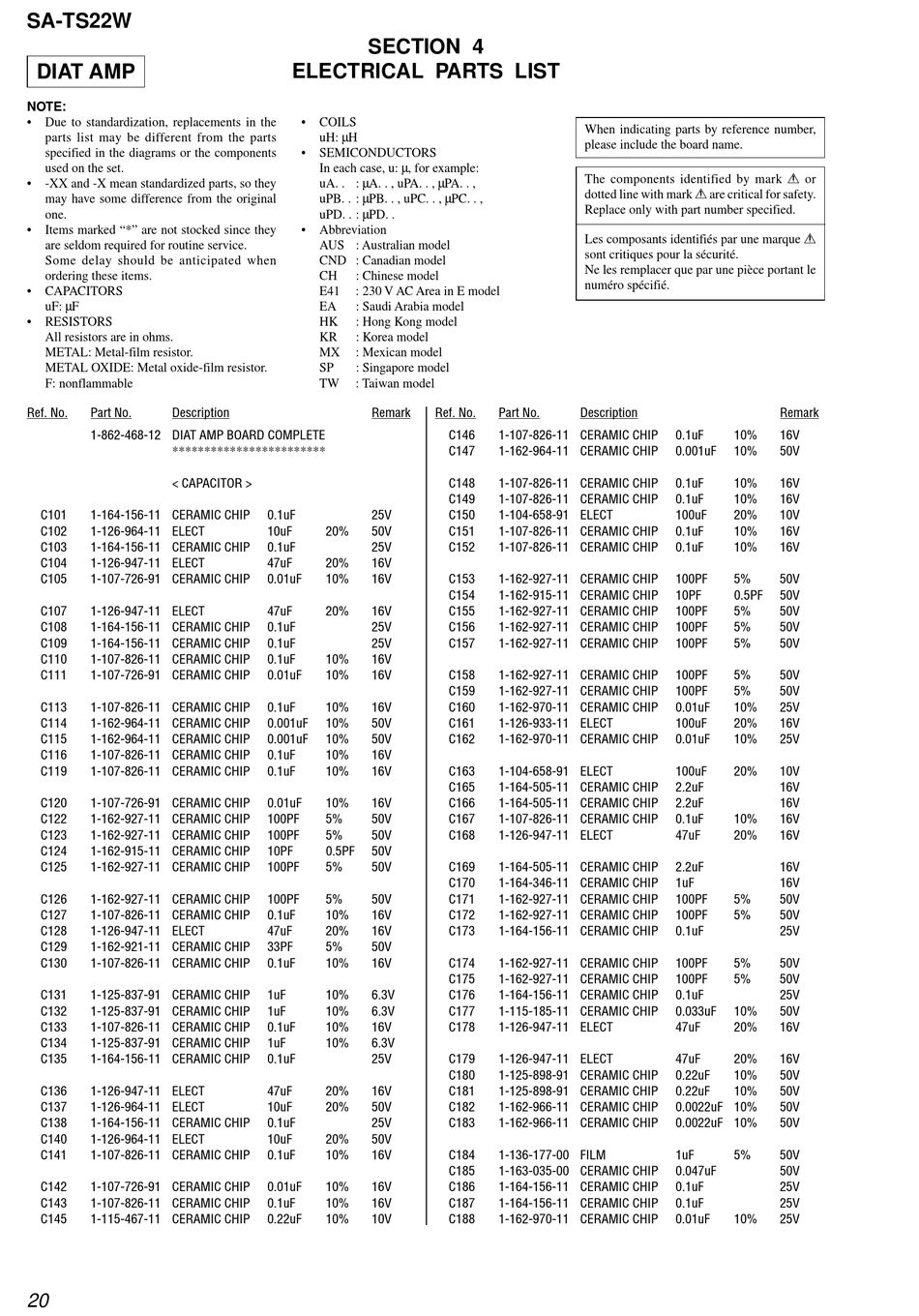

Electrical Parts List - Sony Sa-Ts22W Service Manual

SA-TS22W
DIAT AMP
NOTE:
• Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked "*" are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• CAPACITORS
uF: µF
• RESISTORS
All resistors are in ohms.
METAL: Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F: nonflammable
Ref. No. Part No. Description
1-862-468-12 DIAT AMP BOARD COMPLETE
************************
< CAPACITOR >
C101 1-164-156-11 CERAMIC CHIP
C102 1-126-964-11 ELECT
C103 1-164-156-11 CERAMIC CHIP
C104 1-126-947-11 ELECT
C105 1-107-726-91 CERAMIC CHIP
C107 1-126-947-11 ELECT
C108 1-164-156-11 CERAMIC CHIP
C109 1-164-156-11 CERAMIC CHIP
C110 1-107-826-11 CERAMIC CHIP
C111 1-107-726-91 CERAMIC CHIP
C113 1-107-826-11 CERAMIC CHIP
C114 1-162-964-11 CERAMIC CHIP
C115 1-162-964-11 CERAMIC CHIP
C116 1-107-826-11 CERAMIC CHIP
C119 1-107-826-11 CERAMIC CHIP
C120 1-107-726-91 CERAMIC CHIP
C122 1-162-927-11 CERAMIC CHIP
C123 1-162-927-11 CERAMIC CHIP
C124 1-162-915-11 CERAMIC CHIP
C125 1-162-927-11 CERAMIC CHIP
C126 1-162-927-11 CERAMIC CHIP
C127 1-107-826-11 CERAMIC CHIP
C128 1-126-947-11 ELECT
C129 1-162-921-11 CERAMIC CHIP
C130 1-107-826-11 CERAMIC CHIP
C131 1-125-837-91 CERAMIC CHIP
C132 1-125-837-91 CERAMIC CHIP
C133 1-107-826-11 CERAMIC CHIP
C134 1-125-837-91 CERAMIC CHIP
C135 1-164-156-11 CERAMIC CHIP
C136 1-126-947-11 ELECT
C137 1-126-964-11 ELECT
C138 1-164-156-11 CERAMIC CHIP
C140 1-126-964-11 ELECT
C141 1-107-826-11 CERAMIC CHIP
C142 1-107-726-91 CERAMIC CHIP
C143 1-107-826-11 CERAMIC CHIP
C145 1-115-467-11 CERAMIC CHIP
20
SECTION 4

ELECTRICAL PARTS LIST

• COILS
uH: µH
• SEMICONDUCTORS
In each case, u: µ, for example:
uA. . : µA. . , uPA. . , µPA. . ,
uPB. . : µPB. . , uPC. . , µPC. . ,
uPD. . : µPD. .
• Abbreviation
AUS : Australian model
CND : Canadian model
CH : Chinese model
E41 : 230 V AC Area in E model
EA : Saudi Arabia model
HK : Hong Kong model
KR : Korea model
MX : Mexican model
SP : Singapore model
TW : Taiwan model
Remark Ref. No.
0.1uF 25V
10uF 20% 50V
0.1uF 25V
47uF 20% 16V
0.01uF 10% 16V
47uF 20% 16V
0.1uF 25V
0.1uF 25V
0.1uF 10% 16V
0.01uF 10% 16V
0.1uF 10% 16V
0.001uF 10% 50V
0.001uF 10% 50V
0.1uF 10% 16V
0.1uF 10% 16V
0.01uF 10% 16V
100PF 5% 50V
100PF 5% 50V
10PF 0.5PF 50V
100PF 5% 50V
100PF 5% 50V
0.1uF 10% 16V
47uF 20% 16V
33PF 5% 50V
0.1uF 10% 16V
1uF 10% 6.3V
1uF 10% 6.3V
0.1uF 10% 16V
1uF 10% 6.3V
0.1uF 25V
47uF 20% 16V
10uF 20% 50V
0.1uF 25V
10uF 20% 50V
0.1uF 10% 16V
0.01uF 10% 16V
0.1uF 10% 16V
0.22uF 10% 10V
When indicating parts by reference number,
please include the board name.
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.
Part No. Description
C146 1-107-826-11 CERAMIC CHIP
C147 1-162-964-11 CERAMIC CHIP
C148 1-107-826-11 CERAMIC CHIP
C149 1-107-826-11 CERAMIC CHIP
C150 1-104-658-91 ELECT
C151 1-107-826-11 CERAMIC CHIP
C152 1-107-826-11 CERAMIC CHIP
C153 1-162-927-11 CERAMIC CHIP
C154 1-162-915-11 CERAMIC CHIP
C155 1-162-927-11 CERAMIC CHIP
C156 1-162-927-11 CERAMIC CHIP
C157 1-162-927-11 CERAMIC CHIP
C158 1-162-927-11 CERAMIC CHIP
C159 1-162-927-11 CERAMIC CHIP
C160 1-162-970-11 CERAMIC CHIP
C161 1-126-933-11 ELECT
C162 1-162-970-11 CERAMIC CHIP
C163 1-104-658-91 ELECT
C165 1-164-505-11 CERAMIC CHIP
C166 1-164-505-11 CERAMIC CHIP
C167 1-107-826-11 CERAMIC CHIP
C168 1-126-947-11 ELECT
C169 1-164-505-11 CERAMIC CHIP
C170 1-164-346-11 CERAMIC CHIP
C171 1-162-927-11 CERAMIC CHIP
C172 1-162-927-11 CERAMIC CHIP
C173 1-164-156-11 CERAMIC CHIP
C174 1-162-927-11 CERAMIC CHIP
C175 1-162-927-11 CERAMIC CHIP
C176 1-164-156-11 CERAMIC CHIP
C177 1-115-185-11 CERAMIC CHIP
C178 1-126-947-11 ELECT
C179 1-126-947-11 ELECT
C180 1-125-898-91 CERAMIC CHIP
C181 1-125-898-91 CERAMIC CHIP
C182 1-162-966-11 CERAMIC CHIP
C183 1-162-966-11 CERAMIC CHIP
C184 1-136-177-00 FILM
C185 1-163-035-00 CERAMIC CHIP
C186 1-164-156-11 CERAMIC CHIP
C187 1-164-156-11 CERAMIC CHIP
C188 1-162-970-11 CERAMIC CHIP
Remark
0.1uF 10% 16V
0.001uF 10% 50V
0.1uF 10% 16V
0.1uF 10% 16V
100uF 20% 10V
0.1uF 10% 16V
0.1uF 10% 16V
100PF 5% 50V
10PF 0.5PF 50V
100PF 5% 50V
100PF 5% 50V
100PF 5% 50V
100PF 5% 50V
100PF 5% 50V
0.01uF 10% 25V
100uF 20% 16V
0.01uF 10% 25V
100uF 20% 10V
2.2uF 16V
2.2uF 16V
0.1uF 10% 16V
47uF 20% 16V
2.2uF 16V
1uF 16V
100PF 5% 50V
100PF 5% 50V
0.1uF 25V
100PF 5% 50V
100PF 5% 50V
0.1uF 25V
0.033uF 10% 50V
47uF 20% 16V
47uF 20% 16V
0.22uF 10% 50V
0.22uF 10% 50V
0.0022uF 10% 50V
0.0022uF 10% 50V
1uF 5% 50V
0.047uF 50V
0.1uF 25V
0.1uF 25V
0.01uF 10% 25V
