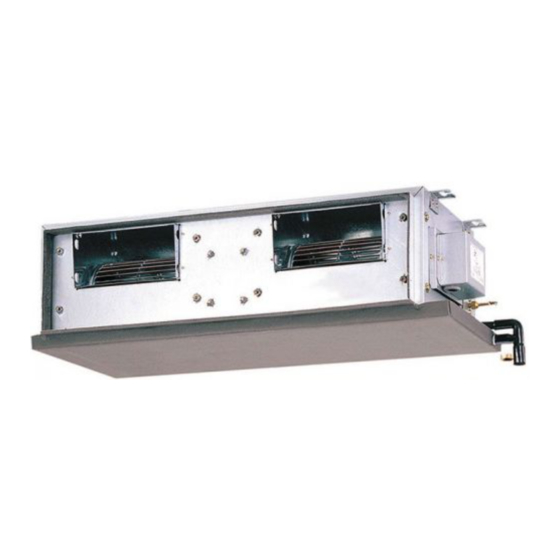

Application Information Application Information Operating Range Ensure the operating temperature is in allowable range. Cooling Outdoor DB (°C) The use of your air conditioner outside the range of working temperature and humidity can result in serious failure. Indoor WB (°C) Heating Outdoor WB (°C)
Application Information Installation Guideline Sharp edges and coil surfaces are potential injury hazard. Avoid from contact with them. (1) Installation of Indoor Unit Preliminary Survey • Electrical supply and installation is to confi rm to local authority’s (e.g. National Electrical Board) codes and regulations.
Page 15
Application Information (2) Installation of Outdoor Unit As condensing temperature rises, evaporating temperature rises and cooling capacity drops. In order to achieve maximum cooling capacity, the location selected for outdoor unit should fulfi ll the following requirements: • Install the condensing (outdoor) unit in a way such that hot air distributed by the outdoor condensing unit cannot be drawn in again (as in the case of short circuit of hot discharge air).
Page 16
Application Information (3) Cable Size FDM10CXV1 FDM15CXV1 FDM20CXV1 FDM25CXV1 FDM28CXV1 FDB10CXV1 FDB15CXV1 FDB20CXV1 FDB25CXV1 Model Unit R10CXV1 R15CXV1 R20CXV1 R25CXV1 R28CXV1 Power supply cable size Number of wire Interconnection cable size Number of wire Recommended fuse FDM30CXV1 FDM28CXV1 FDM38CXV1 FDB30CXV1...
Page 17
Application Information FDYM30CXV1 FDYM28CXV1 FDYM28CXV1 FDYB30CXV1 Model Unit RY28CXV1 RY30DXV1 RY30DXY1 RY28CXV1 Power supply cable size Number of wire Interconnection cable size Number of wire 4 & 3 4 & 3 Recommended fuse FDYM30CXV1 FDYM38CXV1 FDYM38CXV1 FDYB30CXV1 Model Unit RY30DXV1 RY30DXY1 RY35DXV1 RY40DXV1...
Page 18
Application Information (4) Refrigerant Piping Maximum Pipe and Maximum Number of Bends • When the pipe length becomes too long, both the capacity and reliability drop. As the number of bends increases, system piping resistance to the refrigerant fl ow increases, thus lowering the cooling capacity, and as the result the font compressor may become defective.
Page 19
The refrigerant charge has already charged into the outdoor unit. For the piping length of 7.6m, additional refrigerant charge after vacuuming is not necessary. • When the piping length is more than 7.6m, please use the table below (unit in gram). R22 – Cooling Only FDM10CXV1 FDM15CXV1 FDM20CXV1 FDM25CXV1 Indoor...
Sound Data Sound Data Sound Pressure Level 1/1 Octave Sound Pressure (dB, ref 20μPa) Overall Noise Model Speed (dBA) Criteria 125Hz 250Hz 500Hz 1kHz 2kHz 4kHz 8kHz High FD(Y)M10CXV1 High FD(Y)M15CXV1 High FD(Y)M20CXV1 High FD(Y)M25CXV1 S. High High FD(Y)M28CXV1 S. High High FD(Y)M30CXV1 S.
Sound Data Sound Pressure Level 1/1 Octave Sound Pressure (dB, ref 20μPa) Overall Noise Model Speed (dBA) Criteria 125Hz 250Hz 500Hz 1kHz 2kHz 4kHz 8kHz High FD(Y)B10CXV1 High FD(Y)B15CXV1 High FD(Y)B20CXV1 High FD(Y)B25CXV1 S. High High FD(Y)B30CXV1 S. High High FD(Y)B40CXV1 S.
Page 24
Sound Data FD(Y)M28CXV1 NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 NC-20 1000 2000 4000 8000 Octave-band frequency (Hz) Measured in anechoic room at 1.5m below the centre of the unit Tested with 2m length duct at the air discharge outlet and air return inlet FD(Y)M30CXV1 NC-50 NC-45...
Page 25
Sound Data FD(Y)M38CXV1 NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 NC-20 1000 2000 4000 8000 Octave-band frequency (Hz) Measured in anechoic room at 1.4m below the centre of the unit Tested with 2m length duct at the air discharge outlet and air return inlet FD(Y)M40CXV1 NC-50 NC-45...
Page 26
Sound Data FD(Y)M50CXV1 NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 NC-20 1000 2000 4000 8000 Octave-band frequency (Hz) Measured in anechoic room at 1.5m below the centre of the unit Tested with 2m length duct at the air discharge outlet and air return inlet FD(Y)M60CXV1 NC-50 NC-45...
Engineering & Physical Data Engineering & Physical Data Engineering Data – R22 MODEL INDOOR UNIT FDM10CXV1 FDM15CXV1 FDM20CXV1 MODEL OUTDOOR UNIT R10CXV1 R15CXV1 R20CXV1 Btu/h 9500 12300 19000 NOMINAL COOLING CAPACITY 2780 3600 5570 NOMINAL TOTAL INPUT POWER (COOLING) 1267...
Page 50
Engineering & Physical Data Engineering Data - R22 MODEL INDOOR UNIT FDM25CXV1 FDM28CXV1 FDM28CXV1 MODEL OUTDOOR UNIT R25CXV1 R28CXV1 R30DXV1 Btu/h 23500 27000 28000 NOMINAL COOLING CAPACITY 6890 7913 8206 NOMINAL TOTAL INPUT POWER (COOLING) 2616 3091 2821 NOMINAL RUNNING CURRENT (COOLING) 11.70 15.10 12.92...
Page 51
Engineering & Physical Data Engineering Data - R22 MODEL INDOOR UNIT FDM30CXV1 FDM30CXV1 FDM30CXV1 FDM38CXV1 MODEL OUTDOOR UNIT R28CXV1 R30DXV1 R30DXY1 R35DXV1 Btu/h 28000 29000 29000 35000 NOMINAL COOLING CAPACITY 8206 8499 8499 10257 NOMINAL TOTAL INPUT POWER (COOLING) 3153 2799 2855 3443...
Page 52
Engineering & Physical Data Engineering Data - R22 MODEL INDOOR UNIT FDM38CXV1 FDM38CXV1 FDM40CXV1 FDM40CXV1 MODEL OUTDOOR UNIT R40DXV1 R40DXY1 R35DXV1 R40DXV1 Btu/h 38000 38000 33500 38000 NOMINAL COOLING CAPACITY 11137 11137 9818 11140 NOMINAL TOTAL INPUT POWER (COOLING) 3706 3656 3405 3555...
Page 53
Engineering & Physical Data Engineering Data - R22 MODEL INDOOR UNIT FDM40CXV1 FDM50CXV1 FDM60CXV1 MODEL OUTDOOR UNIT R40DXY1 R50DXY1 R61DXY1 Btu/h 38000 48000 56000 NOMINAL COOLING CAPACITY 11140 14100 16410 NOMINAL TOTAL INPUT POWER (COOLING) 4050 4950 6010 NOMINAL RUNNING CURRENT (COOLING) 6.26 8.21 10.00...
Page 54
Engineering & Physical Data Engineering Data - R22 MODEL INDOOR UNIT FDB10CXV1 FDB15CXV1 FDB20CXV1 MODEL OUTDOOR UNIT R10CXV1 R15CXV1 R20CXV1 Btu/h 9500 12300 19000 NOMINAL COOLING CAPACITY 2780 3600 5570 NOMINAL TOTAL INPUT POWER (COOLING) 1256 1879 NOMINAL RUNNING CURRENT (COOLING) 3.99 5.63 8.25...
Page 55
Engineering & Physical Data Engineering Data - R22 MODEL INDOOR UNIT FDB25CXV1 FDB30CXV1 FDB30CXV1 FDB30CXV1 MODEL OUTDOOR UNIT R25CXV1 R28CXV1 R30DXV1 R30DYV1 Btu/h 23500 28000 29000 29000 NOMINAL COOLING CAPACITY 6890 8206 8499 8499 NOMINAL TOTAL INPUT POWER (COOLING) 2589 3124 2770 2826...
Page 56
Engineering & Physical Data Engineering Data - R22 MODEL (Low Static) INDOOR UNIT FDB40CXV1 FDB40CXV1 FDB40CXV1 FDB50CXV1 MODEL OUTDOOR UNIT R35DXV1 R40DXV1 R40DXY1 R50DXY1 Btu/h 33500 38000 38000 48000 NOMINAL COOLING CAPACITY 9818 11140 11140 14100 NOMINAL TOTAL INPUT POWER (COOLING) 3350 3500 3897...
Page 57
Engineering & Physical Data Engineering Data - R22 MODEL INDOOR UNIT FDB60CXV1 MODEL OUTDOOR UNIT R61DXY1 Btu/h 56000 NOMINAL COOLING CAPACITY 16410 NOMINAL TOTAL INPUT POWER (COOLING) 5800 NOMINAL RUNNING CURRENT (COOLING) 9.83 2.89 REFRIGERANT CONTROL (EXPANSION DEVICE) INDOOR CAP. TUBE REFRIGERANT CHARGE 5.00 INDOOR UNIT...
Engineering & Physical Data Safety Device FDM10CXV1 FDM15CXV1 INDOOR FDB10CXV1 FDB15CXV1 MODEL OUTDOOR R10CXV1 R15CXV1 TYPE HIGH PRESSURE SWITCH OPEN kPa / psi CLOSE kPa / psi TYPE SAFETY DEVICE LOW PRESSURE SWITCH OPEN kPa / psi CLOSE kPa / psi...
Page 59
Engineering & Physical Data INDOOR FDM38CXV1 MODEL OUTDOOR R35DXV1 TYPE HIGH PRESSURE SWITCH OPEN kPa / psi 2937 / 426 CLOSE kPa / psi 2413 / 350 TYPE SAFETY DEVICE LOW PRESSURE SWITCH OPEN kPa / psi 124 / 18 CLOSE kPa / psi 193 / 28...
Page 60
Engineering & Physical Data FDYM10CXV1 FDYM15CXV1 INDOOR FDYB10CXV1 FDYB15CXV1 MODEL OUTDOOR RY10CXV1 RY15CXV1 TYPE HIGH PRESSURE SWITCH OPEN kPa / psi CLOSE kPa / psi TYPE SAFETY DEVICE LOW PRESSURE SWITCH OPEN kPa / psi CLOSE kPa / psi PHASE SEQUENCER DISCHARGE THERMOSTAT SETTING °C / °F FDYM20CXV1...
Page 61
Engineering & Physical Data FDYM30CXV1 INDOOR FDYB30CXV1 MODEL OUTDOOR RY30DXV1 RY30DXY1 TYPE HIGH PRESSURE SWITCH OPEN kPa / psi 2937 / 426 2937 / 426 CLOSE kPa / psi 2413 / 350 2413 / 350 TYPE SAFETY DEVICE LOW PRESSURE SWITCH OPEN kPa / psi CLOSE...
Page 62
Engineering & Physical Data FDYM50CXV1 FDYM60CXV1 INDOOR FDYB50CXV1 FDYB60CXV1 MODEL OUTDOOR RY50DXY1 RY61DXY1 TYPE HIGH PRESSURE SWITCH OPEN kPa / psi 2937 / 426 CLOSE kPa / psi 2413 / 350 TYPE SAFETY DEVICE LOW PRESSURE SWITCH OPEN kPa / psi CLOSE kPa / psi PHASE SEQUENCER...
16°C WB. 25°C is located between 24°C & 27°C Example: for 19°C WB. Model: FDM10CXV1 – R10CXV1 Thus, Interpolation needs to be applied. Indoor Condition: 25°C DB, 17°C WB 2. Refer to the Indoor WB column, Outdoor Condition: 37°C DB 17°C is located between 16°C &...
Page 64
Performance Data (b) Indoor Condition: 25°C DB, 16°C WB By Interpolation Method Outdoor Condition: 35°C DB 25°C – 24°C – 3.51kW ⇒ Outdoor temperature 27°C – 24°C 3.52kW – 3.51kW 35°C ⇒ x = 3.51kW Similarly, = 2.71kW 3.51 2.57 1.29 = 1.29kW 3.52...
Service & Maintenance Service & Maintenance Disconnect from main supply before servicing the air conditioner. The unit is designed to give long life operation with minimum maintenance required. However, it should be regularly checked and the following items should be given due attention. Components Maintenance Procedure Recommended Schedule...
Page 152
Service & Maintenance Pre Start Up Maintenance (After Extended Shutdown) Inspect thoroughly and clean indoor and outdoor units. Clean or replace air fi lters. Clean condensates drain line. Clean clogged indoor and outdoor coils. Check fan imbalance before operation. Tighten all wiring connections and panels. Check for refrigerant leakage.
Page 154
Troubleshooting Phase Sequencer The unit with Scroll Compressor only can rotate in one direction. For this reason, a protective device (phase sequencer) is fi tted to prevent incorrect wiring of the electrical phases. When the three phases are not connected correctly, the phase sequencer operates, and the unit will not start. This device is located in the control box of the outdoor unit.
Page 155
Troubleshooting Error Code / Fault Condition When a malfunction of the air conditioner unit is detected, immediately switch off the main power supply before proceeding with the following troubleshooting procedures. The following are common fault conditions and simple troubleshooting tips. If any other fault conditions which are not listed occur, contact your nearest local dealer.
Page 156
Troubleshooting Diagnostic Guidelines By means of pressure readings: Data Pressure Probable cause Circuit High side • 1. Overcharged with refrigerant. • Low side 2. Non-condensable gases in refrigerant circuit (e.g. air) 3. Obstructed air-intake / discharge. 4. Hot air short circuiting in outdoor unit. •...
Page 157
Troubleshooting BY MEANS OF DIAGNOSTIC FLOW CHART : Generally, there are two kinds of problems, i.e. starting failure and insuffi cient cooling/heating. “Starting failure” is caused by electrical defect while improper application or defects in refrigerant circuit causes “Insuffi cient cooling / heating”.
Page 158
Troubleshooting ii) Diagnosis of Refrigerant Circuit / Application There might be some causes where the unit starts running but does not perform satisfactorily, i.e. insuffi cient cooling. Judgement could be made by measuring temperature difference of indoor unit’s intake and discharge air as well as running current.
