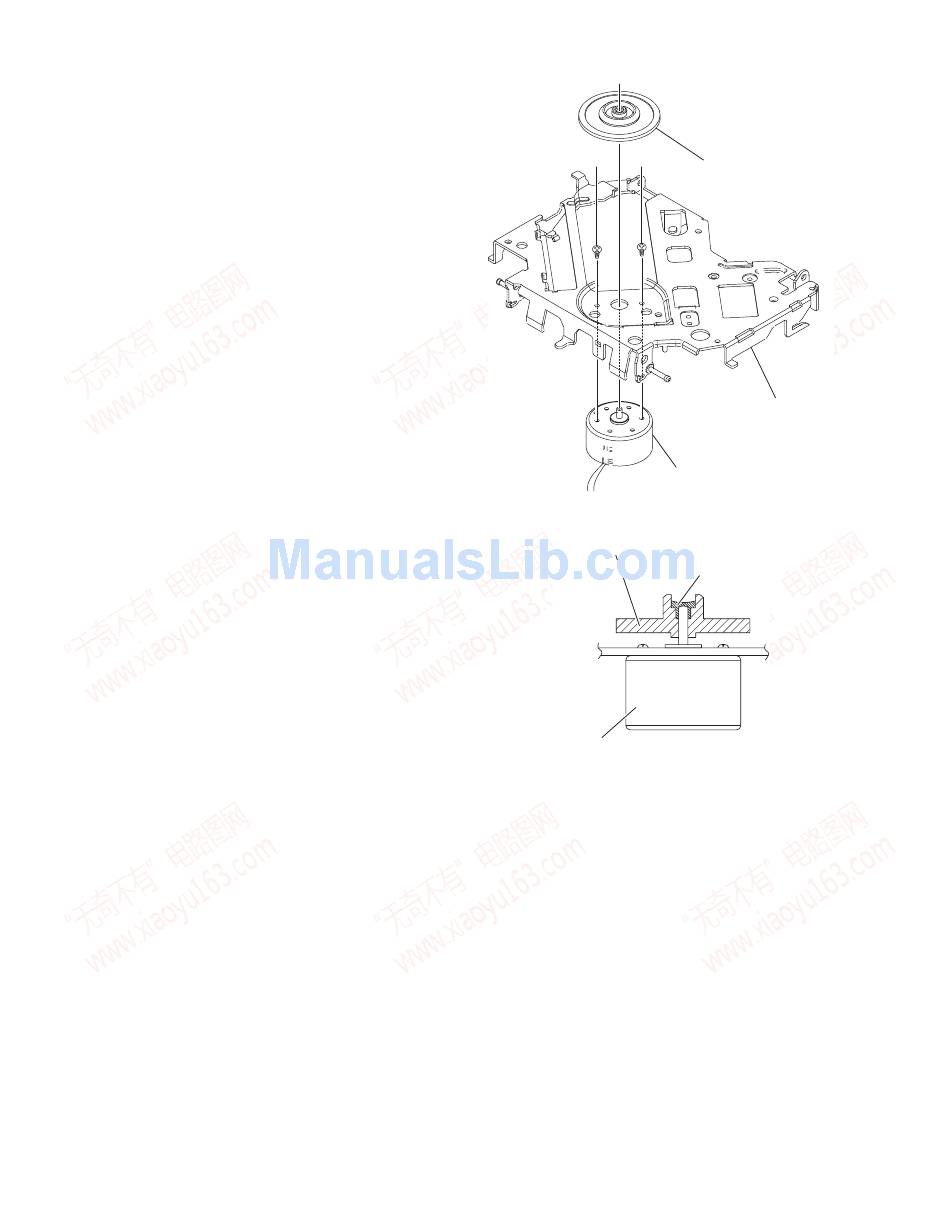

3.1.14 Removing the spindle motor (See Fig.23 and 24) 3 7 63 1515 0
• Remove the MECHANISM CONTROL BOARD assembly,
top cover, mechanism section, clamper assembly, feed motor
assembly and pickup assembly.
(1) From the top side of the T.M chassis assembly, remove the
CD T.table assembly from the spindle motor. (See Fig.23.)
(2) Remove the two screws N attaching the spindle motor.
(See Fig.23.)
(3) Take out the spindle motor from the bottom side of the T.M
chassis assembly. (See Fig.23.)
Reference:
When attaching the CD T.table assembly to the spindle
motor shaft, apply loctite 460 to inside the CD T.table
assembly. (See Fig.24.)
TE
L 13942296513
This service manual does not describe ADJUSTMENT.
www
This service manual does not describe TROUBLESHOOTING.
.
1-14 (No.MY007)
