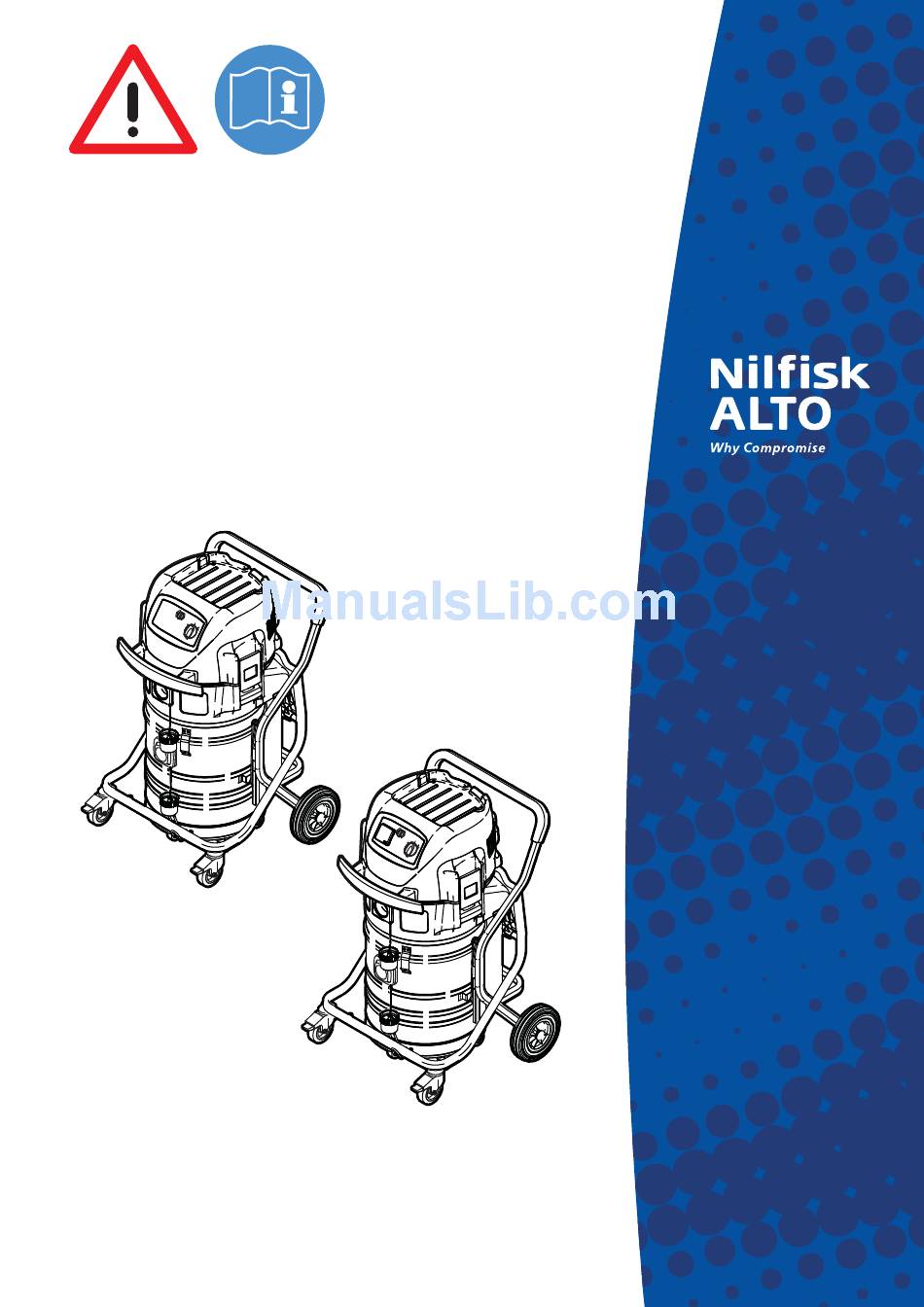

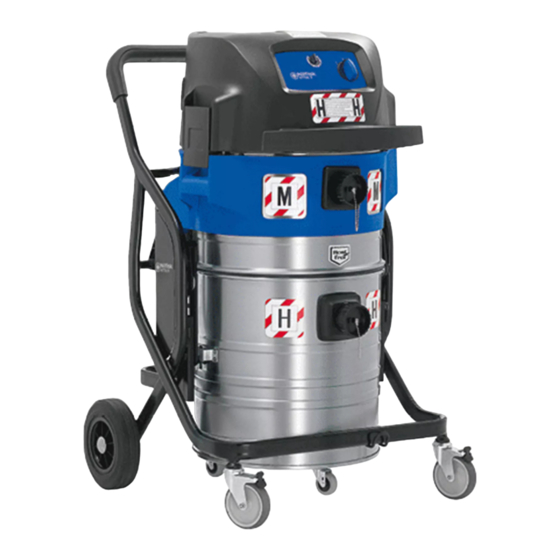

Page 1: Operating Instructions
ATTIX 965-0H/M SD XC ATTIX 965-2H/M SD XC Operating Instructions 107401242 A... -
Page 2: Table Of Contents
Cleaning the filter element ...17 Techniques ...18 5.1.1 Picking up dry substances...18 5.1.2 Picking up liquids ...18 Switching the vacuum cleaner off and storage ...19 Maintenance plan ...20 Maintenance work ...21 7.2.1 Emptying the dirt tank ...21 7.2.2 Replacing the disposal bag ...22 7.2.3 Replacing the safety filter bag ...23... -
Page 3: Important Safety Instructions
• risks associated with the material to be picked up • safe disposal of the picked up material 1. Do not use any unsafe work techniques. 2. Never use the vacuum cleaner without a filter. 3. Switch off the appliance and disconnect the mains plug in the following situations:... - Page 4 The air flow in Safety Vacuum systems has to be strictly controlled to achieve a minimum flow rate of Vmin = 20 m/s in the suction hose. The vacuum cleaners ATTIX 965-0H/M SD XC and ATTIX 965-2H/ M SD XC are suitable to pick up •...
- Page 5 Before removing the vacuum cleaner from the area contaminated with harmful substances: 1. Clean the outside of the vacuum cleaner, wipe it clean or pack the vacuum cleaner in well sealed packaging 2. and avoid spreading deposited harmful dust.
- Page 6 2. disposed of in a manner that complies with valid regulations for such waste removal. At least once a year, a Nilfisk-ALTO technician or an instructed per- son must perform a technical inspection including filters, air tight- ness and control mechanisms. According to AA.22.201.2 appliances in class H must have their filtration efficiency checked once a year.
- Page 7 2. Regularly check whether the power cord is damaged or shows signs of ageing. 3. Have the faulty mains connecting lead replaced by your Nilfisk-Alto service representative or a qualified electri- cian prior to using the appliance again. DANGER The upper section of the vacuum cleaner contains live components.
- Page 8 The use of non-genuine spare parts and accessories can impair the safety of the appliance. 1. Only use spare parts and accessories from Nilfisk-Alto. 2. Use only the brushes supplied with the vacuum cleaner or specified in the operating manual.
-
Page 9: Description
ATTIX 9 H/M 2 Description Operating elements Optional accessories / Option depending on model Original Instructions... -
Page 10: Operating Panel
11 Inlet fitting "M" 12 Receptacle for electrical lead 13 Applicance switch "I-0-II" Applicance switch with suction power control 'auto-0-I" 14 Appliance socket 15 Hose diameter setting 16 Accessory holder ATTIX 965-0H/M SD XC ATTIX 965-2H/M SD XC ATTIX 9 H/M... -
Page 11: Before Starting The Cleaner
Assembling the vacuum cleaner 3.1.1 Taking accessories out of the packaging Optional accessories / Option depending on model 1. Take vacuum cleaner and accessories out of the pack- aging. 2. The mains plug should not yet be inserted into a socket. -
Page 12: Inserting The Safety Filter Bag
3.1.2 Before starting the cleaner 3.1.3 Inserting the safety filter bag Optional accessories / Option depending on model Original Instructions Depending on how hazardous the dust is, the cleaner must be fitted with appropriate filters. Type of dust • Non-hazardous dust •... - Page 13 ATTIX 9 H/M 5. Insert the safetyfilter bag (D) 6. Fold 7. Push the dirt tank as far as 8. Swing the bar (B) down- 9. Close 10. Connect suction hose to inlet Optional accessories / Option depending on model in the dirt tank.
-
Page 14: Inserting The Disposal Bag
3.1.4 Inserting the disposal Optional accessories / Option depending on model Original Instructions 1. The mains plug should not yet be inserted into a socket. 2. Apply parking brakes (A) on both castors. 3. Swing the bar (B) upwards. 4. Use the handle (C) to pull the dirt tank out of the vacuum cleaner. - Page 15 ATTIX 9 H/M Optional accessories / Option depending on model 9. Close inlet fitting "H" (bottom) with plug (E). 10. Connect suction hose to inlet fitting "M" (top) (F). Original Instructions...
-
Page 16: Control / Operation
The operating voltage shown on the rating plate must corres pond to the voltage of the mains power supply. Switching on the vacuum cleaner 4.2.1 Switch " I-0-II " The hose diameter and the setting for the suction hose diameter must be the same. -
Page 17: Auto-On/Off-Operation - "Auto" Switch Position
ATTIX 9 H/M 4.2.4 Auto-On/Off-Operation - "auto" switch position The vacuum cleaner is switched on and off by the power tool connect- ed. Dirt is picked up from the source of dust immediately. To comply with regulations, only ap- proved dust producing tools should be connected. -
Page 18: Check Volume Flow Monitor
To ensure that suction performance is always at its best, the filter element is automatically cleaned during operation. We recommend complete cleaning if the filter element becomes extremely dirty. 1. Switch off the vacuum cleaner 2. Close the nozzles or suction hose opening with the palm of your hand. -
Page 19: Applications And Methods
The use of a separate filter element or filter screen is recommend- If foam appears, stop work immediately and empty the tank. To reduce the amount of foam, use foam killer Nilfisk-Alto Foam Stop (see section "Accessories" for order number). -
Page 20: After Using The Cleaner
5. Empty the tank and clean the vacuum cleaner. 6. After picking up liquids: Store the upper section of the cleaner separately so that the filter element can dry. 7. Store the vacuum cleaner in a dry room where it is pro- tected from unauthorized use. -
Page 21: Maintenance Plan
ATTIX 9 H/M 7 Maintenance Maintenance plan 7.2.1 Emptying dirt tank 7.2.2 Replacing the disposal bag 7.2.3 Replacing the safety filter bag 7.2.4 Replacing filter element "H" After finishing work When required Optional accessories / Option depending on model Original Instructions ... -
Page 22: Maintenance Work
Inserting the dirt tank: 9. Clean the dirt tank. 10. Check the seals (E) between the tank and the upper sec- tion of the vacuum cleaner. 11. Push the dirt tank as far as possible into the vacuum cleaner. 12. Swing the bar (B) downwards without forcing it. -
Page 23: Replacing The Disposal Bag
9. Clean the dirt tank. 10. Check the seals (F) between the tank and the upper sec- tion of the vacuum cleaner. 11. Insert the disposal bag (G) in the dirt tank. 12. Fold the top edge of the dis- posal bag over the rim of the dirt tank. -
Page 24: Replacing The Safety Filter Bag
9. Clean the dirt tank. 10. Check the seals (F) between the tank and the upper sec- tion of the vacuum cleaner. 11. Insert the safety filter bag (G) in the dirt tank. 12. Fold the top edge of the dis- posal bag over the rim of the dirt tank. -
Page 25: Replacing Filter Element "H
3. Open the retaining clamps (B) and remove the upper sec- tion of the vacuum cleaner. Remove the filter element: 4. Lay the upper section of the cleaner down with the filter element facing upwards. 5. Unscrew the screw (C), open the bar handle and remove 6. - Page 26 Check it for damage and re- place it if necessary. (G) for damage and have it replaced by Nilfisk-Alto Serv- ice if necessary. sure that it is in the correct position. (C).
-
Page 27: Troubleshooting
• Switch off the vacuum cleaner and allow it to cool for approx. 5 minutes. If the cleaner cannot be started again, contact the Nilfisk-Alto service department. • Have motor changed by Nilfisk-Alto Service. • Check that the power tool works or that the plug is inserted correctly. -
Page 28: Further Information
(VBG4) and to DIN VDE 0701 Part 1 and Part 3. In ac cord ance with DIN VDE 0702 these tests must be performed at regular intervals and after repairs or modifications. The vacuum cleaner has been approved in accordance with IEC/EN 60335-2-69. EC declaration of... -
Page 29: Technical Data
Width Depth Height Weight Optional accessories Description Safety filter bag (5 pcs.) Disposal bag (5 pcs.) Filter element "H" Nilfisk-Alto-Foam-Stop (6 x 1 l) ATTIX 965-0H/M SD XC 2 x 1200 2400 2 x 216 l/min 2 x 3600 hPa/mbar... - Page 30 http://www.nilfi sk-advance.com HEAD QUARTER DENMARK Nilfi sk-Advance Group Sognevej 25 DK-2605 Brøndby Tel.: (+45) 4323 8100 E-mail: mail.com@nilfi sk-advance.com SALES COMPANIES ARGENTINA Nilfi sk-Advance srl. Edifi cio Central Park Herrera 1855, Offi ce 604 Ciudad Autónoma de Buenos Aires Tel.: (+54) 11 6091 1571 AUSTRALIA Nilfi...
