Summary of Contents for Aurorae LP-10
-
Page 1: User Manual

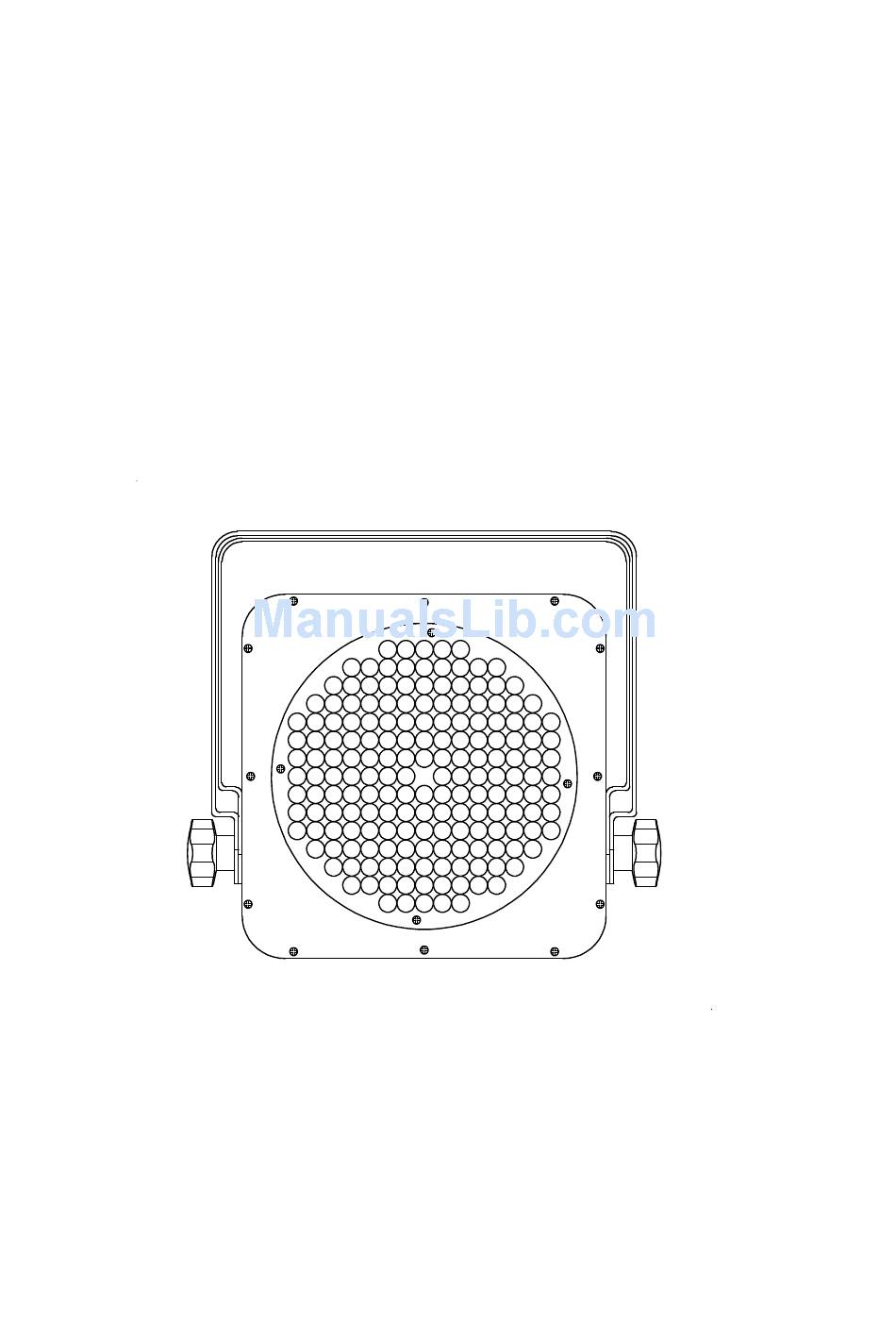

Aurorae LED Slim PAR 64 LP-10 USER Manual Version 1.1 www.AuroraeInc.com... -
Page 2: Specifications
This LED PAR 64 can light features with 180 Ultra Bright 10mm LED bulbs, double yokes, DMX controllable, sound activated and 10 built-in automated programs. Aurorae LP-10 LED Slim PAR 64 can installed with internal ROM that remains the final DMX address, running program and menu setting after power off. -
Page 3: Safety Instructions
In the event of a serious operating problem, stop using the unit immediately. Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact Aurorae Inc for service. Never connect the device to a dimmer pack. -
Page 4: Led Control Panel
LED control panel <MODE> Used to scroll through the current operating mode, as well as back out of the current menu option <ENTER> Used to select a value and store it to memory <UP> Used to select increasing advancement in the value <DOWN>... - Page 5 AC POWER LINKING AC Power Outlet 90V ~240V DC / BATTERY Battery Battery Battery Battery Cable: White Stripe + ( Positive ) , Black – ( Negative ) DO NOT SETUP AS POWER LINKING WHEN USNIG BATTERY/DC MODE Battery Ver 1.1 Page 4...
-
Page 6: Fixture Dmx Addressing
That means changing the settings of one channel will only affect the selected fixture. AURORAE LED PAR LP-10, is a six channel fixture, you should set the starting DMX address of the first unit to 1, the second unit to 7 (6 + 1), the third unit to 13 (6 + 7), and so on. - Page 7 Functions and Values: DMX CHANNEL DMX VALUE SPECIFICATION CHANNEL 1 : RED 0-255 DIM : 0 – 100% CHANNEL 2 : GREEN 0-255 DIM : 0 – 100% CHANNEL 3 : BLUE 0-255 DIM : 0 – 100% CHANNEL 4 : DIMMER 0 -10 NO FUNCTION 11-17...
-
Page 8: Stand-Alone Mode (Sound-Active, Auto Mode)
Stand-Alone Mode (Sound-Active, Auto Mode) This mode allows a single unit to run to the beat of the music, or the unit will auto change in Auto Mode. Press the <MODE> button until is displayed “ SLAE “. Use the <UP> and <DOWN> buttons to locate the desired program ( FLAS, FAdE, FbdE, ACC-, Sud1, Sud2 ).Some programs are static, and some can trigger to sound. -
Page 9: Master/Slave Mode (Master Sound, Master Auto)
Master/Slave Mode (Master Sound, Master Auto) The Master/Slave mode allows LP-10 fixture to control one or more LP-10 fixtures without a DMX controller. The controlling fixture becomes the “master” when running an Auto program, a Custom program, or by being in static mode. -
Page 10: Display Menu
DISPLAY MENU MAIN FEUNCTION SELECTION VALUE INSTRUCTION MANUAL A001 A001-A512 DMX ADDRESS A001 – A512 R--- 0-255 0 – OFF G--- GREEN 255 BRIGHTNESS B--- BLUE SLAE SLAVE MODE SLAVE MODE SLAE FLAS AUTO COLOR STROBE RATE: FADE FL00 – FL12 FL00 –... -
Page 11: Technical Specifications
Technical Specifications Weight & Dimensions Length ........................8.5 in (216 mm) Width ...........................8.5in (216 mm) Height ........................... 4in (102mm) Weight ........................3.75lbs (1.7 kg) Power Auto-ranging ....................96~240 VAC, 50/60 Hz Power Consumption @ 120 V..................18 W (0.3 A) Power Consumption @ 230 V..................17 W (0.568 A) DC Input ..........................
