MVC-FD100/FD100H/FD200/FD200H
SERVICE MANUAL
Level 2
Ver 1.4 2003. 09
This service manual contains information for Japanese model as well.
When the machine needs to be repaired,
please refer to page 7 to discriminate the
type of CCD.
On the FC-89 board
This service manual procides the information that is premised the
circuit board replacement service and not intended repair inside the
FC-89 board.
Therefore, schematic diagram, printed wiring board and electrical
parts list of the FC-89 board are not shown.
The following pages are not shown.
Flash
System
Recommended recording
Image device
distance (ISO set to AUTO):
6.64 mm (1/2.7 type)
0.5 m to 2.0 m (1 2/3 feet to
Color CCD
6 2/3 feet)
Effective pixels number
of camera
Input and Output
MVC-FD100:
connector
Approx. 1 228 000 pixels
VIDEO OUT
MVC-FD200:
Minijack
Approx. 1 976 000 pixels
Video: 1 Vp-p, 75 Ω,
Lens
unbalanced, sync negative
3× zoom lens
USB jack
f = 6.4 – 19.2 mm (9/32 –
mini-B
25/32 inches)
(41 – 123 mm
LCD screen
(1 5/8 – 4 7/8 inches) when
LCD panel
converted into a 35 mm still
6.2 cm (2.5 type)
camera)
TFT (Thin Film Transistor
F = 3.8 – 3.9
active matrix) drive
Exposure control
Total number of dots
Automatic exposure
123 200 (560×220) dots
White balance
Automatic, Indoor, Outdoor,
General
Hold
Application
Data system
Sony battery pack NP-F330
Movie: MPEG
(supplied)/F550 (Optional)
Still: JPEG, GIF (in TEXT
Power requirements
mode, Clip Motion), TIFF
7.2 V
MPEG
Power consumption
Recording medium
(During shooting and
Floppy disk:
LCD backlight is on)
3.5-inch 2HD MS-DOS
MVC-FD100: 3.5 W
format (1.44 MB)
MVC-FD200: 3.6 W
"Memory Stick"
Photo: MVC-FD200
FC-89 board
Schematic diagram ................................... Pages 4-11 to 4-30
Printed wiring board ................................. Pages 4-43 to 4-46
Electrical parts list .................................... Pages 6-9 to 6-15
The above-described information is shown in service manual
Level 3.
SPECIFICATIONS
Operating temperature
Storage temperature
−20°C to +60°C (−4°F to
0°C to 40°C (32°F to 104°F)
+140°F)
Storage temperature
–20°C to +60°C (–4°F to
Dimensions (Approx.)
+140°F)
125×39×62 mm (5×1 9/16×
2 1/2 inches) (w/h/d)
Dimensions (Approx.)
142 × 104 × 77 mm (5 1/2 ×
Mass (Approx.)
4 × 3 inches) (w/h/d)
280 g (10 oz)
Mass (Approx.)
NP-F330 battery
645 g (1 lb 7 oz)
pack
(including NP-F330 battery
pack, floppy disk and lens
Battery type
cap, etc.)
Lithium ion
Maximum output
AC-L10A/L10B
voltage
AC power adaptor
DC 8.4 V
Power requirements
Mean output voltage
100 to 240 V AC, 50/60 Hz
DC 7.2 V
Rated output voltage
Capacity
DC 8.4 V, 1.5 A in operating
5.0 Wh (700 mAh)
mode
Operating temperature
0°C to 40°C (32°F to 104°F)
Operating temperature
0°C to 40°C (32°F to 104°F)
US Model
MVC-FD100/FD100H/FD200/FD200H
Canadian Model
MVC-FD100/FD200
AEP Model
UK Model
Australian Model
Japanese Model
MVC-FD100/FD200
Brazilian Model
Dimensions (Approx.)
38.4×20.6×70.8 mm
(1 9/16×13/16×2 7/8 inches)
(w/h/d)
Mass (Approx.)
70 g (2 oz)
Accessories
AC-L10A/L10B
AC power adaptor (1)
Power cord (mains lead) (1)
USB cable (1)
NP-F330 battery pack (1)
VIDEO connecting cable (1)
Shoulder strap (1)
Lens cap (1)
Lens cap strap (1)
CD-ROM (SPVD-008 USB
Driver) (1)
Operating instructions (1)
Design and specifications
are subject to change
without notice.

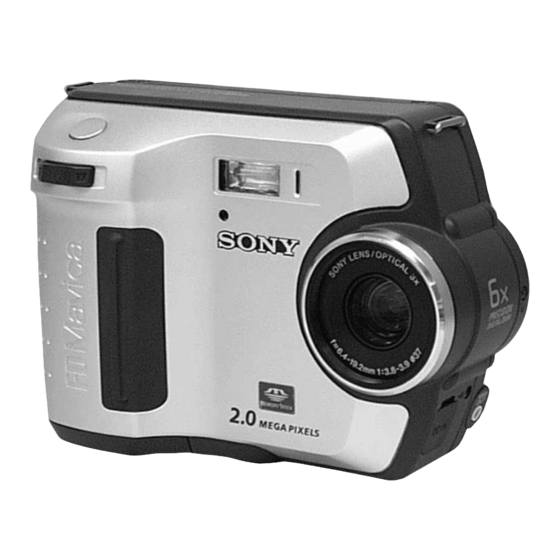

DIGITAL STILL CAMERA
MVC-FD200
E Model
MVC-FD100

Advertising
