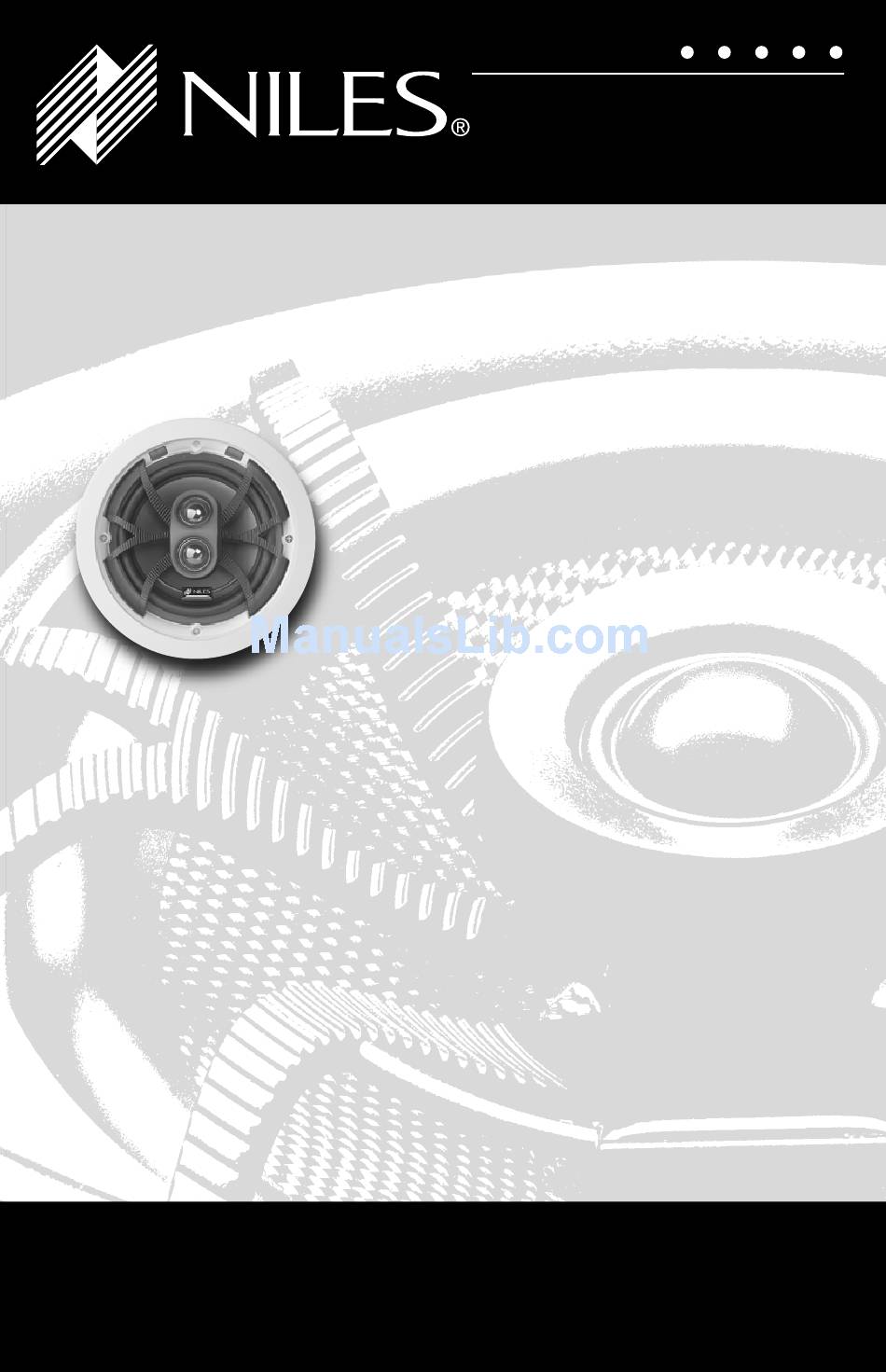

I N S T A L L A T I O N G U I D E
CM850Si
H I G H P E R F O R M A N C E C E I L I N G L O U D S P E A K E R S

Advertisement

Table of Contents
loading

  Related Manuals for Niles CM850Si

  Summary of Contents for Niles CM850Si

  • Page 1 I N S T A L L A T I O N G U I D E CM850Si H I G H P E R F O R M A N C E C E I L I N G L O U D S P E A K E R S...
  • Page 2: Package Contents

    Avoid installing the loudspeaker near a corner to prevent a “boomy” or diffracted sound. The CM850Si loudspeaker will cover an area of a circle with a 16-foot diameter when mounted at an 8-foot height and pointed straight down.
  • Page 3: New Construction Installation

    MOUNTING THE NEW CONSTRUCTION BRACKET The optional CM800 BKT can be used with the CM850Si loudspeaker. The hole saving bracket enables a faster and cleaner final installation of the loudspeaker. It forces the drywall installer to cut out the loudspeaker hole for you and provides wire ties for the loudspeaker wire, reducing the risks of accidental loss or movement of the wire.
  • Page 4 10. Turn on the receiver or amplifier and test all loudspeakers in the system. PAINTING THE GRILLE AND FRAME The CM850Si loudspeaker and flush-mount metal grille may be painted without the need for primer. 1. Install loudspeaker into ceiling or wall following the previous steps 1 - 6.
  • Page 5: Specifications

    SPECIFICATIONS Recommended Model Amplifier Power CM850Si 8" TCC™ (talc, carbon and ceramic) woofer with 10 to 150 watts treate d urethane butyl per channel rubber surround and two fluid-cooled 1" Teteron ® tweeters. Normal Frequency Sensitivity Impedance Response 90 dB with 2.83 V pink...
  • Page 6: Technical Support

    TECHNICAL SUPPORT IF YOU HAVE QUESTIONS ABOUT THE INSTALLATION OR OPERATION OF THIS OR ANY OTHER NILES PRODUCT, PLEASE CALL OUR TECHNICAL SUPPORT DEPARTMENT AT 1-305-238-4373 • 1-800-BUY-HIFI (1-800-289-4434). SUPPORT IS AVAILABLE WEEKDAYS 8:00 A.M. TO 7:00 P.M. EASTERN TIME WITH THE EXCEPTION OF HOLIDAYS. L E N D I N G 1 2 3 3 1 S .
