Nikon D70 Specifications

Additional Features
• Direct printing available with PictBridge compatible printers
• Versatile JPEG and NEF (RAW) combination filing system
• On-Demand grid lines displayed in viewfinder
• Supports CompactFlash™ cards (Type I/II) and MicroDrive
- Compatible with FAT32 format and Lexar WA technology
• EN-EL3* rechargeable Li-ion battery supplied, as is a battery
holder for use with three CR2 batteries
*
Approx. 400 shots can be taken with a fully charged EN-EL3 battery
(as determined by Nikon performance tests)
• Depth-of-field preview button aids composition accuracy
• Supports the Image Dust Off feature in Nikon Capture 4 (ver. 4.1)
• Wireless remote control operation possible
• Protective clear LCD cover

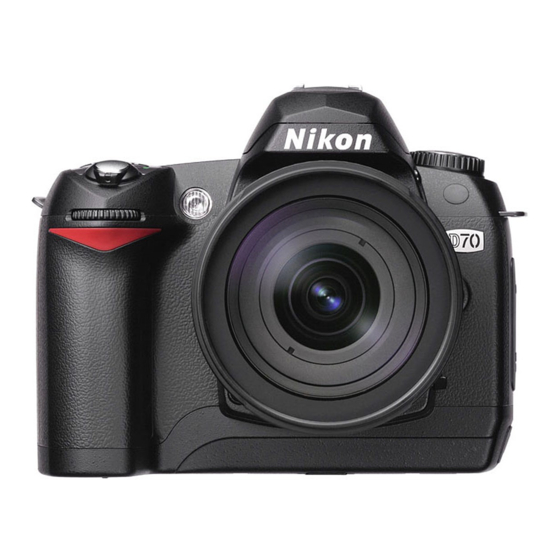

Nikon Digital SLR Camera D70 Specifications
Type of Camera Single-lens reflex digital camera
Effective Pixels 6.1 million
Image Sensor RGB CCD, 23.7 x 15.6 mm; total pixels: 6.31 million
Image Size (pixels) 3008 x 2000 [L], 2240 x 1448 [M], 1504 x 1000 [S]
Sensitivity 200 to 1600 (ISO equivalent) in steps of 1/3 EV
Storage Media CompactFlash™ (CF) Card (Type I and II) and Microdrive™
Storage System Compressed NEF (RAW): 12-bit lossless compression,
JPEG: JPEG baseline-compliant
File System Exif 2.2, Compliant DCF 2.0 and DPOF
White Balance Auto (TTL white balance with 1,005 pixels RGB sensor), six manual modes
with fine-tuning, preset white balance, white balance bracketing possible
LCD Monitor 1.8-in., 130,000-dot, low-temperature polysilicon TFT LCD with brightness
adjustment
Playback Function 1 frame: Thumbnail (4 or 9 segments); Magnifying playback; Slide show;
Histogram indication; Highlight point display; Auto image rotation
Delete Function Card format, All frames delete, Selected frames delete
Interface USB
Compatible Lenses* 1 1) DX Nikkor: All functions supported
2) Type G- or D-AF Nikkor: All functions supported
3) Micro Nikkor 85 mm F2.8D: All functions supported except autofocus and
some exposure modes
4) Other AF Nikkor* 2 : All functions supported except
3D color matrix metering, i-TTL balanced Fill-Flash for digital SLR
5) AI-P Nikkor: All functions supported except 3D color matrix
metering, i-TTL balanced Fill-Flash for digital SLR, and autofocus
6) Non-CPU: Can be used in exposure mode M, but exposure meter does
not function; electronic range finder can be used if maximum aperture is
f/5.6 or faster
* *
1 IX Nikkor lenses can not be used 2 Excluding lenses for F3AF
Picture Angle Equivalent in 35 mm [135] format is approx. 1.5 times lens focal length
Optical fixed pentaprism; Built-in diopter adjustment (-1.6 to +0.5 m -
Viewfinder
18 mm (-1.0 m -
Eyepoint 1 )
Focusing Screen B-type BriteView clear matte screen II with superimposed focus
brackets and On-Demand grid lines
Viewfinder Frame Coverage Approx. 95 %
Approx. 0.75x with 50mm lens at infinity; -1.0 m -
Viewfinder Magnification 1
Autofocus TTL phase detection by Nikon Multi-CAM900 autofocus module
with AF-assist illuminator (approx. 0.5 m to 3.0 m)
Detection range: EV -1 to +19 (ISO 100 equivalent, 20 °C)
Lens Servo 1) Autofocus (AF): single-servo AF (AF-S); continuous servo AF (AF-C);
predictive focus tracking automatically activated according to subject status
2) Manual focus (M)
Focus Area Can be selected from 5 focus areas
AF Area Mode 1) Single Area AF, 2) Dynamic Area AF,
3) Closest Subject Priority Dynamic Area AF
Focus Lock Focus can be locked by pressing shutter-release button halfway (single-servo
AF) or by pressing AE-L /AF-L button
Exposure Metering System TTL full-aperture exposure metering system
1) 3D color matrix metering with 1,005-pixel RGB sensor
2) Center-weighted: Weight of 75 % (8 mm-dia. circle) given to 6, 8, 10, or
13 mm dia circle in center of frame, or weighting based on average of entire frame
3) Spot: Meters 2.3 mm-dia. circle (about 1% of frame) centered on active focus area
® ®
Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
is a registered trademark or a trademark of Apple Computer Inc. in the United States and/or other countries.
Corporation. Products and brand names are trademarks or registered trademarks of their respective companies.
shown in this brochure are simulated.
Specifications and equipment are subject to change without any notice or obligation on the part of the
manufacturer. January 2004
c 2004 NIKON CORPORATION
TO ENSURE CORRECT USAGE, READ MANUALS CAREFULLY BEFORE USING
WARNING
YOUR EQUIPMENT. SOME DOCUMENTATION IS SUPPLIED ON CD-ROM ONLY.
Fuji Bldg., 2-3, Marunouchi 3-chome, Chiyoda-ku,
Tokyo 100-8331, Japan
http://nikonimaging.com/
Printed in Japan Code No. 6CE41440 (0401/A) A
Optional Accessories
• AF, AF-S and DX Nikkor lenses • New SB-600 and SB-800 Speedlights
• AF-S DX Zoom-Nikkor 18-70mm • COOLWALKER MSV-01
f/3.5-4.5G IF-ED digital photo storage viewer
• Remote controller ML-L3 • Nikon Capture 4 (ver. 4.1) software
AF-S DX Zoom-Nikkor 18-70mm SB-600 Speedlight COOLWALKER MSV-01
f/3.5-4.5G IF-ED digital photo storage viewer
Exposure Metering Range 1) EV 0 to 20 (3D color matrix or center-weighted metering)
2) EV 3 to 20 (spot metering)
(ISO 100 equivalent, f/1.4 lens, 20 °C)
Exposure Mode Digital Vari-Program (Auto, Portrait, Landscape, Close up, Sports, Night
landscape, Night portrait), programmed auto [P] with flexible program;
shutter-priority auto [S]; aperture priority auto [A]; manual [M]
±5 EV in increments of 1/3 or 1/2 EV
Exposure Compensation
Auto Exposure Lock Luminosity locked at detected value with AE-L/AF-L button
Two or three frames ±2 EV in 1/3 or 1/2 steps
Auto Exposure Bracketing
Shooting Modes 1) Single frame shooting mode
2) Continuous shooting mode: approx. 3 frames per second (up to
12 consecutive shots with JPEG format, 4 shots with RAW format)
3) Self-timer/remote control mode
Shutter Combined mechanical and CCD electronic shutter, 30 to 1/8000 s in steps
of 1/3 or 1/2 EV, bulb
Sync Contact X-contact only; flash synchronization at up to 1/500 s
Flash Control 1) TTL: TTL flash control by 1,005 pixel RGB sensor to
• Built-in Speedlight: i-TTL balanced Fill-Flash or standard
i-TTL flash (spot metering or mode dial set to M)
• SB-800 or 600: i-TTL balanced Fill-Flash
or standard i-TTL flash (spot metering)
2) Auto aperture: Available with SB-800 and 600 with CPU lens
3) Non-TTL Auto: Available with Speedlights such as SB-800, 80DX, 28DX,
28, 27, and 22s
4) Range-priority manual available with SB-800 and 600
Flash Sync Mode 1) Front-Curtain Sync (normal sync), 2) Red-Eye Reduction,
3) Red-Eye Reduction with Slow Sync, 4) Slow Sync, 5) Rear-Curtain Sync
Built-in Speedlight , , , : auto flash with auto pop-up
[P], [S], [A], [M]: manual pop-up with button release
Guide number (ISO 200/ISO 100, m): approx. 15/11 (manual full 17/12)
1 ) Flash Compensation -3 to +1 EV in increments of 1/3 or 1/2 EV
Ready-light Lights when SB-series Speedlight such as SB-800, 600, 80DX, 28DX, 50DX,
28, 27, or 22s is fully charged; blinks for 3 s after flash is fired at full output
Accessory Shoe Standard ISO hot-shoe contact with safety lock provided
Self-timer Electronically controlled timer with 2 to 20 s duration
Depth-of-field Preview When CPU lens is attached, lens aperture can be stopped down to value
selected by user ([A] and [M] modes) or value selected by camera (Digital
Vari-Program, [P], and [S] modes)
Remote Control ML-L3 wireless remote cotroller (option)
Power Source One rechargeable Nikon EN-EL3 Li-ion battery
• Three CR2 lithium batteries (with supplied MS-D70 CR2 battery holder)
• EH-5 AC adapter (option)
Tripod Socket 1/4 in. (ISO 1222)
Dimensions (W x H x D) Approx. 140 x 111 x 78 mm
Weight (without battery) Approx. 595g without battery, memory card, body cap, or monitor cover
Supplied Accessories* Strap, Body cap, Eyepiece cap, LCD monitor cover, Video cable, USB cable,
Rechargeable Li-ion battery EN-EL3, Quick Charger MH-18, Nikon Software
CD-ROM, MS-D70 CR2 battery holder
Optional Accessories Rechargeable Li-ion Battery EN-EL3, Multi Charger MH-19, Quick Charger MH-18,
AC Adapter EH-5, Speedlight SB-800/600, Nikon Capture 4 (ver. 4.1) Software,
Semi-soft Case CF-D70, Remote Controller ML-L3, CompactFlash™ Card
*Supplied Accessories may differ in each country or area
®
Macintosh
TM
CompactFlash is a trademark of SanDisk
Images on LCDs and monitors
The digital SLR designed to satisfy your love of pictures.
