- Page 1 On-Wall Loudspeakers OWNER’S MANUAL Now Hear This 6400 Goodyear Road Benicia, CA 94510 800-NHT-9993...
-
Page 2: Specifications

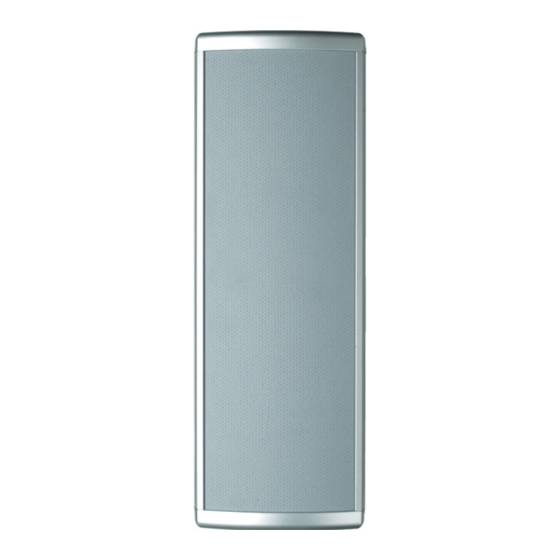

Mounting: Thank you for your purchase of the NHT L5 on-wall loudspeaker. Please take a few minutes to read through this Owner's Manual prior to installing your new speakers. The information provided will help you to obtain maximum performance from your audio system. If you... - Page 3 When the L5 is placed horizontally, the tweeter orientation (top or bottom) depends on the placement height. If the L5 is placed above the listener’s ear, the tweeter should be below the midrange driver. If the L5 is placed below the listen- er’s ear, the tweeter should be above the midrange driver (fig.3).
- Page 4 (especially wall and/or ceiling materials, layouts, electrical and plumbing lines, etc.). The NHT L5 on-wall loudspeaker is designed to be conveniently mounted on a wall (or ceiling). The mounting bracket is capable of allow- ing the speaker to swivel a full 180 degrees.
- Page 5 Thicker wires transmit more signal easily; we recommend 16-guage for shorter runs, and thicker for runs longer than ten feet (your authorized NHT dealer can help with wire). Equal lengths of wire for all speakers is ideal, but not absolutely necessary.
- Page 6 NHT's hallmark for many years was technology called Focused Image Geometry (F.I.G.). This is achieved by angling the front baffle of the loudspeaker cabinet. The angled cabinet focused the mid-range and high frequencies into the listening room and away from room boundaries increasing the ratio of direct to reflected sound. This resulted in loudspeakers systems univer- sally praised for their imaging and detail over a wide listening area.
- Page 7 NHT without charge to you for parts or actual repair work.
