Summary of Contents for NexxTech super slim divx/mpeg4 dvd player 1617008E
- Page 1 ������� ���������������������� ����������...
-
Page 2: Safety Information
SAFETY INFORMATION The light flash with an arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 3: Table Of Contents
TABLE OF CONTENTS Safety Information Table of Contents DVD Player User’s Manual 1. Types of discs your DVD player will play ... 3 2. Front and Rear panel illustrations ... 4 3. Remote control ... 5 System connection 1. System connection ... 7 2. - Page 4 TABLE OF CONTENTS Chapter 4: The Setup Menu System 1. General Steps of Setup Menu ... 21 2. Setup Items Introduction ... 21 a) System Setup ... 21 b) Language Setup ... 23 c) Audio Setup ... 24 d) Video Setup ... 24 e) Speaker Setup ...
-
Page 5: Dvd Player User's Manual
4.7” (12cm) 3” (8cm) HD-CD 4.7” (12cm) DTS-CD 4.7” (12cm) MP3/JPEG 4.7” (12cm) * Note: DVD-R, CD-R, CD-RW discs can be played in this DVD player. Playback Time Data Format 74 min. MPEG-4 20 min. 74 min. Divx 3.11-5.11 20 min. -

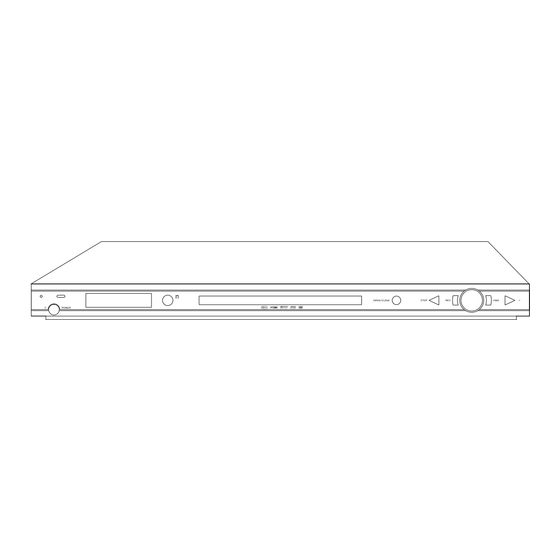

Page 6: Front And Rear Panel Illustrations
1. 5.1 Channels Front (Left/Right) Audio out... -
Page 7: Remote Control
DVD USER’S MANUAL NUAL 3. Remote control NOTE: • KARAOKE, KEY and ECHO buttons are available only for DVD player with Karaoke function. -
Page 8: Battery Installation
Battery Installation: 1. Push downward and outward the leaf spring to remove the battery compartment cover. 2. Insert two size AAA batteries according to the “+” and “-” markings. Note: A. Do NOT mix different types together, or old batteries with new batteries. -
Page 9: System Connection
SYSTEM CONNECTION 1. System connection DO NOT connect the AC power socket to the wall outlet before the system connection is completed. � � � � � � � Amplifier input � � � � � �� � � � ����� � � � � � � � � � � �� � Center Connect to Digital decoding amplifier... -
Page 10: System Connection To A Tv Set
SYSTEM CONNECTION 1. The player is equipped with composite A/V outputs at the rear of the player. Your TV will require at least one set of A/V inputs. The patch cord supplied with the player will connect the A/V output jack of your player to your TV’s inputs. 2. -
Page 12: Chapter 1: Basic Operation
Press the Power button on the player or the remote control and “Read” appears on the TV screen. If there is no disc in the DVD player, “No disc” will be displayed on both the screen and the VFD. 2. Place a Disc into the tray Press the Open/Close button located on the remote control or the front of the DVD player and “Open”... -
Page 13: B) Title Play
II. Press the Arrow buttons to highlight the title you want to select and press Enter. You can also press the Numeric buttons to select. III. The DVD player begins with the chapter 1 of the chosen title. c) Sequence Play (compatible with DVD, SVCD, VCD, CD-G, DTS-CD, HD-CD, MP3/JPEG discs) I. -
Page 14: Chapter 2: Additional Operation
ADDITIONAL OPERATION Chapter 2: Additional Operation 1. Selecting Tracks (compatible with DVD, SVCD, VCD, CD, CD-G, DTS-CD, HD-CD, MP3/ JPEG discs) a) When playing a DVD disc, press the Numeric buttons on the menu or title page to select tracks; During DVD playback, you can input the desired title number directly. -
Page 15: Multispeed Slow Motion Playback
ADDITIONAL OPERATION During DVD playback, when Fast Reverse Playback returns to the beginning of the playing title/ chapter, it resumes normal playback; During SVCD or VCD playback with PBC on when Fast Reverse Playback returns to the beginning of the playing track, it resumes normal playback. •... -
Page 16: Using The Search Feature
ADDITIONAL OPERATION • Press the button again to show the second page: “Language */* (the serial number of playing language / the amount of optional languages) or Off, Language Type, Audio Type, Subtitle */* (the serial number of playing subtitle / the amount of optional subtitles) or Off, Angle */* (the serial number of playing angle / the amount of optional angles) or Off”. -
Page 17: Changing The Soundtrack
ADDITIONAL OPERATION • To exit the menu and resume normal playback from the current track, press the Play button. • Each thumbnail has a number in the corner. You can select and play a track by pressing that number on the remote. II. -
Page 18: Subtitles
ADDITIONAL OPERATION When a DVD or SVCD is recorded with multiple soundtracks, you can use the Language feature to temporarily change the audio language (the language of the soundtrack). There are 8 supported languages: Chinese, English, Japanese, French, Spanish, Portuguese, Germany and Latin. -
Page 19: Zoom In The Video Image
ADDITIONAL OPERATION Notes: • When muted, the microphone also has no audio output. • If a disc has no sound, please try to press the Mute button to resume. 16. Zoom In the Video Image (compatible with DVD, MPEG-4, Divx, SVCD, VCD, JPEG discs) a) The Zoom Function allows you to enlarge or zoom out the video image and to pan through the image. - Page 20 ADDITIONAL OPERATION • “EQ: [STANDARD]” is highlighted, as shown below. • “EQ: [CLASSIC]” is highlighted, as shown below. • “EQ: [ROCK]” is highlighted, as shown below. • “EQ: [JAZZ]” is highlighted, as shown below. • “EQ: [POP]” is highlighted, as shown below.
-
Page 21: Identification Of Controls
IDENTIFICATION OF CONTROLS Notes: • When setting SRND, EQ is auto setup to STANDARD. • When setting EQ, SRND is auto setup to OFF. 19. Volume control (compatible with DVD, MPEG-4, Divx, SVCD, VCD, CD, CD-G, DTS-CD, HD-CD, MP3/JPEG discs) •... -
Page 22: Chapter 3: Mpeg-4 And Divx
MPEG-4 and Divx Chapter 3: MPEG-4 and Divx MPEG-4 is a graphics and video lossy compression algorithm standard. It is based on MPEG-1 and MPEG-2 and Apple Quicktime technology. Wavelet based MPEG-4 files are smaller than JPEG or Quicktime files, so they are designed to transmit video with text, graphics and 2-D and 3-D animation layers. -
Page 23: Chapter 4: The Setup Menu System
SETUP MENU SYSTEM Chapter 4: SETUP MENU SYSTEM 1. General Steps of Setup Menu a) Press the Setup button, the main setup menu appears. • When the main menu is displayed, the DVD system will auto pause. b) Press the Left and Right arrow buttons to highlight the icon of the desired page, then press the Down or Right arrow button to activate that page;... - Page 24 The default setting is ON. VIDEO • Interlace-YUV: Choose this setting if your DVD player is connected to a TV with Y, Cb, Cr video cables. • TV-RGB: Choose this setting if your DVD player is connected to a TV with an S-Video cable or composite video cables.
-
Page 25: B) Language Setup
SETUP MENU SYSTEM PASSWORD The password option is initially locked, and you cannot set the ratings limit or change the password. In order for the Ratings feature to work, the password mode must be turned on. If you want to set the ratings limit, you will need to enter the default password, which is 0000, then press Enter to confirm. -
Page 26: C) Audio Setup
French, Spanish, Portuguese, German and Off. Notes: • If your preferred language isn’t available, the disc’s default language will be played. • The default language of your DVD player is Chinese. c) AUDIO SETUP The audio setup options are illustrated below:... -
Page 27: E) Speaker Setup
SETUP MENU SYSTEM CONTRAST Use the Up and Down arrow button to move the scroll indicator and adjust the contrast. Use the Up and Down arrow button to move the scroll indicator and adjust the hue. SATURATION Use the Up and Down arrow button to move the scroll indicator and adjust the saturation. -
Page 28: F) Digital Setup
SETUP MENU SYSTEM BASS MODE There are three settings in this option: ALL LG SPK, ALL SM SPK, MIXED SPK. You can adjust subwoofer volume in this option. CENTER DELAY You can adjust center delay in this option. REAR DELAY You can adjust center delay in this option. - Page 29 SETUP MENU SYSTEM REFERENCE: • To protect your DVD player, the interval between two consecutive Power Button operations must be above 30 seconds. • If not using for an extended period or time, please pull out the plug from the power outlet.
-
Page 30: Troubleshooting
TROUBLE SHOOTING If your DVD player developed a problem, please check below situations before requesting service. PROBLEM N o Power • Check if the power cord has been properly connected to the power outlet. • Check if the main power has been switched on. - Page 31 TROUBLE SHOOTING Symptom Cannot SKIP or SEARCH No sound or sound output not complete MP3 disc has no sound or is noisy Remote control does not function Type of Disc If your PROBLEM cannot be settled after checking the above methods, please contact a qualified servicing personnel.
-
Page 32: Specifications
SPECIFICATIONS Video Format Audio Format Signal Output Frequency Response S/N ratio Output Terminals Power Input Dimension Divx3.11, Divx4.12, Divx5.05, MPEG-4, DVD Video, DVD Audio, Super Video CD, Video CD, CD-DA, HDCD, OKO, CD-ROM. MPEG 1, LAYER 1, LAYER 2, LAYER 3 Color System: PAL/NTSC Audio System: DOLBY DIGITAL down mix stereo DOLBY DIGITAL digital output... - Page 33 WARRANTY LIMITED WARRANTY Who is Providing This Warranty? • Orbyx Electronics, LLC (“Orbyx"), as the distributor of this Nexxtech product (your “Product”). What Does This Warranty Cover? • This warranty covers defects in materials or workmanship in your Product under normal use and conditions.
