Summary of Contents for NHT 6.2 Ci

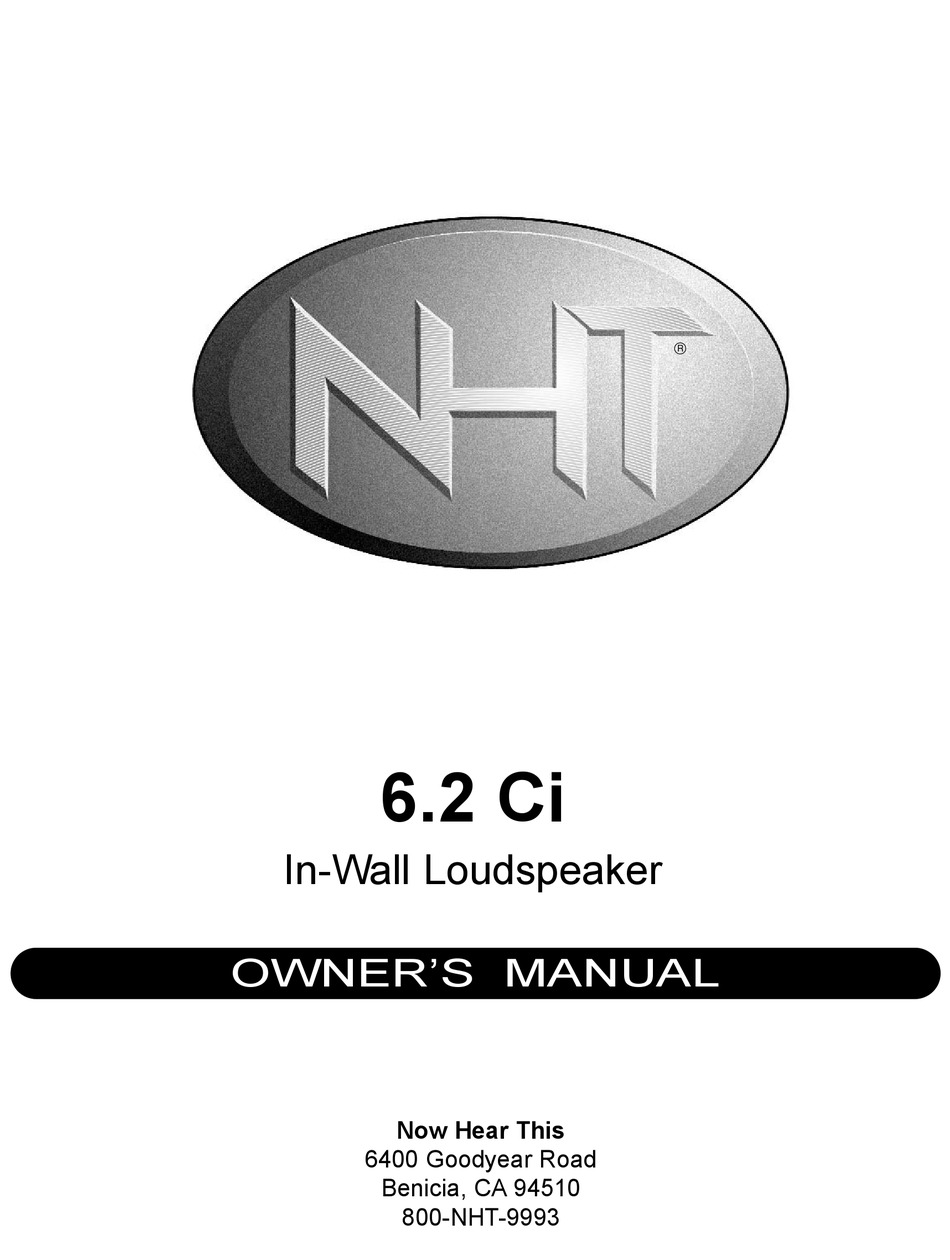

- Page 1 6.2 Ci In-Wall Loudspeaker OWNER’S MANUAL Now Hear This 6400 Goodyear Road Benicia, CA 94510 800-NHT-9993...
- Page 2 Thank you for your purchase of the NHT 6.2 Ci in-wall loudspeaker. Please take a few minutes to read through this Owner's Manual prior to installing your new speakers. The information provided will help you to obtain maximum perfor- mance from your audio system. If you have questions or need assistance at any time during the installation or operation of your new speakers, please call your NHT Dealer or our Toll-Free Customer Hotline at: 6.2 Ci Specifications...
-
Page 3: Packing List
2. When drilling holes through wall studs or ceiling joists, use a drill bit that is at least as wide as the speaker cable that will be routed through them. Always drill through the center of the stud or joist. If the hole must be drilled within one inch of the edge of a wall stud, add a nail plate to the drywall side to protect the cable from possible nails and screws put in the wall later. - Page 4 When installed correctly, the bracket and bezel "sandwich" the drywall. 6. If the 6.2 Ci bezel frame and grille are to be painted in the wall, paint now before installing the baffle (see "Painting").
- Page 5 Repeat for the upper 4" x 4" x 16" foam block. The foam should also make a good seal around the speaker wires. 6. Insert the 6.2 Ci mounting bracket diagonally through the cutout in the wall, then pull forward into position. If the cutout was cut correctly according to the cutout template, the bracket should fit snugly into place.
- Page 6 "sandwich" the drywall. 8. If the 6.2 Ci bezel frame and grille are to be painted in the wall, paint now before installing the baffle (see "Painting"). 9. Add a 26" long piece of unbacked R19 fiberglass insulation to the enclosure. (Be sure to wear protective gloves and goggles when handling fiberglass to avoid contact with the fiber).
-
Page 7: Operation
Warranty Period For the period of 5 years for parts and 5 years for labor from date of original purchase (the warranty period) from an authorized NHT dealer, Now Hear This (NHT) warrants that if our product fails to function properly under normal use due to a manufacturing defect when installed and operated according to the owner’s manual instructions enclosed with the unit, it will be repaired or replaced with a unit of comparable value at the option of NHT without charge to you for...
