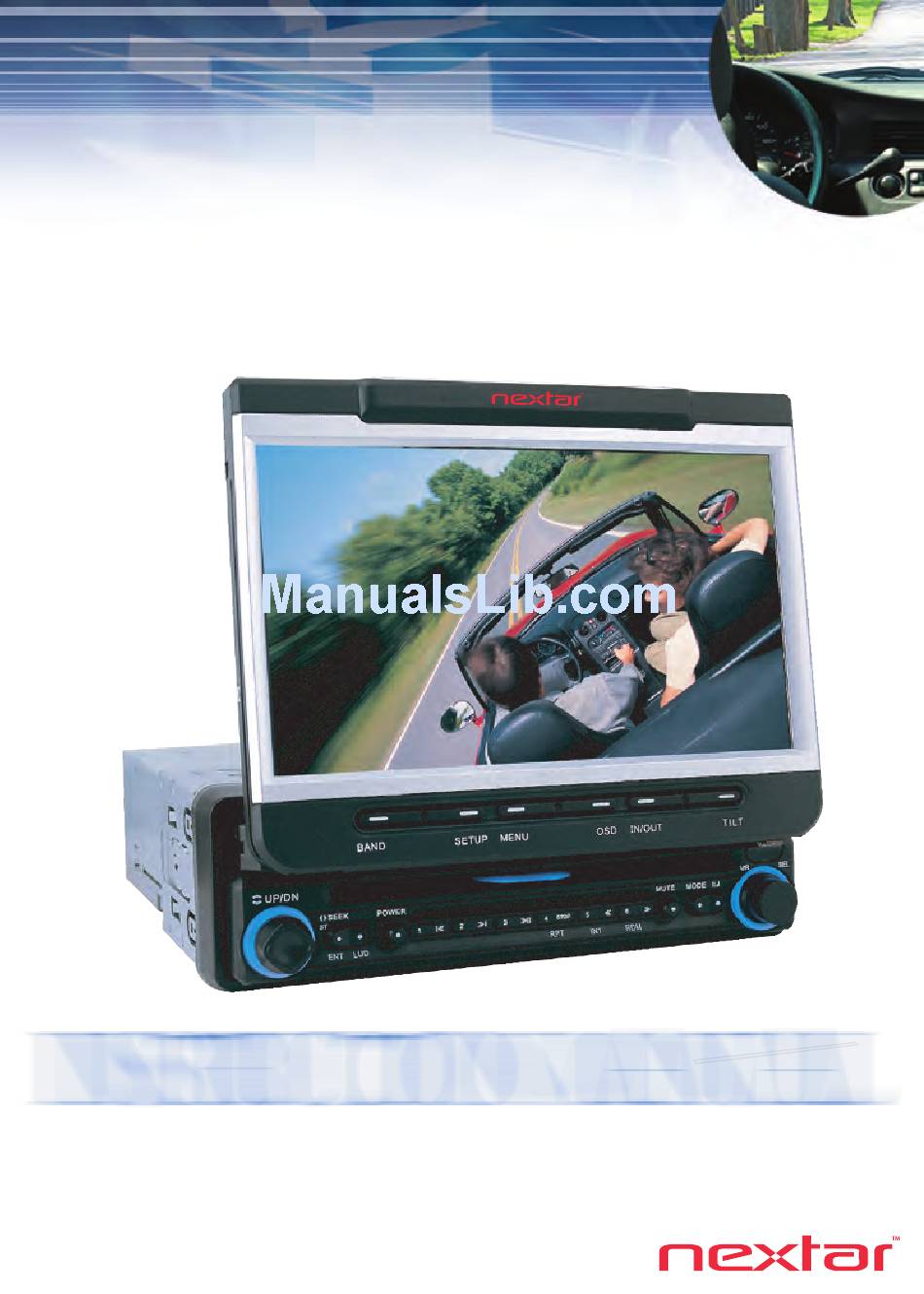

- Page 1 ITEM# MM1007 Motorized 7” Color Display DVD Player INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
ITEM# MM1007 TABLE OF CONTENTS FEATURES PRECAUTIONS ACCESSORIES INSTALLATION OPERATION Buttons on the Panel and Remote Control Screen Panel and Front Panel Power, Preset Buttons 1 ~ 6 Mute, Mode, Eject, Volume (Select), Open P.Scan, LOC, Band, Joystick, Enter, Lud, Tilt, In/Out... -
Page 3: Features
ITEM# MM1007 Monitor Screen • Motorized Open/Close Monitor Control System • Tilting Safety System (If the movement of the monitor opening or closing is hindered by an obstacle, the monitor will stop or returns to its previous position) • Swivel Adjustment: Monitor is adjustable to the left or right •... -
Page 4: Precautions
ITEM# MM1007 • Do not watch video playback while driving. This distraction can be the cause of significant danger and/or increase the risk of a traffic accident. In addition it may violate state and local laws and regulations. • Do not install the unit where it may obstruct or interfere with safe operation of the vehicle. -
Page 5: Accessories
ITEM# MM1007 The unit contains the accessories detailed below: Release Keys IR Remote Control ACCESSORIES Mounting Screw and Bracket External TV Tuner Box (Optional) -
Page 6: Installation
ITEM# MM1007 IMPORTANT NOTES – PLEASE READ FIRST • Before starting installation of the unit, make sure all wiring is connected properly. • Use only the parts provided with the unit to ensure proper installation. • The use of unauthorized parts may cause improper functioning or damage to the unit. -
Page 7: Operation
ITEM# MM1007 [1] Power [2] Preset 1 / Step Backward [3] Preset 2 / Step Forward [4] Preset 3 / Play / Pause [5] Preset 4 / Stop / Repeat [6] Preset 5 / Fast Backward / Intro [7] Preset 6 / Fast Forward / Random... -
Page 8: Buttons On The Panel And Remote Control
ITEM# MM1007 Front Panel And Remote Control Buttons [1] POWER Button (STANDBY Button on Remote Control) Press any button to turn on the unit. Press POWER button to turn off the unit. When the Tilt is set to AUTO and the monitor is opened, power-off will automatically close the monitor. -
Page 9: Eject Button
ITEM# MM1007 [2] ~ [7] Radio Station Preset Buttons, Disc Play-mode Control MODE Move to Move to next previous chapter or chapter or track track [8] MUTE Button Mute On and OFF. [9] MODE Button Change playing mode in a sequence of Radio Tuner _ DVD _ TV Tuner... -
Page 10: Remote Sensor
ITEM# MM1007 • Video relative menu can be set only when monitor is opened. • When clock (optional feature) is available, push select button long to display clock. • Time setting sequence is as follow a) Push SELECT long to display clock. - Page 11 ITEM# MM1007 [14] PRESET SCAN (In Radio and TV Mode) Press and hold to memorize received stations automatically. Press button and the unit will tune to preset stations set for buttons 1 to 6 . [15] LOC (Local / DX) Button Change radio tuning from regional stations to national stations or from national stations to regional stations The default is Local (regional).
-
Page 12: Disc Loading Slot
ITEM# MM1007 [18] ENTER Button Same as ENTER key in [17] above. [19] LUD (Loudness) Button Activate and deactivate Loudness. [20] Mini Color LCD Display [21] DISC LOADING SLOT [22] TILT Button Adjust monitor tilt angle. You can set tilt adjustment angle from min 3 level to max 5 level. -
Page 13: Audio Menu
ITEM# MM1007 SOURCE MENU FUNCTION TUNER Change mode to Radio Change mode to DVD (CD) Change mode to TV (optional feature) Change mode to CD Changer (optional feature, when CD Changer is connected) Change mode to AUX Input AUDIO MENU... -
Page 14: Screen Menu
ITEM# MM1007 SCREEN MENU FUNCTION PICTURE Invert the screen picture from normal to upside down FULL Change to full screen mode, You can move the screen by joystick key NORMAL Return to normal screen mode. SYSTEM MENU FUNCTION TILT Set to auto or manual monitor close (please refer to 22. TILT for more... -
Page 15: Radio Display
ITEM# MM1007 [25] MENU Button RADIO DISPLAY (1) Display current Band and current memorized station (2) Contents of current Band • Current Tuning memory Position is highlighted with red color (3) STATUS display • MEM : Display current memory. If there is no matching memory exists, display MEM 0 •... -
Page 16: Tv Mode Display
ITEM# MM1007 TV MODE DISPLAY (1) TV mode display (2) Current Band and current channel display When there is no matching channel, oscillator freq is displayed in PAL mode. (3) Contents of current band • Current channel is red color (4) TV function status display •... - Page 17 ITEM# MM1007 (1) Current disc number (2) Current track number (3) Current Playing status • PLAY : playing disc • PAUSE : pause playing • STOP : stop playing • F.FORWARD : current track fast forward • F.BACKWARD : current track fast backward •...
-
Page 18: System Status Display
ITEM# MM1007 SYSTEM STATUS DISPLAY (1) Loudness on/off display (2) TV channel display • Current channel number display • TV function status display (3) Monitor Error display • When monitor is turned left or right, monitor close is impossible (4) Volume level display... -
Page 19: Functions Only Available With Remote Control Button
ITEM# MM1007 AUDIO Change the language by L/R channel. (available only with dual language Movie Disc) SUBTITLE If the DVD or SVCD has more than one language caption, press this key to select the caption displaying option or to hide caption. The caption information corresponds to the disc currently being viewed. -
Page 20: Dvd Setup
ITEM# MM1007 DVD SETUP General Setup Use the [SETUP] option to set up system functions. Press [SETUP] to enter into the setup menu; press right & left keys to move curser and select “General setup”, “Audio setup”, “Video setup”, “Initial setup page” or “Password setup” options. - Page 21 ITEM# MM1007 Angle Mark Use this option to turn on/off the angle mark. When playing multi-angle-screen discs, the angle mark will be displayed when this option is “ON” and hidden when it is “OFF”. OSD Language Language displayed: option to select ENGLISH or Chinese for the On Screen Display (OSD).
-
Page 22: Audio Setup Page
ITEM# MM1007 Audio Setup In the Audio Setup Menu option users can perform the actions shown in the following image: Speaker Setup In the “Audio Setup Menu”, use the up and down keys to move the cursor selecting the “Speaker Setup” option. Press “PLAY” key to enter into the “Speaker Setup Menu”... - Page 23 ITEM# MM1007 The Rear Speaker Under the “DOWNMIX” mode off condition, the user can select “Large/ Small/ Off ” for the rear speaker. (Note) “Large” means full-frequency speaker; “Small” means medium-to-high- frequency speaker. Bass Speaker ”ON/OFF” option for bass speaker. “OPEN” means the bass speaker is initiated.
-
Page 24: Spdif Output
ITEM# MM1007 SPDIF Setup On “SPDIF” page menu, the available options include “SPDIF output”, “CD”, “Dolby code”, “DTS”, “MPEG”, “PCM” and “LPCM” channels. (Note) “SPDIF” means optical output. SPDIF Output At the “SPDIF output” option, users can select “SPDIF off ”, “SPDIF source code”... - Page 25 ITEM# MM1007 PCM Channel Select “PCM channel” option in “SPDIF” menu page and select “SPDIF R/L”, “SPDIF LS/RS” or “SPDIF C/LFE” options. The “SPDIF R/L” means to select right or left stereo channel; the “SPDIF LS/RS” means to select right or left circulation channel;...
-
Page 26: Pro Logic
ITEM# MM1007 Equalizer To get a more pleasing sound, users can adjust the equalizer to follow his/her music style preferences. Users can select rock-and-roll, fashion, field, dance-music, electronic, classic and light-music options. 3D Processing In the “Tone setup” menu page users can use up/down keys to move cursor and select the “3D processing setup”... - Page 27 ITEM# MM1007 Mix mode To experience better field echo effects, users can select various environments. The options include “Off ”, “Concert”, “Hall”, “Bathroom”, “Cave”, “”Arena” and “Church”. HDCD In the “Tone setup” page user can use up/down keys to move the curser and select the “HDCD”...
-
Page 28: Video Setup Page
ITEM# MM1007 Video Setup In the “Video setup” page users can set up the distributed video, TV node and video quality, as shown in the image below: Component “OFF” means system is now outputting compound video, YUV means YUV signal output and RGB means RGB signal output. - Page 29 ITEM# MM1007 GAMMA Correction The GAMMA correction curve can be adjusted to high, medium and low. “OFF” means no GAMMA correction is to be performed. Users can set up the screen color saturation from background brightness status. Saturation Users can set up the screen color saturation from background brightness status.
-
Page 30: Preference Setup Page
ITEM# MM1007 Preference Setup Users can perform initial setup when turning on the unit or changing a disc. In the “Initial setup” page users can set up “TV type”, “PBC”, “Audio”, “Caption”, “Disc menu language”, “Country/Region” and “Default value”, etc., as displayed... -
Page 31: Country Region, Default
ITEM# MM1007 Country Region Indicates the region code where the disc can be played. Region codes of each country are shown below: Region 1 : USA, Canada, East Oceania Region 2 : Japan, West Europe, Middle East Region 3 : Taiwan, South Korea, Southeast Asia... -
Page 32: Password Setup Page
ITEM# MM1007 Password Setup Users can set up passwords in the “Password setup” page as shown below: Master Password : this is default password (code is 136900) User Password : User can change password code MISCELLANEOUS JEPG Format Disc PLAY : press this key to enter into auto-picture-displaying mode. -
Page 33: Mp3 / Wma™ Disc
ITEM# MM1007 FAST BACKWARD : while playing a JPEG format disc, press this key to turn the picture counterclockwise 90 degrees. MP3 / WMA™ Disc While playing MP3 or WMA™ discs, user can press PROGRAM key to select the following two playing modes:... - Page 34 ITEM# MM1007 Playlist Mode In this mode, the song list is shown on the left side of menu. Use up/down keys to select the song to be played. After pressing “PLAY” the selected songs then will be displayed on the right side. Move the curser to the targeted song, press “PLAY”...
-
Page 35: Troubleshooting
ITEM# MM1007 TROUBLESHOOTING Symptom Power does not turn on.(No Fuse is blown sound is produced.) No sound output Power antennal lead when operating is shorted to ground or the unit with excessive current is amplifiers or required for remote on... -
Page 36: Specification
ITEM# MM1007 GENERAL Operation Voltage DC 12V Operation Voltage Range 10-16.0V DC Maximum Operation Current Grounding System Car Battery Negative Pole Installation Dimension (WxHxD): 178mm x50mm x(165+25)mm Installation Angle: Vertically 0º ~+ 30º Horizontally ± 15º Net Weight: 2.5Kg FM RECEIVER... -
Page 37: Wiring Diagram
ITEM# MM1007 WIRING DIAGRAM...
