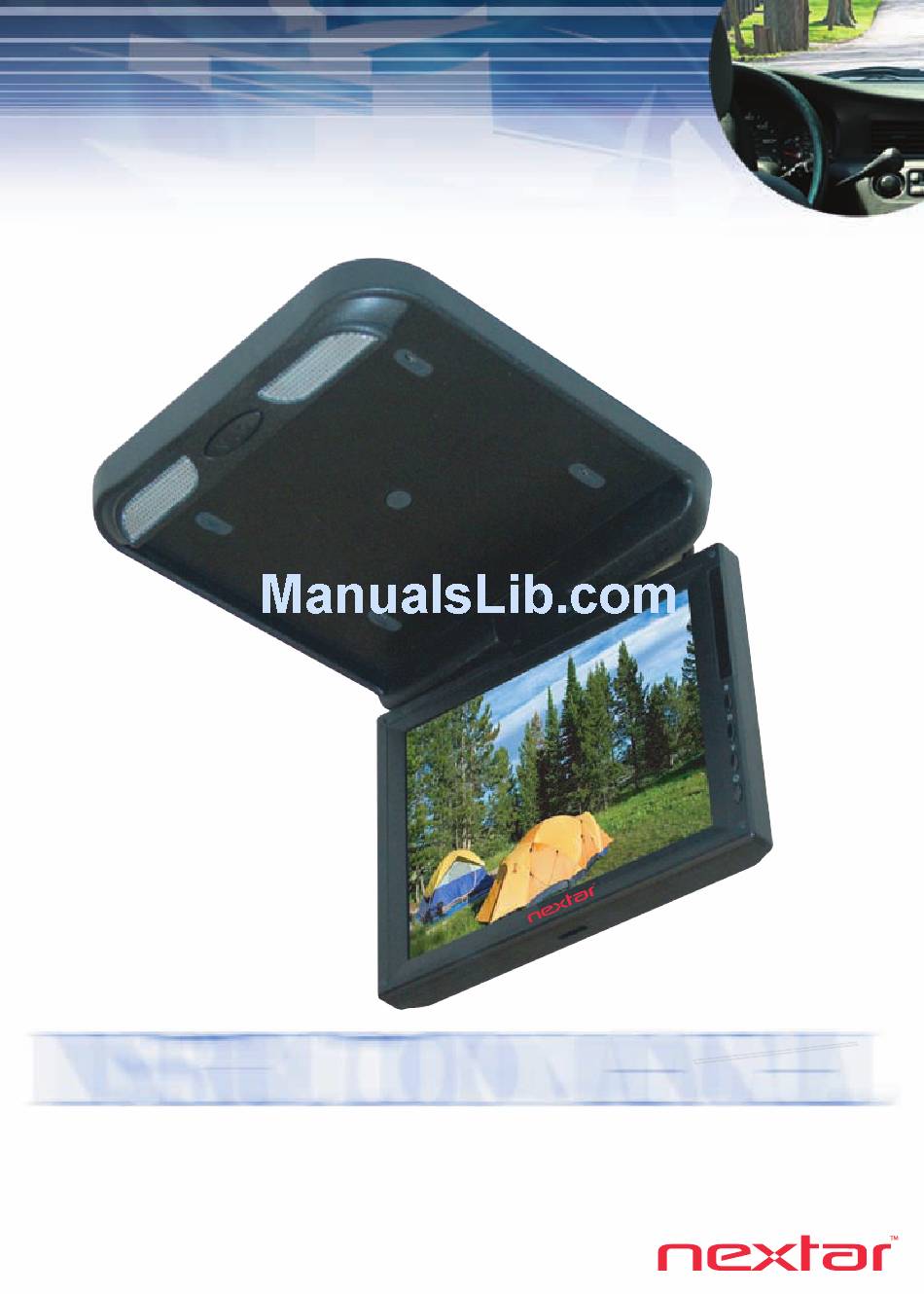

ITEM# MD1008
8" TFT Color Display
Flip Down Monitor
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MD1008 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Nextar MD1008

  • Page 1 ITEM# MD1008 8” TFT Color Display Flip Down Monitor INSTRUCTION MANUAL...
  • Page 2: Table Of Contents

    ITEM# MD1008 Thanks from Nextar Important Caution Adjusting Light on LCD Understanding the LCD Control LCD About The Screen of LCD LCD Protection Wiring Diagram Installation Describing the units buttons Remote Control Function Description Changing the Battery Caution Operation Of LCD...
  • Page 3: Thanks From Nextar

    ITEM# MD1008 Thank you for purchasing Nextar 4:3 TFT-LCD ceiling monitor. Please read this Manual thoroughly, and retain this document for future reference. 1. Please take note and use all caution terms of this manual. 2. Please do not permit anyone to operate this machine before he/she has reads or knows how the unit operates.
  • Page 4: Adjusting Light On Lcd

    ITEM# MD1008 UNDERSTANDING THE LCD Warning • Please cut off the power right away and go to your local authorized repair service when water or other objects or liquids enter into the machine. If you do not cut the power immediately this may lead to electric shock and/or fire.
  • Page 5: About The Screen Of Lcd

    ITEM# MD1008 About the Screen of LCD • Please avoid any direct air from the AC/Heater to the LCD, cool and warm air from AC will affect the inside groupware and wiring which may cause damage. If any of this occurs your screen will become dark or decrease the working life of your screen.
  • Page 6: Wiring Diagram

    ITEM# MD1008 WIRING DIAGRAM White (L-IN) Red (+12V) Red (R-IN) Black (-) Yellow (AVI) Green (AV2)
  • Page 7: Installation

    ITEM# MD1008 INSTALLATION Notice: Please use the components accompanied with this product. Using parts produced by other factories may cause problems. If holes need to be made during installation or any other modifications in the car, always inquire with a professional installer.
  • Page 8: Describing The Units Buttons

    ITEM# MD1008 DESCRIBING THE UNITS BUTTONS 1. Open Button 2. Reading Lamps 3. Reading Lamp Switch 4. Display Screen 5. Up 6. Menu 7. Down 8. Power On/off 3 (back) 1. AV1/AV2 turning 2. Power on/off 3. Brightness Control - 4.
  • Page 9: Caution

    ITEM# MD1008 HOW TO CHANGE THE BATTERY 1. Take off battery clip, and draw out battery by the flute. 2. Put new battery in flute with (+) face up. 3. Put battery clip back into the remote. Caution: 1. Improper installation may heat the battery up causing it to burn out or explode.
  • Page 10: Operation Of Lcd

    ITEM# MD1008 OPERATION OF LCD Note: Before using, please be sure Audio and Video RCA’s are connected, yellow plug connects with the video signal 1, and green plug connects with video signal 2, white plug link with left audio channel, red plug link with right audio channel.
  • Page 11: Specifications

    ITEM# MD1008 SPECIFICATIONS Display system: Pixel of Display: Definition: Screen Size: Display Region Shadow Light Machine Construction: Working power: Consumption: Working Temperature: Weight: Size: 8 inches (20.5cm) TFT LCD color super clean picture screen display 280000pixel (600x480xRGB) 864000 dots 163.5(W) x 122(H)mm...
