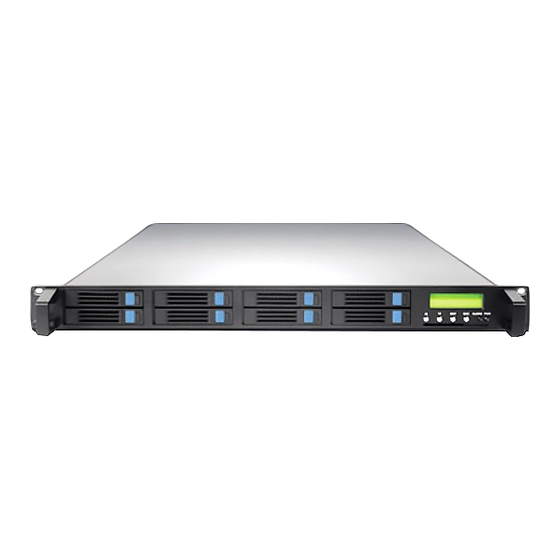

ACCURAID
AR108X
QUICK INSTALLATION GUIDE
v1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the accuraid ari08x and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sans Digital accuraid ari08x

  • Page 1 ACCURAID AR108X QUICK INSTALLATION GUIDE v1.0...
  • Page 2: About This Manual

    About this manual Thank you for using products from Sans Digital. This manual will introduce to you the Sans Digital AccuRAID series products and help you understand the operations of the RAID system. The information stated in this manual was thoroughly confirmed before publication; however, the specifications for the shipping production will be standard.
  • Page 3 Mini SAS to Mini SAS Cable RS-232 Cable Quick Installation Guide CD (User Guide) Accessory Kit Please make sure that related accessories and the product body are not damaged or missing. If you have any questions, please contact Sans Digital.
  • Page 4: Product Specifications

    2. Product Specifications Model No. AR108X Chipset Intel IOP80331 RAM Capacity 512MB Host Interface Mini SAS Support HDD 8×2.5” SATA 3.0 Gb/s Maximum Capacity of A Single HDD Total Maximum Capacity 8TB / under RAID 0 mode RAID Level RAID 0 , 1 , 3 , 5 , 6 , 10 , 30 , 50 , 60 , JBOD Hot Swappable Auto-rebuilding LCD Display...
  • Page 5 Three setting methods are shown as follows, please choose one for setting AR108X. 1) Graphical User Interface (GUI) Sans Digital AR108X supports GUI for system management. Please make sure that related network ports are connected. For connection through the network port, if using a fixed IP, make sure the fixed IP Address doesn’t conflict with other IP Addresses.
  • Page 6 6. After choosing the configuration method, please set RAID mode by following the following steps. Then format the hard drives with the disk management tool on the OS system. 1) You could change IP as DHCP or STATIC IP for login GUI. For further information, please refer to the user manual.
  • Page 7: Table Of Contents

    Contents Chapter 1 RAID introduction................9 Features........................9 Terminology......................... 9 RAID levels........................10 Volume relationship diagram..................11 Chapter 2 Getting started................12 Before starting......................12 Storage introduction....................12 Management methods....................13 2.3.1 Web GUI........................13 2.3.2 Console serial port...................... 13 2.3.3 Remote control –...
  • Page 8 3.7.2 Info..........................44 3.7.3 SAS..........................45 3.7.4 Reset to default......................45 3.7.5 Config import & export....................45 3.7.6 Shutdown........................46 Logout......................... 46 Chapter 4 Advanced operation............... 47 Rebuild........................47 VG migration and expansion..................48 UDV Extension......................50 Disk roaming....................... 51 Appendix......................
  • Page 9: Chapter 1 Raid Introduction

    Chapter 1 RAID introduction 1.1 Features AR108X series features: • Front-end 1 Serial Attached SCSI 3Gbps 4 lanes wide port for SAS host connectivity. • RAID 6, 60 ready. • Snapshot without relying on host software. (only for specified models) •...
  • Page 10: Raid Levels

    Write-Back cache-write policy. A caching technique in which the completion of a write request is signaled as soon as the data is in cache and actual writing to non- volatile media occurs at a later time. It speeds up system write performance but needs to bear the risk where data may be inconsistent between data cache and the physical disks in one short time interval.
  • Page 11: Volume Relationship Diagram

    The abbreviation of “Just a Bunch Of Disks”. JBOD needs at least one hard drive. 1.4 Volume relationship diagram This is the volume structure of Sans Digital designed. It describes the relationship of RAID components. One VG (Volume Group) consists of a set of UDVs (User Data Volume) and owns one RAID level attribute.
  • Page 12: Chapter 2 Getting Started

    6. Management port network information. When using static IP, please prepare static IP addresses, subnet mask, and default gateway. 7. Setup the hardware connection before power on servers and Sans Digital RAID Subsystem. Connect SAS cables, console cable, and management port cable in advance.
  • Page 13: Management Methods

    2.3 Management methods There are three management methods to manage Sans Digital AR108X SAS RAID, describe in the following: 2.3.1 Web GUI AR108X support graphic user interface to manage the system. Be sure to connect LAN cable. The default setting of management port IP is DHCP and DHCP address displays on LCM; user can inspect LCM for IP first, then open the browser and type the DHCP address: (The DHCP address is dynamic and user may need to check every time after reboot.) When DHCP service is not available, controllers...
  • Page 14: Enclosure

    2.4 Enclosure 2.4.1 LCD Display There are four buttons to control Sans Digital LCM (LCD Control Module), including: ▲ (up), ▼ (down), ESC (Escape), and ENT (Enter). After booting up the system, the following screen shows management port IP and model name: Press “ENT”, the LCM functions “Alarm Mute”, “Reset/Shutdown”, “Quick Install”, “View IP...
  • Page 15: System Buzzer

    RAID 3 [Quick Install] RAID 5 RAID 6 RAID 0+1 [Apply The Config] [▲Yes No▼] xxx GB [IP Config] [Static IP] Sans Digital ▲▼ [IP Address] [192.168.010.050] [View IP Setting] [IP Subnet Mask] [255.255.255.0] [IP Gateway] [192.168.010.254] [DHCP] [▲Yes No▼]...
  • Page 16 1). Marquee LEDs: When system powers on and successfully boots up, the Marquee LED is on until the system boots successful. 2). Disk status LEDs: the LEDs reflect the disk status for the tray. Only On/Off situation. 3). Disk rebuilding LEDs: the LEDs are blinking when the disks are under rebuilding. 2.
  • Page 17: Chapter 3 Web Gui Guideline

    Sure to logout? 3.2 Login Sans Digital AR108X SAS RAID supports graphic user interface (GUI) to operate the system. Be sure to connect the LAN cable. The default IP setting is DHCP; open the browser and enter: http:// 192.168.0.1. (Please check the DHCP address first on LCM.)
  • Page 18: Quick Install

    Click any function at the first time; it will pop up a dialog for authentication. Login name: admin Default password: 1234 After login, you can choose the functions which lists on the left side of window to make configuration. Figure 3.2.1 There are six indicators at the top-right corner for backplane solutions, and cabling solutions have three indicators at the top-right corner.
  • Page 19 RAID level, users may find there are still some HDDs are available (free status). This results from using a smarter policy designed by Sans Digital. It gives the user: 1. Biggest capacity of RAID level for user to choose and, 2.
  • Page 20: System Configuration

    3.4 System configuration “System config” is designed for setting up the “System name”, “IP address”, “Language”, “Login config”, “Password”, “Date”, “Mail”, “SNMP”, “Messenger” , “System log server” and viewing the “Event log”. Figure 3.4.1 3.4.1 System name “System name” allows you to change the system name. Default “system name” is composed of the model name and serial number of this system, e.g.: S500C-A00001.
  • Page 21: Language

    Figure 3.4.2.1 3.4.3 Language “Language” can set the language shown in Web UI. The option “Auto Detect” will be detected by browser for language setting. Figure 3.4.3.1 3.4.4 Login config “Login config” can set single admin and auto logout time. The single admin can prevent multiple users access the same controller at the same time.
  • Page 22: Password

    3.4.5 Password “Password” can change administrator password. The maximum length of admin password is 12 characters. Figure 3.4.5.1 3.4.6 Date “Date” can set up the current date, time, and time zone before using or synchronize time from NTP (Network Time Protocol) server. Figure 3.4.6.1 3.4.7 Mail “Mail”...
  • Page 23: Snmp

    Figure 3.4.7.1 3.4.8 SNMP “SNMP” can set up SNMP trap for alerting via SNMP. It allows up to 3 SNMP trap addresses. Default community setting is “public”. User can choose the event log levels and default setting only enables INFO event log in SNMP. Figure 3.4.8.1 There are many SNMP tools.
  • Page 24: Messenger

    3.4.9 Messenger To use “Messenger”, the user must enable the service “Messenger” in Windows (Start → Control Panel → Administrative Tools → Services → Messenger), and then event logs can be received. It allows up to 3 messenger addresses. User can choose the event log levels and default setting enables the WARNING and ERROR event logs.
  • Page 25: Volume Configuration

    Figure 3.4.11.1 For customizing your own display of event logs, there are three display methods, on Web UI/Console event log page, popup windows on Web UI, and on LCM. The default setting of these three displays is WARNING and ERROR event logs displayed on Web UI and LCM. The default setting disabled the popup function.
  • Page 26 2. The list will disappear if there is no VG or only VG of RAID 0 and JBOD. Because these RAID levels cannot be set as dedicated spare disk. 3. These three functions “Free disks”, “Global spares”, and “Dedicated spares” can make multiple selections.
  • Page 27 Dedicated spares Set hard drive(s) to dedicated spare of selected VGs. In this page, Sans Digital SAS RAID also provides HDD auto spindown down to save power. The default setting is disabled. User can set up in physical disk page, too.
  • Page 28: Volume Group

    Figure 3.5.1.3 3.5.2 Volume group “Volume group” can view the status of each volume group. • VG column description: Figure 3.5.2.1 (Figure 3.5.2.1: There is a RAID 0 with 4 physical disks, named “VG-R0”, total size is 297GB, free size is 267GB, related to 1 UDV. Another is a RAID 6 with 4 physical disks, named “VG-R6”.) Number of volume group.
  • Page 29: User Data Volume

    The RAID level of the volume group. The button next to the RAID level is RAID “Migrate”. Click “Migrate” can add disk(s) to do expansion or change the RAID level of the Volume group. • VG operations description: Create Create a volume group Delete Delete a volume group 3.5.3 User data volume...
  • Page 30: Cache Volume

    #LUN Number of LUN(s) that user data volume is attaching. The user data volume size that used for snapshot. The button next to the snapshot is “Resize” which decide the size of snapshot. The button next to resize is “Auto Snapshot (GB) snapshot”...
  • Page 31: Examples

    Figure 3.5.5.1 Figure 3.5.5.2 (Figure 3.5.4.2: LUN status for AR108X has one SAS channel.) • LUN operations description: Attach Attach a logical unit number to a user data volume. Delete Detach a logical unit number from a user data volume. The matching rules of access control are inspected from top to bottom in sequence.
  • Page 32 Figure 3.5.6.1 1. Select “/ Volume config / Volume group”. 2. Click “ “. 3. Enter a VG Name, choose a RAID level from the list, click “ “ to choose the RAID PD slot(s), then click “ “. 4. Check the outcome. Click “ “...
  • Page 33 1. Select “/ Volume config / User data volume”. 2. Click “ ”. 3. Enter a UDV name, choose a VG Name and enter a size of UDV; decide the stripe high, block size, read/write mode and set priority, then click “ “.
  • Page 34 1. Select a UDV. 2. Enter “Host” name, which is an initiator node name for access control, or fill-in wildcard “*”, which means every host can access to this volume. Choose LUN and permission, then click “ ”. 3. Done. Figure 3.5.6.6 (Figure 3.5.6.6: UDV-R5-1 is attached to LUN 0.
  • Page 35 (Figure 3.5.6.7: Slot 5 is set as global spare disk.) Step 5: Done. They can be used as SCSI disks. Delete UDVs, VG, please follow the steps listed below. Step 6: Detach LUN from UDV. In “/ Volume config / Logical unit” Figure 3.5.6.8 1.
  • Page 36 3. Click “ “. There will pop up a confirmation page. 4. Choose “OK” 5. Done. The VG is deleted. Tips : The action of deleting one VG will succeed only when all of the related UDV(s) are deleted in this VG. Otherwise, it will encounter an error when deleting the VG.
  • Page 37 1. Select “/ Volume config / Cache volume”. 2. If there is no free space for creating a new dedicated cache volume. Firstly, decrease the global cache size by clicking the button “ ” in size column. After resizing, click “ ”...
  • Page 38 Figure 3.5.6.11 (Figure 3.5.6.11: UDV named “UDV-R5-1” uses global cache volume 40MB, and “UDV-R5-2” uses dedicated cache volume 20MB. “UDV-R5-2” is initialing about 5%.) Figure 3.5.6.12 (Figure 3.5.6.12: In “/ Volume config / Cache volume”, UDV named “UDV-R5-2” uses dedicated cache volume 20MB.) Step 4: Attach LUN to UDV.
  • Page 39 Figure 3.5.6.13 (Figure 3.5.7.13: Slot 5 has been set as dedicated spare disk of VG named “VG-R5”.) Step 6: Done. The PDs can be used as SCSI disks. Delete UDVs and VG, please follow the steps. Step 7: Detach LUN from UDV. Please refer to Step 6 of Example 1 to detach LUN.
  • Page 40: Enclosure Management

    1. Select “/ Volume config / Cache volume”. 2. Select a CV by clicking the checkbox in the row. 3. Click “ “. There will pop up a confirmation page. 4. Choose “OK”. 5. Done. The CV has been deleted. Notice : Global cache volume cannot be deleted.
  • Page 41: Hardware Monitor

    Figure 3.6.1.1 (Figure 3.6.1.1: Enable SES in LUN 0, and can be accessed from every host) The SES client software is available at the following web site: SANtools: http://www.santools.com/ 3.6.2 Hardware monitor “Hardware monitor” can view the information of current voltage and temperature. Figure 3.6.2.1 If “Auto shutdown”...
  • Page 42: Hard Drive S.m.a.r.t. Support

    1. There are 3 sensors placed on controllers for temperature checking, they are on core processor, PCI-X bridge, and daughter board. controller will check each sensor for every 30 seconds. When one of these sensor is over high temperature value for continuous 3 minutes, auto shutdown will be triggered immediately.
  • Page 43: System Maintenance

    Figure 3.6.4.1 Currently, the system only supports and communicates with smart-UPS of APC (American Power Conversion Corp.) UPS. Please review the details from the website: http://www.apc.com/. First, connect the system and APC UPS via RS-232 for communication. Then set up the shutdown values when power is failed.
  • Page 44: Upgrade

    Figure 3.7.1 3.7.1 Upgrade “Upgrade” can upgrade firmware. Please prepare new firmware file named “xxxx.bin” in local hard drive, then click “ ” to select the file. Click “ ”, it will pop up a message “Upgrade system now? If you want to downgrade to the previous FW later (not recommend), please export your system configuration in advance”, click “Cancel”...
  • Page 45: Sas

    3.7.3 SAS “SAS” can display SAS addresses. Figure 3.7.3.1 3.7.4 Reset to default “Reset to default” allows user to reset controller to the factory default setting. Figure 3.7.4.1 Reset to default value, the password is: 1234, and IP address as below. Default IP address: 192.168.0.1 Default subnet mask: 255.255.255.0 Default gateway: 192.168.10.254...
  • Page 46: Shutdown

    3.7.6 Shutdown “Shutdown” displays “Reboot” and “Shutdown” buttons. Before power off, it’s better to execute “Shutdown” to flush the data from cache to physical disks. The step is necessary for data protection. Figure 3.7.6.1 3.8 Logout For security reason, “Logout” allows users logout when no user is operating the system. Re-login the system;...
  • Page 47: Chapter 4 Advanced Operation

    Rebuilding in the same failed disk may impact customer data if the status of disk is unstable. Sans Digital suggests all customers not to rebuild in the same failed disk. 2. When there is enough global spare disk(s) or dedicated spare disk(s) for the degraded array, controller starts Auto-Rebuild immediately.
  • Page 48: Vg Migration And Expansion

    Striping with parity on the dedicated disk. RAID 3 allows one hard drive failure or RAID 3 unplugging. Striping with interspersed parity over the member disks. RAID 5 allows one hard RAID 5 drive failure or unplugging. 2-dimensional parity protection over the member disks. RAID 6 allows two hard RAID 6 drives failure or unplugging.
  • Page 49 Figure 4.2.1 Figure 4.2.2 (Figure 4.2.2: A RAID 0 with 2 physical disks migrates to RAID 5 with 3 physical disks.) Figure 4.2.3 (Figure 4.2.3: A RAID 0 migrates to RAID 5, the complete percentage is 12%.) To do migration, the total size of VG must be larger or equal to the original VG. It does not allow expanding the same RAID level with the same hard disks of original VG.
  • Page 50: Udv Extension

    4. Migration operation's going: Source VG is already in migration. 5. Invalid VG raidcell parameter: Invalid configuration. E.g., New VG's capacity < Old VG's capacity, New VG's stripe size < Old VG's stripe size. Or New VG's configuration == Old VG's configuration. 6.
  • Page 51: Disk Roaming

    4.4 Disk roaming Physical disks can be re-sequenced in the same system or move all physical disks from system-1 to system-2. This is called disk roaming. Disk roaming has some constraints as described in the followings: 1. Check the firmware of two systems first. It is better that both systems have the same firmware version or newer.
  • Page 52: Appendix

    Appendix A. Certification list • SAS HBA card Vendor Model LSI Logic SAS3442X (PCI-X, 3 Gb/s, 1 external x4 SFF 8470 , 1 internal x4 SFF 8484) LSI Logic SAS3442E-R (PCI-Express, 3 Gb/s, 1 external x4 SFF 8470 , 1 internal x4 SFF 8484) LSI Logic SAS3800X (PCI-X, 3 Gb/s, 2 external x4 SFF-8470) LSI Logic...
  • Page 53: Event Notifications

    B. Event notifications • PD events Level Type Description INFO Disk inserted Disk <slot> is inserted into system. WARNING Disk removed Disk <slot> is removed from system. ERROR HDD failure Disk <slot> is disabled. • HW events Level Type Description WARNING ECC error Single-bit ECC error is detected.
  • Page 54 • RMS events Level Type Description INFO Console Login <username> login from <IP or serial console> via Console UI. INFO Console Logout <username> logout from <IP or serial console> via Console UI. INFO Web Login <username> login from <IP> via Web UI. INFO Web Logout <username>...
  • Page 55 ERROR VG failed VG <name> is failed. ERROR UDV failed UDV <name> is failed. Recoverable read error ERROR Recoverable read error occurred at LBA <address>-<address> of UDV <name>. occurred Recoverable write error ERROR Recoverable write error occurred at LBA <address>-<address> of UDV <name>. occurred Unrecoverable read error ERROR...
  • Page 56: Installation Steps For Large Volume (Tb)

    C. Installation steps for large volume (TB) Introduction: Sans Digital AR108X SAS RAID are capable of supporting large volumes (>2TB) on all product lines. When connecting controllers to 64bit OS installed host/server, the host/server is inherently capable for large volumes from the 64bit address. On the other side, if the host/server is installed with 32bit OS, user has to change the block size to 1KB, 2KB or 4KB to support volumes up to 4TB, 8TB or 16TB, for the 32bit host/server is not LBA (Logical Block Addressing) 64bit supported.
  • Page 57 Figure C.1 (Figure D.1: choose “OK” for 64bit OS, choose “Cancel” for 32bit OS, this step will change block size to 4K automatically.) 2. Click the button “ ” in “No.” column to see “More information”. Look at block size is 512B for 64bit OS setting, 4K for 32bit OS setting.
  • Page 58 2. Initialize the disk. Figure C.3 3. Convert to GPT disk for over 2TB capacity. For more detail information about GPT, please visit http://www.microsoft.com/whdc/device/storage/GPT_FAQ.mspx Figure C.4 4. Format the disk. Figure C.5 Advanced operation...
  • Page 59: System Information

    OS can not format the disk sector after 2048GB (2TB). 7. Wrong setting result: OS can not format disk sector after 2048GB(2TB). Figure C.8 System information Sans Digital AccuRAID Series AR108X SAS RAID SW version 2.3.1 Advanced operation...
