MAY BE INSTALLED IN A SOLID FUEL BURNING FIREPLACE, AS A
FREESTANDING FIREPLACE OR WITH AN OPTIONAL WOODEN SURROUND.
WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of life.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
−
any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's in-
structions.
• If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the
−
gas supplier.
This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is installed.
Provisions for adequate combustion and ventilation air must be provided. Refer to section "
Producing Adequate Ventilation" page 32.
This appliance may be installed in an aftermarket, permanently located, manufactured (mobile)
home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Manufacturer: NEW BUCK CORPORATION
P.O. Box 69
8000 Highway 226 South
Spruce Pine, NC 28777

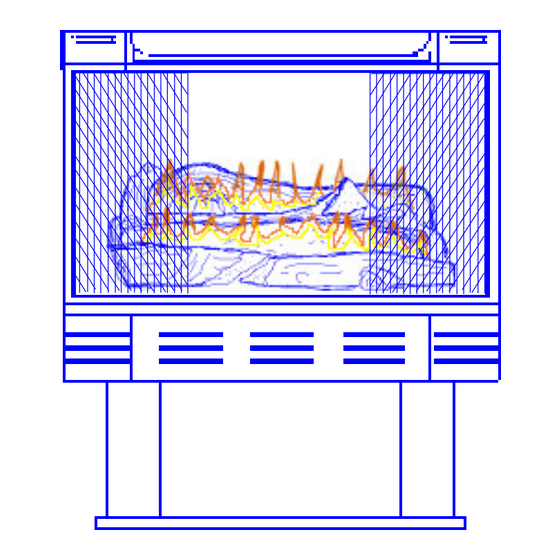

MODEL 329
This appliance is intended for supplemental
heating.
VENT-FREE
Revised December 2006
Advertisement
Table of Contents
Related Manuals for New Buck Corporation 329
Summary of Contents for New Buck Corporation 329
- Page 1 This appliance is only for use with the type of gas indicated on the rating plate. This appliance INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference. Manufacturer: NEW BUCK CORPORATION P.O. Box 69 8000 Highway 226 South...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 329 SECTION I: Safety Information ... 1 SECTION II: Fireplace Preparation ... 4 Fireplace Clearances ... 5 Gas Connection ... 5 Placement of Logs………………………………………………………………………6-7 Gas Pressure Check ... 8 Lighting Instructions - ITT Millivolt Valve ... 9 Lighting Instructions - SIT Modulating Valve or -SIT Manual……………..…………...13... -
Page 5: Section I: Safety Information
SAFETY INFORMATION WARNINGS IMPORTANT: READ THIS OWNER’S MANUAL CAREFULLY AND COMPLETELY BEFORE TRYING TO ASSEMBLE, OPERATE, OR SERVICE THE APPLIANCE. IMPROPER USE OF THESE LOGS CAN CAUSE SERIOUS INJURY OR DEATH FROM BURNS, FIRE, EXPLOSION, AND CARBON MONOXIDE POISONING. Early signs of carbon monoxide poisoning resemble the flu, with headaches, dizziness, and/or nausea. - Page 6 5. If this heater is used with propane gas, do not place propane supply tank (s) inside any structure. 6. What To Do IF You Smell Gas: Shut off gas supply. - Do not try to light any appliance. - Do not touch any electrical switch; do not use any phone in your building. - Immediately call your gas supplier from a neighbor’s phone.
- Page 7 21. All heater screens must be kept closed when operating the gas logs. ”WARNING: 22. . Failure to keep the primary air opening (s) of the burner (s) clean may result in sooting and property damage.” 23. Do not use this heater for burning trash or cooking. Never place matches, paper, garbage, or any other material on top of logs or into the flames.
-
Page 8: Section Ii: Fireplace Preparation
SECTION II FIREPLACE PREPARATION The fireplace needs to be prepared before installing the heater. A. Turn off the gas supply to the fireplace. WARNING: BEFORE INSTALLING IN A SOLID-FUEL BURNING FIREPLACE, THE CHIMNEY FLUE AND FIREBOX MUST BE CLEANED OF SOOT, CREOSOTE, ASHES, AND LOOSE PAINT BY A QUALIFIED CHIMNEY CLEANER. -
Page 9: Fireplace Clearances
INSTALLATION AND CLEARANCES To ensure a safe installation into a masonry or factory built fireplace, the following instructions must be carefully followed: (1) Sidewall Clearances: Clearance from the side of the fireplace opening to any adjacent combustible wall should not be less than: right side 7", left side 7". (2) Ceiling Clearances: The ceiling height should not be less than 24"... -
Page 10: Placement Of Logs
CR3329 CERAMIC LOG SET PLACEMENT FOR MODEL 329 (1-R) (1-L) WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this heater may result in property damage or personal injury. - Page 11 EMBER STOVE LOG SET PLACEMENT FOR MODEL 329 WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this heater may result in property damage or personal injury. WARNING: POSITIONING OF LOGS IS VERY CRITICAL (SEE DIAGRAM ABOVE).
-
Page 12: Gas Pressure Check
GAS PRESSURE CHECK Check the inlet pressure to the burner to ensure that it is as shown in the table below. NOTE: The pressure check point is located on the right side of the valve facing burner, for SIT Millivolt, and the left side for SIT Modulating. The appliance and its appliance main gas valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5kPa). -
Page 13: Lighting Instructions - Itt Millivolt Valve
LIGHTING INSTRUCTIONS MILLIVOLT VALVE (ITT) FOR YOUR SAFETY, READ BEFORE LIGHTING IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR LOSS OF LIFE. A. This appliance has a pilot which must be lighted by hand. When lighting the pilot, follow these instructions exactly. - Page 14 LIGHTING INSTRUCTIONS 1. STOP! Read the safety information on previous page. 2. Make sure the manual shutoff valve is fully closed. If equipped with thermostat set to the lowest setting. 3. Turn off all electrical power to the appliance. 4. Open access panel door located at bottom front of the appliance. 5.
- Page 15 • If the pilot will not stay lit after several tries, turn the gas control knob to “OFF” and call your service technician or gas supplier. IGNITOR ELECTRODE THERMO-PILE THERMO-COUPLE Turn control knob counterclockwise toggle switch to the “ON” position. The main burner should light. Close access panel door.
-
Page 16: Manual Lighting Procedure
THERMOSTAT CONTROL OPERATION • This valve operates off of millivolts produced by the generator. You may choose to use an optional Wall Thermostat or Remote control. If so, see Figure 2, page 11 for wiring diagram. MANUAL LIGHTING PROCEDURE If the pilot cannot be lit with the piezo, it can be manually lit with the use of a paper match and a lighter rod. -
Page 17: Lighting Instructions - Sit Modulating Valve Or -Sit Manual
LIGHTING INSTRUCTION MODULATING OR MANUAL VALVE (SIT) FOR YOUR SAFETY READ BEFORE LIGHTING IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.” A. This appliance has a pilot which must be lighted by hand. When lighting the pilot, follow these instructions exactly. - Page 18 LIGHTING INSTRUCTION 1. STOP! Read the safety information on preceding page 13. 2. Make sure manual shutoff valve is fully closed. 3. Turn off all electrical power to the appliance. 4. Open access panel door located at bottom front of the appliance. 5.
-
Page 19: To Turn Off Gas To Appliance
11. Turn gas control knob counterclockwise to “ON” position. Continue to turn the gas control knob counterclockwise to your desired setting. 12. Close access panel door. 13. Turn on all electrical power to the appliance. CAUTION DO NOT TRY TO ADJUST HEATING LEVELS BY USING THE MANUAL SHUTOFF VALVE. - Page 20 THERMOSTAT CONTROL OPERATION The thermostat control on this heater differs from standard thermostats. Standard thermostats simply turn the burner on and off. The thermostat used on this heater senses the room temperature and adjusts the amount of gas flow to the burner. This will increase or decrease the flame height.
-
Page 21: Lighting Instructions - Sit Millivolt Valve
OPERATING INSTRUCTIONS Before operating this appliance, proceed through the following checklist. 1. Read and understand these instructions before operating this appliance. 2. Check that there are no gas leaks. If you smell gas do not attempt to light this appliance. 3. - Page 22 LIGHTING INSTRUCTIONS 1. STOP! Read the safety information on page 17. 2. Make sure manual shutoff valve is fully closed. If equipped with thermostat, set to the low- est setting. 3. Turn off all electrical power to the appliance. 4. Open access cover door located at the bottom of the front of the appliance. 5.
- Page 23 * If the pilot will not stay lit after several tries, turn the gas control knob to “OFF” and call your service technician or gas supplier. 11. Turn control knob counterclockwise 12. If using unit without wall thermostat place Auto/Off/Manual switch into the manual position.
- Page 24 MANUAL LIGHTING PROCEDURE If the pilot cannot be lit with the piezo, it can be manually lit with the use of a paper match and a lighter rod. Open access panel door located at bottom front of the appliance. Place the match in the holder and light. With the left hand, turn the control knob counterclockwise (15) seconds.
-
Page 25: Flame Check
A periodic check of the flames should be made. The pilot flame should always be present when the gas logs are in operation. Rear Flames: The flames at the rear or at either side of the top log should be very similar, yellow in color, and should be about 3"... -
Page 26: Wiring Diagram
MOTOR JUMPER GREEN POWER CORD WARNING: CHILDREN AND ADULTS SHOULD BE ALERTED TO THE HAZARDS OF HIGH SURFACE TEMPERATURES AND SHOULD STAY AWAY TO AVOID BURNS OR CLOTHING IGNITION. CAREFULLY SUPERVISED WHEN THEY ARE IN THE SAME ROOM WITH THE APPLIANCE WARNING: DO NOT PLACE CLOTHING OR OTHER FLAMMABLE... - Page 27 ELECTRICAL GROUNDING INSTRUCTION: THIS APPLIANCE IS EQUIPPED WITH A THREE-PRONG (GROUNDING) PLUG FOR YOUR PROTECTION AGAINST SHOCK HAZARD AND SHOULD BE PLUGGED DIRECTLY INTO A PROPERLY GROUNDED THREE-PRONG RECEPTACLE. NOTE: #PESBR084 Blower Motor Rating: 120 volts/60HZ/1.1 Amps. See Figure 6, page 22 for wiring diagram. NOTE: For convenience, allow licensed electrician to install properly grounded 3-plug receptacle near unit.
-
Page 28: Section Iii: Solid Fuel Burning Fireplace Installation (Fp)
INSTALLATION MODEL 329 (FP) IN SOLID FUEL BURNING FIREPLACES (1) The Model 329 (FP) may be installed in a masonry fireplace. dimension must be 24" high, 29-1/2" wide, and 6" deep. (2) For minimum dimensions for the sidewall and mantel, see Figure 7. - Page 29 Set the top (long) trim panel in place on top of unit. The panel should be flat against the outside face of the fireplace, and standing vertically. Mark along the lower edge of the trim panel with a pencil to make reference line for mounting. (4) Slide the unit out of the fireplace far enough to work behind the trim panel reference lines with a screw gun.
-
Page 30: Section Iv: Freestanding Installation (Fs)
When the appliance is installed directly on carpeting, tile or other combus- tible material, other than wood flooring, the appliance shall be installed on a metal or wood panel extending the full width and depth of the appliance. SECTION IV MODEL 329(FS) 0" CEILING 42"... - Page 31 FREESTANDING PEDESTAL (1) Lay the heater on its back (use a drop-cloth to protect the back of the heater and the surface of your flooring). Place pedestal against bottom of heater. Center pedestal from left to right and from front to rear. Mark the holes on the angle on the top of the pedestal. Lay the pedestal aside.
-
Page 32: Section V: Alcove Installation
WARNING: ANY CHANGE TO THIS HEATER OR ITS CONTROLS CAN BE DANGEROUS.” REAR WALL NOTE: DIMENSIONS SHOWN ARE MINIMUM CLEARANCE TO 0" COMBUSTIBLE WALL. 7" 7" STOVE FACING UNIT LEFT WALL SECTION V MODEL 329 Figure 10 RIGHT WALL Page 28 0" CEILING 26" SIDE VIEW... -
Page 33: Section Vi: Wooden Surround Installation (Ws)
INSTALLATION OF MODEL 329 (WS) WITH OPTIONAL WOODEN SURROUND (KIT#PAKDFP34) See page 24, figure 7 for Clearances to Combustible Materials. (1) When choosing the right location for your heater and mantel keep the following in mind: NOTE: Due to high temperatures, this heater should be located out of traffic areas and away from furniture and draperies. - Page 34 STEP 5: After mantel has been assembled, take metal strips out of box supplied with mantel. Position the side strips on each side of your 329 with a maximum of 9 3/4" from back of stove to the edge of your metal strip. Attach with self tapping screws.
-
Page 35: Section Vii: Installation-After Market Mobile Home
SECTION VII AFTER MARKET MOBILE HOME INSTALLATION This appliance may be installed in an After Market* Manufactured Mobile Home, where not prohibited by state or local codes. • (After Market: Completion of sale, not for the purpose of resale from the manufacturer). For mobile home installation instruction follow instructions provided in this manual completely. -
Page 36: Section Viii: Producing Adequate Air
PRODUCING ADEQUATE VENTILATION This section is for residential or manufactured (mobile) installation “This heater shall not be installed in a confined space or unusually tight construction unless pro- visions are adequate combustion and ventilation air.” The National Fuel Gas Code, ANSI Z223.1/NFPA 54 defines a confined space as a space whose volume is less than 50 cubic feet per 1,000 BTU per hour (4.8m per kw) of the aggregate input rating of all appliances installed in that space and an unconfined space as a... - Page 37 1. Determine the volume of the space (length x width x height). Length x Width x Height =_________cu.ft.(volume of space) EXAMPLE: 20 ft.(Length) x 16 ft.(Width) x 8 ft.(ceiling Height)= 2560 cu. ft. (volume of space) If additional ventilation to adjoining room is supplied with grills or openings, add the volume of these rooms to the total volume of the space.
-
Page 38: Ventilation Air From Inside
VENTILATION AIR FROM INSIDE BUILDING This fresh air would come from an adjoining unconfined space. When venting to an adjoining space, you must provide two permanent openings: one within 12" of the ceiling and one within 12" of the floor on the wall connecting the two spaces. (See Options 1 and 2, Figure 11.) You can also remove door into adjoining room. -
Page 39: Ventilation Air Outdoors
VENTILATION AIR FROM OUTDOORS Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent openings: one within 12" of the ceiling and one within 12" of the floor. Connect these items directly to the outdoors. These spaces include attics and crawl spaces. Follow the National Fuel Gas Code NFPA 54/ANSI Z223.1, Section 5.3, “Air For Combustion and Ventilation”... -
Page 40: Important Safeguards
IMPORTANT SAFEGUARDS Although your gas logs are very realistic in appearance, it is not a real burning fireplace and must not be used for burning rejected material. • To avoid irreparable damage to the heater or personal injury, matches, paper, garbage, or any other material must not be placed or thrown on top of the logs or into the flames. -
Page 41: Troubleshooting
TURN OFF, UNPLUG HEATER AND LET COOL BEFORE SERVICING. ONLY A QUALIFIED SERVICE PERSON SHOULD SERVICE AND REPAIR HEATER. NEVER USE A WIRE, NEEDLE, OR SIMILAR OBJECT TO CLEAN ODS/ PILOT. THIS CAN DAMAGE ODS/PILOT. OBSERVED PROBLEM Igniter button is pressed no spark at ODS/Pilot OBSERVED PROBLEM... - Page 42 OBSERVED PROBLEM ODS/PILOT lights but flame goes out when control knob is released 4. Air in gas lines when installed 5. Depleted gas supply 6. ODS/Pilot is clogged 7. Gas regulator setting is not correct POSSIBLE PROBLEM 1. Control knob is not fully pressed in 2.
- Page 43 OBSERVED PROBLEM Burner does not light after ODS/ Pilot is lit Delayed ignition of burner Burner backfiring during combustion Slight smoke or odor during initial operation Heater produces a whistling noise when burner is lit POSSIBLE CAUSE 1. Burner orifice is clogged 2.
- Page 44 IF YOU SMELL GAS: * DO NOT TRY TO LIGHT APPLIANCE * DO NOT TOUCH ANY ELECTRICAL SWITCH; DO NOT USE ANY PHONE IN YOUR BUILDING * IMMEDIATELY CALL YOUR GAS SUPPLIER FROM A NEIGHBOR’S PHONE. FOLLOW THE GAS SUPPLIER’S INSTRUCTIONS. * IF YOU CANNOT REACH YOUR GAS SUPPLIER, CALL THE FIRE DEPARTMENT.
-
Page 45: Service And Repair Parts
Please contact your local dealer or distributor when ordering . If one is not available, you may contact. SERVICING REPAIR PARTS New Buck Corporation 8000 Highway 226 South Spruce Pine, NC 28777 Page 41... -
Page 46: Replacement Parts
REPLACEMENT PARTS KEY# PART DESCRIPTION Carling Switch Female Terminals Piezo Striker Piezo 14" Igniter Wire Pilot (NAT.) Copreci Pilot (LP) Copreci Pilot Tube 1/4" 1/8" x 1/4" Compression Adapter Regulator (LP) Maxitrol Regulator (NAT.) Maxitrol 3/8" Supply Tube 3/8" x 3/8" Elbow (Brass) Generator ITT Jumper Wire 6"... - Page 47 PILOT Page 43...
- Page 48 REPLACEMENT PARTS KEY# PART DESCRIPTION Pilot (NAT.) Copreci Pilot (LP) Copreci Thermopile (Copreci) Pilot Tube 1/4" Pilot Tube 1/4" Burner Tube 3/8" Pilot Regulator (LP) Maxitrol Pilot Regulator (NAT.) Maxitrol Burner Tube Orifice Holder Orifice Valve (LP) SIT (Modulating) Valve (NAT.) SIT (Modulating) Valve (LP) SIT Manual Valve (NAT.) SIT Manual Burner Base...
- Page 49 Page 45...
- Page 50 KEY# PART DESCRIPTION 820 MV. S.I.T. VALVE GENERATOR BURNER TUBE O.D.S PILOT (L.P.) O.P. ASSEMBLY O.D.S PILOT (NAT.) O.P. ASSEMBLY THERMO-COUPLE 2"-3/8" BLACKIRON NIPPLE BURNER SUPPLY LINE ELBOW 21" PILOT TUBE 3/16" ORIFICE ORIFICE HOLDER 3/8" NUT & SLEEVE PIEZO STRIKER CARLING SWITCH (AUTO/OFF/MANUAL) 12"...
- Page 51 SIT MILLIVOLT Page 47...
- Page 52 REPLACEMENT PARTS FOR EMBER STOVE BASE (ESB) A parts list with exploded view follows. Always include correct name, part number, and model number of the heater when ordering service parts. KEY# O.D.S. PILOT (L.P.) O.P. ASSEMBLY O.D.S. PILOT (NAT) O.P. ASSEMBLY GENERATOR ASSEMBLY PILOT TUBE 3/16"...
- Page 53 Please contact your local dealer or distributor when ordering . If one is not available, you may contact. REPAIR PARTS New Buck Corporation 8000 Highway 226 South Spruce Pine, NC 28777 SIT MILLIVOLT...
-
Page 54: Warranty
NEW BUCK CORPORATION We reserve the right to amend these specifications at any time without notice. The only warranty applicable is our standard written warranty. We offer no other warranty, expressed or implied. LIMITED WARRANTY VENT-FREE GAS LOG HEATER New Buck warrants this product to be free from defects in materials and components for two (2) years from the date of first purchase, provided that the product has been properly installed, operated, and maintained in accordance with all applicable instructions. - Page 55 Page 51...
