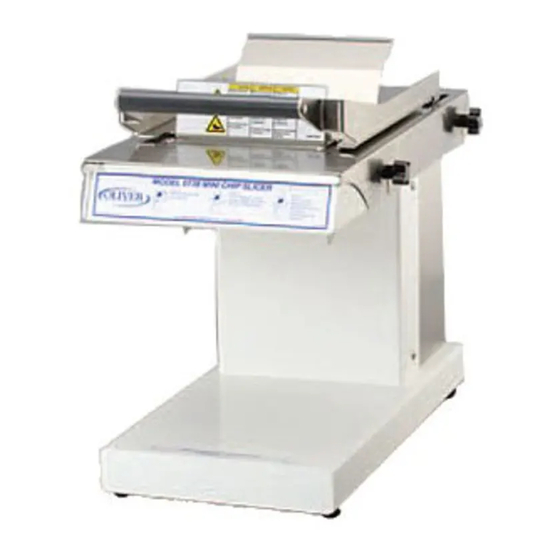

- Page 1 Walker, Michigan, U.S.A. 49534-7564 USER’S OPERATING AND INSTRUCTION MANUAL MODEL 738 MINI CHIP SLICER 0738S20000-CV...
-
Page 2: Table Of Contents
INDEX Section Description Document No. Page No. SAFETY INSTRUCTIONS -------------------------------------- 0738S20002 --------------------------- 1-1 DESCRIPTION/SPECIFICATIONS --------------------------- 0738S20016---------------------------- 2-1 INSTALLATION INSTRUCTIONS ---------------------------- 0738S20004 --------------------------- 3-1 OPERATING INSTRUCTIONS -------------------------------- 0738S20017 --------------------------- 4-1 TROUBLESHOOTING ------------------------------------------- 0758S20006 --------------------------- 5-1 CLEANING AND MAINTENANCE -----------------------------0758S20018 --------------------------- 6-1 Removing the Blade Cartridge------------------------------------------------------------------------- 6-1 Cleaning ---------------------------------------------------------------------------------------------------- 6-4 Replacing the Blade Frames --------------------------------------------------------------------------- 6-5... - Page 3 THIS PAGE WAS INTENTIONALLY LEFT BLANK. GEN020319...
-
Page 4: Safety Instructions
SAFETY INSTRUCTIONS WARNING VARIOUS SAFETY DEVICES AND METHODS OF GUARDING HAVE BEEN PROVIDED ON THIS MACHINE. IT IS ESSENTIAL HOWEVER THAT THE MACHINE OPERATORS AND MAINTENANCE PERSONNEL OBSERVE THE FOLLOWING SAFETY PRECAUTIONS. IMPROPER INSTALLATION, MAINTENANCE, OR OPERATION OF THIS EQUIPMENT COULD CAUSE SERIOUS INJURY OR DEATH. 1. -
Page 5: Description/Specifications
Designed with reciprocating blade technology, the Mini Chip Slicer easily slices through day-old bagels and baguettes. The Model 738 Mini Chip Slicer is constructed of stainless and painted steel. Easy to clean, the Mini Chip Slicer food contact surfaces - infeed cover, pusher, handle, and blade cartridge - can be removed without the use of tools for cleaning and sanitizing in a dishwasher. - Page 6 Product Capacities: Length 6 inches Width 6 inches Height 2 inches Standard Electrical Options: (Others consult factory) 1 phase, 60 Hz, 120VAC, 2 Amps. Shipping Weight: 100 lbs. (approximate) Net Weight: 80 lbs. (approximate) 0738S20016...
-
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS Before starting the Installation process make sure you observe the following caution notes. CAUTION THE SLICER IS HEAVY, USE PROPER TECHNIQUE WHEN LIFTING OR MOVING. Select a location for your slicer which has a substantial mounting surface and which has electrical service compatible with the load the machine will place on it as indicated on the electrical data plate of the machine. -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS WARNING ALWAYS USE CARE WHENEVER WORKING NEAR THE CUTTING KNIVES. To operate the slicer, follow these simple steps: 1. Power unit on and lift the handle. The unit will automatically shut off. 2. Place the product atop the blades towards the front of the cutting area. 3. - Page 9 THIS PAGE WAS INTENTIONALLY LEFT BLANK. GEN020319...
-
Page 10: Troubleshooting
TROUBLE SHOOTING WARNING ALWAYS DISCONNECT THE SLICER FROM THE POWER SUPPLY BEFORE ATTEMPTING ANY TYPE OF MAINTENANCE TASK, INCLUDING TROUBLESHOOTING. Slicer will not start • The machine is not plugged in. • There is no power at the outlet. • The cover is not on correctly. -
Page 11: Cleaning And Maintenance
CLEANING AND MAINTENANCE WARNING ALWAYS UNPLUG THE SLICER BEFORE PERFORMING ANY TYPE OF MAINTENANCE TASK. To prepare your unit for cleaning please refer to the pictorial below for step by step instructions. REMOVING THE BLADE CARTRIDGE 1. Loosen the (2) two thumb screws on the outside of the machine, tip the cover assembly back as shown in figure A. - Page 12 2. Loosen and remove the (4) thumbscrews atop the post hold down blocks (Fig. A) and adjust the drive assembly so that the blade frame cartridge is in the closed position as shown below (Fig. B). This is done by turning the knob on the drive assembly so that the channels on the blade frames are close together.
- Page 13 3. Place the protective blade cover atop the blade cartridge by hooking the cover around the pin plate near the drive assembly. 4. Lay the cover down on top of the blade cartridge and fasten with the thumb screw to the blade cartridge by threading the thumb screw into the hole provided. 0738S20018...
-
Page 14: Cleaning
5. To remove the protected blade frame cartridge simply grip the front of the assembly and the tab provided on the cover and pull up. WARNING NEVER REMOVE BLADE FRAME ASSEMBLY WITHOUT PROTECTIVE GUARD. BLADES ARE EXTREMELY SHARP AND IF HANDLED INCORRECTLY MAY RESULT IN SERIOUS INJURY. - Page 15 REPLACING THE BLADE CARTRIDGE 6. Make sure that the drive assembly is in the correct position as shown below. NOTE: The blade cartridge will only fit back into the machine with the drive assembly in the correct configuration below. The Bearing holes need to be at the position nearest each other.
- Page 16 7. With the protective blade guard in place locate the center of the bearings in the drive assembly with the pin plates attached to the blade cartridge. 8. Once the drive assembly has been located, place the blade cartridge posts in the tracks on the base assembly.
-
Page 17: Changing The Blades
CHANGING THE BLADES Oliver Packaging and Equipment suggests that blades not be changed in the field due to the potential for injury. We offer a blade frame cartridge exchange program for when blades become dull. Please contact your dealer or the Oliver service department. -
Page 18: Lubrication
ALWAYS DISCONNECT THE SLICER FROM THE POWER SUPPLY BEFORE ATTEMPTING ANY TYPE OF MAINTENANCE TASK. Oliver suggests a vegetable based aerosol product be used to gently coat the blades on occasion. Once a month put a drop of a food approved lubricant on the plastic slide blocks on the inside of the unit. -
Page 19: Main Frame
MAIN FRAME 0738S20019... -
Page 20: Parts List
5843-5384 Bracket-RH Cover Attachment 0738-0004-0001 009* Bracket-LH Cover Attachment 0738-0004-0002 Screw-10-24 x 1/4 Stainless Truss 5843-5383 Plate-Prop 0738-0005-1 Nut-1/4-20 Stainless Locking 5831-9087 Washer-1/4 Flat Stainless 5851-9304 *Items not shown FOR SERVICE PARTS CALL OLIVER PACKAGING & EQUIPMENT @ 800-253-3893 0738S20019... - Page 21 ELECTRICAL PARTS 0738S20020...
- Page 22 Bushing-Strain Relief 90° 5765-1010 Nut-PG-11 Plastic Lock 5766-7786 Counter-5 Digit Mini 5712-9080 Screw-6-32 x 1/4 Stainless Truss 5843-5360 Screw-6-32 x 3/8 Green Grounding 5841-9501 Washer-#6 Shake Proof Stainless 5851-9129 FOR SERVICE PARTS CALL OLIVER PACKAGING & EQUIPMENT @ 800-253-3893 0738S20020...
- Page 23 THIS PAGE WAS INTENTIONALLY LEFT BLANK. GEN020319...
-
Page 24: Drive Components
0738-0051 Screw-6-32 x 1 ¼ Stainless Pan 5843-5547 Replacements for 200 are ordered assembled with fasteners. Parts may not be substituted within the assembly other than those called out. FOR SERVICE PARTS CALL OLIVER PACKAGING & EQUIPMENT @ 800-253-3893 0738S20021... -
Page 25: Slice Parts/Covers
SLICE PARTS/COVERS REV 4-28-15 0738S20022 11-1... -
Page 26: Parts List
*Items 301 and 302 are replaced fully assembled. Specify slice thickness when ordering. **Item 303 is provided with each blade frame assembly and is used for safe handling. Not Shown. FOR SERVICE PARTS CALL OLIVER PACKAGING & EQUIPMENT @ 800-253-3893 REV 4-28-15 0738S20022 11-2... - Page 27 WIRING DIAGRAM 1-60-120 0738S20013 12-1...
- Page 28 WARRANTY PARTS Oliver Packaging & Equipment Company warrants that if any part of the equipment (other than a part not manufactured by Oliver Packaging & Equipment ) proves to be defective (as defined below) within one year after shipment, and if Buyer returns the defective part to Oliver Packaging & Equipment within one year, Freight Prepaid to Oliver Packaging &...
- Page 29 4. The service dealer will then complete an invoice and send it to the Parts and Service Department at Oliver Packaging & Equipment Company. 5. The Parts and Service Manager of Oliver Packaging and Equipment Company will review the invoice and returned parts, if applicable, and approve for payment.
- Page 30 This policy applies to all parts returned to the factory whether for warranted credit, replacement, repair or re-stocking. Oliver Packaging and Equipment Company requires that the customer obtain a Return Material Authorization (RMA) number before returning any part. This number should appear on the shipping label and inside the shipping carton as well.
