Summary of Contents for Neuton EM 5.1

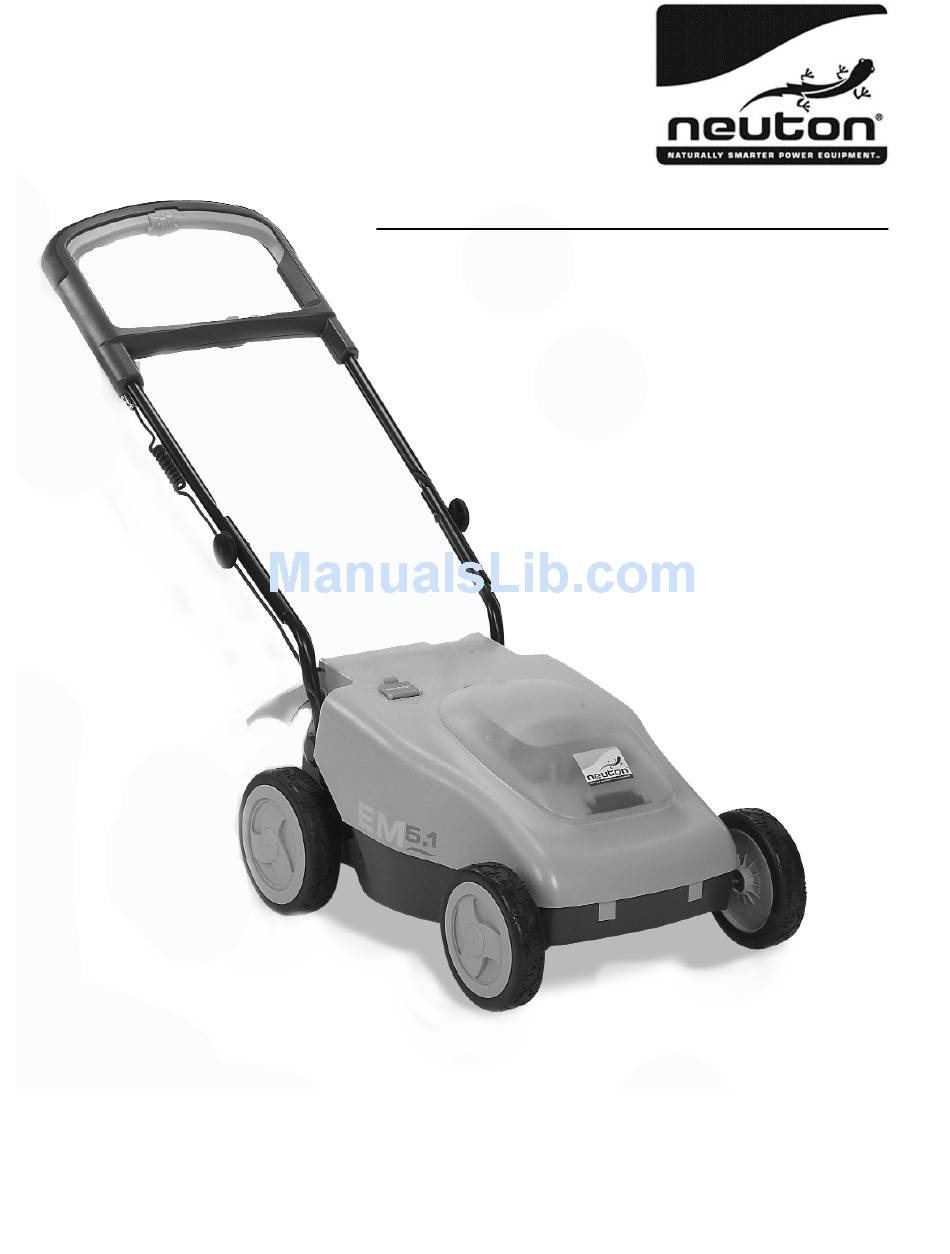

- Page 1 Cordless Electric Mower Safety & Operating Instructions Model: EM 5.1 ® COUNTRY HOME PRODUCTS , INC. www.neutonowners.com...
- Page 2 If you haven’t already ordered it, be sure to try the EM 5.1’s Trimmer Attachment, too. This option makes the EM 5.1 the only mower that can also trim and edge your lawn — saving you steps, plus a whole garage full of separately powered equipment.
-
Page 3: Table Of Contents
Chapter 4: Operating Your NEUTON Mower ........21... - Page 4 NEUTON Mower Product Specifications ........46...
-
Page 5: Chapter 1: Introducing The Neuton Mower Em
These Safety & Operating Instructions are shipped with the NEUTON Cordless Electric Mower, Model EM 5.1. It explains how to set up and safely operate your new NEUTON Mower. Carefully adhering to the safety and operating instructions in these instructions will ensure many years of productive use. -
Page 6: Conventions Used In This Manual
In addition to these chapters, the manual includes a parts list, schematic drawings of the NEUTON Mower, a section for your notes, the warranty, and a checklist of daily maintenance procedures (on the back cover) to help you keep your Mower performing well for years to come. -
Page 7: Chapter 2: Important Safety Considerations
Chapter 2: Important Safety Considerations We want you to enjoy years of safe and productive use from your NEUTON Cordless Electric Mower. We don’t want you to get injured, so please take a few moments to read the following instructions for safely operating your new machine. - Page 8 Mower Danger label (176701) The following label appears on your NEUTON Battery. NEUTON Battery operating tips label (207911) NEUTON EM 5.1 Cordless Electric Mower Safety & Operating Instructions...
-
Page 9: Protecting Yourself And Those Around You
If you are ever unsure about an action you are about to take, please don’t do it. Dressing Appropriately • Always use safety goggles or glasses when using your NEUTON Mower to protect your eyes from possible thrown objects. Use a face or dust mask if operating in dusty conditions. •... -
Page 10: Preparing To Use Your Mower
Mower before starting. • Never operate the NEUTON Mower without the proper guards, safety switches, or other safety and protective devices in place and properly connected. Inspect the Mower and cutting blade to determine that these safety devices are properly installed, in good repair, and operate properly. -
Page 11: Operating Your Mower
• Keep a firm hold on the handle, and walk — never run. • Never cut grass by pulling the Mower towards you. The NEUTON Mower is designed to only be pushed forward while cutting. • Use extreme caution when maneuvering backwards. Always look first to check your footing, look down and behind you before moving backwards. -
Page 12: Mowing On Slopes
• Do not use your NEUTON Mower for any job other than those for which it is intended. Mowing on Slopes Slopes are a major factor related to slip-and-fall accidents, which can result in severe injury. All slopes require caution. -
Page 13: Maintaining And Storing Your Mower
Mower. • Maintain the lawn Mower with care — keep cutting edges sharp and clean for the best and safest performance. Keep all nuts, bolts, and screws tight to be sure the Mower is in safe operating condition. -
Page 14: Chapter 3: Setting Up Your Neuton Mower
Battery MA 2.0 (inside the mower) • Battery charger • Safety key • 36 mm wrench (to remove the blade) • NEUTON EM 5.1 Cordless Electric Mower Safety & Operating Instructions Manual NEUTON EM 5.1 Cordless Electric Mower Safety & Operating Instructions... - Page 15 2. Upper handlebar assembly Cord clip 4. Lower handlebars with black connector knobs 5. Side discharge chute 6. Rear Bagger 10. 36 mm wrench 7. Battery 8. Battery charger 9. Safety key NEUTON EM 5.1 Cordless Electric Mower Safety & Operating Instructions...
-
Page 16: Assembling Your Neuton Mower
Assembling Your NEUTON Mower To allow you to quickly begin using your NEUTON Mower, it is shipped to you partially assembled. The assembly process is easy and does not require any special tools, knowledge, or strength. Assembling your NEUTON Mower takes just a few steps: Step 1: Read these “Safety and Operating Instructions”... -
Page 17: Step 2: Remove The Battery
1. Set the cutting height lever to the highest adjustment: position 6 as molded into the NEUTON EM 5.1 Cordless Electric Mower Safety & Operating Instructions Figure 2. Lift the battery cover Figure 3. Turn the battery retainer Figure 4. - Page 18 Mower Figure 6. Tighten the green quick-connect knobs Figure 7. Lean the upper handlebar assembly onto the lower handlebars (shown after the black connector knobs and bolts are attached) NEUTON EM 5.1 Cordless Electric Mower Safety & Operating Instructions...
- Page 19 3. (Figure 11) Figure 9. Cord clip on the lower right handlebar NEUTON EM 5.1 Cordless Electric Mower Safety & Operating Instructions Figure 8. Align the upper and lower handlebars and hand-tighten the black connector knobs Hand-tighten the locking nut to connect the cable Figure 10.
- Page 20 Removal is just as easy so you can dump out your clippings . Figure 12. The side discharge in place. Figure 12b Figure 12c. NEUTON Rear Bagger attached to the Mower NEUTON EM 5.1 Cordless Electric Mower Safety & Operating Instructions...
- Page 21 Important: If the battery is not oriented correctly, it will not fully depress into the opening. If this happens, remove the battery, recheck the orientation, and try again. NEUTON EM 5.1 Cordless Electric Mower Safety & Operating Instructions Figure 13. Orient and insert the battery Label...
- Page 22 Your Fully Assembled NEUTON Mower Start knob Control bar Mower/Auxiliary switch Indicator light Cable guide Key slot Battery cover Cutting height lever Figure 14. Your NEUTON Mower! NEUTON EM 5.1 Cordless Electric Mower Safety & Operating Instructions...
-
Page 23: Controls And Features
Controls and Features Make certain that you are familiar with the controls, parts, and operation of your NEUTON Mower before using it. Key Slot The key slot is used for both the external battery charger and the safety key. You can never connect both the external battery charger and insert the safety key at the same time. -
Page 24: Cutting Height Lever
NEUTON Mower, see “Chapter 6: Optional Attachments.” Figure 15. Green indicator light NEUTON EM 5.1 Cordless Electric Mower Safety & Operating Instructions Indicator light Figure 16. Cutting height lever Figure 17. Pushing the Mower/Auxiliary... -
Page 25: Chapter 4: Operating Your Neuton Mower
Note: The length of time that a battery can hold its charge while mowing depends upon lawn conditions; tall or thick grass makes the Mower work harder causing the battery to discharge faster. NEUTON EM 5.1 Cordless Electric Mower Safety & Operating Instructions... -
Page 26: Adjusting The Cutting Height
1.2″ (30 mm) 1.5″ (38 mm) 1.9″ (47 mm) 2.2″ (56 mm) 2.6″ (65 mm) 3.0″ (75 mm) NEUTON EM 5.1 Cordless Electric Mower Safety & Operating Instructions Figure 18. Cutting height lever set to leave your grass 1.6 inches high... -
Page 27: Starting The Motor And Engaging The Blade
WARNING! Starting, stopping, and restarting an electric motor repeatedly within a few seconds can generate a great deal of heat and damage the motor. To protect the life of your NEUTON Mower, always wait at least five seconds after stopping before restarting the Mower. -
Page 28: Stopping The Motor And Blade
Cut thicker grass at a higher cutting height, or cut a narrower swath. Do not force the Mower forward in thick grass; rather, cut it with a couple of passes. Your NEUTON Mower will do a better and safer job when cutting at a steady pace. -
Page 29: Chapter 5: Charging And Caring For The Battery
The Battery The NEUTON Mower comes with a sealed, lead acid battery, already installed at the factory. The battery is rated for 24 volts and 10 amp-hours. The battery should not leak, regardless of the position in which the Mower is stored. -
Page 30: Charging The Battery
For the first five hours, the charger will be warm to the touch. This is normal and does not indicate a problem. Figure 22. Charging the battery in the Mower NEUTON EM 5.1 Cordless Electric Mower Safety & Operating Instructions... -
Page 31: Recharging After Each Use Of The Mower
Mower and either replace or recharge the battery. Unlike “smart batteries” found in devices such as cell phones, the NEUTON Mower’s battery should NOT be run until it is completely drained. Running the battery until it is fully depleted will reduce the long-term performance of the battery. -
Page 32: Recharging To A Full Charge For Off-Season Storage
Always keep the battery away from water, heat sources (stoves, radiators, open flames, etc.), and hazardous chemicals. • Always use the NEUTON Mower EM 5.1 Charger to charge your battery; never attempt to use any other charger.. Use of a different charger may cause a fire or explosion. •... -
Page 33: Recycling Your Used Battery
Ellwood City, PA 16117 (724) 758-2825; fax (724) 758-2845 To learn more about hazardous waste recycling, visit the Web site for Battery Council International [www.batterycouncil.org] or for the Environmental Protection Agency [www.epa.gov]. NEUTON EM 5.1 Cordless Electric Mower Safety & Operating Instructions... -
Page 34: Chapter 6: Optional Attachments
Country Home Products toll free at 1-(866)-NEUTON1 (638-8661). Your NEUTON Mower is shipped with the rear discharge plate, allowing you to discharge grass clippings as the standard mowing mode. To mulch or to collect clippings, you must order the appropriate optional attachments. -
Page 35: Installing The Mulching Kit
NEUTON EM 5.1 Cordless Electric Mower Safety & Operating Instructions Figure 27. Installing the mulching plug Figure 28. Cutting blade (top) and the... -
Page 36: Spare Battery
Owning a spare cutting blade can make mowing more efficient. When your existing blade becomes dull you can either sharpen the blade (see “Sharpening the Blade” in Chapter 7 for more information) or purchase a replacement blade NEUTON EM 5.1 Cordless Electric Mower Safety & Operating Instructions... -
Page 37: Chapter 7: Maintaining And Storing Your Neuton Mower
2. While holding the handlebars (as if you are mowing), turn the Mower over on its right side to expose the blade. 3. Place the 36 mm wrench over the steel hex adapter holding the blade (the large metal piece that holds the blade in position). NEUTON EM 5.1 Cordless Electric Mower Safety & Operating Instructions... -
Page 38: Sharpening The Blade
2. While holding the handlebars (as if you are mowing), turn the Mower over on its right side to expose the blade. Figure 30. Removing the blade Figure 31. The order of the parts holding the blade to the Mower NEUTON EM 5.1 Cordless Electric Mower Safety & Operating Instructions... -
Page 39: Balancing The Blade
Lubricating Your Mower Your NEUTON Mower does not need to be lubricated; please do not lubricate the Mower. NEUTON EM 5.1 Cordless Electric Mower Safety & Operating Instructions Figure 32. Balancing the blade with a large... -
Page 40: Storing Your Neuton Mower
• During long-term storage of batteries that are intended for reuse, periodically recharge the battery, as recommended in “Chapter 5: Charging and Caring for the Battery.” NEUTON EM 5.1 Cordless Electric Mower Safety & Operating Instructions... -
Page 41: Chapter 8: Troubleshooting Tips
Mower stops while mowing (for reasons other than releasing the control bar) NEUTON EM 5.1 Cordless Electric Mower Safety & Operating Instructions Corrective Action • Check to make sure the safety key is properly inserted and the indicator light is on. Check to see if the white button on the safety key has popped up;... - Page 42 • The mesh holes on the rear bagger are clogged. Clean them. • The rear bagger is wet. Allow it to dry thoroughly before using it again. NEUTON EM 5.1 Cordless Electric Mower Safety & Operating Instructions...
-
Page 43: Addendum A: Parts List And Schematic Drawings
Safety key cover pin Discharge guard Discharge guard spring Discharge guard bar End cap, Discharge guard bar Battery cover Battery cover hinge NEUTON EM 5.1 Cordless Electric Mower Safety & Operating Instructions Qty. Part Number 202051 196311 196321 196331 155191... - Page 44 Trimmer relay Mower relay lower housing Mower relay wire Mower relay Mower relay screws Mower relay spring washers Mower relay nuts Qty. NEUTON EM 5.1 Cordless Electric Mower Safety & Operating Instructions 175911 175921 196911 210421 210901 175931 206511 Part Number...
- Page 45 Connector nut Rear Bagger Set (E) Item # Description Complete bagger, Green Bagger,steel frame Discharge Chute Mulching Blade Mulching Plug NEUTON EM 5.1 Cordless Electric Mower Safety & Operating Instructions 196771 196781 196791 196801 196511 210471 Qty. Part Number 196811...
- Page 46 Warning and Safety Instructions label Neuton label,small Small Neuton label G5, G6 PC label (right and left) Battery operating tips label Qty. Qty. NEUTON EM 5.1 Cordless Electric Mower Safety & Operating Instructions Part Number 196081 178781 210511 Part Number 176701 210521...
- Page 47 NEUTON EM 5.1 Cordless Electric Mower Safety & Operating Instructions...
-
Page 48: Schematic Drawings
Schematic Drawings NEUTON EM 5.1 Cordless Electric Mower Safety & Operating Instructions... - Page 49 NEUTON EM 5.1 Cordless Electric Mower Safety & Operating Instructions...
-
Page 50: Neuton Mower Product Specifications
15 pounds. Approximately 60 minutes for fully charged battery 24 Volt charger, plugs into standard electrical outlet 12 hours to fully recharge Easy to lift-out and replace with optional spare battery NEUTON EM 5.1 Cordless Electric Mower Safety & Operating Instructions... -
Page 51: Limited Two-Year Warranty
LIMITED TWO-YEAR WARRANTY The NEUTON EM 5.1 Cordless Electric Mower is warranted for two (2) years against defects in materials or ® workmanship when put to personal residential household use. For the purposes of the warranty, “personal residential household use” refers to non-commercial residential use and further excludes misuse, accidents, or damage due to inadequate maintenance. - Page 52 For the best results, see “Mowing and Lawn Care Tips” in Chapter 4. We hope you will enjoy many years of satisfied use with your NEUTON Mower. COUNTRY HOME PRODUCTS, Inc. M E I G S R O A D , P. O . B O X 2 5 , V E R G E N N E S , V E R M O N T 0 5 4 9 1 1-(866)-NEUTON1 (638-8661) www.neutonowners.com...
