Neuro Logic Systems NLS 1U Server Console RFT-17 Installation Manual

17 inch lcd/keyboard rack kit

Advertisement

Quick Links

Table of Contents

Hardware Installation... ..............................................................................
Connecting your LCD/Keyboard..................................................................
Operating your LCD/Keyboard.....................................................................
Navigating the Menu...................................................................................
On-Screen Display (OSD) Menus..................................................................
Trouble Shooting Bad Image Quality............................................................
Specifications...........................................................................................
Warranty...................................................................................................

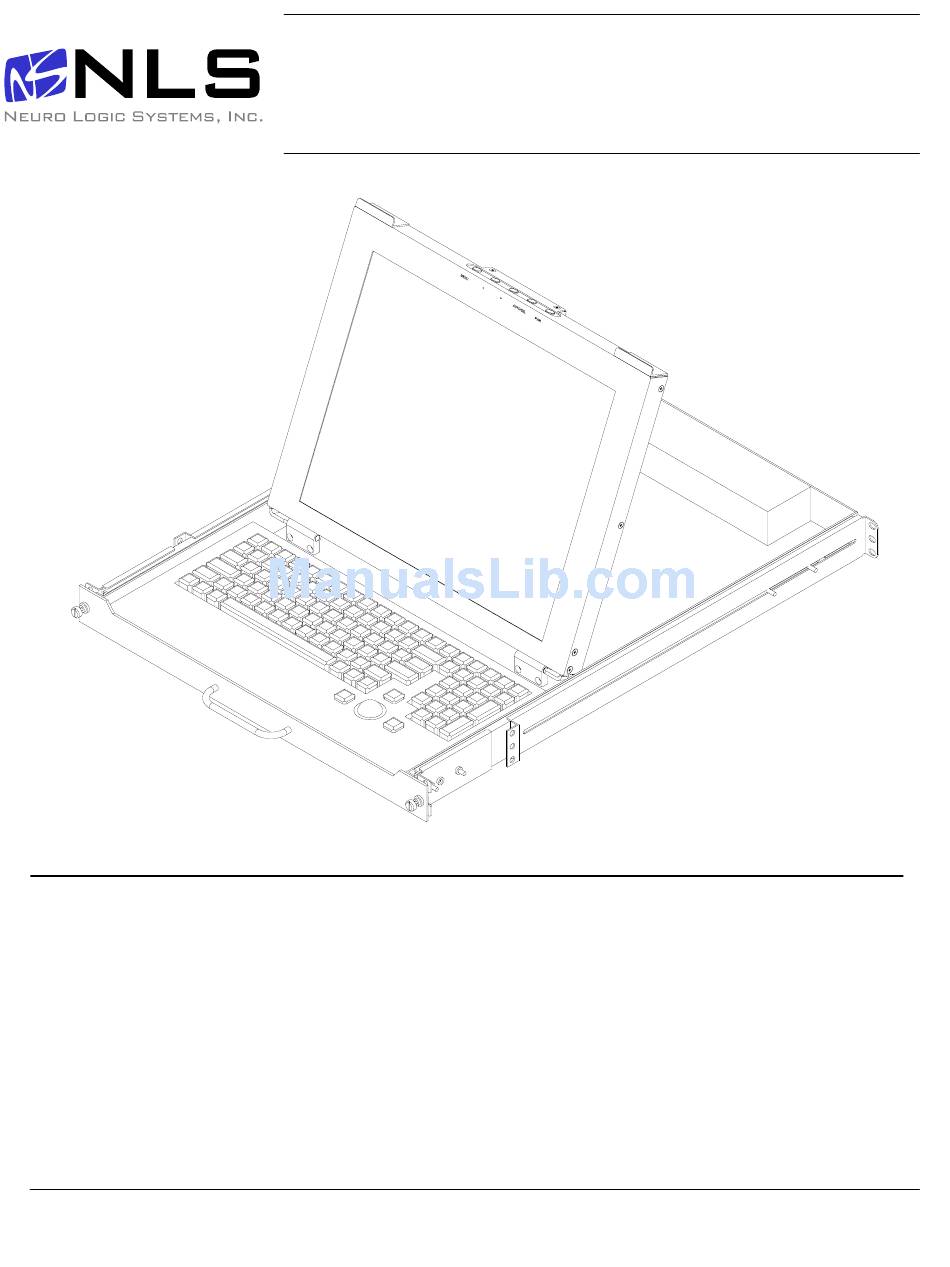

Neuro Logic Systems, Inc.
17 inch LCD/Keyboard Rack Kit
Installation guide for the RFT-17 Line
into a 4-post 19-inch EIA cabinet
02/01/05
2
5
6
8
9
10
12
13
Page 1 of 14
