Summary of Contents for NETGEAR ANT24O5

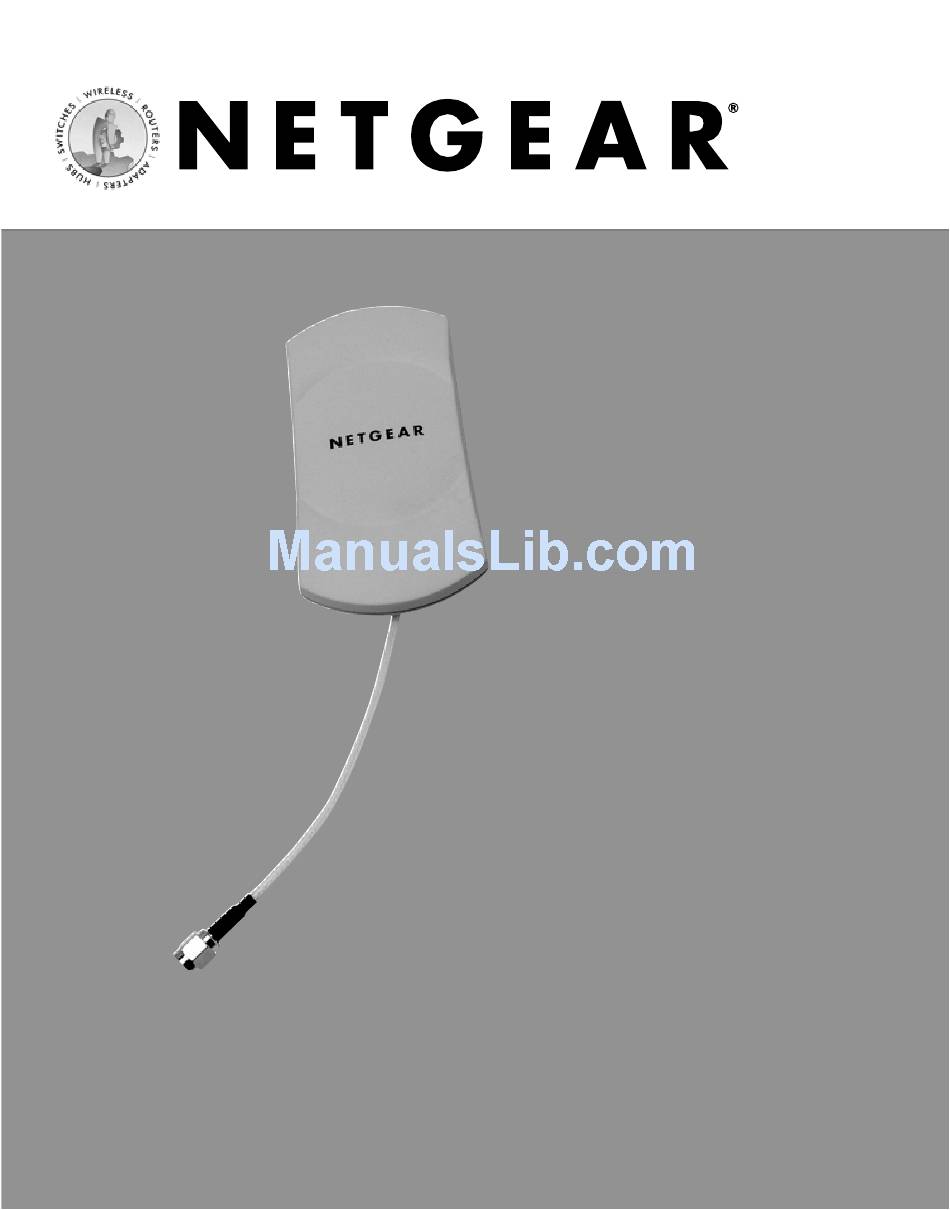

- Page 1 5 dBi Omni-directional Antenna ANT24O5 Installation Guide...
-
Page 2: Package Contents
To comply with FCC rules the ANT24O5 antenna should only be used with devices that have been FCC approved for use with the ANT24O5. Please check the NETGEAR web site at http://www.NETGEAR.com/go/antennas_fcc for an updated list of FCC approved devices. -
Page 3: Placement And Other Important Considerations
Figures 1 and 2 show where one could place the ANT24O5 for best coverage in an office. In Figure 1, the ANT24O5 is placed on the ceiling in the middle of the area to cover. In Figure 2, the ANT24O5 is placed in an elevated location on an interior wall, above and facing the indoor coverage. -
Page 4: Installing The Antenna
After attaching your new antenna, reconnect your wireless device to the network and turn it on. Wireless device with a single antenna 5 dBi Antenna ANT24O5 NETGEAR antenna cable ETHERNET 5-12V DC Antenna RESET... -
Page 5: Specifications
99.2 x 53.9 x 27.5 mm/3.91 x 21.2 x 1.08 in Device Size (l x w x h) Weight 55 g/.12 lb. 2 years Warranty The ANT24O5 built-in cable specifications are listed here. Description 10cm RG318 RG318 Type 10 cm = 3.9 in Length 2.5 mm... - Page 6 In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.
-
Page 7: Technical Support
E-mail: support@NETGEAR.com (24x7 online support) www.NETGEAR.com ©2003 NETGEAR, Inc. NETGEAR, the Netgear logo, The Gear Guy, Auto Uplink and Everybody's Connecting are trademarks or registered trademarks of Netgear, Inc. in the United States and/or other countries. Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or other countries.
