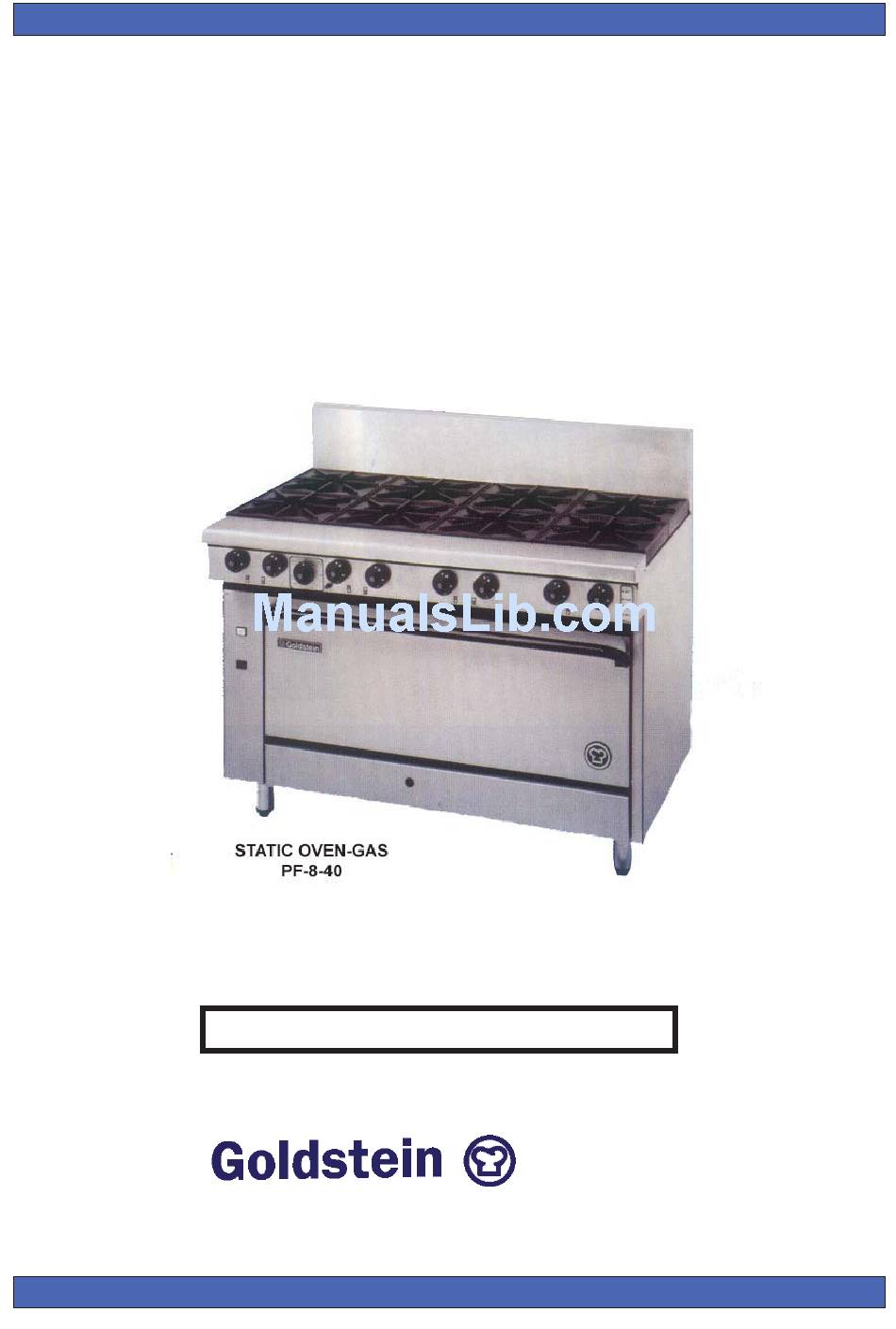

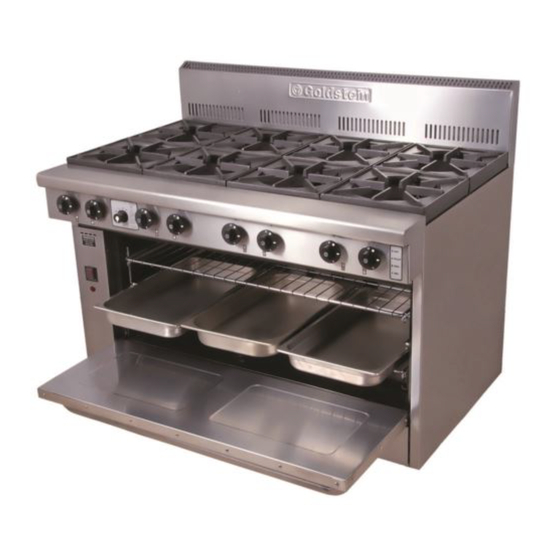

The Heavyweight 800 Series Performance Plus
And Fan Forced Units
PROUDLY AUSTRALIAN MADE
INSTALLATION PROCEDURE – USER MANUAL
SERVICE INSTRUCTION
MODELS PF-8-40, PF-6-12G-40, PF-2-36G-40, PF-4-24G-40, PF-48G-40
FAN FORCED
FAN
FORCED
GAS APPROVAL NO. 2597
ESTABLISHED 1911
The Cooking Equipment Professionals
www.goldsteineswood.com.au
Advertisement
Table of Contents
Related Manuals for goldstein PF-8-40
Summary of Contents for goldstein PF-8-40
- Page 1 The Heavyweight 800 Series Performance Plus And Fan Forced Units PROUDLY AUSTRALIAN MADE INSTALLATION PROCEDURE – USER MANUAL SERVICE INSTRUCTION MODELS PF-8-40, PF-6-12G-40, PF-2-36G-40, PF-4-24G-40, PF-48G-40 FAN FORCED FORCED GAS APPROVAL NO. 2597 ESTABLISHED 1911 The Cooking Equipment Professionals www.goldsteineswood.com.au...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION Page 3 INSTALLATION Page 4 COMMISSIONING Page 5 MAINTENANCE Page 6 TRIVETS Page 7 PILOT & BURNER OPERATION Page 8 CONTROL Page 9 THERMOSTAT SETTING Page 10-11 PROBLEM SOLVING Page 12-13-14 FAN FORCE CONTROL Page 15 FAN FORCE WIRING DIAGRAM Page 16 DRAWING... -
Page 3: Introduction
Congratulations for purchasing your Goldstein commercial cooking appliance. J. Goldstein & Co. is a wholly owned Australian company and has been operating since 1911, building high quality products. The information in this manual will assist your installer and ensure correct location and connection. -
Page 4: Installation
2. INSTALLATION INSTALLATION Please follow these instructions carefully All equipment must be sitting level for proper operation and combustion where plinth type installation is made, plinth height and front overhang must be 50 mm minimum. Levelling can be made by the use of metal shims. For performer series where adjustable legs are provided, levelling can be made easily due to the threaded construction of the legs. -
Page 5: Commissioning
3. COMMISSIONING COMMISSIONING APPLIANCE – DETAILS, TESTING, CHECKING PRESSURE ETC. COMMISSIONING CHECK LIST CHECK FOR DAMAGE AND MISSING PORTS. REMOVE ALL PLASTIC COATING FROM S/STEEL PANELS. MAKE SURE ALL PARTS ARE IN THEIR CORRECT POSITION E.G. TRAYS BURNERS KNOBS. MAKE SURE ALL ELECTRIC AND GAS CONNECTIONS ARE CORRECT AND TIGHT. -
Page 6: Maintenance
4. MAINTENANCE MAINTENANCE PROCEDURE USE PROTECTIVE CLOTHING FOR CLEANING TO AVOID DANGEROUS CONTACT WITH HOT SURFACES. CAST IRON TRIVET Wash in WARM soapy water, use Plastic Scourer if necessary. Dry with soft cloth or paper towel. STEEL GRIDDLE PLATES, ALL RANGES & GRIDDLE UNITS To clean steel griddle plates, wash with cold water and cleanser while the plate is Hot. -
Page 7: Trivets
5. TRIVETS ENSURE ALL TRIVETS ARE PUT ON AS PER DIAGRAM ABOVE, SO THAT THE PILOTS ARE UNDER THE CANOPIES. FAILURE TO PLACE TRIVETS CORRECTLY MAY CAUSE A FIRE HAZARD. IM037B1/p7... -
Page 8: Pilot & Burner Operation
6. PILOT & BURNER OPERATION IGNITION POSITION – LIGHT PILOT – (If flame failure hold in for 10 seconds to establish pilot flame). TURN TO FULL ON – MAX GAS FLOW, FURTHER ADJUSTMENT BETWEEN POSITIONS C & D. TURN TO MINIMUM FLOW – MIN. GAS FLOW TO MAINTAIN FLAME (Adjustable to suit type of gas used.) as precise and accurate. -
Page 9: Control
7. CONTROL MODEL EUROSIT 630 OVEN CONTROL IM037B1/p9... -
Page 10: Thermostat Setting
8. THERMOSTAT SETTING INSTALLATION 630 EUROSIT complies with current safety standards. Nevertheless, its installation on appliances must be verified in accordance with specific standards for each installation. In particular, it is necessary to ensure that requirements relating to the class of flame failure device are met. - Page 11 8. THERMOSTAT SETTING Cont’d SETTINGS AND ADJUSTMENTS All adjustments must be made on the basis of the specific characteristics of the appliance. Check inlet and outlet pressure using the pressure test points (6 and 7) provided. After testing, carefully seal test points with the provided screws. Recommended Torque: 2.5Nm.
-
Page 12: Problem Solving
9. PROBLEM SOLVING CAUSE AND REMEDY FOR DEFECTIVE OVEN COOKING Too much bottom heat, which results in burning on the bottom of baked products also scorching on the sides. Products will be too light on top, uneven in colour on the top and probably raw in the centre. Cause: Remedy Insufficient (BTU) MJ input. - Page 13 9. PROBLEM SOLVING Cont’d Baking characteristics from front to back. Cause: Remedy Unit not level, front to back Using spirit from front to back, level up appliance by means of adjustable feet. Dried out Product Cause: Remedy Too low a temperature. Adjust thermostat accordingly.
- Page 14 9. PROBLEM SOLVING Cont’d Burner goes out and flashes back Cause Remedy Excessive aeration. Adjust Yellow Flame Cause Remedy Too much gas to burner. Check pressure burner Jet orifice. Cause Remedy Insufficient aeration. Adjust Harsh noisy flame Cause Remedy Excessive aeration Adjust.
-
Page 15: Fan Force Control
10. FAN FORCE FAN SWITCH NEEDS TO BE ON ALL TIME WHEN OVEN IS USED SPARKER Fan Forced Ovens allow a more even cooking of the product due to the air circulating more freely in the oven and the air movement helps to strip away thin layers of moisture and cool air from around the product allowing the heat to penetrate and reduce cooking time. -
Page 16: Fan Force Wiring Diagram
11. FAN FORCE WIRING DIAGRAM... - Page 17 IM037B1/p16...
-
Page 18: Drawing
12. DRAWING MODEL: PF-48 & MILLENIUM RANGE IM037B1/p17... -
Page 19: Spare Parts
13. SPARE PARTS MODEL: PF-48 RANGE & MILLENIUM RANGE ITEM No. CODE DESCRIPTION GTR00002 TRIVET – 12” PF RANGE GTC00320 THERMOCOUPLE – L=320 (GRIDDLE) PFG00A02 GREASE CAN ASSY GTR00003 TRIVET – SOLID TOP FOR 12” x 12” (RAW) PFB GBNSP000 SUPPORT BRACKET (GBNBTL00/GBNBTS00) GBNBTL00 BURNER –... - Page 20 13. SPARE PARTS Cont’d MODEL: PF-48 & MILLENIUM RANGE CONT. ITEM CODE DESCRIPTION MLEPLBF1 FEET – PLASTIC BULLET 2D MB000029 BOLT 3/8” x 3” FOR ARM LEVER PFPTA001 ALUMINIUM FRONT PILOT TUBE PFPTA002 ALUMINIUM REAR PILOT TUBE GPI00002 PILOT – TPG (ASSEMBLY) OLD STYLE OVEN MMM00A35 CERAMIC BUSH &...
-
Page 21: Warranty
Remote areas are not covered by this commitment and special enquiries should be made. (Note: Travel time not covered by warranty). “To the maximum extent permitted by law, any liability on Goldstein/Eswood’s part or on the part of its servants or agents for loss or damage of any kind whatsoever in connection with the products, including liability for or in respect of any claim arising out of contract, negligence or statute, shall not, in any event, exceed $100”... -
Page 22: Branches
15. J GOLDSTEIN & CO PTY LTD BRANCHES For inquiries please call your nearest state branch: Head Office 211-213 Woodpark Road New South Wales 2564 Phone: 02 9604 7333 Fax: 02 9604 5420 Victoria Queensland Unit 13 Unit 3 260-264 Wickham Road...
