LCD4215 Installation Guide

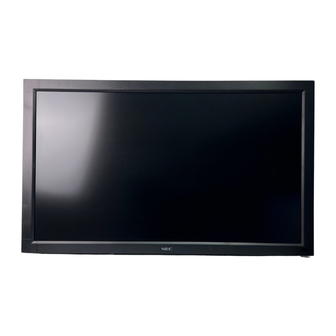

42" LCD Display
Contents:
Table Top Stand Dimensions
Product Description
Type:
LCD Display
Resolution:
1366 x 768
Aspect Ratio:
16:9
FCC:
Class B
Power Consumption: 190W (max)
Notes
This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not intended to
be a step-by step procedure for installation.
Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local
building codes. All mounts should make secure contact to wood studs.
4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally to
fill the screen using the menus (see "Aspect Modes" in menus and user manual).
Distances are in inches, for millimeters multiply by 25.4.
Distances may vary ±5%.
Tilt Angle and Rotation
Below are the maximum angles that the monitor can be tilted in the landscape position only.
Landscape 20deg
www.necdisplay.com
NEC Display Solutions of America, Inc.
Page 1
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Screen Surface: Anti-Reflective
Dimensions:
Weight:
BTU's:
Max. 20 deg
LCD4215
40.3"(W) x 24.2"(H) x 5.2"(D)
47.6 lbs
648 BTU/hour
Page 1 of 9
Rev 1.0
