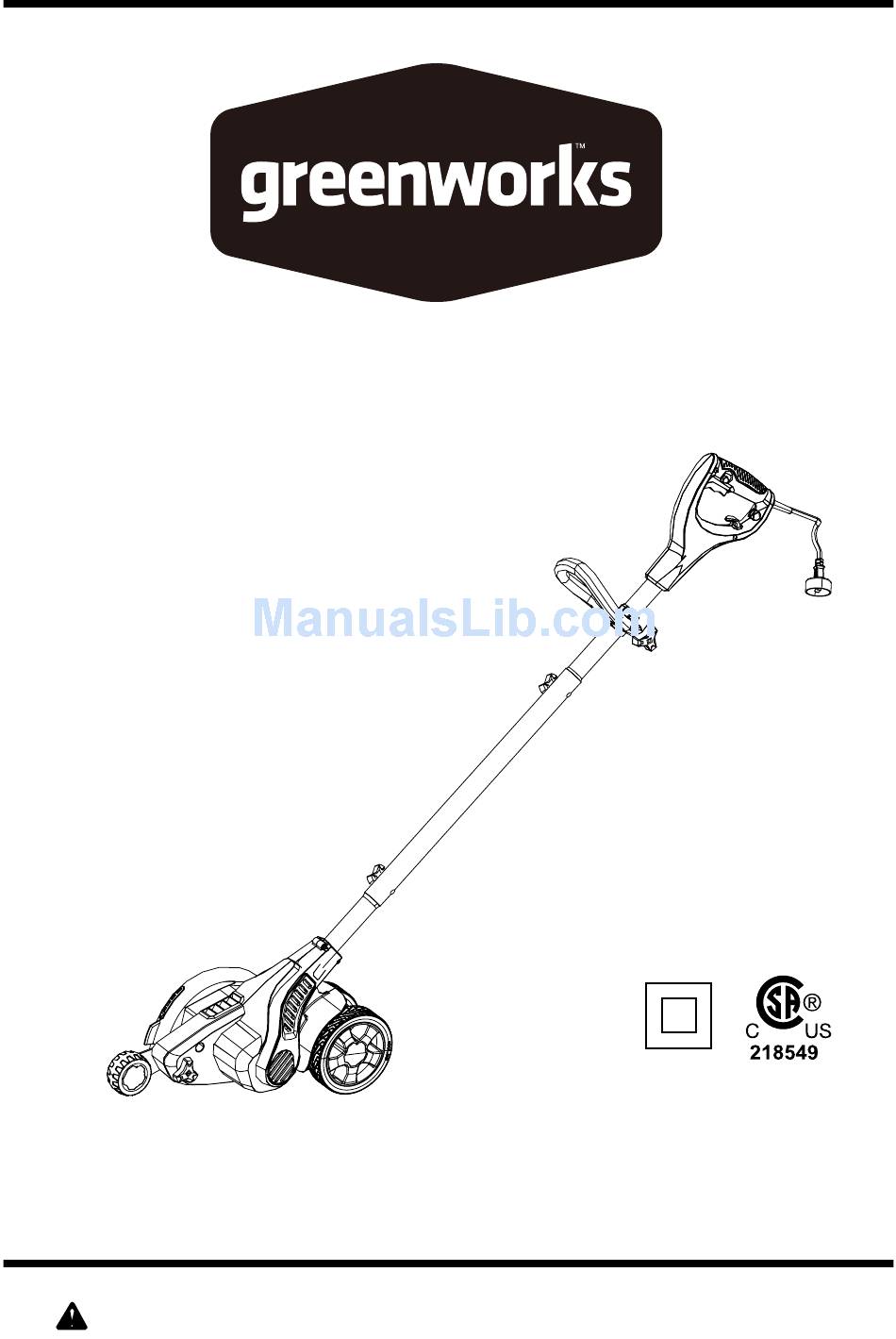

- Page 1 7-1/2″ ELECTRIC LAWN EDGER 27032 Owner’s Manual TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Read all safety rules and instructions carefully before operating this tool.
-
Page 2: Table Of Contents
CoNTENTS Contents ..........................2 Product Specifications ......................2 Important Safety Instructions ....................3 - 5 Specific Safety Rules ......................6 Symbols ..........................8 - 9 Electrical ........................10 -11 Know your Lawn Edger....................12 Assembly ........................13-16 Operation ........................17-21 Maintenance ......................... 22-24 Troubleshooting ......................... 2 5 Warranty .......................... -
Page 3: Important Safety Instructions
IMPoRTANT SAfETY INSTRuCTIoNS W a R N I N g Read and understand all instructions. failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury. • Read the operator’s manual carefully. Be thoroughly familiar with the controls and the proper use of the equipment. - Page 4 IMPoRTANT SAfETY INSTRuCTIoNS • Inspect unit before each use for loose fasteners. Replace any damaged parts before use. • Do not, under any circumstance, use any attachment or accessory on this product which was not provided with the product, or identified as appropriate for use with this product in the operator’s manual.
- Page 5 IMPoRTANT SAfETY INSTRuCTIoNS • Don’t Abuse Cord — Do not pull or carry by cord, use cord as a handle, close a door on a cord, or pull cord around sharp edges or corners or yank to disconnect. Do not run appliance over cord.
-
Page 6: Specific Safety Rules
SPECIfIC SAfETY RuLES • Be sure all guards are properly and securely attached. • Replace dull or worn blade; do not attempt to sharpen. • Do not attempt to sharpen blade. failure to heed this warning could result in excessive vibration causing serious personal injury or property damage. - Page 7 SPECIfIC SAfETY RuLES W a R N I N g ( P R O P O S I T O I N 6 5 ) Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains chemicals known to the state of California to cause cancer, birth defects or other reproductive harm.
-
Page 8: Symbols
SYMBoLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper inter-pretation of these symbols will allow you to operate the product better and safer. SYMBOL NaME dESIgNaTION/EXPLaNaTION Volts Voltage Amperes Current Hertz frequency (cycles per second) - Page 9 SYMBoLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIgNaL MEaNINg daNgER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WaRNINg Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
-
Page 10: Electrical
ELECTRICAL W a R N I N g To AVoID ELECTRICAL HAZARDS, fIRE HAZARDS, oR DAMAGE To THE TooL, uSE PRoPER CIRCuIT PRoTECTIoN. YouR EDGER IS WIRED AT THE fACToRY foR 120 V oPERATIoN. CoNNECT To A 120V, 15A CIRCuIT AND uSE A 15A TIME-DELAYED fuSE oR CIRCuIT BREAKER. -
Page 11: Electrical
ELECTRICAL c a U T I O N IN ALL CASES, MAKE CERTAIN THE RECEPTACLE IN QuESTIoN IS PRoPERLY GRouNDED. If You ARE NoT SuRE, HAVE A CERTIfIED ELECTRICIAN CHECK THE RECEPTACLE. W a R N I N g THIS EDGER IS foR ouTDooR uSE oNLY. Do NoT EXPoSE To RAIN oR uSE IN DAMP LoCATIoNS. -
Page 12: Know Your Lawn Edger
KNoW YouR LAWN EDGER LOcK-OFF BUTTON REaR HaNdLE SWITcH TRIggER adJUSTaBLE FRONT HaNdLE cORd RETaINER adJUSTINg KNOB UPPER HaNdLE TUBE MIddLE HaNdLE TUBE EdgER gUaRd LOWER HaNdLE TUBE WHEELS BLadE fig. 2 SPRINg aSSIST FRONT WHEEL KNOW YOUR EdgER (See Figure 2.) The safe use of this product requires an understanding of the information on the tool and in this operator’s manual as well as a knowledge of the project you are attempting. -
Page 13: Assembly
ASSEMBLY UNPacKINg • This product requires assembly. • Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. • Inspect the product carefully to make sure no breakage or damage occurred during shipping. - Page 14 ASSEMBLY cONNEcTINg THE POLES (See Figure 3.) Before using the edger, a one-time assembly is required. When removed from the box, the three poles are connected by an electrical cord as shown below. 1. Remove packaging material from cord and discard. 2.
- Page 15 ASSEMBLY aSSEMBLINg THE FRONT WHEEL (See Figure 4.) Before using the edger, a one-time assembly is required. When removed from the box, the front wheel is as shown below (A). 1. Screw off the adjusting knob from the hole (1). 2.
- Page 16 ASSEMBLY W a R N I N g Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury. W a R N I N g Always wear safety goggles or safety glasses with side shields when operating power tools.
-
Page 17: Operation
oPERATIoN STaRTINg aNd STOPPINg (See Figure 5.) To start the motor: • Plug the edger into an AC power outlet. • Press and hold the Lock-off button and squeeze the switch trigger. The edger will stay oN as long as the trigger switch is squeezed. To stop the motor: •... - Page 18 oPERATIoN POSITION aUXILIaRY HaNdLE (See Figure 6.) • Rotate the knob counterclockwise to loosen. • Adjust the auxiliary handle to the desired position. • Rotate the knob clockwise to secure. dOWN ROTaTE 360º KNOB fig. 6...
- Page 19 oPERATIoN adJUSTINg POLE HEIgHT (See Figure 7.) • Disconnect the edger from the power supply. • Rotate the knobs counterclockwise to loosen. • There are two positions available on both upper handle tube and lower handle tube for adjustment to your preferred height setting. •...
- Page 20 o PERATIo N ADJUSTING DEPTH OF CUT (See Figure 8-9.) The front wheel can be adjusted to allow a deeper or shallower cut, and to increase the life of the blade. Change the edging depth from the shipping position to your desired depth by: •...
-
Page 21: Operation
oPERATIoN OPERaTINg TIPS NOTE: The edger requires a lot of power and should not be operated simultaneously with other tools or utilities on the same household circuit. • Set initial cut depth at 1" and set edge guide to the down posotion. •... -
Page 22: Maintenance
MAINTENANCE W a R N I N g When servicing, use only identical replacement parts. use of any other parts may create a hazard or cause product damage. W a R N I N g Always wear safety goggles or safety glasses with side shields during power tool operation or when blowing dust. - Page 23 MAINTENANCE REPLacINg THE BLadE (See Figures 10 - 11.) Replace blades that are damaged or worn. To increase blade life span, keep initial cutting depth at minimum and increase depth setting only as blade wears. • Stop the motor and unplug the edger. •...
- Page 24 MAINTENANCE STORINg THE EdgER • Be sure the tool is unplugged. • Remove and clean any debris from the outside of the edger and inside of the guard before storage. If necessary, the edger may be stored by hanging on a hook by the handle. •...
-
Page 25: Troubleshooting
TRouBLESHooTING PLOBLEM POSSIBLE caUSE SOLUTION Motor fails to start when 1. Power cord is not plugged 1. Plug in the power cord. switch trigger is depressed. in or connection is loose. 2. Household circuit breaker 2. Check circuit breaker. is tripped. -
Page 26: Warranty
(4) years against defects in materials, parts or workmanship. GREENWoRKS™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. This warranty is valid only for... -
Page 27: Exploded View
EXPLODED VIEW... -
Page 28: Parts List
PARTS LIST ITEM NO. PART NO. DESCRIPTION 3221037 Bolt 3330418A Board 33301261 Blade 3220351 Bolt 34103263-1 Blade cover 34908261 Seal rimg 3220811 Bolt 3290305 f lat washer 3290675 Washer 33103261 Transmission cover 32109261 Bearing 33208261 f ix shaft 32902261 f lat key 33508261 Gear wheel 3290448... - Page 29 PARTS LIST ITEM NO. PART NO. DESCRIPTION 33302262-1 Middle tube 3110182-6 Auxiliary handle assembly 34101266 Lock tube for auxiliary handle 3110282-6 Turn cap for auxiliary handle 3290205 33301262-1 u pper tube 36511154 Connector cap 36901263 Wire 34115263 u pper collar 34106263-1 Left handle 34107263-1...
- Page 30 NoTES...
- Page 31 NoTES...
- Page 32 TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Rev: 00 (12-10-09). Printed in China on 100% Recycled Paper...
