NEC Dterm Analog Cordless Telephone User Manual

Nec dterm analog cordless telephone user's guide.
Hide thumbs


Analog Cordless
User's Guide


   Summary of Contents for NEC Dterm Analog Cordless Telephone

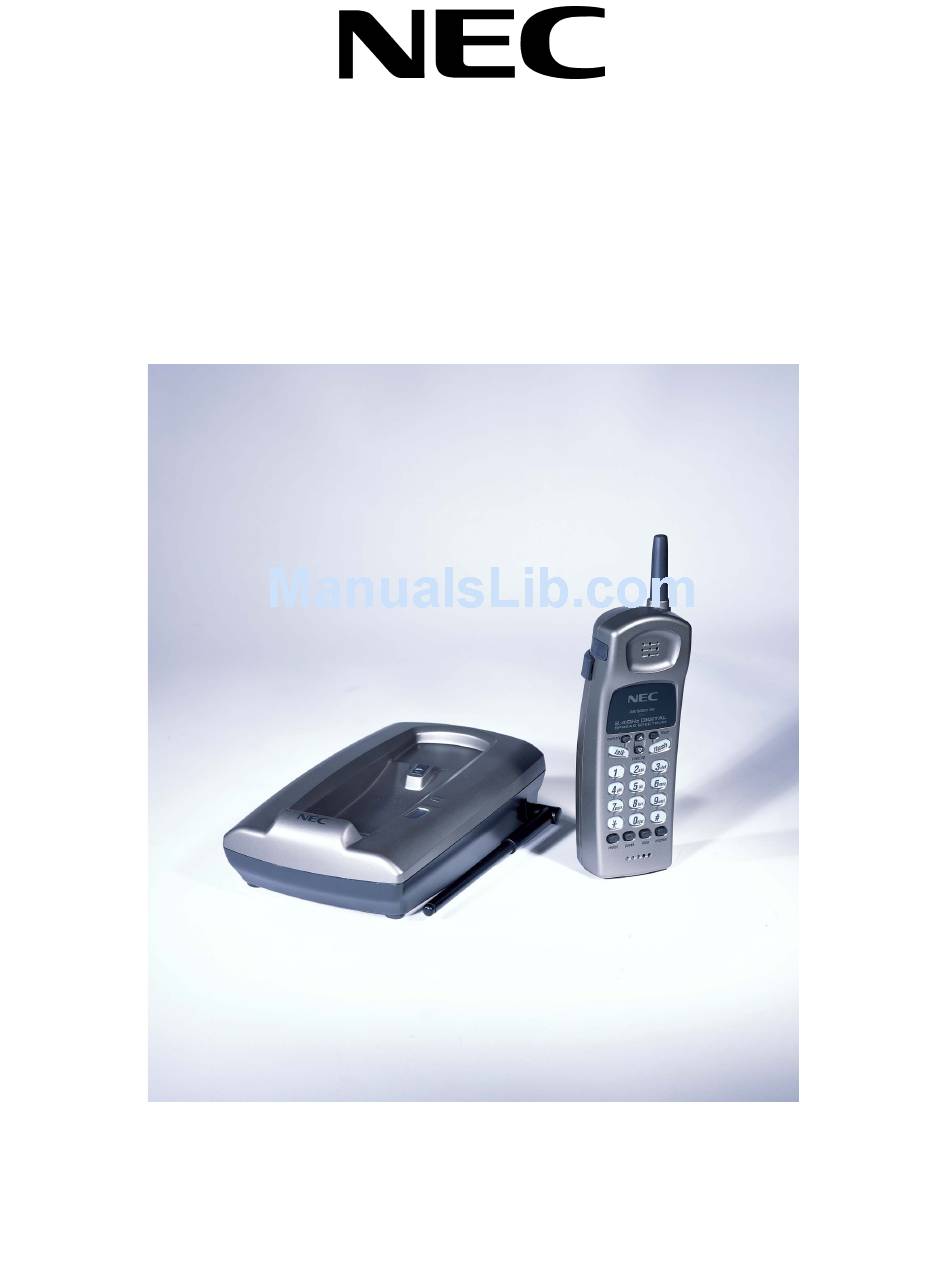

  • Page 1

    term ® Analog Cordless User’s Guide...

  • Page 2: Controls And Functions

    Controls and Functions memory – Enters or recalls numbers in mem- ory. talk – Answers or places calls. tone – Switches to tone dialing in pulse dial mode. redial – Redials the last number. pause – Adds a timed pause in a memory dialing sequence.

  • Page 3: Connecting The Base Unit

    Connecting the Base Unit Connect the telephone line cord to the “TEL LINE” jack on the base unit and to a telephone outlet. Connect the AC adapter to the DC IN 9V jack and to a standard 120 V AC wall outlet. Set the base unit on a desk or tabletop and place the handset on the base unit.

  • Page 4: Muting The Handset

    Storing a Number term Your NEC D Analog Cordless telephone has 10 memory locations for storing important or frequently called telephone numbers. Remove the handset from the base unit. Press memory. (The talk/battery low LED flashes and a beep is heard).

  • Page 5: Dialing A Stored Number

    Storing Mixed Tone/Pulse Numbers If the telephone is set up for pulse dialing, mixed mode numbers can be stored to easily access long distance services. Remove the handset from the base unit. Press memory. (The talk/battery low LED flashes and a beep is heard.) Enter the number(s) to be dialed in pulse mode.

  • Page 6: Replacing A Stored Number

    Replacing a Stored Number When you enter the memory location number, any number previously stored for the memory location is replaced. Erasing a Stored Number Remove the handset from the base unit. Press memory twice. Enter the memory location number (0~9) you want to erase. (You will hear a long beep confirming the number has been erased.) Selecting a Different Channel You can manually change the telephone channel for clearer operation.

  • Page 7: Headset Installation

    Headset Installation Your telephone may be used with an optional headset. To use this feature, simply plug the headset into the headset jack on the handset. Your telephone is ready for handsfree conversation. Setting the Dial Mode Switch Place the switch in the “Tone” position for tone dialing, or the “Pulse” position for pulse dialing. The ability to pulse dial is dependent upon the telephone system and/or the outside lines to which term the D...

  • Page 8: Beltclip Installation

    Beltclip Installation Insert the beltclip into the holes on each side of the handset. Press down firmly until it clicks into the holes. If you have wall mounted the base, you cannot place the handset with the keypad facing inside. Pull both sides of the beltclip out of the holes to remove. term Analog Cordless is hearing aid compatible.

  • Page 9

    Optional Available Parts Headset with Foam Covered Ear and Microphone Replacement AC Adapter for Base Unit Replacement String-Type Beltclip Replacement Wall Mount Unit Part Description Stock Number 730616 760625 730624 730623...

  • Page 10

    © 2001 NEC America, Inc. Document Revision 1 The material contained herein is subject to change without prior notice at the sole discretion of NEC America, For more information contact: Inc. NEC America, Inc. 6555 N State Highway 161 Irving, TX 75039-2402 term ®...
