Page 3: Table Of Contents
Microsoft Reader ... 71 14. Software Accessories... 77 15. Pocket Internet Explorer... 84 16. Getting Connected... 86 17. Troubleshooting ... 109 18. Regulatory Information ... 113 Support Information ... 116 Compliance ... 116 Copyright ... 116 PiN 570 | User Manual...
Page 4 PiN 570 | User Manual...
Page 5: Box Contents
PiN Suction-Mount Arm PiN PDA Cradle AC Power-Pack with Power-Cable SD/MMC Card* *Not included with PiN purchased in United States. PiN 570 | User Manual SmartS Application Installer CD including: • SmartS 2005 software, including SmartS Desktop • User Manual (PDF format) and Adobe •...
Page 6: Introduction
PiN 570 | User Manual 1. Introduction Thank you for purchasing the Navman PiN 570. Whether you travel in your own country or elsewhere, the PiN will direct you to your destination without the need for map-books and second- hand instructions.
Page 7: Pin Features
2. PiN Features Your PiN 570 is designed to be easy to use. This chapter highlights the external features of your PiN: Front Components Component Charge Indicator Notification Indicator Touch Screen Program Buttons 4-Way Toggle Description Flashing Green – Indicates the battery is charging.
Page 8: Back Components
PiN 570 | User Manual Back Components Component GPS Receiver External Antenna Socket Speaker Description Receives signals from the GPS satellites overhead when lifted up to the horizontal position. Connection socket for GPS external antenna (sold separately). Protected by rubber cover.
Page 9 Turns your Pocket PC on or off by pressing briefly. Turns the screen backlight on or off by pressing and holding. Rotate up or down to scroll through menus. Press to select an option. Note: In SmartS, this is a zoom in/out toggle. PiN 570 | User Manual...
Page 10: Top Components
PiN 570 | User Manual Top Components Component Microphone Records messages. SD/MMC Slot Slot for SD (Secure Digital) or MMC (Multimedia Card) memory card - must be inserted with label facing front. Stylus (in slot; not Tap the stylus on the touch screen to select and enter information.
Page 11 The stylus is your input PiN. Store it in its slot when not in use. • Tap the screen with the stylus to select • Tap and drag the screen with the stylus to navigate the 2D Map and 3D Map screens. PiN 570 | User Manual...
Page 12: Battery
When fully charged, your PiN will operate for a varying length of time, depending on two main factors: (1) Whether the GPS receiver is turned on; (2) whether the backlight is set to on the default or high setting. PiN Features Setup...
Page 13: Charging The Battery
ActiveSync cable into the USB/Power Socket on the bottom of the PiN. Connect the power adaptor to the appropriate end of the Active Sync cable and the other end into a wall outlet. PiN 570 | User Manual System tab Settings...
Page 14: Gps And Gps Signals
GPS antenna has an unobstructed view of the sky. The PiN can operate in all weather conditions except when it is snowing. NOTE: When you start SmartS, the GPS receiver will automatically turn on. To manually turn the GPS on or off: Settings Tap ON or OFF.
Page 15: Microsoft Activesync
For example, you can choose how many weeks of past appointments you want synchronized. Before you begin synchronization, install ActiveSync on your computer from the PiN 570 Companion CD. ActiveSync comes preinstalled on your PiN. Do not connect your PiN to your computer unless you have Microsoft ActiveSync installed or until prompted to do so during the installation process.
Page 16 PiN 570 | User Manual Installing ActiveSync on Your Computer Turn on your computer and allow Microsoft Windows to start. Insert the PiN Companion CD into the CD drive of your computer. The Getting Started with your Pocket PC window will open.
Page 17: Memory Card
Gently insert the memory card into the SD/MMC slot with the label facing the front of the PiN. Removing Memory Card Gently push down on the top edge of the card to release it, and pull it out of the slot. PiN 570 | User Manual...
Page 18: Starting Your Pin
Pocket PC. On subsequent occasions, the Today screen will display. Gently pull the bottom of the GPS receiver away from the PiN and lift it out to a horizontal position so that it can obtain a GPS fix. Starting Smart S Whether you travel in your own country or elsewhere, SmartS will direct you to your destination without the need for map books and second-hand instructions.
Page 19: Positioning The Pin In A Vehicle
See page 17 for detailed instructions on how to insert the memory card. Open the GPS antenna outwards, so that it has a clear view of the sky. Close the side-arms of the PDA cradle so that the PiN is held securely in place. PiN 570 | User Manual...
Page 20 PiN 570 | User Manual Plug the small end of the In-Vehicle Power-Adaptor into the USB/Power Socket on the bottom of the PiN. Plug the other end of the In-Vehicle Power-Adaptor into the vehicle power-socket. Clean and dry the suction cup and the mounting-area on the windshield, then attach the suction-mount to the windshield: a) Hold the suction-cup firmly against the windshield;...
Page 21: Basic Skills
When you turn on your PiN for the first time each day (or after 4 hours of inactivity), you will see the Today screen. You can also display it by tapping information for the day. Today. The Today screen presents at a glance important PiN 570 | User Manual...
Page 22 PiN 570 | User Manual The following table explains some of the icons that may be displayed on the Today screen. Status Icon Meaning Turns all sounds on and off; adjusts volume level Backup battery is low Main batteries are charging...
Page 23 Create new documents or view and edit Word documents created on your desktop computer. Keep track of your tasks. Remotely access files and information on a Windows NT/2000/XP Server. Playback multimedia content (videos and sound files). Navigate using SmartS. PiN 570 | User Manual...
Page 24: Navigation Bar And Command Bar
PiN 570 | User Manual Navigation Bar and Command Bar The navigation bar is located at the top of the screen. It displays the active program and current time, and allows you to switch to programs and close screens. Use the command bar at the bottom of the screen to perform tasks in programs. The command bar includes menu names, buttons, and the Input Panel button.
Page 25: Entering Text Using The Input Panel
Letter Recognizer, Block Recognizer, or Transcriber. In any case, all entered characters appear as typed text on the screen. Tap the arrow next to the Input Panel button to view the alternative input methods. Tap on your preferred method to select it. PiN 570 | User Manual Personal tab Settings Sounds &...
Page 26 PiN 570 | User Manual When you use the input panel, your PiN anticipates the word you are typing or writing and displays it above the input panel. When you tap the displayed word, it is inserted into your text at the insertion point. The more you use your PiN, the more words it learns to anticipate.
Page 27 To move backwards, swipe the stylus horizontally across the keyboard in a backwards direction. To carriage return, swipe the stylus vertically downwards on the keyboard. To shift + key, place the stylus on the key and swipe vertically upwards across the keyboard. PiN 570 | User Manual...
Page 28 PiN 570 | User Manual To amend soft keyboard options: With Keyboard selected as the input method, tap the arrow next to the Input Panel button Options. This activates the Input Method screen, in which you can set the keyboard to your preferred mode. This...
Page 29 PiN 570 | User Manual Click on the button to open a panel of symbols and special characters to enter into your text. Foreign characters as well as general purpose special characters can be entered using this keyboard. Tap button to return to the Letter Recognizer pane.
Page 30 PiN 570 | User Manual Tap the Options button. Quick Stroke lets you write all letters using one stroke. While this method will allow you to write faster, you may have to learn to form letters in a new way.
Page 31: Writing On The Screen
You can use your stylus to write directly on the screen in any program that accepts writing, such as Notes. You can also write directly on the screen in the Notes tab in Calendar, Contacts, and Tasks. PiN 570 | User Manual...
Page 32 PiN 570 | User Manual To write on the screen: Tap the Pen button to switch to writing mode. This action displays lines on the screen to help you write. NOTE: Some programs that accept writing may not have the Pen button. See the documentation for that program to find out how to switch to writing mode.
Page 33 NOTE: If you add writing to a word to change it (such as changing a “3” to an “8”) after you attempt to recognize the word, the writing you add will not be included if you attempt to recognize the writing again. PiN 570 | User Manual...
Page 34: Drawing On The Screen
PiN 570 | User Manual Drawing on the Screen You can draw on the screen in the same way that you write on the screen. The difference between writing and drawing on the screen is how you select items and how they can be edited. For example, selected drawings can be resized, while writing cannot.
Page 35: Recording A Message
Using My Text When using Inbox or MSN Messenger, use My Text to quickly insert preset or frequently used phrases into your messages. To insert a phrase, tap My Text and tap a message from the menu. PiN 570 | User Manual...
Page 36 PiN 570 | User Manual You can edit a My Text message by tapping Tools Edit My Text Messages. Select the message you wish to edit and make desired changes. Tap OK to save changes.
Page 37: Managing Your Pocket Pc
Owner Information, to enter your contact information. • Password, to limit access to your PiN. • Power, to maximize battery life. • Today, to customize the look and the information that is displayed on the Today screen. PiN 570 | User Manual...
Page 38: Adding Or Removing Programs
PiN 570 | User Manual Changing Password settings: To set or change a password on your PiN, tap Settings Password. You can choose between a simple 4-digit numerical password or a stronger, alphanumeric password. Before setting your password, set the amount of time after which your PiN will lock if you have not been using it. Then select the type of password you want, and enter your password.
Page 39 ActiveSync Explore to copy the program file to the Program Files folder on your PiN. For more information on copying files using ActiveSync, see ActiveSync Help. Once installation is complete, tap About Version tab. Make a note of the information. Programs, and then the program icon to switch to it. PiN 570 | User Manual...
Page 40 PiN 570 | User Manual To remove programs using ActiveSync Launch ActiveSync and select Tools—Add/Remove Programs. Highlight the name of the application you wish to remove from your PiN. Click Remove Follow the on-screen instructions To add a program directly from the Internet Determine your PiN and processor type so that you know which version of the software to install.
Page 41 Start Menu tab, and then the check box for the program. If you do not Programs File Explorer, and locate the program. Tap menu. For more information on using File Explorer, see “Find System Remove Programs. PiN 570 | User Manual menu. For more...
Page 42: Installing Outlook 2002
PiN 570 | User Manual 11. Installing Outlook 2002 Microsoft Outlook 2002 provides an integrated solution for managing and organizing e-mail messages, schedules, tasks, notes, contacts, and other information. Using ActiveSync, you can synchronize information in Microsoft Outlook or Microsoft Exchange on your computer with Pocket Outlook on your PiN.
Page 43: Microsoft Pocket Outlook
Upcoming appointments appear in bold; past appointments are not Day View View your day’s schedule in 30-minute blocks Week View View your week’s schedule in one-hour blocks Month View View your month in 12-hour blocks Year View View a year calendar PiN 570 | User Manual menu.
Page 44: Using The Summary Screen
PiN 570 | User Manual To create an appointment: If you are in Day or Week view, tap the desired date and time for the appointment. Tap New. Using the input panel, enter a subject and a location. You can change the date or time of the appointment by tapping on the relevant field.
Page 45: Creating Meeting Requests
The meeting notice is created automatically and placed in the Outbox folder after the above screen is accepted. Beaming Appointments Highlight the applicable appointment in Agenda or Day view. Select Tools, Select Appointments PiN 570 | User Manual Options. If you send and...
Page 46 PiN 570 | User Manual Select Yes on the destination PiN. Contacts: Tracking Friends and Colleagues Contacts maintains address details for your friends and colleagues for easy retrieval at home or on the road. Using the PiN infrared (IR) port, you can quickly share Contacts information with other PiN users.
Page 47: Finding A Contact
In the contact list, enter a contact name in the box under the navigation bar. To show all contacts again, clear text from the box or tap the button to the right of the box. PiN 570 | User Manual...
Page 48 PiN 570 | User Manual • In the contact list, tap the drop-down list labeled All Contacts by default. Select the type of contact that you want displayed. To show all contacts again, select All Contacts. To view a contact not assigned to a category, select No Categories.
Page 49 When finished, tap OK to return to the task list. NOTE: To quickly create a task with only a subject, tap Entry Bar on the Tools menu. Then, tap Tap here to add a new task and enter your task information. PiN 570 | User Manual...
Page 50 PiN 570 | User Manual Using the Summary Screen When you tap a task in the task list, a summary screen is displayed. To change the task, tap Edit. Notes: Capturing Thoughts and Ideas Quickly capture thoughts, reminders, ideas, drawings, and phone numbers with Notes. You can also create a recording.
Page 51 E-mail messages in the Outbox folder on your PiN are transferred to Exchange or Outlook, and then sent from those programs. • E-mail messages in subfolders must be selected in ActiveSync on your desktop computer in order to be transferred. and choose an appropriate type. PiN 570 | User Manual...
Page 52: Using The Message List
PiN 570 | User Manual Connecting Directly to an E-mail Server In addition to synchronizing e-mail messages with your desktop computer, you can send and receive e-mail messages by connecting to an e-mail server using a modem or network card connected to your PiN. You will need to set up a remote connection to a network or an ISP, and a connection to your e-mail server.
Page 53 Change options for direct e-mail server connections in Inbox on your PiN. Tap Tools and then tap Options. On the Service tab, tap the service you want to change. Tap and hold the service and select Delete to remove a service. See “Configuring an Inbox Account” below. PiN 570 | User Manual...
Page 54 PiN 570 | User Manual Replying to Meeting Invitations When meeting invitations arrive in your Inbox, you can view them just like normal e-mail messages. The header of the e-mail differs from standard e-mail messages. Clicking the button allows you to accept, decline, or tentatively accept the meeting invitation.
Page 55 You can edit My Text messages (see “Using My Text” on page 35). i. You can add an attachment. ii. You can spell check a message. iii. You can check the recipient names against your contacts list. PiN 570 | User Manual...
Page 56 PiN 570 | User Manual iv. You can change the language of the message. v. You can save a copy of the message to your drafts folder for later access. vi. Finally, you can cancel the message Tap Send when you’ve finished composing the message. If you are working offline, the message is moved to the Outbox folder and will be sent the next time you connect.
Page 57 Select Accounts, New Account from the main window or the New… button from Accounts, Accounts to define a new account. First enter an e-mail address. Inbox will then attempt to ascertain your mail server settings by examining the syntax of your e-mail address. PiN 570 | User Manual...
Page 58 PiN 570 | User Manual If the settings are not correct, enter your name, account user name and account password. Check Save Password if you want this password to be saved for future connections. Next, choose whether this account is POP3 or IMAP4 (IMAP4 should be used for standard IMAP and Exchange Server accounts).
Page 59 POP3 account users will see this screen. You can choose whether only message headers (no message body) should be downloaded, whether a certain number of kilobytes of the message should be downloaded, or if the entire message should be downloaded. PiN 570 | User Manual...
Page 60 PiN 570 | User Manual IMAP account users will see this screen. In addition to the options above, you can choose whether or not to download attachments when full message copies are downloaded, and restrict those attachments to being smaller than a certain size.
Page 61 Go through each account from the Select an account dropdown, and for each account: Choose whether the signature should be used Indicate whether the signature should be used when replying and forwarding (otherwise, the signature will appear only when you write new messages) PiN 570 | User Manual...
Page 62 PiN 570 | User Manual In the Options screen, under the Address tab, you can choose to search a limited number of e-mail fields with a contact searched. It is recommended that you leave the default “All e-mail fields” activated because search time tends to be minimal.
Page 63 PiN 570 | User Manual Finally, in the Storage tab of Inbox options, you can opt to save message attachments to a storage card.
Page 64 PiN 570 | User Manual Managing E-mail Messages and Folders By default, messages are displayed in one of five folders for each service you have created: Inbox, Deleted Items, Drafts, Outbox and Sent Items. The Deleted Items folder contains messages that have been deleted on the PiN.
Page 65: More Programs
If you’re opening a Word document created on a desktop computer, select Wrap to Window on the View menu so that you can see the entire document. New. A blank document appears unless you have selected a PiN 570 | User Manual...
Page 66: Typing Mode
PiN 570 | User Manual Input Modes Once in a document, the View menu allows you to switch between input modes. You have a choice of writing, drawing, typing, and recording modes. Typing Mode...
Page 67: Writing Mode
PiN 570 | User Manual Writing Mode NOTE: If you cross three ruled lines in a single stylus stroke, the writing becomes a drawing, and can be edited and manipulated as described in the following section. Written words are converted to graphics (metafiles) when a Pocket Word document is converted to a Word document on your desktop computer.
Page 68: Recording Mode
PiN 570 | User Manual Recording Mode In recording mode, embed a recording into your document. Recordings are saved as .wav files and appear icons embedded in your document. Exploring Pocket Word Features File and Folder Management The introductory screen to Pocket Word provides a comprehensive list of all viewable documents on your PiN and allows you to perform file management tasks on those documents.
Page 69 PiN 570 | User Manual If at any time you hit the ok button when a document is open, it will be automatically saved. However, if you select New, you will instead see the above dialog box. The Edit menu contains numerous useful selections. Multi-level undo/redo is supported by Pocket Word.
Page 70: Pocket Excel
PiN 570 | User Manual Recognize and Alternates are for use in Writing mode. For more details on writing recognition see “Writing on the Screen” on page 31. Beam Document and Send via E-mail will attempt to beam the document to nearby PiNs and creates a new outgoing e-mail message with this document attached, respectively.
Page 71: Microsoft Reader
Each book consists of a cover page, an optional table of contents and the pages of the book. You can: • Page through the book by using the Up/Down toggle on your PiN or by tapping the page number on each page. PiN 570 | User Manual...
Page 72: Using The Library
PiN 570 | User Manual • Annotate the book with highlighting, bookmarks, notes, and drawings. • Search for text and look up definitions for words. The Guidebook contains all the information you will need to use the software. To open the Guidebook, tap Help on the Reader command bar.
Page 73 PiN 570 | User Manual The first time you open an eBook, you will probably want to go to the first page or to the table of contents, if one exists. Subsequently, upon opening the book, you will automatically be taken to the last page read.
Page 74 PiN 570 | User Manual Tap and hold anywhere within the text of an eBook and select Find… to see this dialog box. Enter the desired search text at the top, then select Find First, Find Previous, or Find Next. You can search with an approximate or exact match.
Page 75 PiN 570 | User Manual A bookmark has been added, as indicated by the little arrow. Tapping on the bookmark then selecting Change Color allows you to change the look of the bookmark. Tapping on the bookmark then selecting Delete will remove the bookmark.
Page 76 PiN 570 | User Manual To remove an eBook from your PiN, tap and hold the title in the Library list, and then tap Delete on the pop- up menu.
Page 77: Software Accessories
Launch MSN Messenger. Ensure you are connected to the Internet (see Chapter 16 for details on how to get connected). Select Tools, Options and select the Accounts tab. ® Messenger, Microsoft Windows Media Player 9 Series, Programs MSN Messenger. PiN 570 | User Manual ® or MSN account,...
Page 78: Working With Contacts
PiN 570 | User Manual In the Accounts tab, enter your Passport or Exchange account information. Be sure to indicate which service you wish to connect with. To sign in, tap the sign-in screen and enter your e-mail address and password.
Page 79: Windows Media Player For Pocket Pc
PiN 570 | User Manual Chatting with Contacts Tap a contact name to open a chat window. Enter your message in the text entry area at the bottom of the screen, or tap My Text to enter a preset message, and tap Send. To invite another contact to a multi-user chat, in the Tools menu, tap Invite and tap the contact you want to invite.
Page 80 PiN 570 | User Manual Media Playback Once a media file has been loaded, you can play, pause, stop, song advance/reverse, mute sound or adjust volume. During playback, tap the full-screen mode icon to hide the toolbar and show the media in landscape mode.
Page 81 Press Connect to start connection. Typically you will be asked to login. If the desktop server is not in optimized mode, you can tap and hold on the screen to see available options in a context menu. PiN 570 | User Manual...
Page 82 PiN 570 | User Manual Use the remote server as if you were using it directly. Pictures Use Pictures to view JPEG pictures stored on your PiN or in a storage card, send pictures to others, view a slideshow of your pictures, or set a picture as the background on the Today screen. You can even set Pictures to launch itself when a digital camera storage card is inserted into your PiN! To begin, run Pictures and either choose to view main memory or storage card contents.
Page 83 PiN 570 | User Manual If you choose to Rename, type in the new file name.
Page 84: Pocket Internet Explorer
PiN 570 | User Manual 15. Pocket Internet Explorer Use Microsoft Pocket Internet Explorer to view Web or WAP pages in either of these ways: • Connect to an Internet service provider (ISP) or network and browse the Web. To do this, you will need to create the connection first, as described in Chapter 16.
Page 85: Using Avantgo Channels
You subscribe to AvantGo channels directly from your PiN. Then, you synchronize your PiN and desktop computer, or connect to the Internet to download the content. For more information, visit the AvantGo Web site. Synchronize. You will see the last time Toolbars Customize. PiN 570 | User Manual...
Page 86: Getting Connected
PiN 570 | User Manual 16. Getting Connected You can use your PiN to exchange information with other PiNs as well as your desktop computer, a network, or the Internet. You have the following connection options: • Connect to your Internet service provider (ISP). Once connected, you can send and receive e-mail messages by using Inbox and view Web or WAP pages by using Microsoft®...
Page 87 In the Select a modem list, select your modem type. If your modem type does not appear, try re- inserting the modem card. If you are using an external modem that is connected to your PiN with a cable, select Hayes Compatible on COM1. PiN 570 | User Manual Connections icon...
Page 88 PiN 570 | User Manual Now enter the number that should be dialed when connecting to your ISP. Include any special digits such as “*” or “#”. We will explore dialing rules below. Now enter any authentication information your ISP requests.
Page 89 The Port Settings tab has options that should be left alone, unless your ISP indicates otherwise. iii. If the ISP you are connecting to does not use a dynamically assigned address, enter that information into the TCP/IP tab. PiN 570 | User Manual...
Page 90: Connecting To Your Isp
PiN 570 | User Manual Finally, if your ISP requires special DNS or WINS information, enter it into the Servers tab. 10. Tap Finish to complete this wizard. Connecting to your ISP: Open the Connections screen. Tap Manage Existing Connections Tap and hold on the applicable dial-up settings and select Connect.
Page 91 To create a new connection, under the My Work Network heading, tap Add a new proxy server. Select This network connects to the Internet and This network uses a proxy server… In the Proxy server box, enter the proxy server name. PiN 570 | User Manual...
Page 92 PiN 570 | User Manual For advanced options, select the Advanced… button from the Proxy Settings tab. This information should be given to you by your company’s network administrator. To change existing settings, under My Work Network, tap Manage existing connections and access the Proxy tab.
Page 93 Next either indicate whether a preinstalled certificate should be used or rather a preshared key. Next enter your login details. Press Advanced… to access more options. Enter TCP/IP settings in the first tab. PiN 570 | User Manual...
Page 94 PiN 570 | User Manual Enter Server DNS/WINS information in the second tab. Connecting to a VPN server: From the Connections main window, select Edit My VPN Servers. Tap and hold on your server and tap-and-hold then select Connect. Note that through this screen you can delete your VPN server connection.
Page 95 Select Enable dialing rules. By default two dialing rules profiles exist: Home and Work. You can define your own by pressing New… Press Edit to configure either profile. icon in the notification area will show you the above bubble. PiN 570 | User Manual...
Page 96 PiN 570 | User Manual You will be warned that your existing modem connections must include the correct country and region area code settings. After confirming this, press OK. Modify the above values. Press Dialing Patterns… to change how dialing occurs.
Page 97 Settings to configure the connection. Select the Advanced tab from the Connections Settings. Select the Network Card tab to customize how each of your installed network card drivers connects. PiN 570 | User Manual...
Page 98 PiN 570 | User Manual iii. Highlight the driver name of the card you wish to configure Indicate whether My network card connects to: either The Internet or Work. Tap on the name of the driver to receive advanced options.
Page 99 Sometimes a network will require a WEP key. If so, you will be prompted for one at this point. Select the Advanced tab from the Connections Settings. Select the Network Card tab to customize how each of your installed network card drivers connects. PiN 570 | User Manual...
Page 100 PiN 570 | User Manual iii. Highlight the driver name of the card you wish to configure. Indicate whether My network card connects to: either The Internet or Work. Tap on the name of the driver to receive advanced options.
Page 101 To use shared key authentication, check the second checkbox. To automatically use a network key, tap The Key is provided for me automatically; else, enter that key. For enhanced security, enable 802.11X network access and choose among the available EAP types. PiN 570 | User Manual...
Page 102: Using Pocket Internet Explorer
PiN 570 | User Manual Exchanging Data with other Mobile Devices PiN Pocket PCs can access local or corporate networks and can also exchange data with other mobile devices, such as Pocket PCs, Handheld PCs, and Smartphones. Using Infrared or Bluetooth “Beam”, you can send your contact files, appointments, notes, and many other file types to these devices with great ease.
Page 103: To Browse The Internet
Aside from Mobile Favorites created by an ActiveSync profile, you can create favorites of Internet websites. Browse to a website using the above instructions. You can create a new folder of favorites by pressing New Folder. PiN 570 | User Manual...
Page 104 PiN 570 | User Manual Enter the name and press Add. Open the File Explorer Add/Delete tab in Favorites. Press the Add… button. Either accept the suggested favorite name or enter your own. The associated URL will be displayed below the favorite name. Highlight an appropriate folder in Create in: and press Add.
Page 105 PiN 570 | User Manual During loading, a spinning icon will appear in the upper right-hand corner. Tap to halt page loading. Once loading has completed, tap to reload the page or to visit the last loaded page. The View menu allows you to move forward to the next page (if...
Page 106 PiN 570 | User Manual To show individual images, tap-and-hold on the image and choose Show Picture. Now that image is revealed. NOTE: It is a good idea to turn off images when connected over a wireless Internet connection, where you pay for each megabyte transferred.
Page 107 PiN 570 | User Manual View—History gives you single-click access to recently visited websites. You can view history by page title. Alternatively, you can view history by URL. Lastly, a webpage’s properties can be viewed by View—Properties. Here we can see protocol used, document type, size of document, security settings, and URL.
Page 108 PiN 570 | User Manual Configuring PIE PIE gives you basic control over how webpages appear and how saved temporary Internet files are maintained. In Tools—Options you can change the default home page by using the currently loaded page or the PiN default.
Page 109: Troubleshooting
This chapter suggests possible solutions to common problems with your PiN. If you cannot find the answer to your question here, or if the recommended solution does not solve your problem, please contact your retailer for assistance or visit the Navman support website for your area (see Support Information, page 116). Troubleshooting...
Page 110 PiN 570 | User Manual Memory Problems My PiN tells me it PiN memory full has insufficient memory. My PiN tells me it PiN Memory full has insufficient memory and I can’t delete any programs My PiN tells me it...
Page 111 Connect only one Pocket PC or PDA to your computer at a time. Make sure that you do not have any other active connections. and tap Today. Tap the screen and then tap Disconnect. PiN 570 | User Manual Text Input icon. Screen icon. at the bottom of...
Page 112 PiN 570 | User Manual I cannot transfer Trying to transfer data using an too much data infrared connection Infrared IR ports not connection not aligned recognized Infrared Lighting connection not interference recognized Network Synchronization Problems I cannot connect Network card...
Page 113: Regulatory Information
Cet appareil numérique de Classe B respecte toutes les exigences du Règlement Canadien sur le matériel brouileur. Operation is subject to the following two conditions: (1) this PiN may not cause interference, and (2) this PiN must accept any interference, including interference that may cause undesired operation of the PiN." PiN 570 | User Manual...
Page 114: Safety Precautions
PiN 570 | User Manual Standards Compliance • Europe (CE) Complies with Radio & Telecommunication Terminal Equipment Directive (RTTE) • e-mark 95/54/EC Automotive EMC Directive • C-tick Radio Communications (EMC Standards) Notice 2004 EN 55022 (IT Equipment) Radiated & Conducted Emissions...
Page 115: About The Infrared Led
About the Infrared LED The IR port located on the Pocket PC is evaluated as a Class 1 LED (Light-Emitting Diode) device according to International Standard IEC 60 825-1 (EN60825-1) requirements. CLASS 1 LED PRODUCT DANGER PiN 570 | User Manual...
Page 116: Support Information
THAT MAY CAUSE ACCIDENTS, DAMAGE OR VIOLATE THE LAW. Copyright © 2005 Navman NZ Limited. Navman is a registered trademark of Navman NZ Limited. All rights reserved. Microsoft Windows 98 SE, ME, 2000 or XP SP1, Internet Explorer, ActiveSync are registered trademarks of Microsoft Corporation.

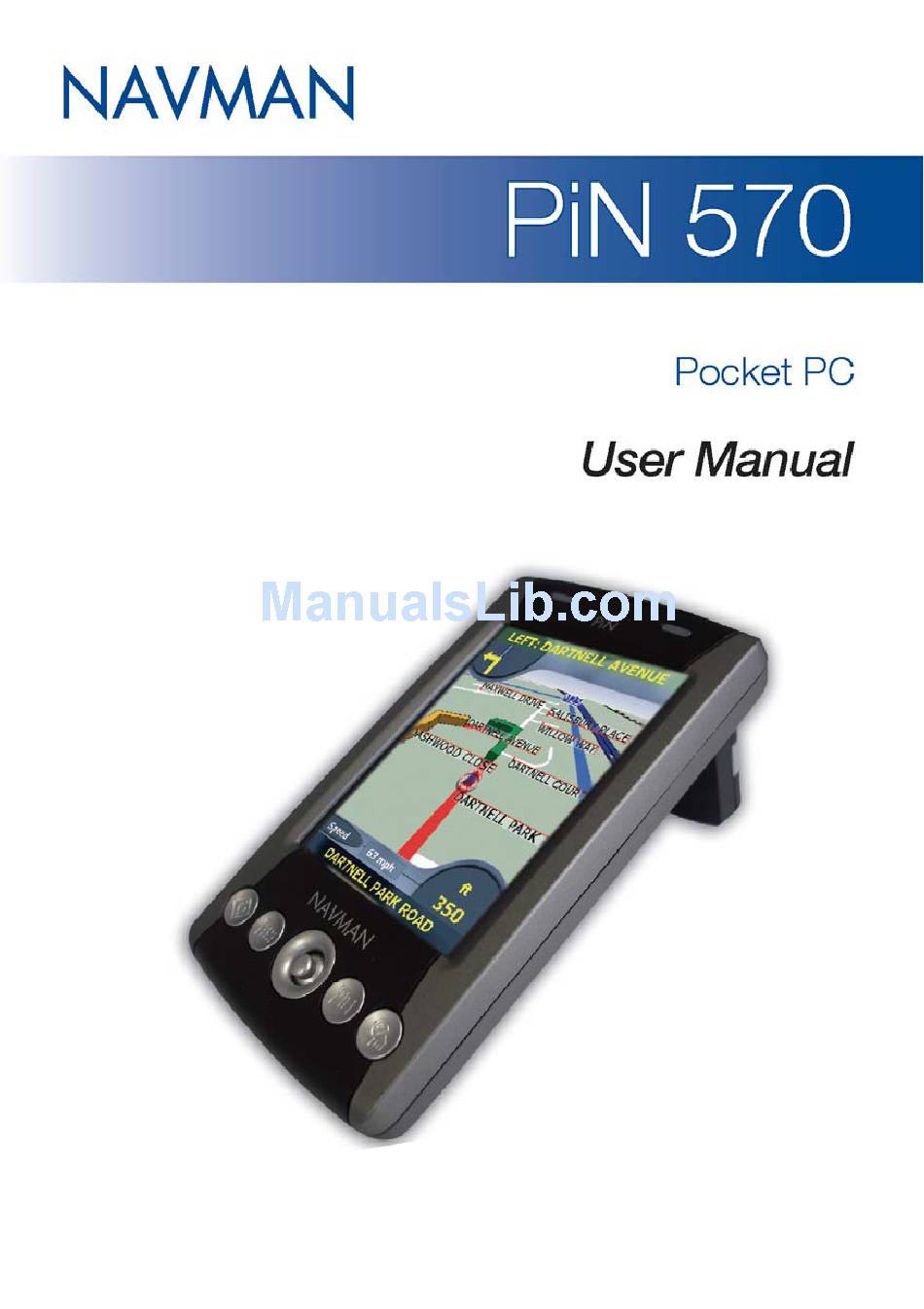

Navman PiN 570 User Manual
