SAFETY INFORMATION AND INSTALLATION MANUAL
Read these instructions completely before beginning installation. Failure to follow them could
cause a heater
malfunction and result in serious injury and/or property damage.
WARNING: All electric heaters have hot or sparking parts inside. Do not use it in areas where
gasoline, paint or flammable liquids are stored.
WARNING: This heater is tested and listed for use only with the optional accessories listed in
these instructions. Use of optional accessories not specifically tested for this heater could void
the heater warranty
and/or result in a safety hazard.

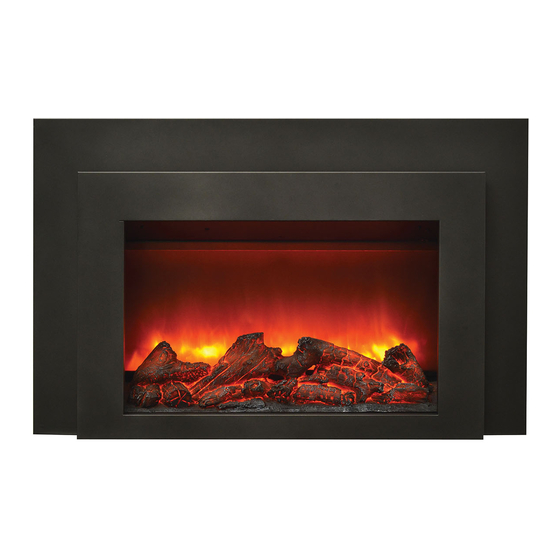

ELECTRIC FIREPLACES
INS-FM-30
INS-FM-34
ZC-FM-37
ZC-FM-45
1
Advertisement
Table of Contents
Related Manuals for Sierra Flame INS-FM-30
Summary of Contents for Sierra Flame INS-FM-30
- Page 1 ELECTRIC FIREPLACES SAFETY INFORMATION AND INSTALLATION MANUAL INS-FM-30 INS-FM-34 ZC-FM-37 ZC-FM-45 Read these instructions completely before beginning installation. Failure to follow them could cause a heater malfunction and result in serious injury and/or property damage. WARNING: All electric heaters have hot or sparking parts inside. Do not use it in areas where gasoline, paint or flammable liquids are stored.
-
Page 2: Table Of Contents
TABLE OF CONTENTS CONGRATULATIONS! In selecting this Sierra Flame Wall Mount OR Built-in electric fireplace, you have chosen the finest and most dependable fireplace on the market today. A beautiful and functional addition to the finest homes. Welcome to the family of satisfied Sierra Flame electric fireplace owners. -
Page 3: Safety Information
Keep this manual for future reference. SAFETY INFORMATION Due to high temperatures, the insert should be located out of traffic and away from furniture and draperies. Do not place clothing or other flammable material on or near the insert. Never place any objects on the insert. The insert can become very hot when running. -
Page 4: Listing Approvals
12. Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons. 13. Avoid the use of an extension cord because the extension cord may overheat and cause a fire. If you have to use an extension cord, the cord should be No. -
Page 5: Ins
INS-FM-30 INS-FM-3 Description Built-in Appliance This appliance has been tested in accor- Voltage 120V AC, 60 Hz dance with the UL Standand 2021 for Amps Watts 1500 W appliances in the United States and Cana- HIGH 1500W da. If you need assistance during installa-... -
Page 6: Ins-Fm-34
INS-FM-34 Description Built-in Appliance This appliance has been tested in accor- Voltage 120V AC, 60 Hz dance with the UL Standand 2021 for Amps Watts 1500 W appliances in the United States and Cana- HIGH 1500W HEATER da. If you need assistance during installa- 750W No HEATER 18.5W... -
Page 7: Zc-Fm-37
ZC-FM-37 This appliance has been tested in accor- Description Built-in Appliance dance with the UL Standand 2021 for Voltage 120V AC, 60 Hz Amps appliances in the United States and Cana- Watts 1500 W da. If you need assistance during installa- HIGH 1500W HEATER 750W... -
Page 8: Zc-Fm-45
ZC-FM-45 Description This appliance has been tested in accor- Built-in Appliance Voltage 120V AC, 60 Hz dance with the UL Standand 2021 for Amps Watts 1500 W appliances in the United States and Cana- HIGH 1500W da. If you need assistance during installa- HEATER 750W No HEATER... -
Page 9: Locating The Fireplace Insert
LOCATING THE FIREPLACE INSERT WARNING: Never locate this heater where it may fall into a bathtub or any water container. NOTICE: All clearances must be maintained to combustibles. Illustrations throughout these instructions reflect typical installations and are for design purposes only. Actual installations may vary slightly due to individual preferences. -
Page 10: Clearances When Built-In
CLEARANCES WHEN BUILT-IN MANTEL(maximum 12" (305mm) deep WALL MINIMUM 3/8" (10mm) CLEARANCE TO TOP 2"[50.8 mm] OF APPLIANCE( combustible or non-combustible) FRONT GLASS APPLIANCE SIDE VIEW MINIMUM 1" (25.4mm) CLEARANCE TO SIDES AND BACK OF APPLIANCE (combustible or non-combustible) FLOOR The fireplace insert may be placed within a framed enclosure that is level, dry, and capable of supporting the weight of the appliance and front glass. -
Page 11: Unpacking And Testing The Fireplace Insert
UNPACKING AND TESTING THE FIREPLACE INSERT Carefully remove the fireplace insert from the box. Remove the packing screws from both sides of the insert (see illustration to the right). Prior to installing the fireplace insert, plug the unit into a 120-volt grounded outlet and test operation. -
Page 12: Installation Overview-Masonry Fireplaces
INSTALLATION OVERVIEW – MASONRY FIREPLACES Cover plate is required if chimney does not have suitable rain cap. 2” (50mm) Minimum HINT: Close and seal the damper to prevent air infiltration. Attach the "This fireplace has been altered..." plate to the fireplace (use two screws or other suitable method). -
Page 13: Installation Overview-Zero-Clearance(Mental) Fireplaces
INSTALLATION OVERVIEW – ZERO-CLEARANCE (METAL) FIREPLACES Cover plate is required if chimney does not have suitable rain cap. The log shelf, screen, and doors (if present) must be removed. 2” (50mm) Minimum HINT: Close and seal the damper to prevent air infiltration. HINT: Attach the "This fireplace has been Paint the interior of the... -
Page 14: Operating Instructions
OPERATING INSTRUCTIONS REMOVING THE SURROUND GLASS Before removing the surround glass, make sure to have a suitable location to place the surround glass once it is removed. Do not place the glass on sharp or uneven areas that may chip or damage the tempered glass. Use both hands to lift the surround glass directly up. -
Page 15: Remoter Control Operation
REMOTE CONTROL OPERATION The button located at the top position of the remote control is ON/OFF. Press it, the flame and ember will be on. The heater will be off. Press again, the fireplace will turn off. “DISPLAY ON/OFF”: Switching the fireplace flame and tray light ON/OFF. It has functions of setting memory. -
Page 16: Direct Operation
DIRECT OPERATION 1. Power ON/OFF switch 2. Heat control button 3. Flame control button 4. HEATER LED 5. POWER LED Plug the heater into a suitable outlet. 1) “Power ON/OFF” Set this switch to position I to turn the product ON. Setting it to O to turn the product OFF. The POWER LED will be lit when the fireplace insert is on. -
Page 17: Clearing And Maintenance
CLEANING AND MAINTENANCE WARNING: Always disconnect the power and allow the heater to cool before performing any cleaning, maintenance or relocation. Turn the controls to OFF and remove the plug from the outlet or turn off the circuit breaker before attempting any cleaning. FRONT GLASS 1. -
Page 18: Replacement Parts
LED STRIP FOR FLAME LED-H30-3 ORANGE/YELLOW 601140D LED STRIP FOR LOG LED-H20-4 ORANGE/WHITE LED-H30-4 ORANGE/WHITE 601141D LED STRIP FOR LOG 10105051 REMOTE 10101201C WITH PLUG FLAME MOTOR 10104010 SWITCH 10305517 INS LOG INS-FM-30 10305516 INS LOG INS-FM-34 10305507B ZC-FM-37 10305509B ZC-FM-45... -
Page 19: Trouble Shooting
TROUBLE SHOOTING WARNING: Always disconnect power and allow the heater to cool before performing any cleaning, maintenance or relocation. Turn the controls to OFF and remove the plug from the outlet or turn off the circuit breaker before attempting any cleaning. OBSERVED PROBLEM POSSIBLE CAUSE REMEDY... -
Page 20: Exploded View
Exploded View... -
Page 21: Service History
SERVICE HISTORY... -
Page 22: Warranty
Products covered by this limited warranty have been tested and inspected prior to shipment and, subject to the provisions of this warranty, Sierra Flame warrants such products to be free from defects in material and workmanship for a period of one (1) year from the date of the first purchase of such products. - Page 23 In no event will Sierra Flame, including without limitation any of its directors, officers, shareholders, employees, consultants, agents, heirs, executors, administrators and assigns, be liable for any direct losses, costs or damages that exceed the purchase price of the product.
- Page 24 Date of Purchase: Dealer Information:...
