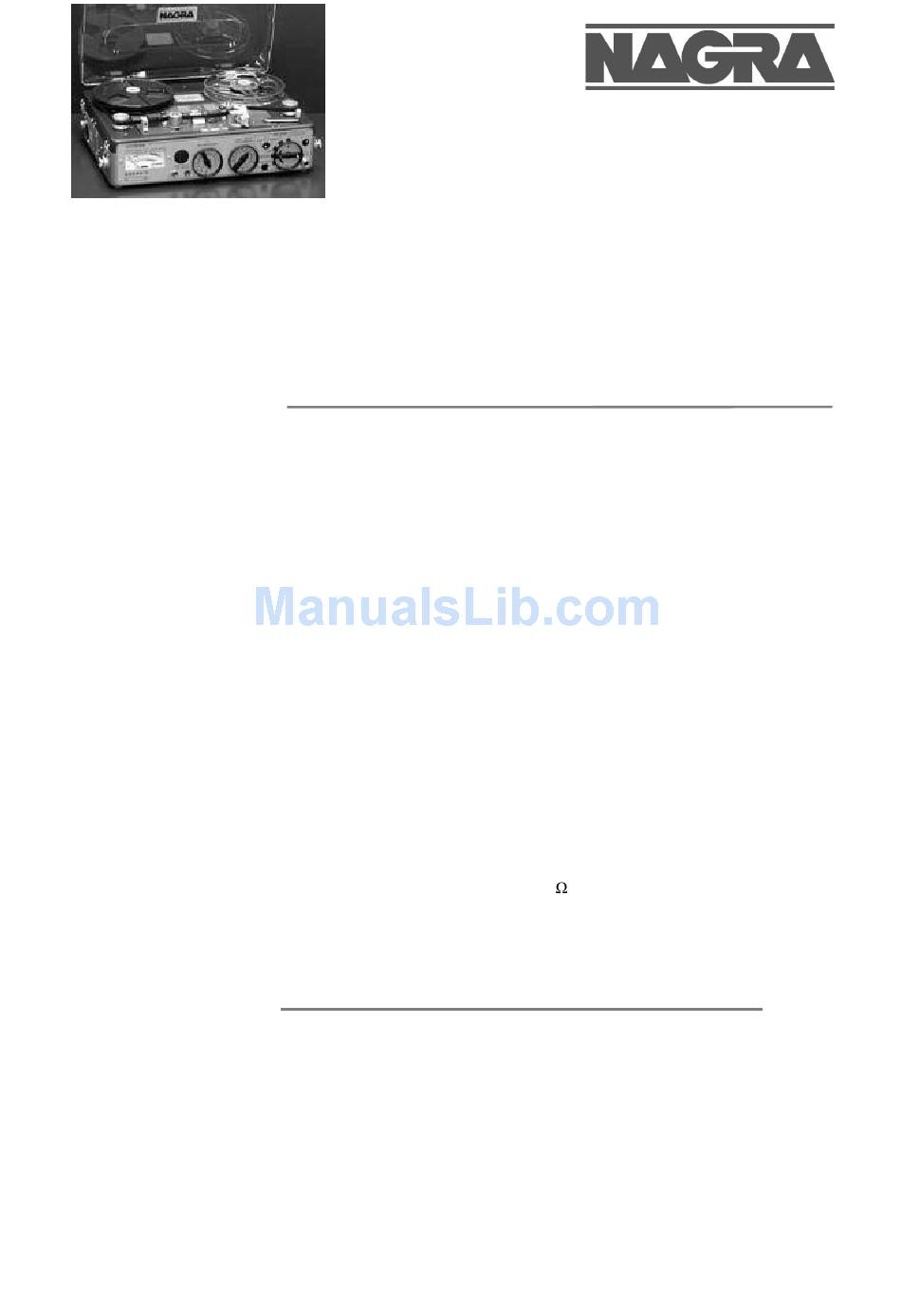

Nagra E Specifications

Portable mono analogue recorder
¼" analogue tape recorder
Designed for radio reporters
Single speed 19cm/s NAB or CCIR
Single microphone and balanced line input
Reference generator

General information

The Nagra E is particularly sturdy and simple to operate and service. It is designed to be adjustable and
serviceable in the field, thanks to its simple circuit design, component markings and the enclosed circuit diagram
indicating test points and voltages. Furthermore, the meter can be used as a voltmeter with the internally
provided test probe. A number of electronic components are enclosed for easy servicing.
The machine can be powered from either an external supply (ATN-4 Order # 70 14 378 000) or internal batteries
(12 D cells).

Specifications

THD at 400 Hz
Frequency response
Signal to noise ratio
Erase depth
Wow and flutter
Reference oscillator
Built in reference oscillator
Operating range
Autonomy

Inputs / output

Mic input
Mic powering
Sensitivity
Line input
Line

Physical

Dimensions
Weight

Optional accessories

External accessories
20 99032 000 ETS
70 98254 000 PA-4
70 13908 000 CS
Nagravision SA audio@nagra.com
Route de Genève www.nagra.com
221033 Cheseaux
Switzerland
Tel + 41 21 732 01 01
Fax + 41 21 732 02 12
Nagra E
< 0.9 % at 0 dB, < 2 % at +3 dB
50- 15000 Hz at +/- 2 dB
62 dB ASA A weighted
12000 Hz recorded signal > 79 dB
+/- 0.1 % (DIN 45507)
1 kHz signal, 0 VU level – 8 dB
For tape calibration –12 dB @ 1 kHz, 6.3 kHz and 10 kHz
- 20 to 70 °C
In continous operation 20 hours
3 pin XLR's
"T"power, Dynamic
From 0.2 mV to 4 mV / 0 dB
On microphone input, 2.5 mV / 0 dB
Assymetrical with output load > 300 , 0.94 V for 320 nWb/m
315 x 226 x 104 mm, (12.4 x 8.8 x 4 inch)
5.5 kg, 12.1 lbs (12 cells and tape included)
Soft carrying case, delivered with shoulder strap QHC-2
Set of 4 Ah rechargeable cells
Line output cable 3 m (10 ft), 2x3 banana
Nagra Office
CCIR Order # 70 02006 000
NAB
Confidence playback
Monitoring speaker
Modulometer
Self-contained
Lightweight and reliable
# 70 02008 000
NAGRA E V 1 October 02
