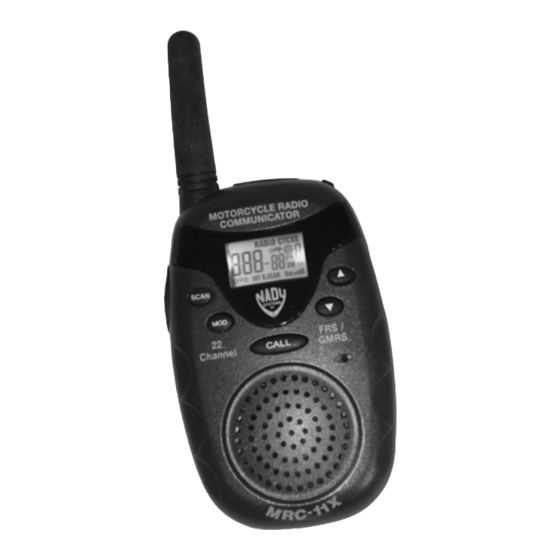

MRC-11X
Motorcycle Radio Communicator
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nady MRC-11X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Nady Systems Nady MRC-11X

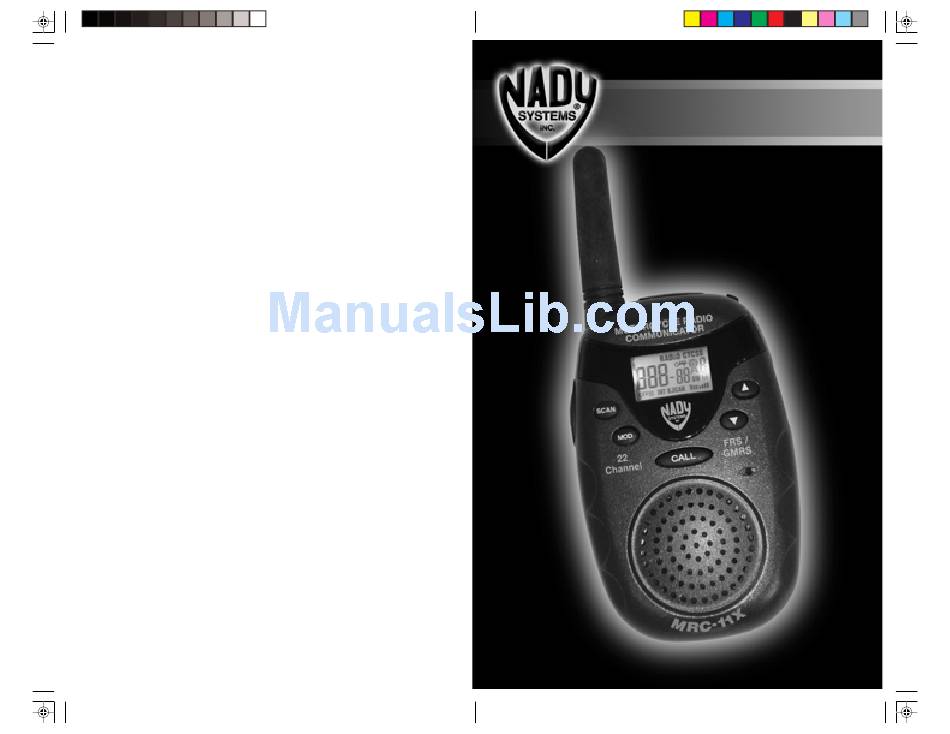

  • Page 1 MRC-11X Motorcycle Radio Communicator OWNER’S MANUAL...

  • Page 2: Table Of Contents

    Congratulations for your purchase of the MRC-11X bike-to-bike radio communicator with driver/passenger intercom. Designed with special features for motorcycle, snowmobile and other helmet/hard hat applications, the Nady MRC-11X offers the most advanced portable communication technology available to allow you to stay connected on the road.

  • Page 3: Advanced Features Summary

    ADVANCED FEATURES SUMMARY • FRS, GMRS, & shared FRS/GMRS (22 channels total / 462-467MHz) • Choice of 6 distinct Call tones for calling each of 6 other parties individually • 38 CTCSS privacy (lockout) tones • VOX (hands-free) transmission with 4-level sensitivity adjust user selectable for optimizing accurate triggering with varying background noise •...

  • Page 4: Care And Maintenance

    EXPOSURE TO RADIO FREQUENCY ENERGY The design of your MRC-11X, which generates radio frequency (RF) electromagnetic energy (EME), complies with the following national and international standards and guidelines. • FCC Report and Order FCC 96- 326 ( August, 1996) • American National Standards Institute ( C95- 1- 1992) •...

  • Page 5: Recharging Ni-Cad Or Ni-Mh Batteries

    RECHARGING NI-CAD OR NI-MH BATTERIES See Low Batteries Power Indication section on page 12, for instructions for determining when batteries are low. Warning: • Do not attempt to charge alkaline batteries. Non-rechargeable batteries can get hot or explode if you try to recharge them. Never attempt to charge non- rechargeable batteries.

  • Page 6: Controls

    CONTROLS • PWR/SET key 1. Press and hold key for over 3 seconds to turn the power on/off 2. Press momentarily to set data selected and to exit to standby after setting mode • DOWN key 1. Press key momentarily to set channel when in the channel set mode 2.

  • Page 7: Low Batteries Power Indication

    LOW BATTERIES POWER INDICATION As you use the unit, the battery icon’s elements will disappear one by one to show the remaining power. When only one element remains, replace alkaline batteries or recharge NiCad or Ni-MH batteries as soon as possible. USING THE BELT CLIP To use the supplied belt clip, insert the clip fully into the slot at the back of the radio unit.

  • Page 8: Radio & Intercom/Intercom

    OPERATION MANUAL dual channels setting is selected ON, the ( ) icon appears on the display and the unit will receive one either of the dual channel selected (basic channel and second channel). This Dual Watch monitor mode is especially useful when the signal you want to hear is consistently weak Dual channels transmission: If the dual channels in on, the ( display and the unit can transmit on either of dual channels (basic channel and...

  • Page 9: Setting Functions

    OPERATION MANUAL Setting Functions For all the function set modes: • Press the MODE key to save the set number selected and enter the next set mode. Press the PWR/SET key to save the set number and exit the set mode. Press the UP key or DOWN key to change the set number or status.

  • Page 10: General Specifications

    GENERAL SPECIFICATIONS Operating Frequency Range ... 462.563MHz-467.713MHz Number of Channels ... 22 total/GMRS + FRS Effective Radiated Power ... GMRS channels: 3W @ 6.0VDC FRS channels: 500mW @ 6.0VDC (power automatically selected for channels as required by FCC) Range ... Up to 7 miles (11Km) line-of-sight, 3/4 to 2 miles typical Modulation ...

  • Page 11: Ctcss Codes

    CTCSS CODES ASSIGNMENT ASSIGNMENT CODE NO. CODE NO. CODE NO. FREQ (HZ) FREQ (HZ) No Code 103.5 67.0 107.2 71.9 110.9 74.4 114.8 77.0 118.8 79.7 123.0 82.5 127.0 85.4 131.8 88.5 136.5 91.5 141.3 94.8 146.2 97.4 151.4 100.0 156.7 FRS / GMRS 22 CHANNEL CHART FREQ (HZ)

  • Page 12: Licensing Information

    Do not return the unit to the store before calling us. We can probably help you with one short phone call or E-mail. (International) For service or questions, please contact the Nady MRC-11X motorcycle accessories distributor in your country through the dealer from whom you purchased this product.
  • Page 13 NADY SYSTEMS, INC. nady.com...
