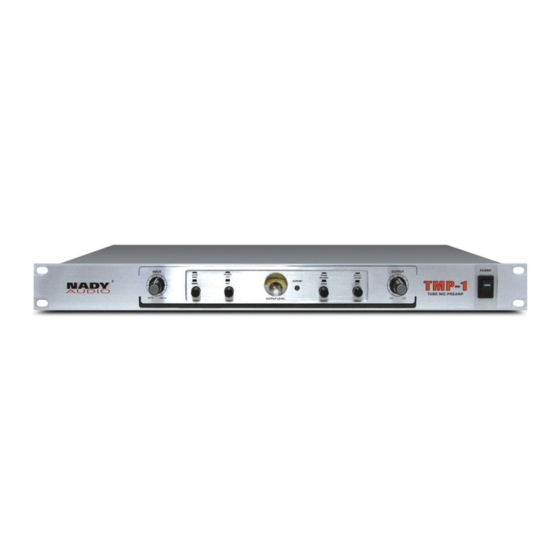

- Page 1 O W N E R ’ S M A N U A L TMP-1 TUBE MICROPHONE PREAMPLIFIER...
-
Page 2: Table Of Contents
Congratulations on your choice of tube mic preamps — you have purchased one of the finest tube mics on the market today. This unit was developed using the expertise of professional sound engineers and working musicians. You will find that your new NADY AUDIO TMP-1 has superior performance and greater flexibility than any other tube mic preamps in its price range. -
Page 3: Warning
ATTENTION RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR IMPORTANT SAFETY INSTRUCTIONS When using this electronic device, basic precautions should always be taken, including the following: Read all instructions before using the product. Do not use this product near water (e.g., near a bathtub, washbowl, kitchen sink, in a wet basement, or near a swimming pool, etc.). -
Page 4: Installation
(Note: Nady Systems is not responsible for shipping damage. If the unit is damaged, do not return to us, but notify your dealer and the shipping company immediately to make a claim. -
Page 5: Controls And Connectors
CONTROLS AND CONNECTORS FRONT PANEL Front Panel (1) POWER SWITCH Use this switch to power unit ON or OFF. The integrated LED will light when the unit is ON. Before turning on this unit, verify connection to the proper voltage AC source, check all connections and turn down the level controls of equipment connected to the outputs. -
Page 6: Rear Panel
CONTROLS AND CONNECTORS REAR PANEL (10) (11) Rear Panel (10) AC POWER CORD IEC CONNECTOR WITH INTEGRATED FUSE HOLDER This standard IEC power cord receptacle is used to connect the AC power to your unit. It features a built-in fuse holder for a 5X20mm, 0.5A/250V slow-blow fuse. -
Page 7: Specifications
SPECIFICATIONS Frequency Response: ... 10Hz—20KHz +/-3dB Total Harmonic Distortion (THD) + Noise: ... 0.1% S/N Ratio: ... >94dB Tone Controls Bass: ... +/-12dB / 100Hz Treble: ... +/-12dB / 10KHz Inputs: ... 6 X MIC (level/impedance): Balanced: 3mV ... 6 X LINE(level/impedance): Unbalanced: 100mV Outputs (All controls flat) High Output: ... - Page 8 DO NOT ATTEMPT TO SERVICE THIS UNIT YOURSELF AS IT CAN BE DANGEROUS AND WILL ALSO VOID THE WARRANTY. NADY SYSTEMS, INC. • 6701 SHELLMOUND STREET, EMERYVILLE, CA 94608 Tel: 510.652.2411 • Fax: 510.652.5075 • www.nady.com...
