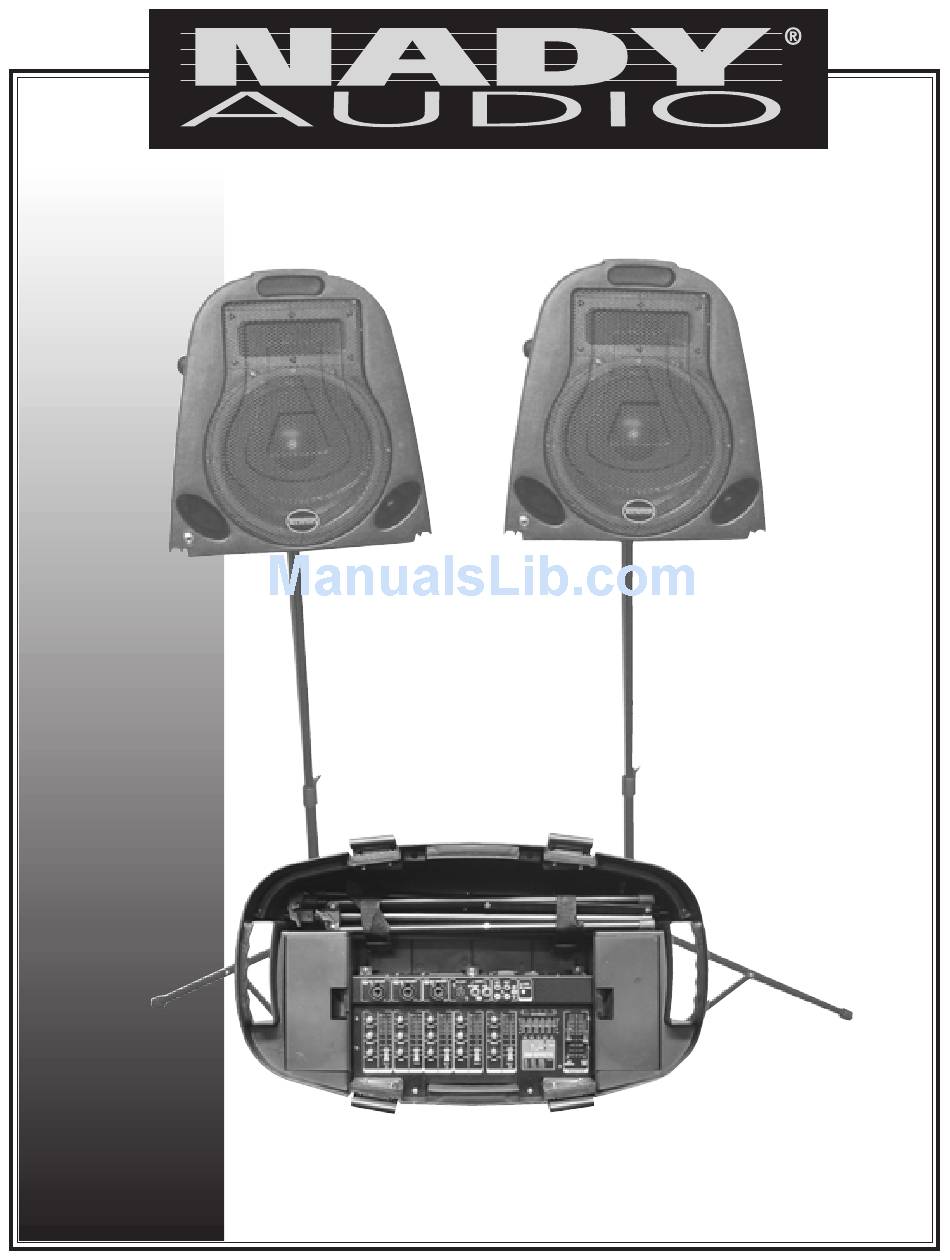

O W N E R ' S M A N U A L
Portable Sound System 150

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 150 and is the answer not in the manual?

Questions and answers

Related Manuals for Nady Audio 150

Summary of Contents for Nady Audio 150

  • Page 1 O W N E R ’ S M A N U A L Portable Sound System 150...
  • Page 2 PORTABLE SOUND SYSTEM 150 Congratulations on your choice of a portable sound system — you have purchased one of the finest portable sound systems on the market today. This unit was developed using the expertise of professional sound engineers and working musicians.

  • Page 3: Important Safety Instructions

    ATTENTION RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR IMPORTANT SAFETY INSTRUCTIONS When using this electronic device, basic precautions should always be taken, including the following: Read all instructions before using the product. Do not use this product near water (e.g., near a bathtub, washbowl, kitchen sink, in a wet basement, or near a swimming pool, etc.).
  • Page 4 Mixer Section Position the PSS-150 mixer section on its flat surface with the control panel facing up. Parts of the unit can become very warm during use. This is normal during operation.
  • Page 5 FRONT PANEL CONTROLS & CONNECTIONS (1) CHANNEL 1-3 COMBO XLR / 1/4' INPUT The XLR mic inputs are an electronically balanced XLR type designed to accept mic level signals from any balanced or unbalanced low impedance (Low Z) microphone. The XLR jacks are configured for: Pin1 = ground, Pin2 = positive (+), Pin3 = negative (-).
  • Page 6 FRONT PANEL CONTROLS & CONNECTIONS (9) DSP EFFECTS DISPLAY This is displays the selected effect out of 16 possible effect presets. (10) DSP EFFECTS SELECTOR The UP/DOWN buttons allow fast and easy scrolling in either direction through the 16 effect presets. Effects List: 0 —...

  • Page 7: Specifications

    AC source, check all connections and turn down the level controls of equipment connected to the outputs. (19) SPEAKER 1/4” OUTPUT JACKS Connect to the left and right PSS-150 speakers. SPECIFICATIONS prevent clipping distortion that can damage speakers...
  • Page 8 DO NOT ATTEMPT TO SERVICE THIS UNIT YOURSELF AS IT CAN BE DANGEROUS AND WILL ALSO VOID THE WARRANTY. NADY SYSTEMS, INC. • 6701 SHELLMOUND STREET, EMERYVILLE, CA 94608 Tel: 510.652.2411 • Fax: 510.652.5075 • www.nady.com...
