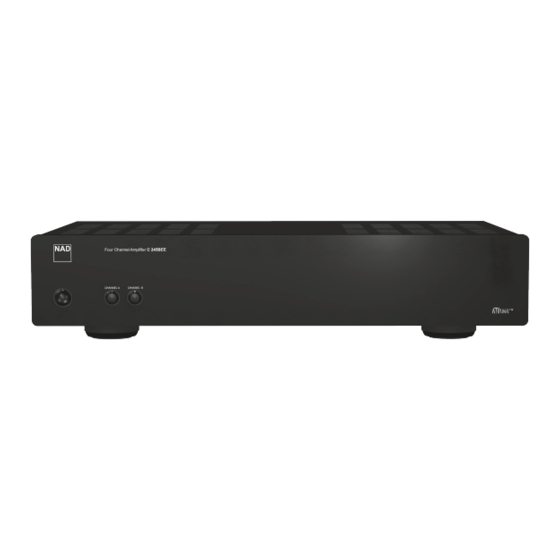

- Page 1 C 245BEE ® Four Channel Power Amplifier Owner’s Manual...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Save theSe inStructionS for later uSe. follow all warningS and inStructionS marked on the audio equipment. 1 read instructions - All the safety and operating instructions should be read before the product is operated. 2 retain instructions - The safety and operating instructions should be retained for future reference. - Page 3 Changes or modifications to this equipment not expressly approved by NAD Electronics for compliance could void the user’s authority to operate this equipment. caution regarding placement To maintain proper ventilation, be sure to leave a space around the unit (from the largest outer dimensions including projections) that is equal to or greater than shown below.
-
Page 4: Notes On Environmental Protection
Serial no.: ........NAD is a trademark of NAD Electronics International, a division of Lenbrook Industries Limited... -
Page 5: Getting Started
If the unit is not going to be used for some time, disconnect the plug from the AC socket. Should water get into your NAD C 245BEE, shut off the power to the unit and remove the plug from the AC socket. Have the unit inspected by a qualified service technician before attempting to use it again. -
Page 6: Identification Of Controls
IDENTIFICATION OF CONTROLS front panel 1 StandbY button: Press this button to switch ON the C 245BEE. The Standby LED indicator will turn from amber to blue. Pressing the STANDBY button again turns the unit back to standby mode. IMPORTANT NOTICE The rear panel POWER switch must be in the ON position for the STANDBY button to activate. -
Page 7: Rear Panel
ATTENTION! Please make sure that the C 245BEE is powered OFF or unplugged before making any connections. It is also advisable to power-down or unplug all associated components while making or breaking any signal or AC power connections. 1 channel b SpeakerS (applicable to channel b only): Connect the right speaker to the CHANNEL B SPEAKERS terminals marked “R +” and “R-” ensuring that the “R+” is connected to the “+” terminal on your loudspeaker and the “R-”... - Page 8 Refer also to the section below about “BRIDGE MODE”. Always use heavy duty (16 gauge; 1.5mm, or thicker) stranded wire to connect loudspeakers to your NAD C 245BEE. The high-current binding post terminals can be used as a screw terminal for cables terminating in spade or pin sockets or for cables with bare wire ends.
- Page 9 AUTOMATED TURN-ON LOGIC (ATO LOGIC) The C 245BEE may be turned ON in any one of three discrete ways for complete system flexibility - from the front panel standby button, the 12V- TRIGGER circuit or by the input signal-sensing circuit. The ON/OFF power control is managed by the Automated Turn-On logic or ATO Logic circuit that requires the C 245BEE to be switched back to standby mode in the ATO LOGIC CHART...
-
Page 10: Troubleshooting
REFERENCE troubleShooting condition No power. • The power cord is disconnected. • C 245BEE at standby mode. • Rear panel POWER switch not at ON setting. C BEE always at standby mode; • +12V TRIGGER IN/INPUT SENSE switch set to “AUTO” cannot be switched ON using the position and a jack is plugged-in at +12V Trigger IN front panel STANDBY button. -
Page 11: Overall Specifications
OVERALL SPECIFICATIONS channel a in or channel b in, channel a SpeakerS or channel b SpeakerS Continuous output power into 8 Ω and 4 Ω (both channels driven) Continuous output power into 8 Ω (Mono, Bridge mode) Rated THD (250 mW to rated power, CCIF IMD, DIM 100) IHF dynamic power (Bridge mode) - 8 Ω... - Page 12 All rights reserved. NAD and the NAD logo are trademarks of NAD Electronics International, a division of Lenbrook Industries Limited. No part of this publication may be reproduced, stored or transmitted in any form without the written permission of NAD Electronics International.
